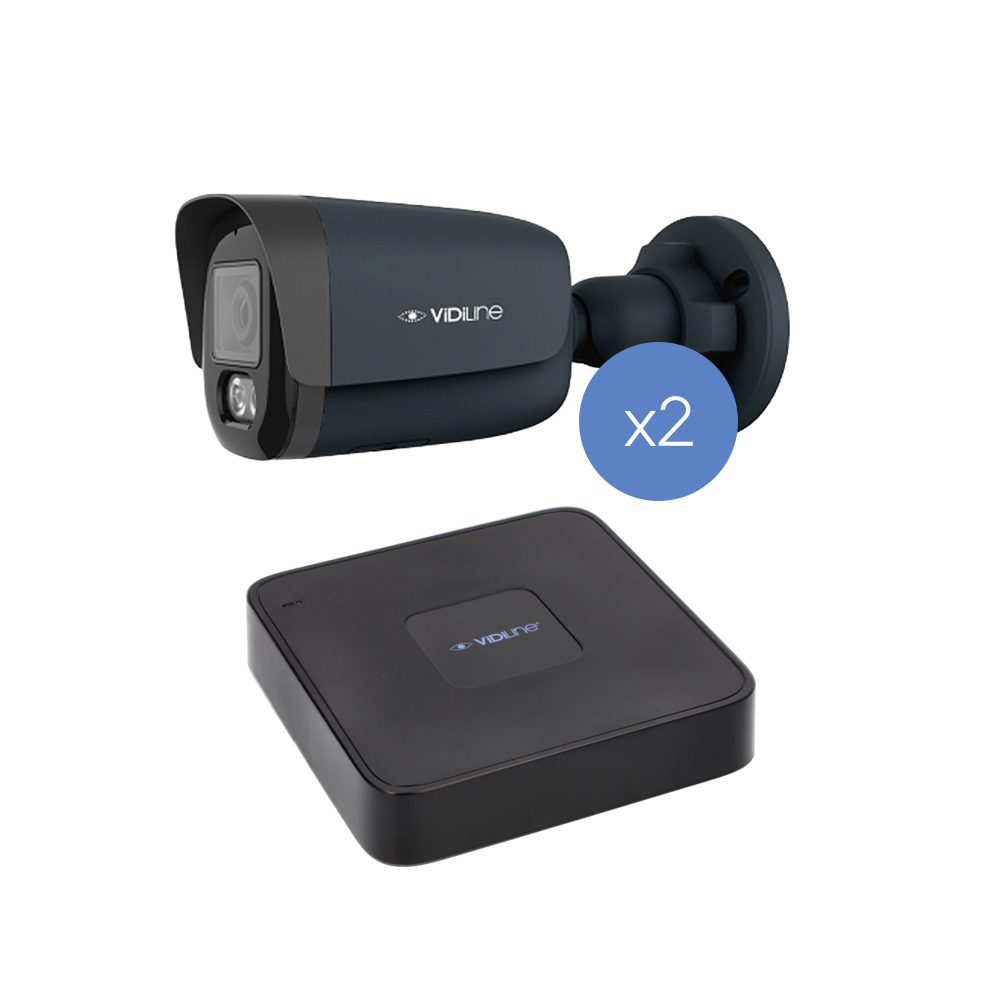

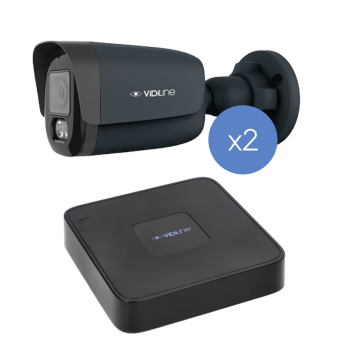

ViDiLine IP Monitoring Set 2 Cameras 5Mpx SMD PoE Recorder

• Number of video channels:5
• Number of PoE outputs:4 x PoE for connecting and powering cameras
• Camera resolution:5Mpx
• Microphone built into the cameras
• Transducer sensitivity:Kolor: 0,0002 Lux
• Tightness class:IP67
• Night vision:do 50m
• P2P:Yes - preview via smartphone

• Recorder IP ViDiLine VIDI-NVR-615-4P x1 szt
• Camera IP tubewa ViDi-IPC-35T x2 szt

For the set to operate, connection cables and a hard drive are required, available on our website and in the set accessories below.

Network recorder with 5 IP channels with four PoE ports for direct connection of IP cameras without using an additional PoE switch.

• Technology:IP
• Number of video channels:5 IP
• Number of PoE outputs:4 x PoE for connecting and powering cameras
• Video output:1x HDMI
• Supported cameras:do 5Mpx
• Bitrate:60Mbps/40Mbps
• Compression:H.264, H.265, S+265
• Number of HDDs:1 disk up to 8TB
• Onvif:Profil S/T
• P2P:Yes - preview via smartphone

The ViDiLine ViDi-IPC-35T camera is an IP camera with a resolution of 5 Mpix in a tube housing made of metal with Dual Light illumination. The camera is equipped with two high-power dual diodes, used to illuminate the scene up to 50 m for a black and white image and up to 10 m for a color image, guaranteeing a detailed image at night

• Resolution:5Mpx
• Night visibility:50 m
• Power supply:PoE, DC 12V
• Tightness:IP67
• Built-in microphone
• Onvif:Profil S/T/G

The ViDiLine VIDI-NVR-615-4P recorder is a 5-channel IP recorder, supporting cameras up to 5Mpx, with 4 PoE ports for direct power supply of cameras, unrivaled in price in its category. The recorder combines two devices, a classic IP recorder and a PoE switch, limiting the number of elements in video monitoring. Starting the system has been limited to a minimum and only requires connecting the recorder with the cameras and inserting the HDD. By default, the recorder is set to continuous recording and predefined PoE channels for IP cameras, so it is ready for operation within minutes. The device has the Onvif protocol allowing the connection of cameras from other manufacturers.

Dual Light technology in ViDiLine cameras is an advanced lighting system that combines white light and IR infrared, ensuring visibility in all lighting conditions. By intelligently switching between white and infrared light, cameras can automatically adjust the type of lighting to the prevailing conditions, enabling bright and readable images at night. This technology not only significantly improves image quality in various lighting scenarios, but also increases the effectiveness of monitoring by deterring potential intruders with white light when motion is detected.

Thanks to this, the camera can be connected via this integration protocol to recorders from other companies that have Onvif.

It means adapting the camera to work even in the most difficult weather conditions.

The camera connects to a dedicated cloud via P2P, providing camera preview and management via the VideoSight/ViDiView mobile application for smartphones.
