KAMERA IP TC-C35XP 3FRA-28 Color Maker / Lite Series - 5 Mpx 2.8 mm TIANDY

KAMERA IP TC-C35XP 3FRA-28 Color Maker / Lite Series - 5 Mpx 2.8 mm TIANDY

€1,399.58
Tax included
  • Resolution: 3072 × 1728; Transducer: 1/2.7"
  • Viewing angle: 109°
  • Range of white light illuminator (LED): 15 m
  • Audio: Built-in microphone
  • Memory card slot: Supports Micro SD cards up to 512GB
  • Image compression method: S+265
  • Power supply: PoE (802.3af), 12 V DC
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

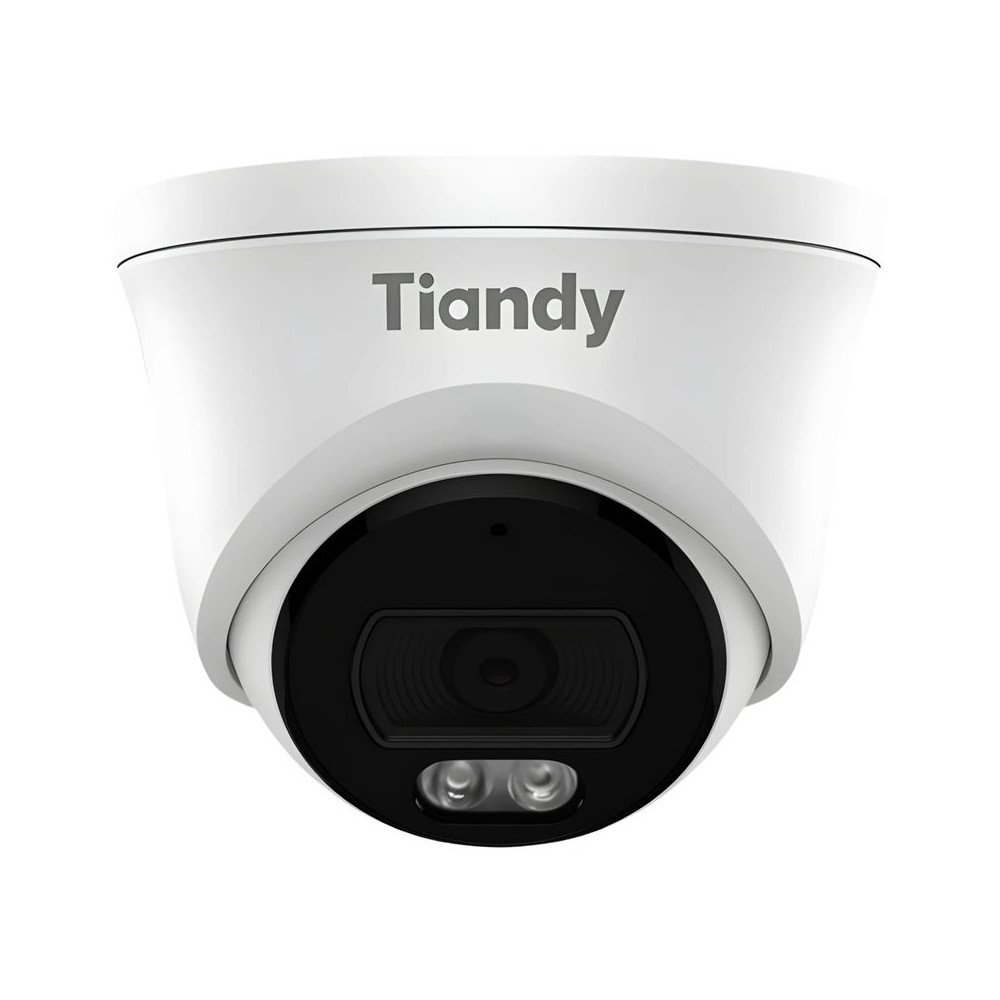

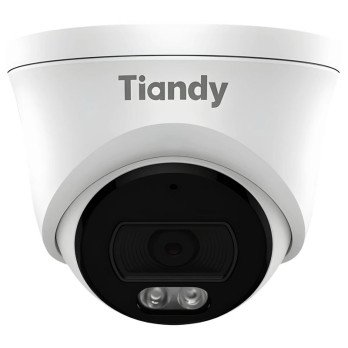

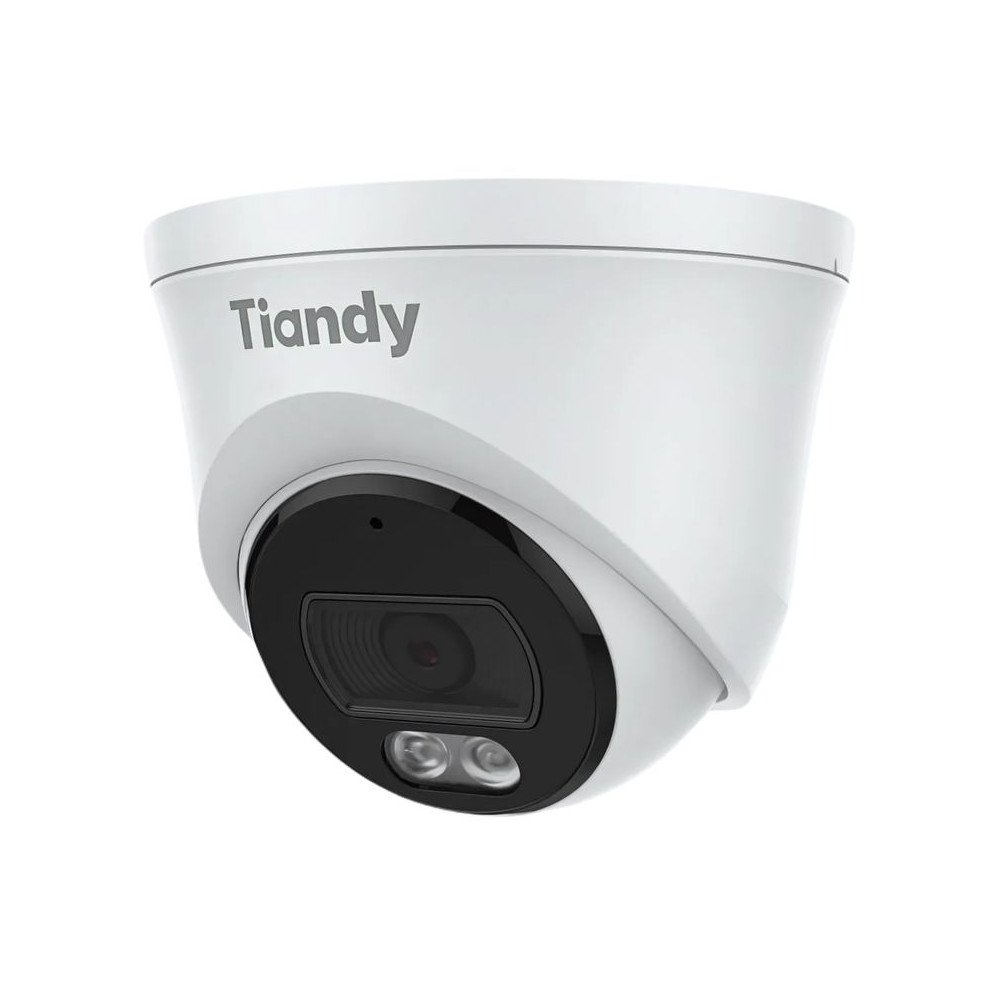

5 Mpx turret camera (3072×1728@30 fps) with a fixed 2.8 mm lens and Color Maker technology ensures clear, colorful images even in very low light conditions and WDR 120 dB. It supports human/vehicle classification, records on microSD up to 512 GB and has a built-in microphone; PoE or 12 V power supply and IP67 housing make it suitable for outdoor applications.

Standard: IP
Product series: Color Maker / Lite Series
Resolution: 3072 × 1728 - 5 Mpx
Converter: 1/2.7 " CMOS
Lens: 2.8 mm
Viewing Angle: 109 °
Range of white light illuminator (LED): 15 m
Audio:
  • Built-in microphone
Memory card slot: Micro SD card support up to 512GB
Image compression method: S+265 / H.265 / H.264
Alarm inputs/outputs: NO
Main stream transmission speed: 25 kl/s @ 5 Mpx

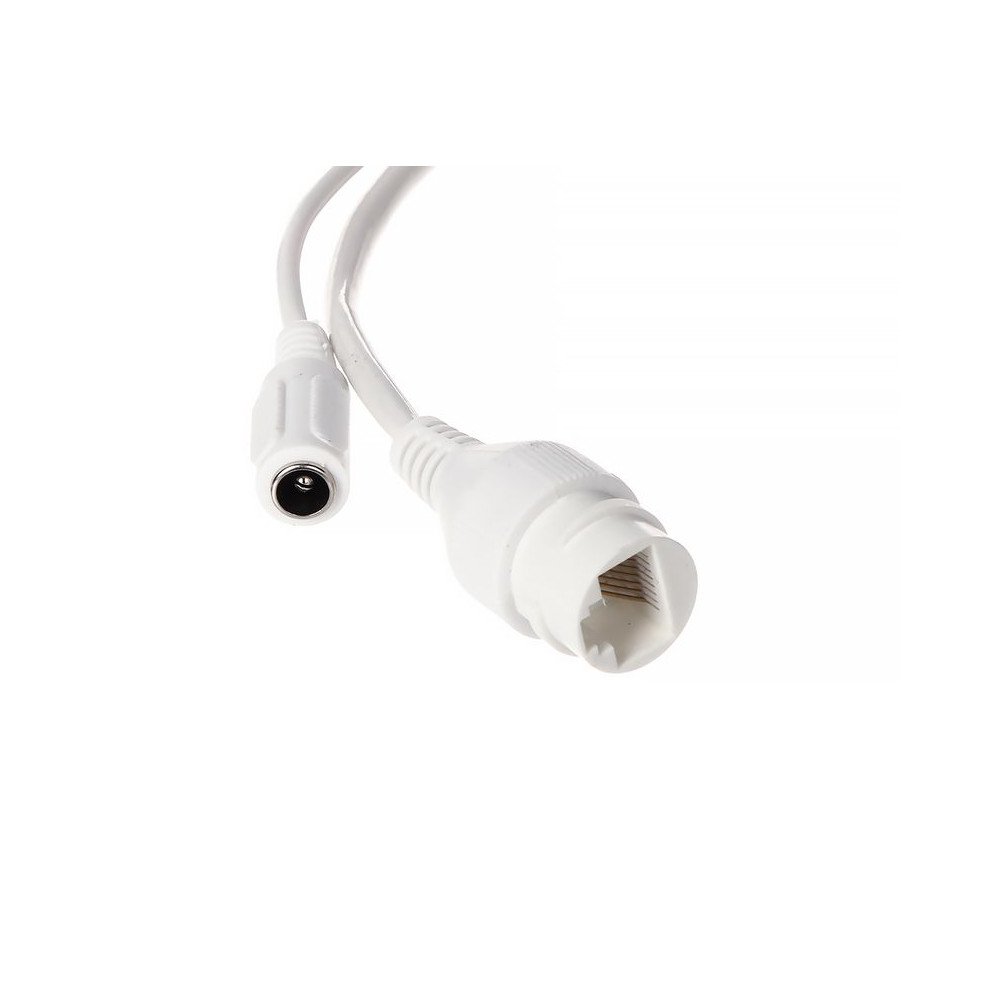

Interface: 10/100 Base-T (RJ-45)
WEB Server: Built-in
Max. number of online users: 2
ONVIF: Not
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express
Default IP address: 192.168.1.2
Default administrator login/password: admin / -
An administrator password must be set at first startup
Web access ports: 80, 433, 3000, 3001, 3002, 23002
Access port via mobile application: 3000, 3001
Access ports via PC application: 3000, 3001
Port ONVIF: 80
Intelligent face analysis:
  • classification of people and vehicles
  • crossing the line
  • perimeter protection
Selected features:
  • When Color Maker is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality
  • WDR - 120 dB - Wide dynamic range of lighting
  • 3D-DNR - Digital image noise reduction
  • F-DNR (Defog) - Reduction of noise related to precipitation
  • ROI - improving the quality of selected image fragments
  • AGC - Automatic image gain control
  • ANR - image recording on the card when there is no connection with the recorder (network failure) and subsequent synchronization
  • BLC/HLC - background light/strong light compensation
  • Privacy zones - max. 4
  • Automatic white balance
  • RTC (Real-Time Clock) - a real-time clock module that allows you to accurately maintain the current time regardless of external synchronization sources. This allows you to precisely time-stamp recordings, which is crucial for effective monitoring and analysis of events
Power supply:
  • People (802.3AF),
  • 12 V DC / 500 mA
Power consumption: ≤ 6 W @ 12 V
≤ 7 WOI (802.3AF)

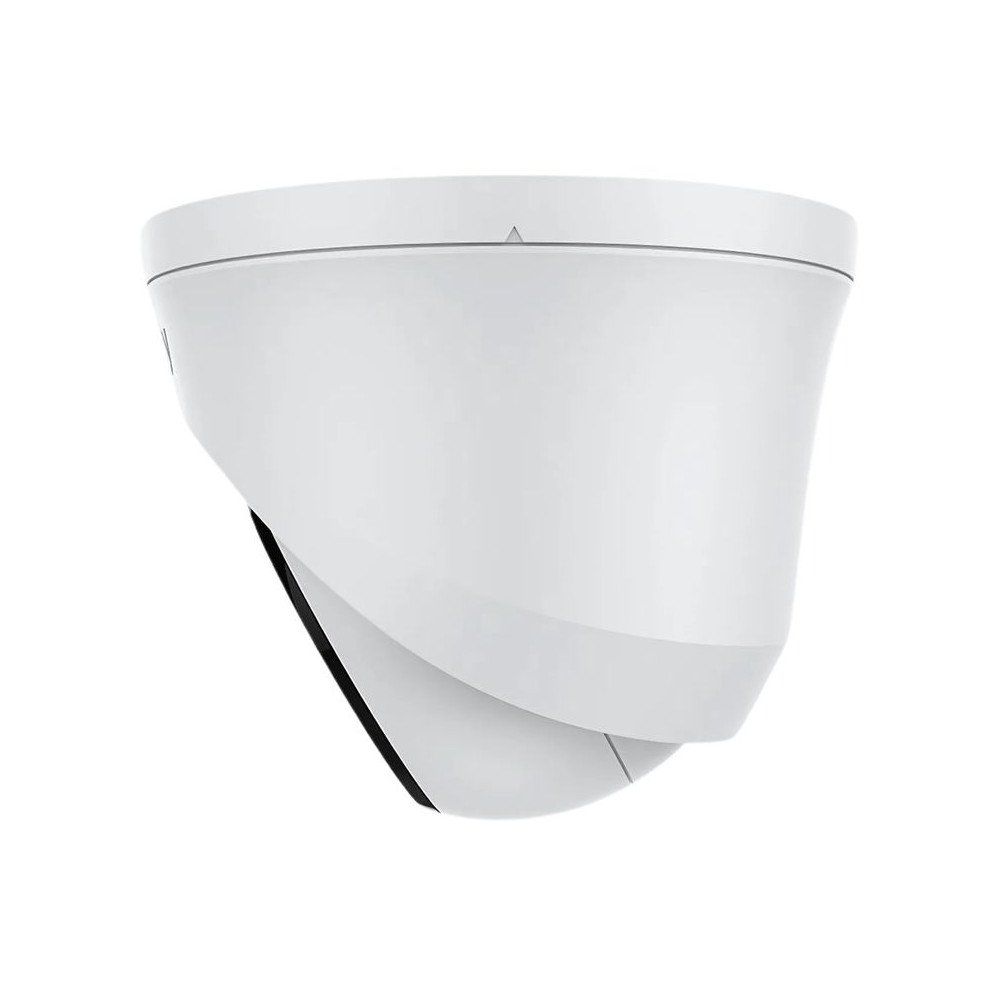

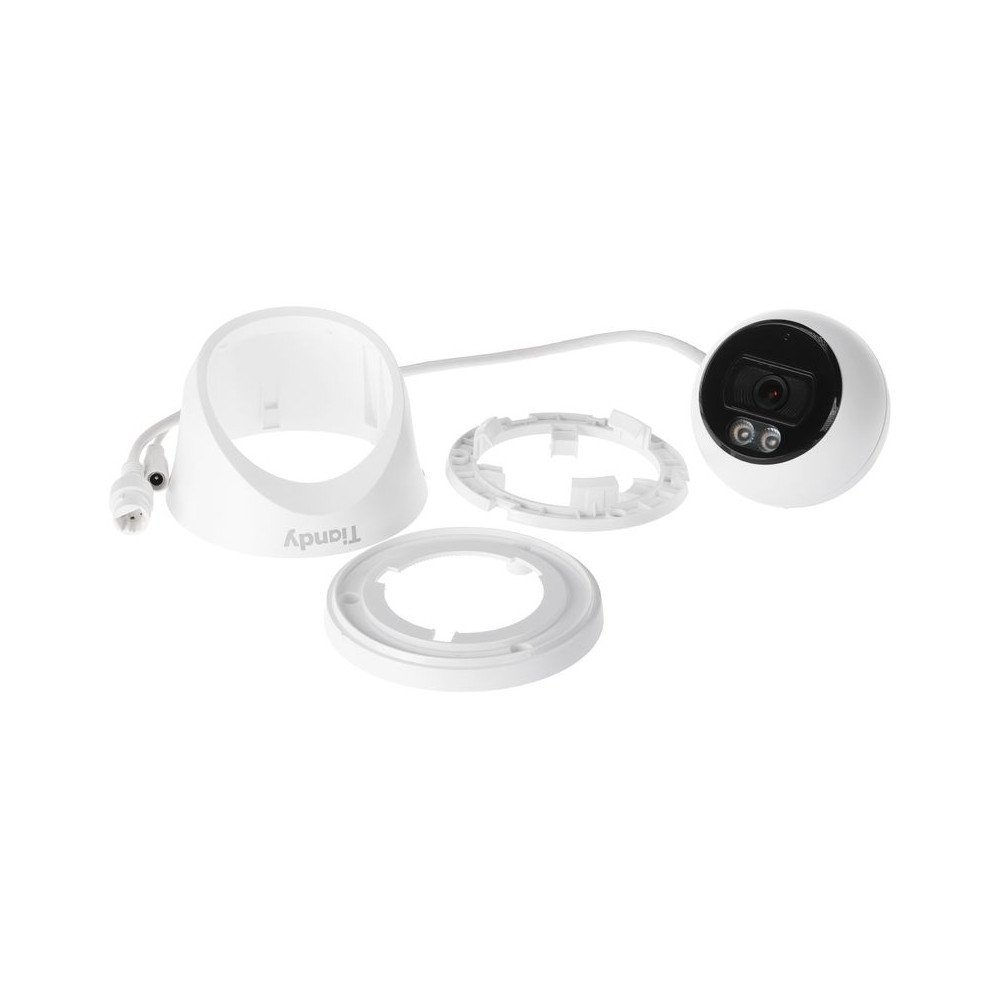

Case: Dome - Metal + Plastic
Color: White
Tightness class: IP67
Mechanical protection class: NO
Operating temperature: -35 °C ... 65 °C
Libra: 0.32 kg

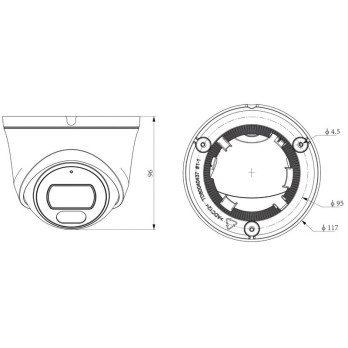

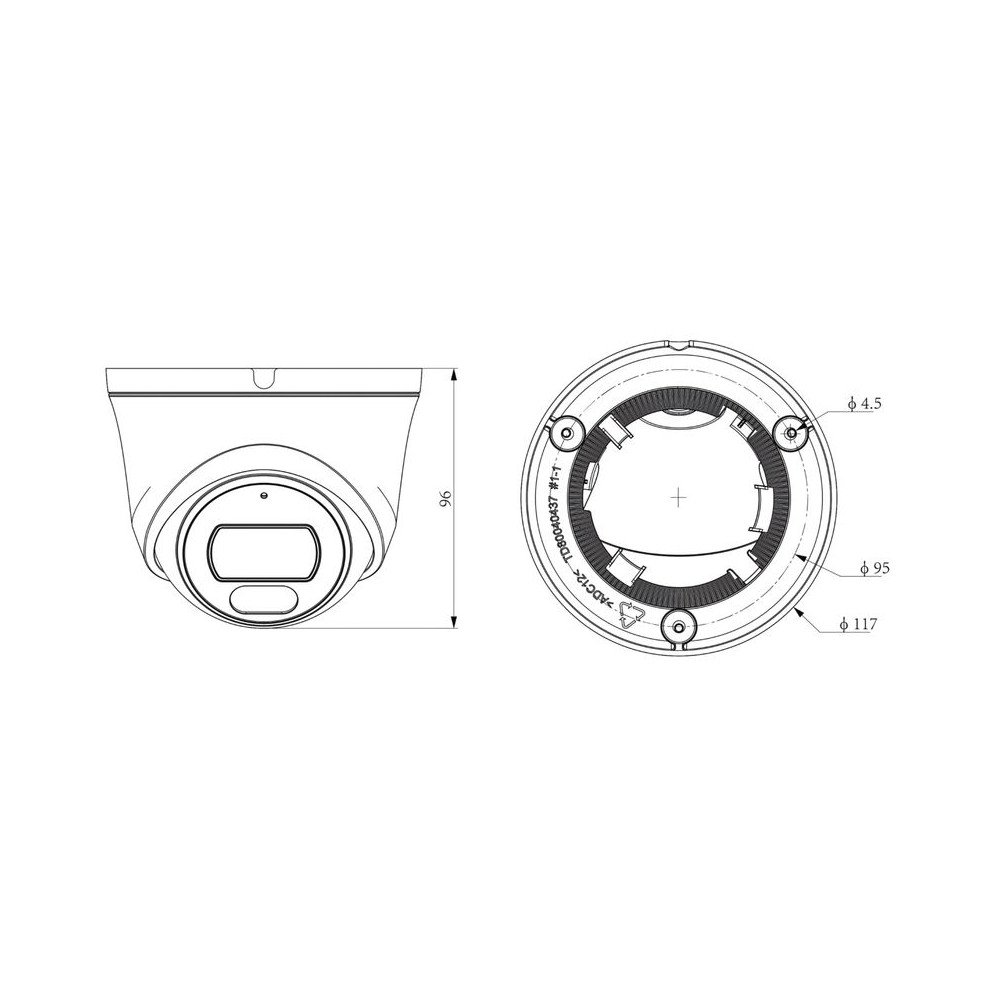

Dimensions: Ø 117 x 96 mm
Supported languages: Polish, English, Albanian, Arabic, French, Greek, Hebrew, Spanish, Dutch, Korean, Portuguese, German, Russian, Thai, Turkish, Ukrainian, Italian, Vietnamese
NDAA Certification: Not
Manufacturer / Brand: TIANDY
Guarantee: 3 lata
Tiandy
NS35598
1 Item

Data sheet

Protocol
BLE
CIP
GRE
LIN
ONVIF
PoE
Voltage
12V
IP Class
IP67
Image compression method
H.264
H.265
