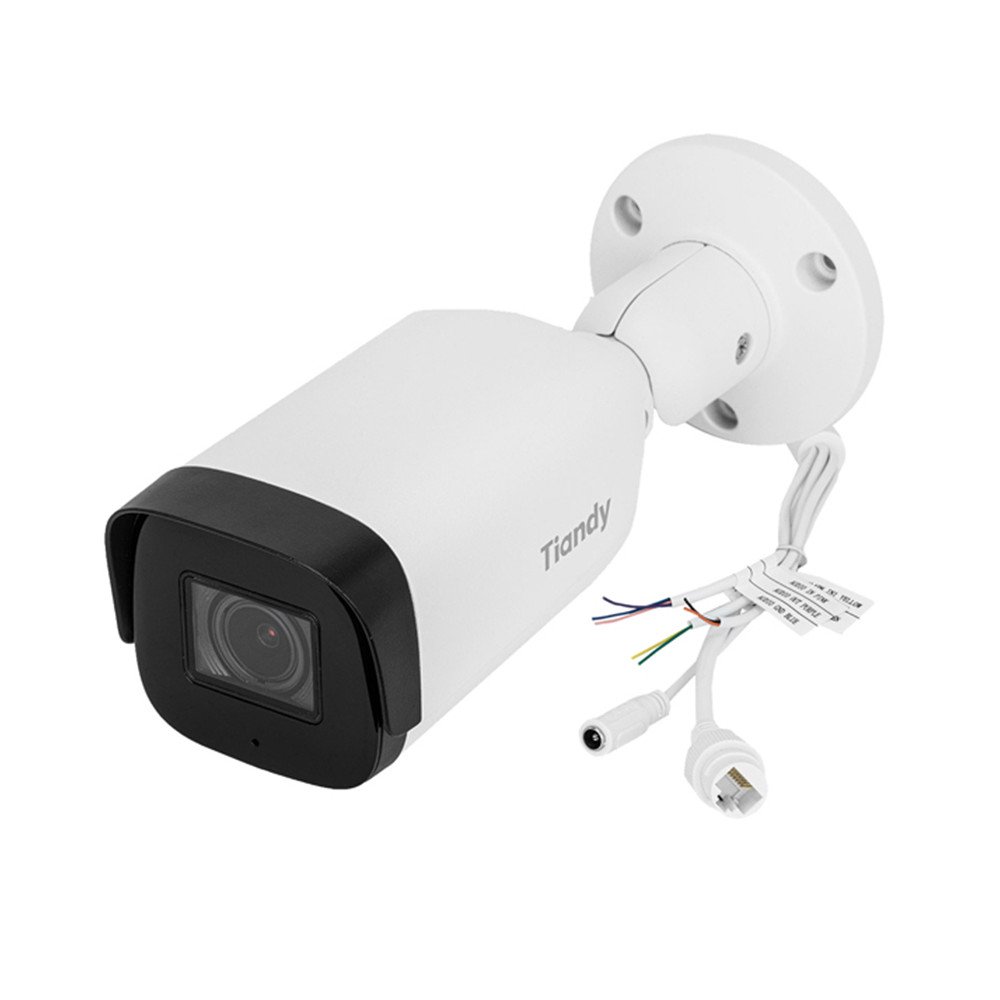

Kamera IP 8 Mpx Motozoom PoE TC-C38US SPEC:LK/I8/A/E/Y/M/S/H/2.7-13.5MM/V4.0 Lite Series

Kamera IP 8 Mpx Motozoom PoE TC-C38US SPEC:LK/I8/A/E/Y/M/S/H/2.7-13.5MM/V4.0 Lite Series

€2,653.80
Tax included
  • Resolution: 3840 x 2160, 3072 x 2048, 2560 x 1440, 2304 x 1296, 1920 x 1080; Transducer: 1/2.8"
  • Lens: - Motozoom
  • Viewing angle: 109° ... 32°
  • IR illuminator range: 80 m

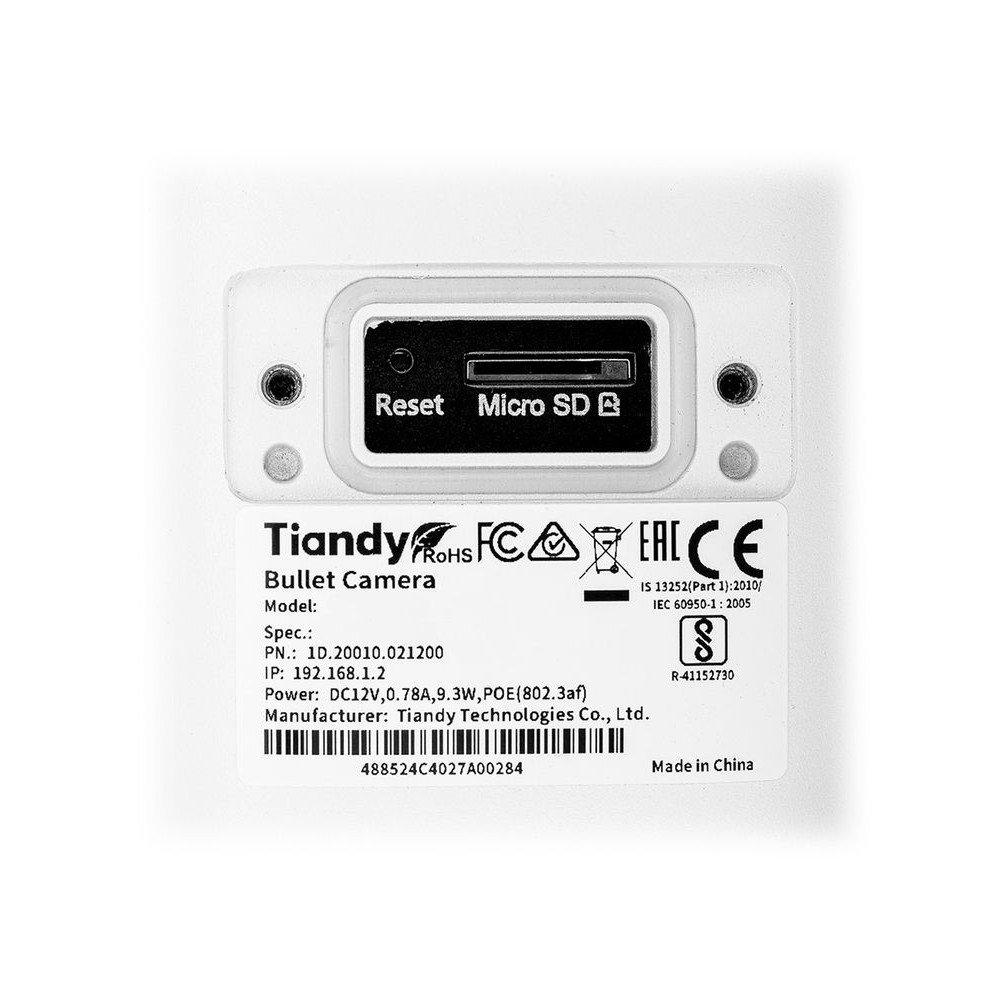

  • Memory card slot: Supports Micro SD cards up to 512GB
  • Image compression method: S+265
  • Alarm inputs/outputs: 1 / 1; Audio: Built-in microphone, Support two-way audio
  • Power supply: PoE (802.3af), 12 V DC
  • It would be: Lite
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Lite series IP camera with efficient S+265 image compression algorithm ensuring efficient, smooth image transmission

PoE power supply option in accordance with the 802.3af standard makes the device even more universal and easier to install

The range of the illuminator provided by the manufacturer depends on the environmental conditions (air transparency, surroundings, wall color, i.e. the so-called scene reflectance)

Standard: IP
Resolution: 3840 x 2160 - 8 Mpx ,
3072 x 2048 - 6 Mpx ,
2560 x 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p ,
1280 x 720 - 720p
Converter: 1/2.8 " Progressive Scan CMOS
Lens: 2.7 ... 13.5 mm - Motozoom
Viewing Angle: 109 ° ... 32 °
IR illuminator range: 80 m
Interface RS-485: NO

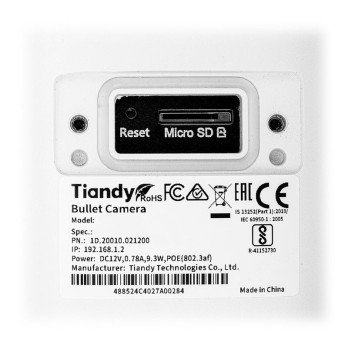

Memory card slot: Micro SD card support up to 512GB
Image compression method: S+265 / H.265 / H.264

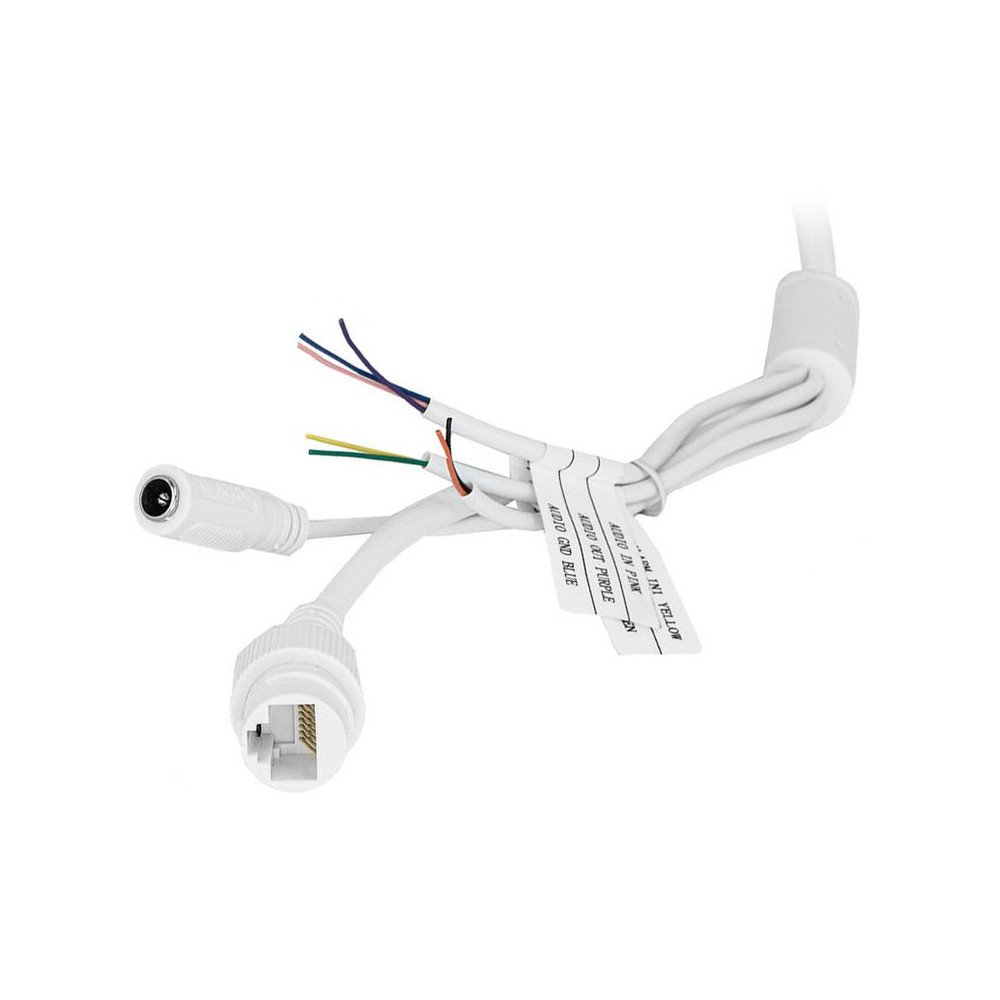

Alarm inputs/outputs: 1 / 1
Audio:
  • Built-in microphone,
  • Audio input
  • Audio output
  • Audio transmission over the network
  • Two-way audio support
  • AAC compliant
Main stream transmission speed:
  • 20 kl/s @ 8 Mpx
  • 25 kl/s @ 3.7 Mpx
Network interface: 10/100 Base-TX (RJ-45)
WEB Server: Built-in
Max. number of online users: 2
ONVIF: NO
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express
Default IP address: 192.168.1.2
Default administrator login/password: admin / -
An administrator password must be set at first startup
Web access ports: 80, 443, 3000, 3001, 3002, 23002
Access port via mobile application: 3000, 3001
Access ports via PC application: 3000, 3001
Port ONVIF: 80
Intelligent face analysis:
  • classification of people and vehicles
  • crossing the line
  • video sabotage
  • face detection
Selected features:
  • Motor zoom lens
  • WDR - 120 dB - Wide dynamic range of lighting
  • 3D-DNR - Digital image noise reduction
  • F-DNR (Defog) - Reduction of noise related to precipitation
  • ROI - improving the quality of selected image fragments
  • NAS support - Network Attached Storage - allows you to connect memory resources directly to the computer network
  • ANR - image recording on the card when there is no connection with the recorder (network failure) and subsequent synchronization
  • BLC/HLC - background light/strong light compensation
  • ICR - Mechanical infrared filter
  • Day/night mode
  • Ability to change resolution, quality and bandwidth
  • Sound detection
Power supply:
  • People (802.3AF),
  • 12 V DC / 670 mA
Power consumption: ● 9 WO
≤ 8 W @ 12 V DC

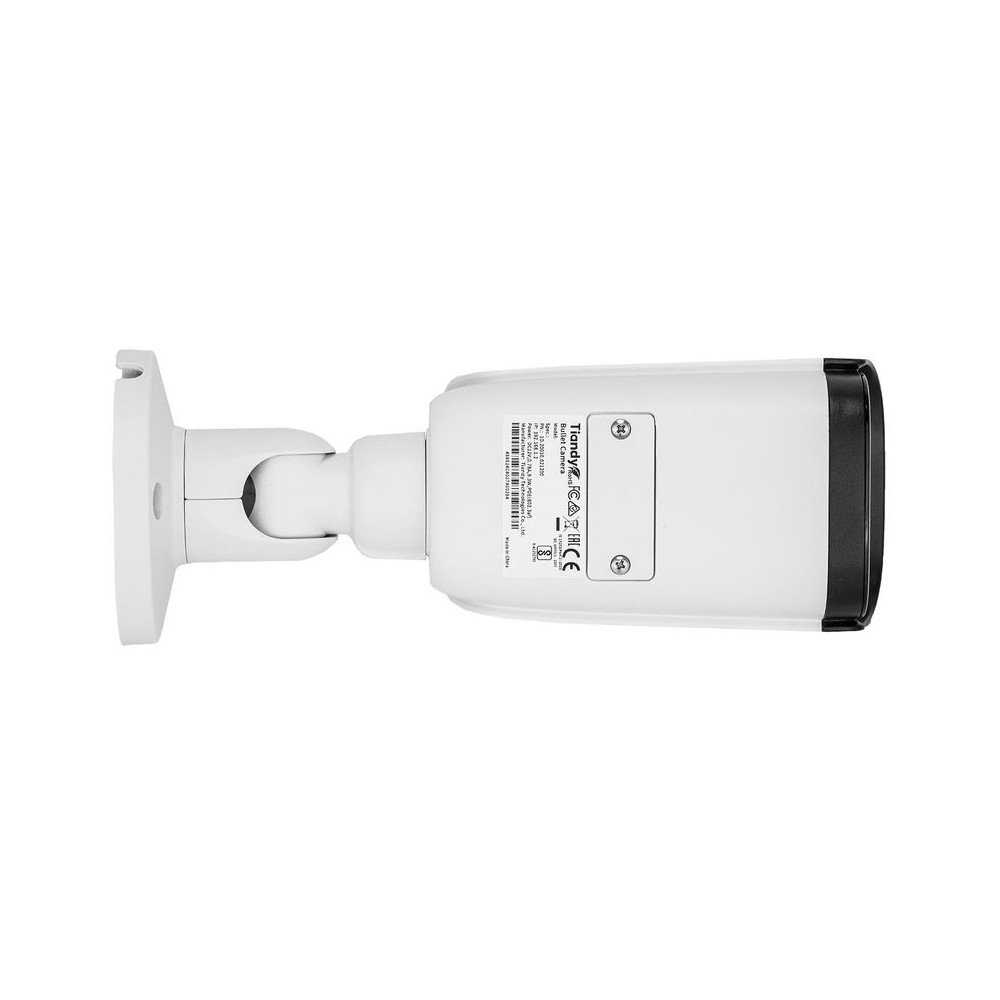

Case: Compact - Metal
Color: White
Tightness class: IP67
Mechanical protection class: NO
Operating temperature: -40 °C ... 65 °C
Libra: 0.97 kg

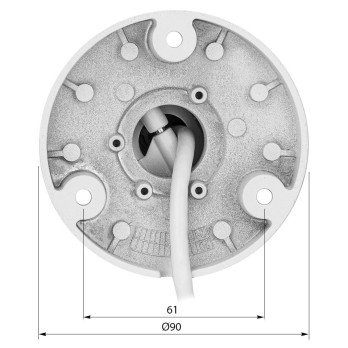

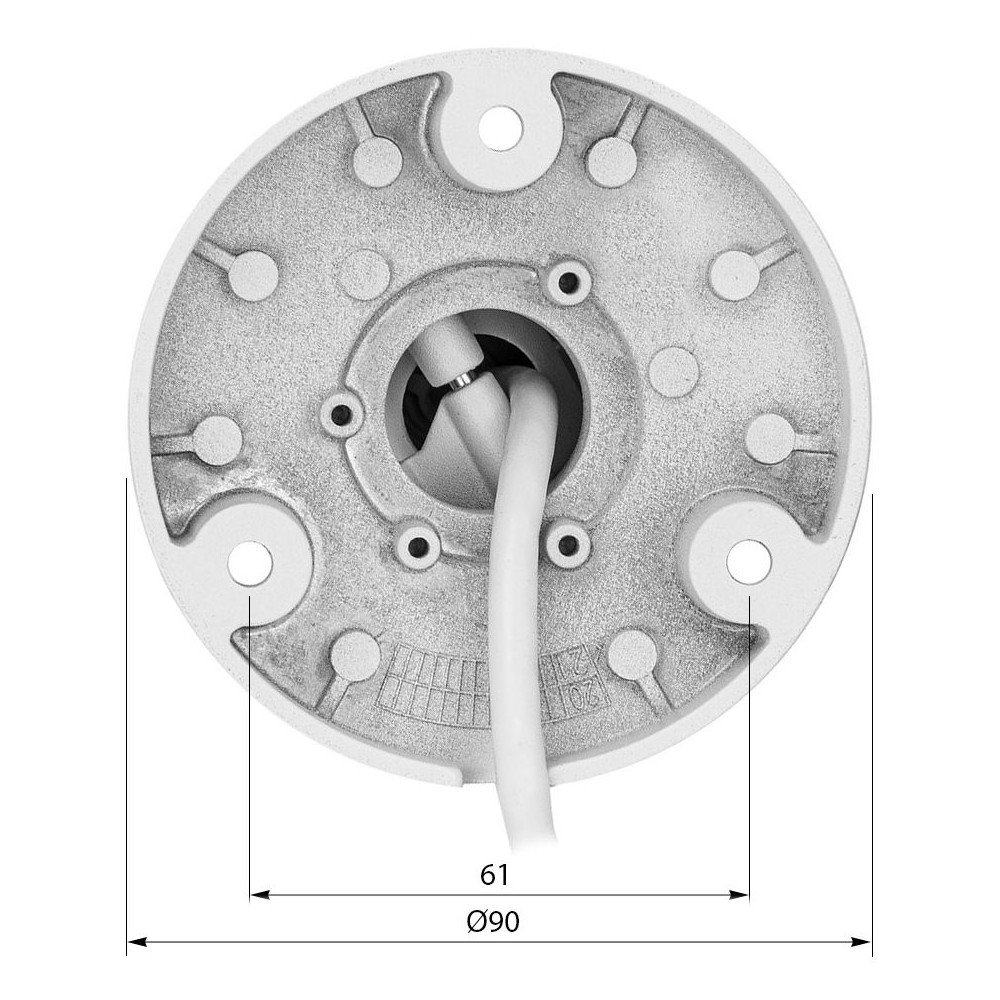

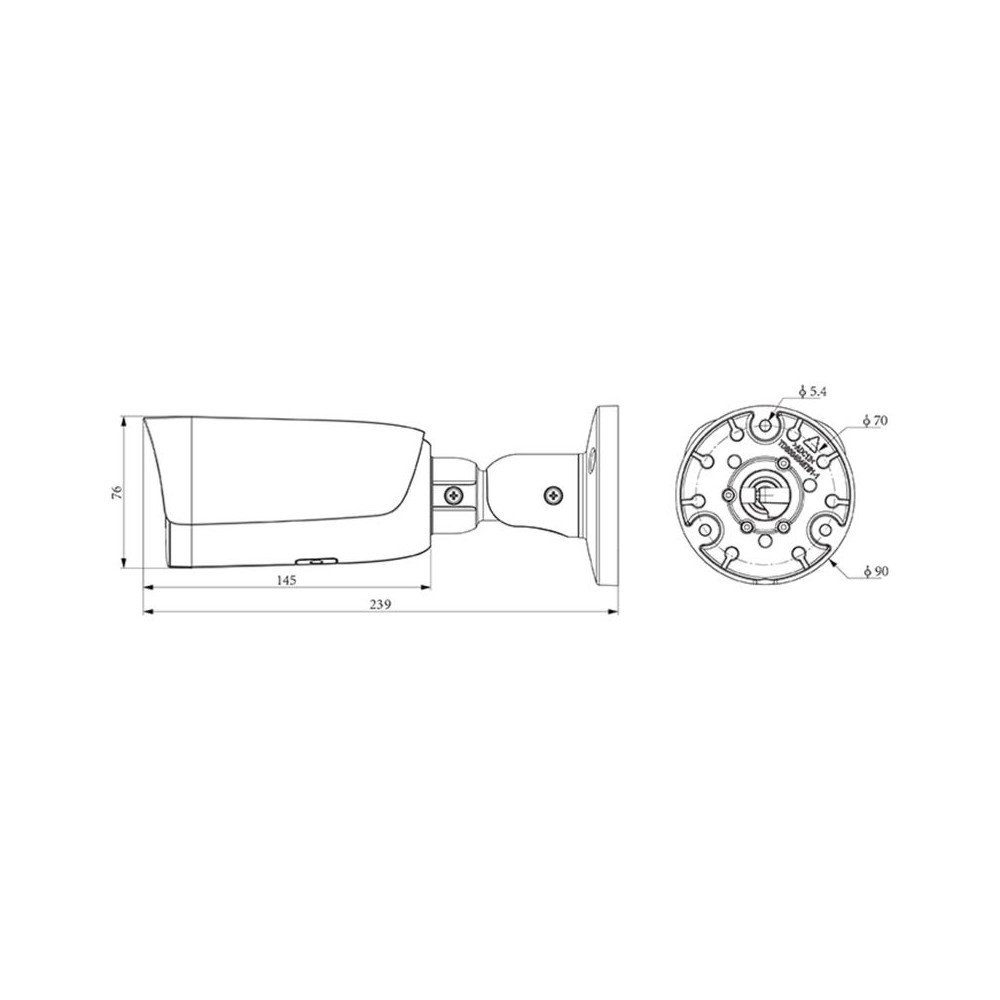

Dimensions: 239 x 90 x 90 mm
Supported languages: Polish, English, Arabic, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Dutch, Hebrew, Vietnamese, German, Ukrainian, Portuguese, Albanian
Manufacturer / Brand: TIANDY
He would be: Lite
Guarantee: 3 lata
Tiandy
NS33532
1 Item

Data sheet

Protocol
BLE
CIP
GRE
LIN
ONVIF
PoE
RS-485
Voltage
12V
IP Class
IP67
Image compression method
H.264
H.265
