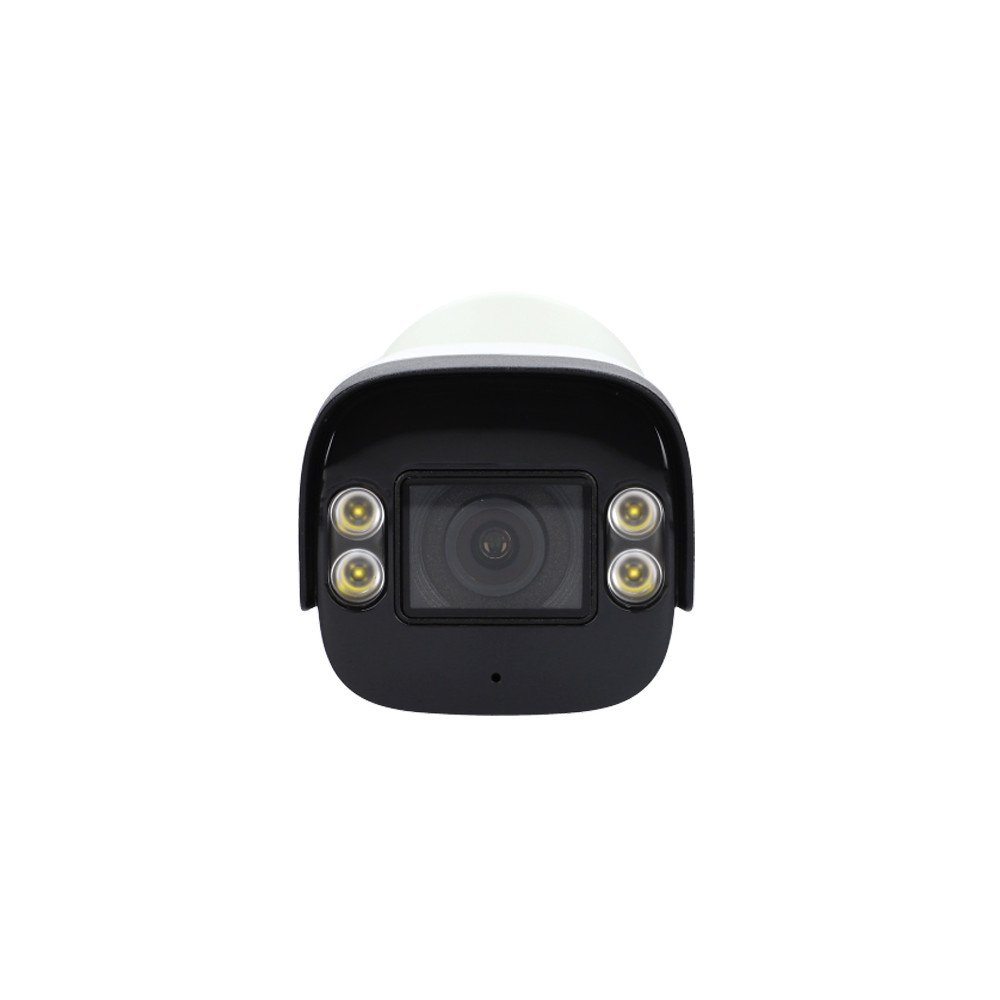

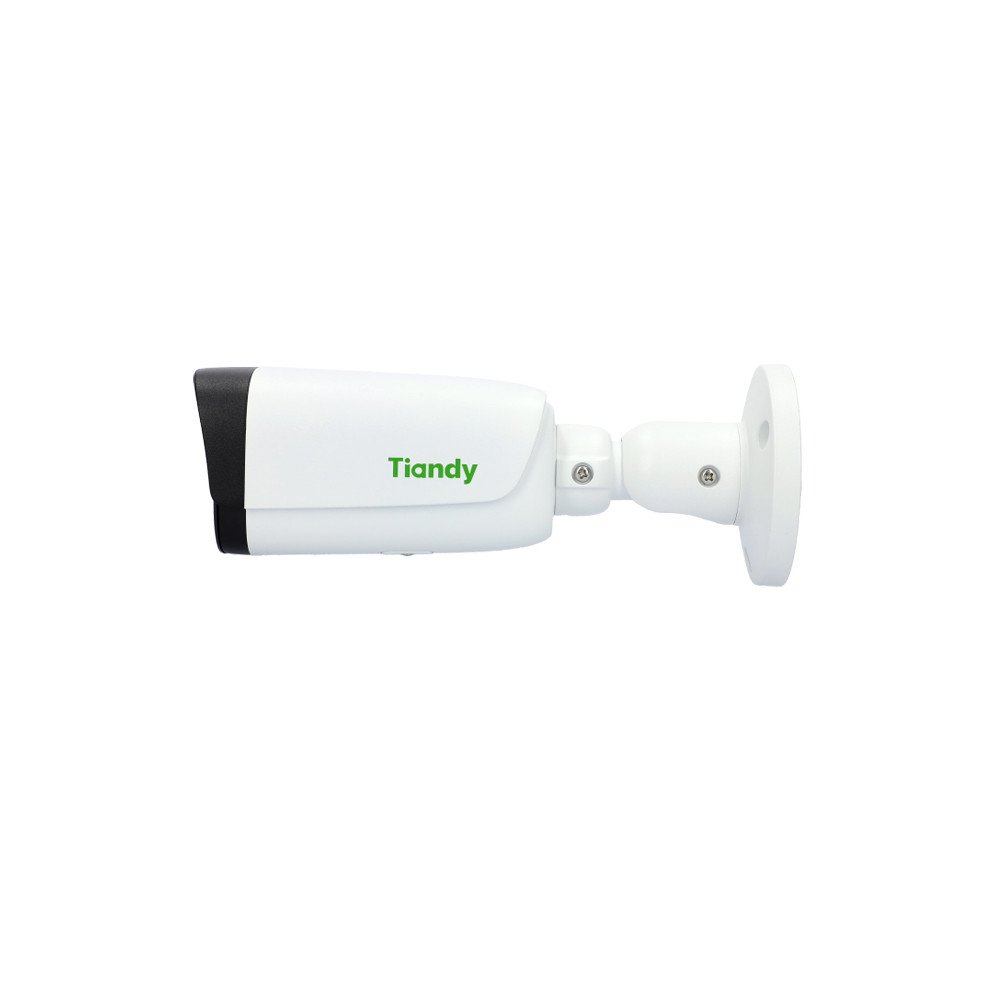

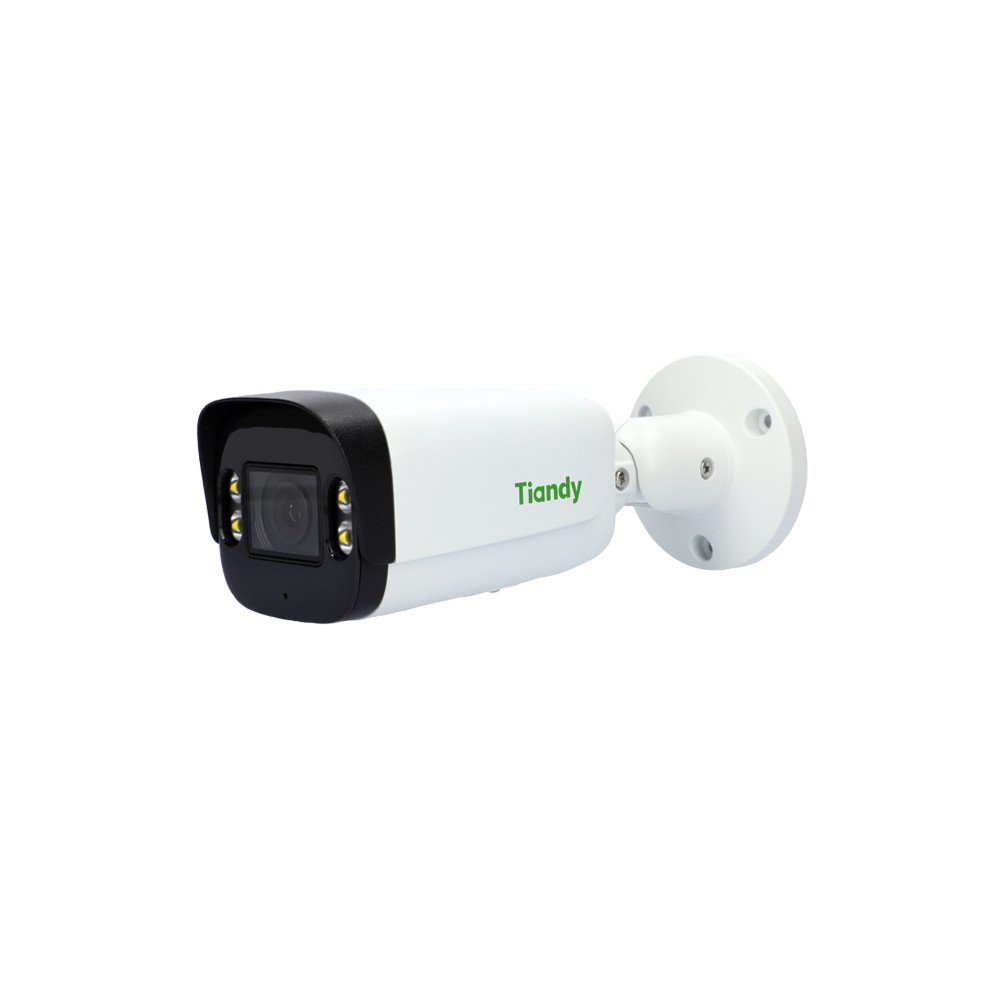

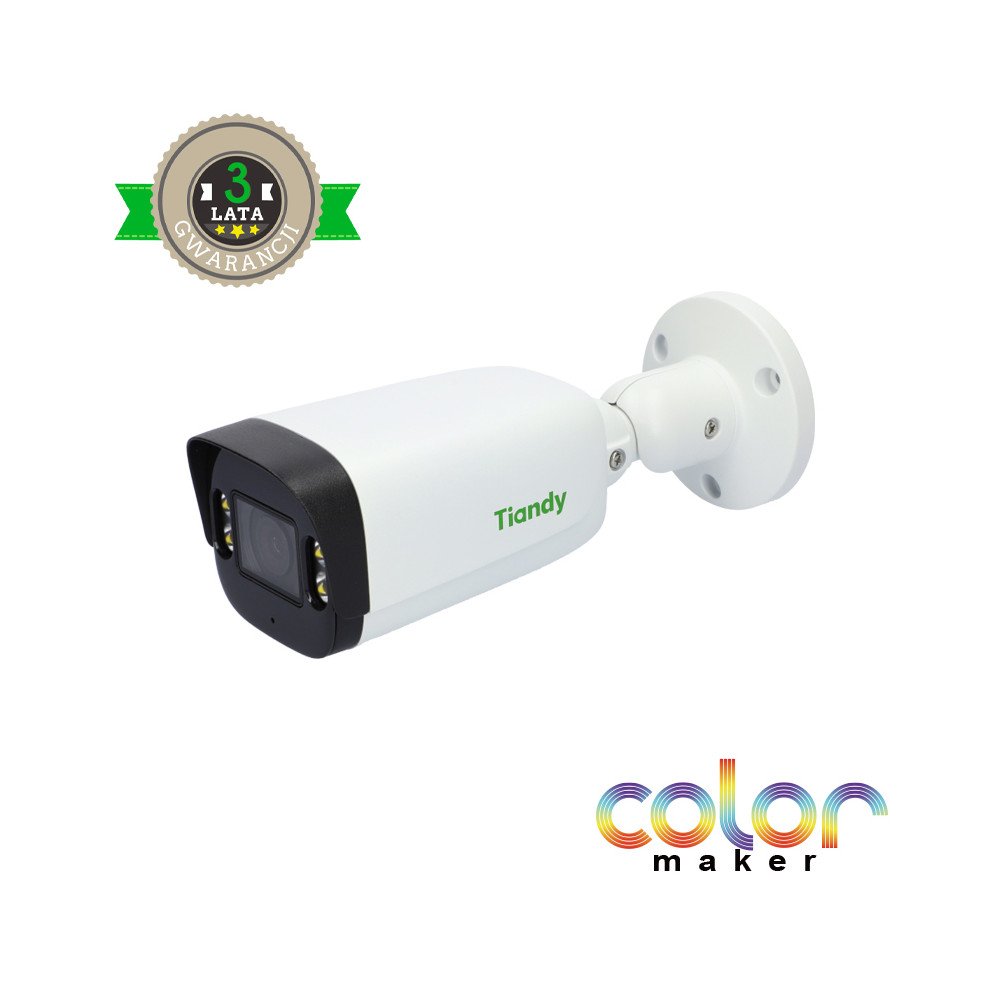

Tiandy IP 4Mpx TC-C34UP Color Maker network camera

Main parameters:

• Resolution up to2560x1440at 25 fps
• Compression:S+265/H.265/H.264
• Sensitivity0,0004 Lux(F1,0)
• 120dB WDR
• Fourwhite lights:20~30m
• Feature supportIVA(crossing the line, entering the area)
• Built-inmicrophone

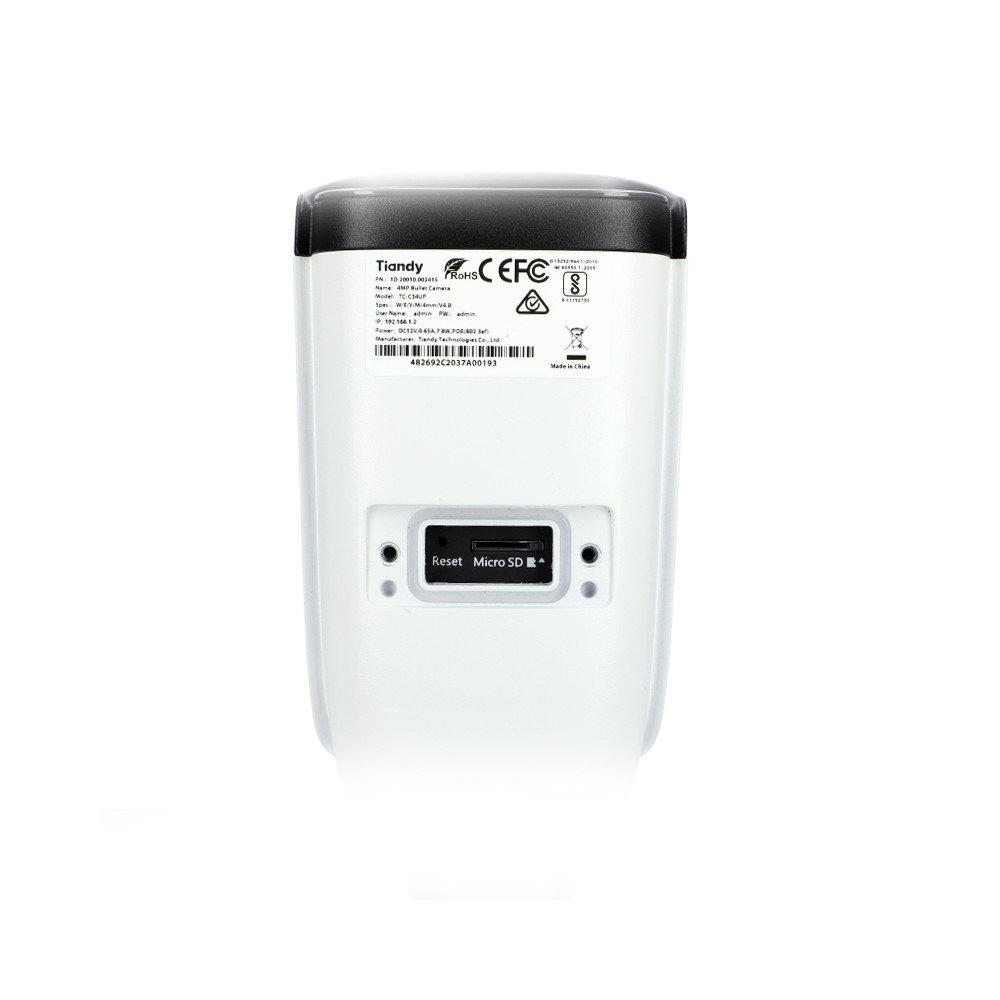

• Slot kartmicroSD do 512GB
• ButtonRESET
• Working conditions-40°C~65°C
• PoE,IP67

The camera's built-in warm LEDs and high-sensitivity sensor allow you to record colorful images at night. This way, you can learn more from the video recorded by the camera, regardless of the outdoor lighting conditions.

The transducer used transmits an image in a very high resolution of 2560 × 1440. Such a high resolution allows enlargement of the live image and identification of people or vehicle registration numbers.

Tiandy cameras, regardless of the model, use only glass lenses consisting of multiple layers (including anti-reflective, scratch-resistant) manufactured by the Japanese company Fujinon, a tycoon in this industry. Glass optics do not change their parameters with temperature changes, as is the case with lenses made of plastic. In addition, the glass allows much more light to pass through, making the image brighter at night.

Privacy zones are image areas that are freely configurable by the user and are excluded from monitoring. Precise control over the shape, size and position of the masks allows for efficient adaptation of the cameras' functionality to the place of observation. Thanks to the private mask system, it is possible to record images while respecting the privacy rights of third parties.

The camera is equipped with a micro SD card slot up to 512 GB. This allows us to record the image on the card in the event of a problem with the camera-recorder connection. After fixing the problem, the camera will automatically transfer the recording from the card to the recorder's disk.

Our camera guarantees uninterrupted operation at extreme temperatures and is dustproof thanks to the tightness classIP67.

The camera offers live image preview on mobile devices. All you need to do is download the EasyLive application for free from the AppStore or Google Play and enjoy remote viewing from your cameras.

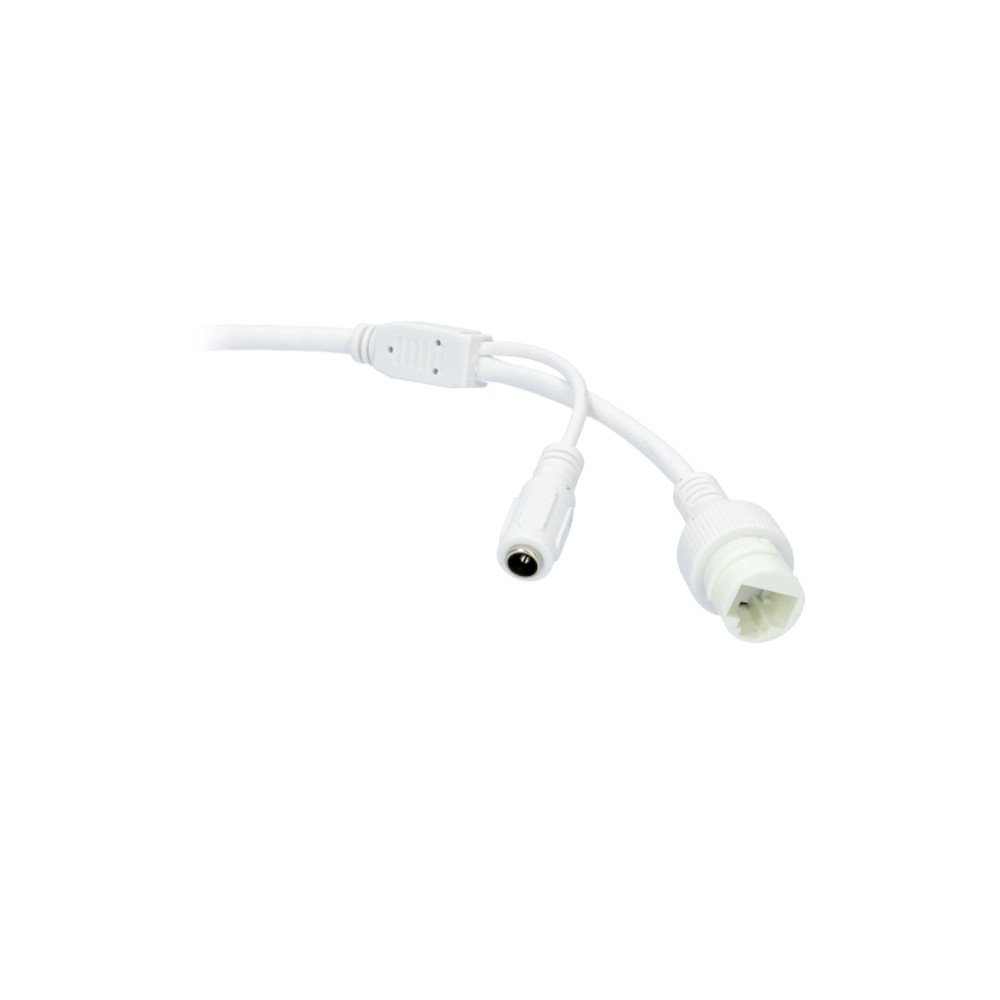

The camera has a LAN port with PoE in the 802.3at standard. This solution allows you to simultaneously power the camera from a PoE switch and send data to the recorder via one network cable. There is no need for additional wiring for power supply, which reduces installation costs.

Compensation for image vibration resulting from rapidly moving objects is performed by dynamically reducing its quality. The balance between image quality and resulting image shake helps avoid blur.

The camera allows you to view different types of video streams at the same time. The main stream emits an image in full resolution, which is saved on disk or is visible after switching on the preview from a given channel to full screen. The image for split and remote viewing is broadcast in an additional stream with a lower resolution.

Saves 5 times disk space. When running a test monthly recording of 8 channels in 1080p resolution, in the H.264 standard you need 10TB of space, in H.265 - 5TB, and in S.265+ 2TB is enough for a month.

Spatial noise reduction offers us an even clearer image compared to the standard DNR function, which will ultimately reduce the size of the recording, thus saving more disk space.

Optimize the image by adjusting the gamma value to brighten dark areas and darken overly bright areas.

Automatic white balance improves image quality by adjusting the camera's response to different light temperatures in the environment, resulting in correctly reproduced colors.

Automatic gain control increases light sensitivity, allowing us to work in darker conditions. Any noise will also be amplified, so the setting of this parameter should be selected experimentally.
