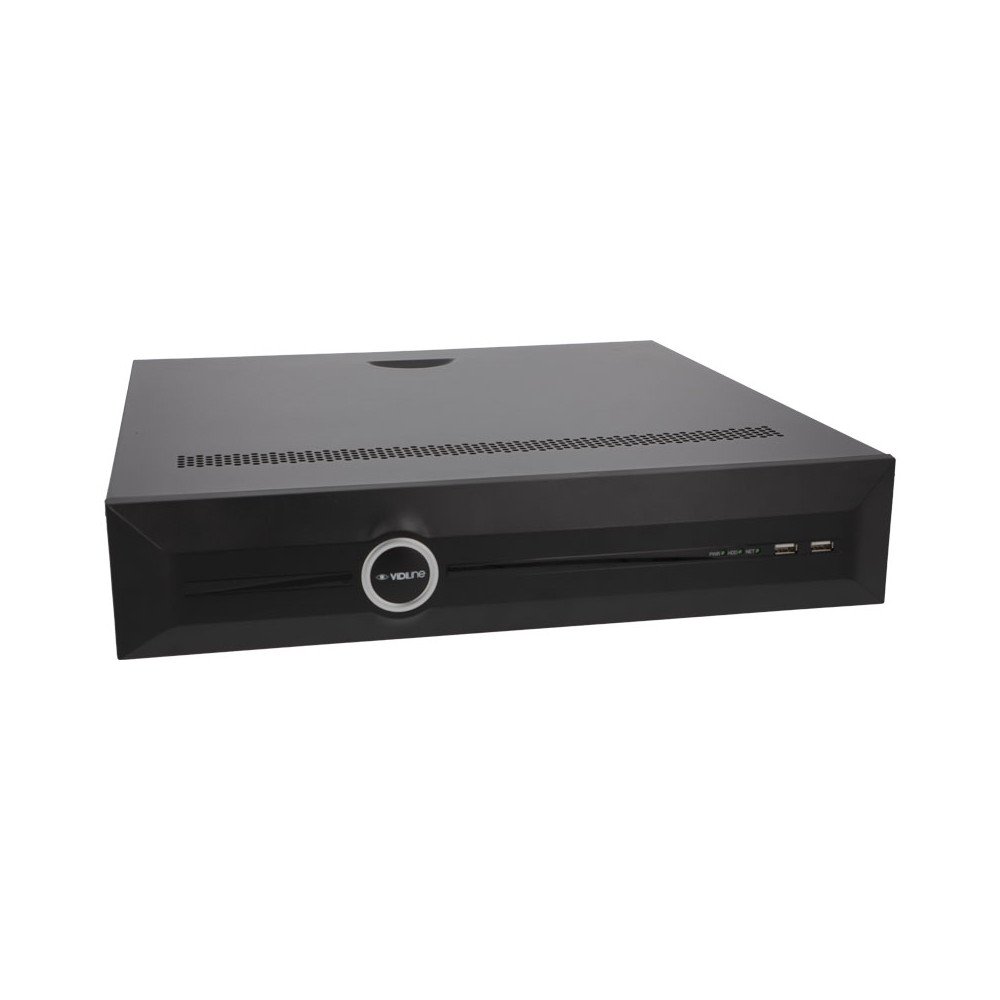

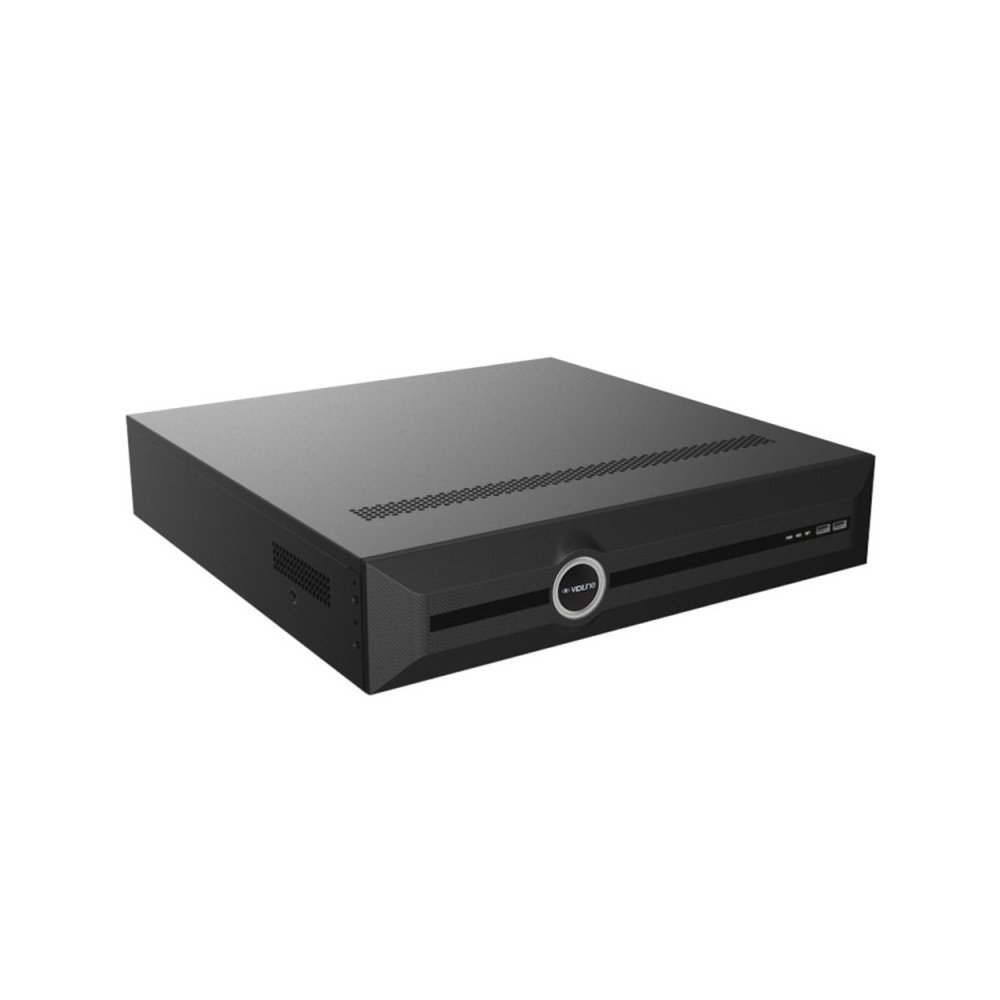

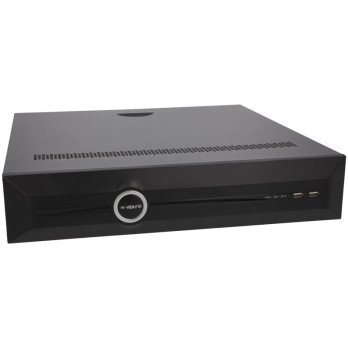

ViDiLine VIDI-NVR-16880 IP recorder 80 IP channels 16Mpx HDMI 4K

• Technology: IP
• Number of video channels: 80
• Video outputs: 2xHDMI (4K) 2xVGA (FullHD)
• Displaying two independent images
• Supported IP cameras: up to 16Mpx
• Bandwidth (I/O): 640/320 Mbps
• Compression: S+265; H.265; S+264; H.264
• Number of HDD drives: 8 pcs. up to 18 TB SATA III
• Integration protocol: ONVIF S/T/G profile
• Smartphone App: Yes, ViDi View
• Computer program: Baked, Victor

The ViDiLine VIDI-NVR-16880 recorder is an 80-channel IP recorder, supporting cameras up to 16 Mpx and eight SATA drives with a capacity of up to 18 TB per drive. The recorder is intended for monitoring large facilities such as companies or squares. The solid metal housing allows the recorder to be placed in a RACK server cabinet. The recorder ensures full compatibility with ViDiLine and Tiandy cameras via a private communication protocol. Support for S+265 compression effectively reduces the size of recordings by up to 75%, ensuring a longer period of stored recordings. A set of alarm inputs and outputs allows integration with other systems, e.g. alarm systems, or increasing the functionality of the recorder itself. The recorder has an HDMI 4K and VGA output for connecting a monitor. Thanks to the ONVIF protocol, the recorder supports cameras from other manufacturers. The recorder allows you to search for recordings by analyzing the image in terms of IVA rules.

The Intelligent Image Analysis (IVA) system adds intelligence to threat detection and enables intelligent searches for recorded incidents stored in the DVR. In addition, IVA allows you to create a virtual fence that triggers an alarm when crossed, detect items left or taken from the marked zone, count alarms, and other functions. ViDiLine cameras and recorders are equipped with modern technological solutions enabling intelligent processing of the recorded image in real time. Thanks to IVA technology, we increase the level of security and effectiveness of monitoring.

The ViDi View application allows you to connect the recorder to the Internet and add it to a cloud account, which allows you to view recorded materials live, view and download saved videos, monitor system and motion detection alarms, and perform basic device configuration - all using a dedicated smartphone application. Thanks to this application, you can also immediately view the image from the cameras and receive PUSH notifications when motion is detected in the cameras' field of view.

• Support for up to 40 channels— this number of IP cameras allows for monitoring of a larger facility, such as a company or a square;
• Support for 16 Mpix cameras— the recorder allows you to operate cameras with a resolution of up to 16 Mpix;
• Space for 4 SATA drives— the recorder supports up to 10 TB per disk, which allows you to store recordings for a long time;
• Alarm inputs/outputs— Alarm inputs and outputs allow you to integrate monitoring, e.g. with the alarm system or extend its functionality;
• Preview on your phone— the recorder connects to a dedicated cloud via P2P, providing a view from the camera and the ability to manage it using the ViDi View mobile application for smartphones;
• Preview on your computer— the recorder can be operated via a dedicated program available for ViDi Central PC computers;
• Remote management— thanks to connection to the cloud via P2P, we can manage the recorder configuration remotely from anywhere;
• ONVIF protocol support- thanks to this, cameras from other companies with ONVIF can be connected to the recorder via this integration protocol;
• HDMI and VGA image output— allows you to connect a monitor or TV with a resolution of up to 4K;
• Advanced IVA— the recorder has advanced algorithms such as helmet detection, presence at the workplace, taking or leaving an object and many others, and allows you to search for recordings according to IVA rules without prior setting;
