KALER calling system - set for isolation room quarantine isolation room

There is an SOS button in the quarantine room, which can be used to call for help. In the care worker's room there is a light board with the number of the isolation room to which he is called.

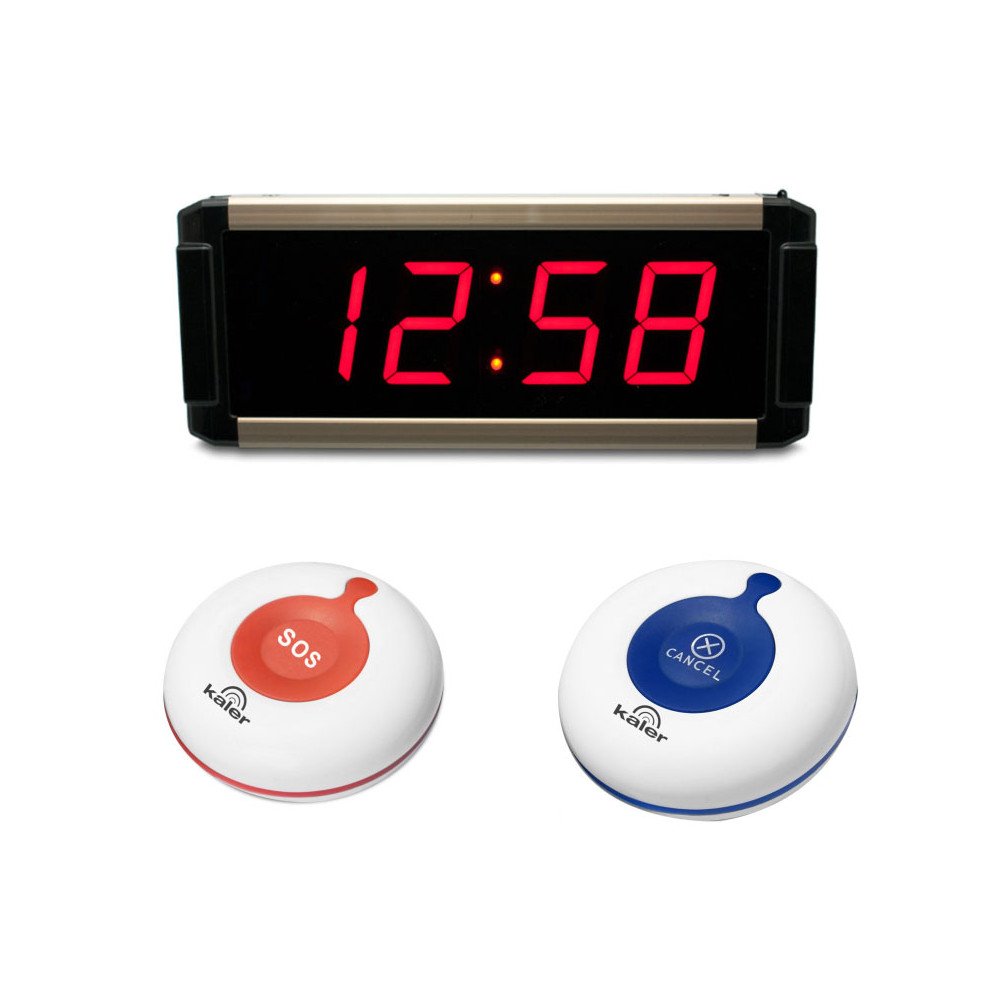

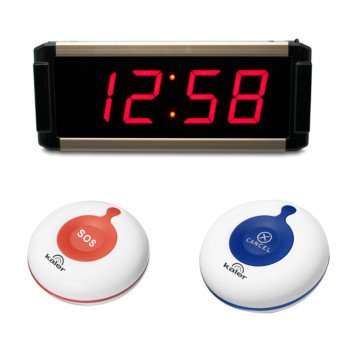

The set includes:

• Light boardKAL-48x 1 pc.
• Call buttonKAL-SOSx 1 pc.
• Cancel buttonKAL-CANCELx 1 pc.

To minimize the risk of infection to healthy people, purchase the KALER wireless paging system.

You can install our equipment quickly, without pulling cables or drilling walls.

The entire transmission between devices is wireless, you just need to configure the device once and from then on you will be able to call for help quickly and effectively.

The wireless paging system is used in restaurants - shorter waiting times for service, as well as in hospitals and emergency centers. One of the elements of the system is a signal board, which is mounted in the room where the staff is located. The second element is the call button, which can be placed on a particular table or hospital room. Each call is confirmed by a sound signal and the number assigned to a given table or patient.

Basic features of the system:

• easy installation
• easy operation
• Possibility to program up to 256 buttons
• volume control
• ability to display up to 10 calls simultaneously
• bright LED diodes allow the displayed message to be visible from up to 40 meters
• notification function about the need to replace the battery in the "LBF" buttons

Technical parameters:

• Communication: wireless
• Power supply: 12 V
• current consumption – 450mA
• operating frequency – 433MHz
• audio power – 2W
• Dimensions: Width - 289 mm Height - 116 mm Depth - 28 mm

The SOS button is used to call for help. The Cancel button cancels the call.

Characteristic:

• modern look and feelwaterproofcase,
• internal antenna,
• transmission rangedo 300 min an open area.

Technical parameters:

• Power supply:battery(wireless)
• Voltage: DC 12V
• current: 15 mA
• transmission frequency: 433MHz ± 75kHz
• output power: 20 mW
• dimensions: 60 mm (diameter) x 17 mm (height)

Hermetic and waterproof housing -IP66.

This means that the button housing is waterproof and dustproof. It can be safely used in the bathroom or outdoors.

All elements of the KALER system communicatewirelessly.The data transmission range varies from 300 to 200 m in an open area.

*wireless communication, 12 V power supply

Possibility of usedouble-sided tapefor mounting buttons and other elements results in significant resultsshortening the timesystem installation.

*adhesive installation applies to SOS and CANCEL buttons

FlexibilityThe KALER system allows it to be used in many areas.
