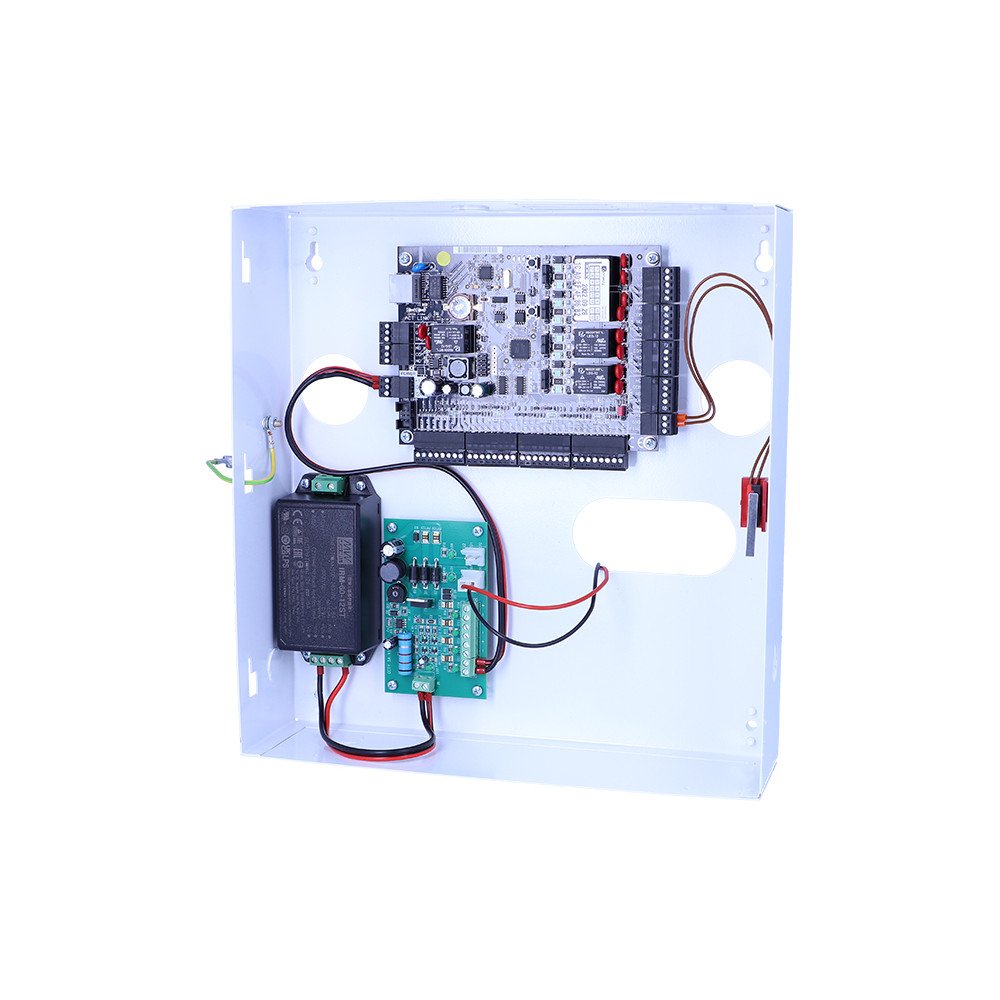

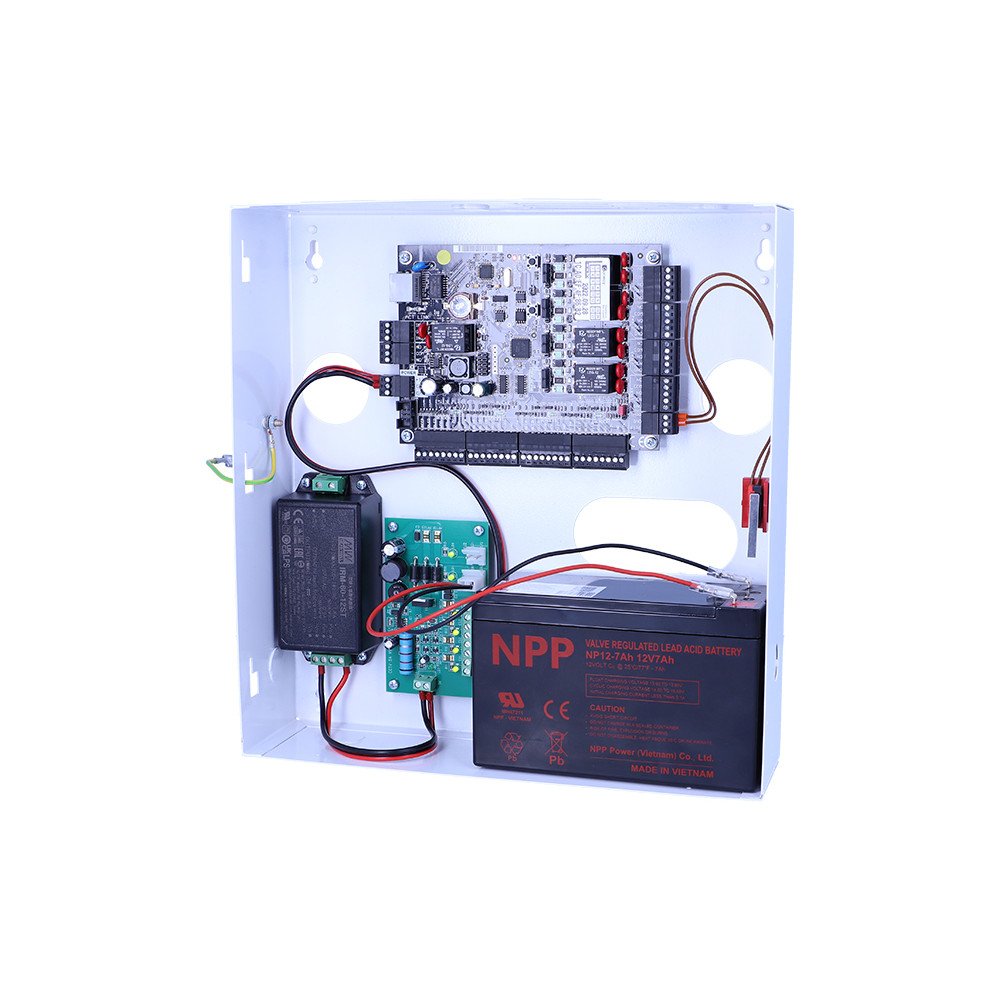

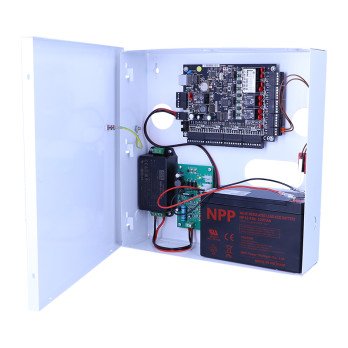

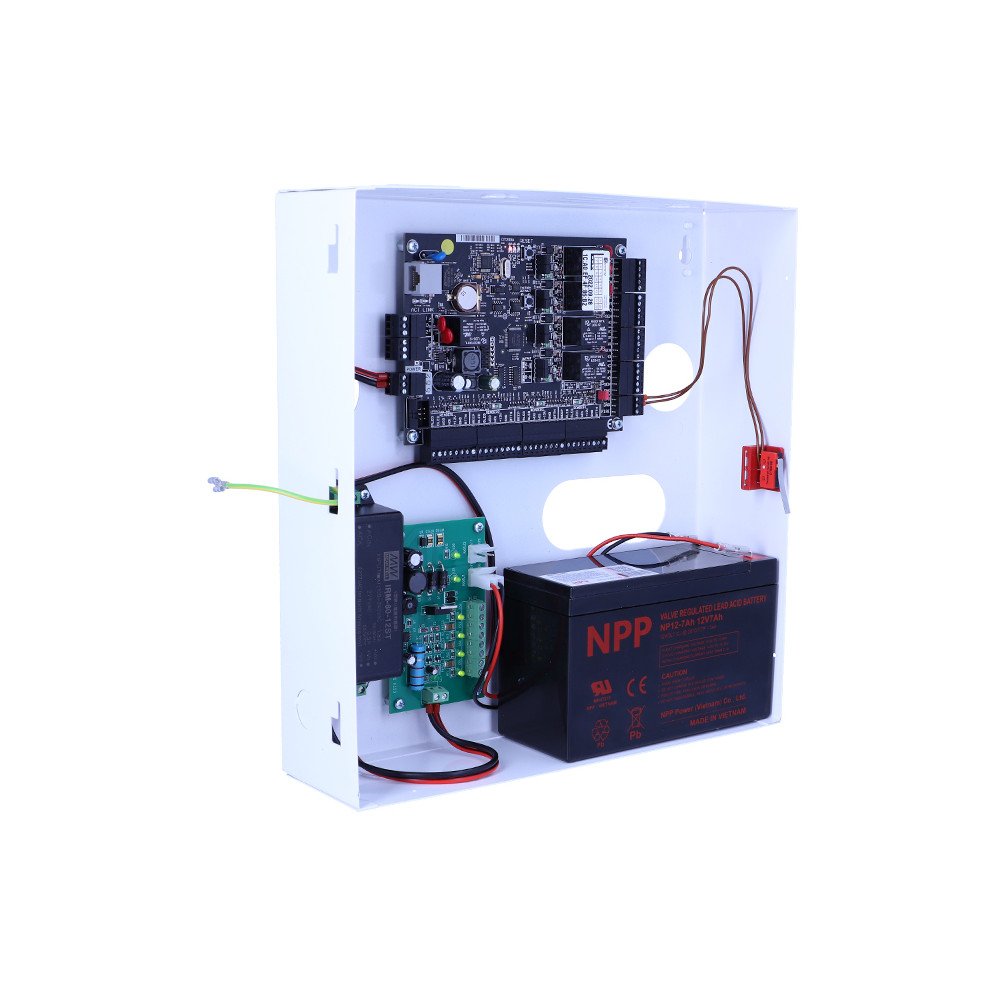

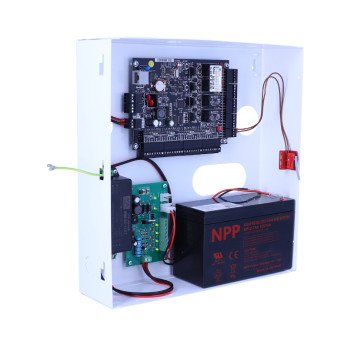

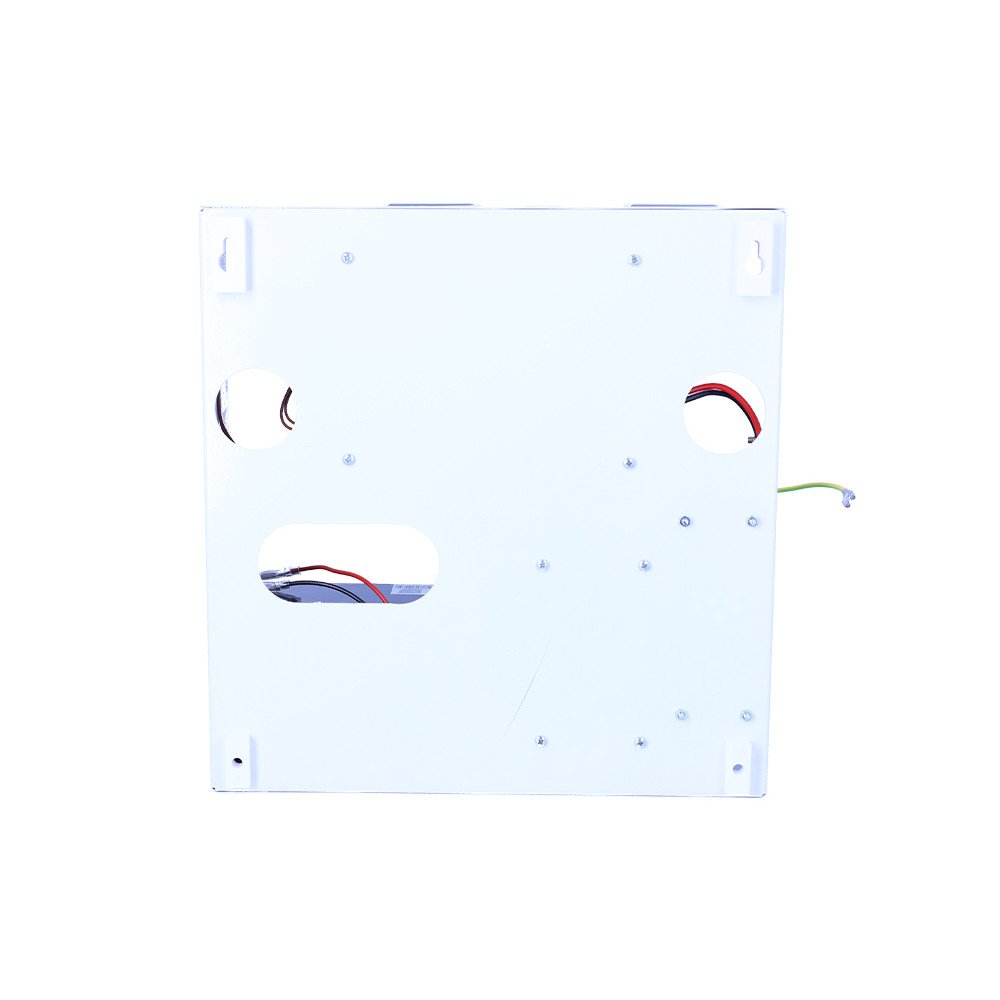

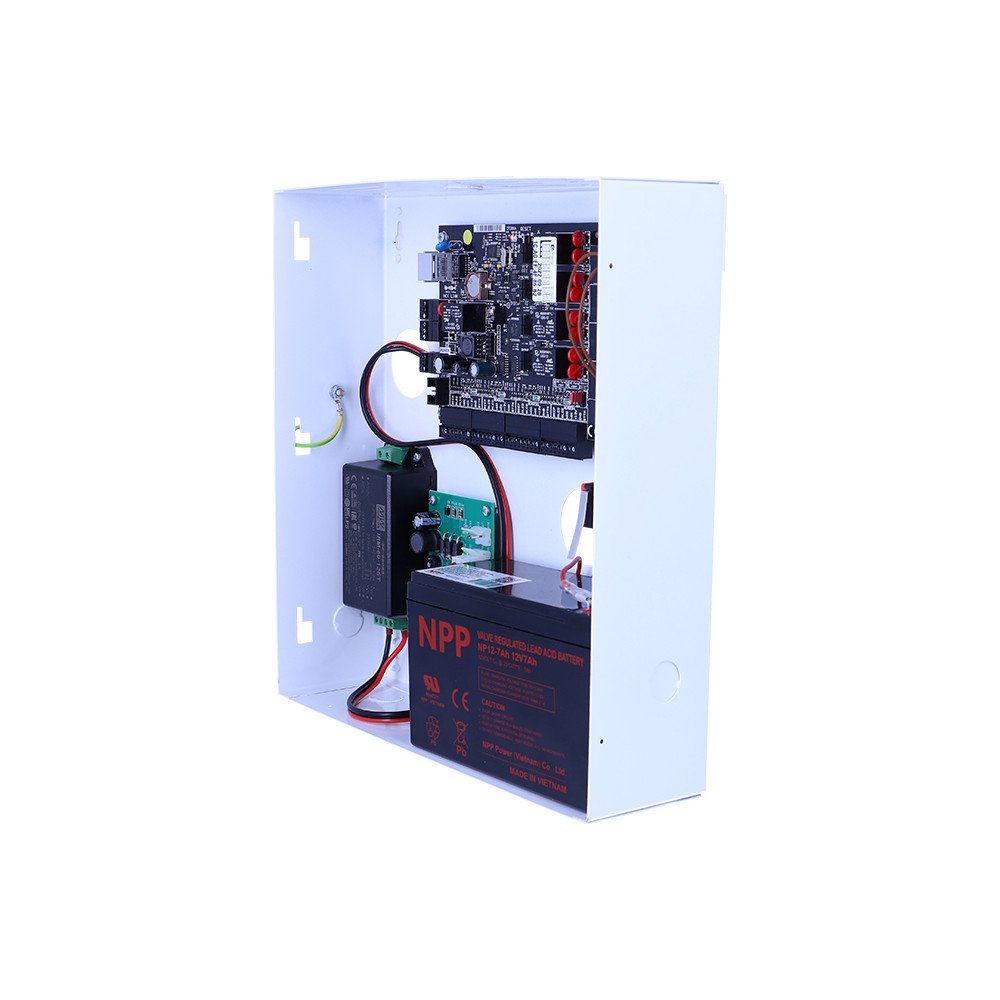

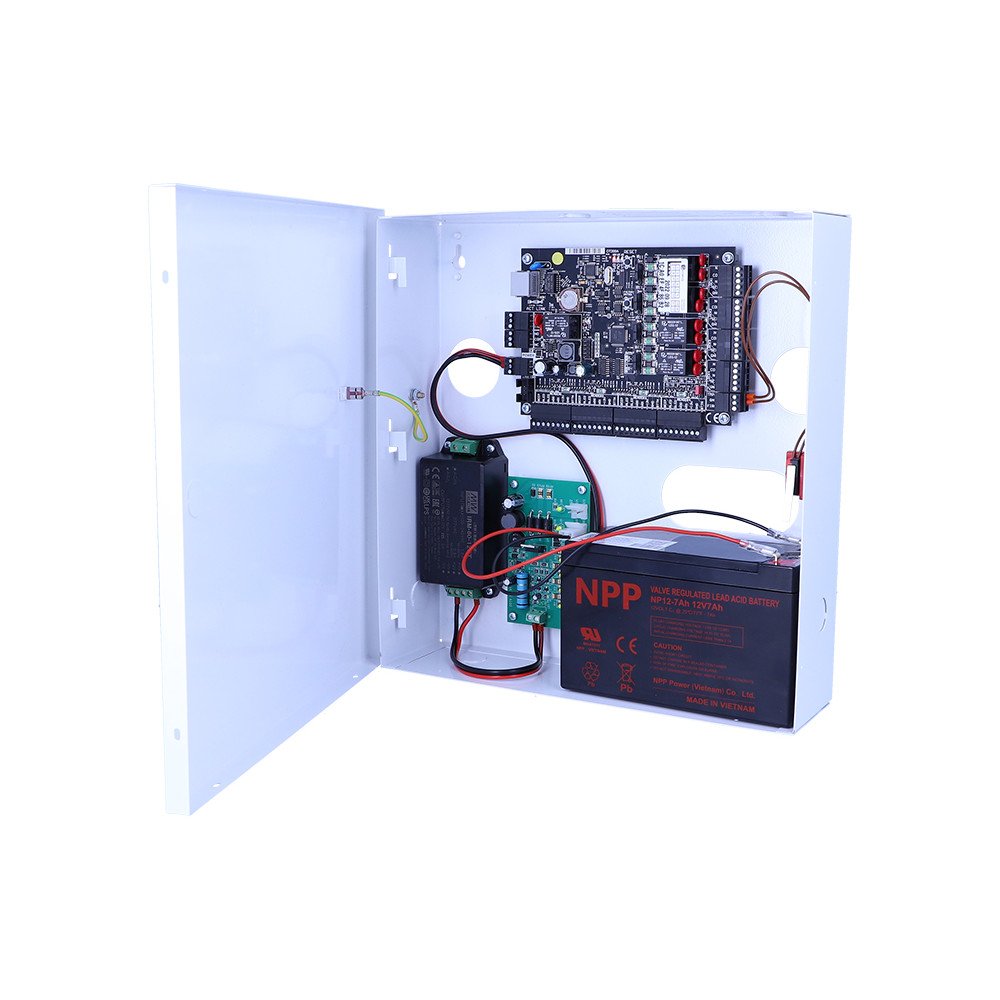

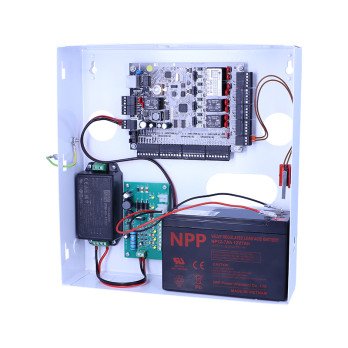

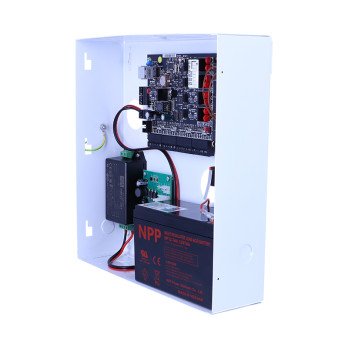

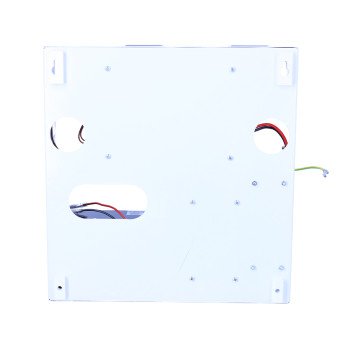

Access controller for 4 inputs VIDI-AC-KD4 SET

Product features:

• The controller can be freely configured to control 1, 2, 3 or even 4 doors. The device has 4 Wiegand reader inputs, which allows it to support a maximum of 2 doors in 2-way or 4-door mode in one direction.
• Power supply for the locks (12VDC / 1.1 A) from the controller directly to the lock
• Automatic detection of the controller in the network
• Memory for up to 130,000 events, 40,000 IDs, 2,000 users and up to 250 access groups
• Two inputs and one AUX relay output, which allows the integration of KD4 with other systems, and a dedicated Fire input for integration with the SSP, and a tamper input for the control panel housing
• Software in Polish included in the price of the set
• Configuration guide - connection diagram based on configuration
• Scalable system

• Windows and Linux support
• Real-time events
• Precise description of users created in the database, dividing users into departments, which allows for easier allocation of access restrictions.
• Time profiles for each door allow you to specify at what hours and days of the week a given door can be opened by a given user.
• Possibility to upload your own map and overlay existing readers and doors on it. This increases the readability of the system and more efficient identification of event locations
• Possibility of configuring the door as a lock and supporting the Anti-passback function to prevent giving the access card to another person
• Support for manager users with greater privileges
• Additionally, support for functions such as: super code, threat code, alarm card and do not disturb mode

SoftwareVidiLinein an intuitive wayguides the userthrough the process of the firstinstallation and configuration. Thanks to this in severalstraightsteps we get configured and ready to workaccess control. The final stage of controller configuration isinstallation manual, which graphically shows which controller connectors to connect previously defined readers, door locks andadditional functionssuch asSabotage,FireWhetherdo not disturb mode.

SoftwareVidiLineavailable in Polish or English, it is characterized by simplicityservice and transparency. The software is divided into tabs directing you to the most important onesfunctionalityprogram.

The program does not have to be on all the time to do soremember events, these are stored in the controller's memory and displayed from the program level.

Monitor inreal timeall events in the system. Manage your most important events with highlighted alertsin redin the program. From the monitoring level, you can also remotely open and close doors in the system.

Browse,sort and filterall events in the system with one click. Thanks to thisquickly and efficientlyyou can check who gained access to a given door or what was happening in the system quickly and efficientlyquickly and efficiently. The program allows you to export events as an .xlsx filemaking it possiblethere is further data processing.

The software allows you to precisely describe and group usersDepartments and Groupsaccess. Thanks to this, you can easily manage them as groups and change their access rights and privileges.

The access map graphically shows what group of users currently has access to a given door in the system. Thanks to the map, you can quickly change access permissions for entire groups of users with two clicks.
