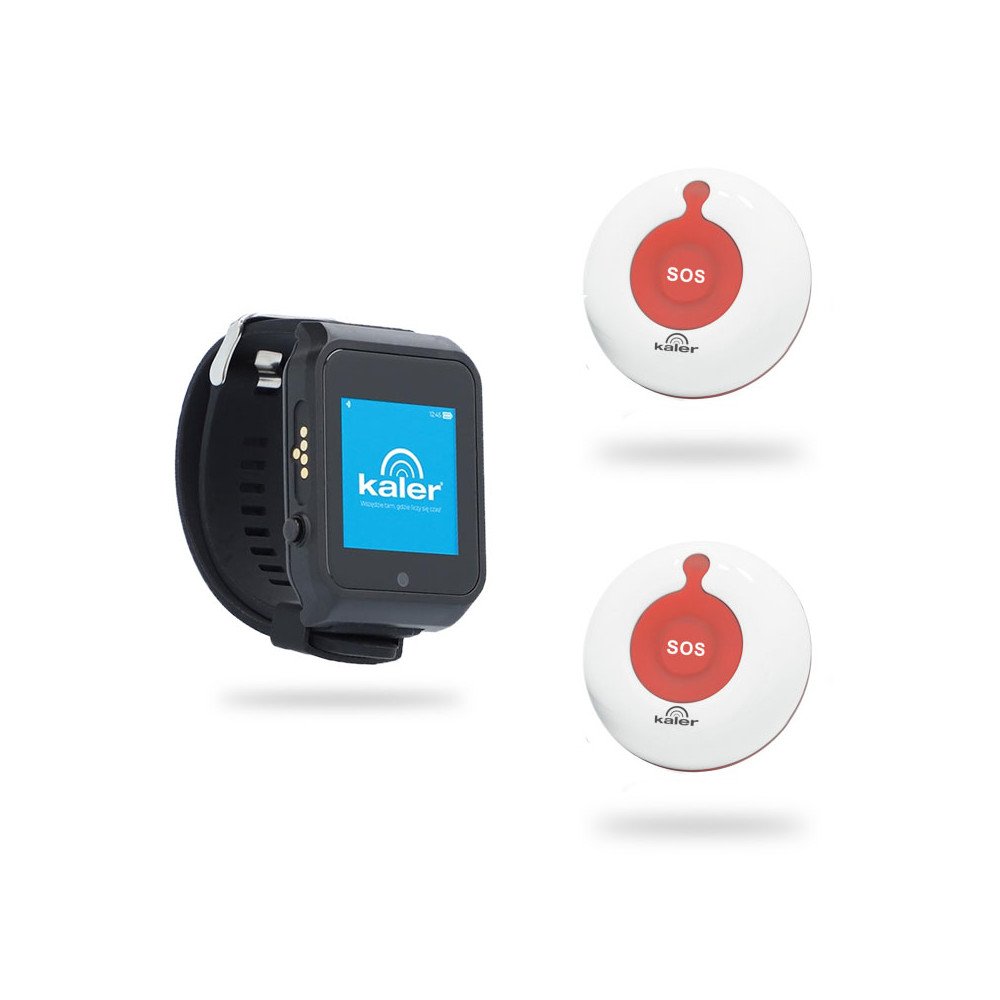

KALER calling system - SPA set

The store has a call button for Call employees who have KAL-700-V2 wireless watches. The employee receives information about the call on his or her watch.

The set includes:

• Watch/pagerKAL-700-V2x 1 pc.
• Call buttonKAL-SOSx 2 pcs.

The watch, in addition to the basic function of displaying the current time, enables the reception of a summoning signal sent from transmitters in the system. An ideal solution for nurses, waiters, caregivers, etc. Information about the application is available at your fingertips.

Characteristic:

• bright LCD display,
• 1.54" touch screen
• uses symbols to inform about different call types,
• additional signaling modes: sound; vibration; sound and vibration, LED,
• gradual volume control 1-10,
• works with 999 transmitters,
• operating time up to 72 hours,
• intuitive operation.

Technical parameters:

• voltage: 3.7 V (lithium-ion battery)
• charging voltage: 5V
• operating frequency – 433MHz
• frequency: 433MHz
• range: 200m

The device is used to wirelessly trigger a signal containing a programmed message. Thanks to it, customers can quickly and discreetly call service.

Characteristic:

• modern look and waterproof housing,
• internal antenna,
• Transmission range up to 300 m in an open area.

Technical parameters:

• Voltage: DC 12V
• current: 15 mA
• transmission frequency: 433MHz ± 75kHz
• output power: 20 mW
• dimensions: 60 mm (diameter) x 17 mm (height)

All elements of the KALER system are availablewireless.Data transmission range up to 200m in an open area.

*wireless communication, 5V battery power

Hermetic and waterproof housing -IP66.

FlexibilityThe KALER system allows it to be used in many areas.
