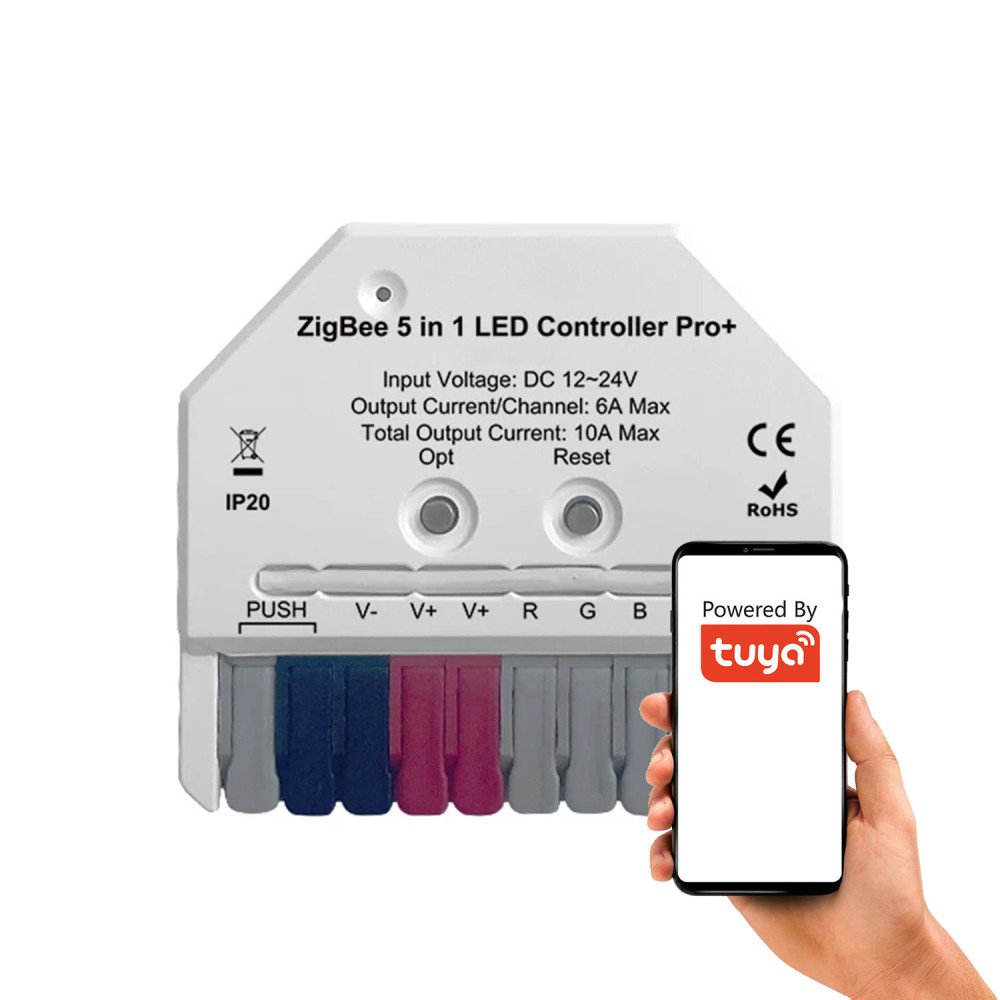

Mini kontroler LED 5w1 DIM CCT RGB RGBW RGBCCT Seria GL ZigBee+RF HUE TUYA

Thanks to the Zigbee 3.0 protocol, the mini controller offers seamless integration with popular smart home systems, enabling users to precisely and easily control LED strips. A distinctive feature of this device is its high versatility and the ability to support up to 5 different types of LED strips, i.e. DIM, CCT, RGB, RGBW, RGBCCT.

The controller can be controlled using the popular and free TUYA Smart and Philips HUE applications (after adding to the Philips HUE gateway), thanks to which you will gain full control over your lighting. Turn on the lighting, change its color, intensity and lighting modes, create schedules, automations and much more.

This 5-channel mini controller supports both 12V and 24V LED strips, providing great flexibility for a variety of lighting installations in both residential and commercial spaces.

Compatibility with Home Assistant (ZigBee2MQTT and ZHA), Philips Hue, TUYA / Smart Life, Samsung SmartThings, Ikea Tradfri, Amazon Echo Plus, Milight / Miboxer, and with ZigBee 3.0 gateways.

GL series controllers can be controlled using dedicated RF remote controls available in our offer.

Main advantages:

• Control via the popular TUYA Smart | application Smart Life from anywhere in the world
• Compatibility with Home Assistant (ZigBee2MQTT and ZHA), Philips Hue, TUYA / Smart Life, Samsung SmartThings, Ikea Tradfri, Amazon Echo Plus, Milight / Miboxer and with ZigBee 3.0 gateways
• High versatility and ability to control up to 5 different types of LED strips (DIM, CCT, RGB, RGBW, RGBCCT)
• Easy connection of cables in channels thanks to convenient quick connectors
• The small size allows it to be installed in any electrical box
• Wide voltage range that allows you to connect both 12 V and 24 V LED strips, giving you a large selection of different types of strips
• The maximum load is 6 A per channel or 10 A in total for all channels
• Smooth transition effect when turning the light on/off
• Option to connect a physical button that controls switching on and adjusting the brightness of the lighting
• Ability to change the controller frequency to match the power supply frequency (range 600 Hz - 8 kHz)
• Possibility to create advanced automation and schedules for switching on lighting according to user guidelines
• The controller remembers the last settings and mode after restarting
• Voice control via Amazon Alexa or Google Assistant, only for devices compatible with these systems
• The device is compatible with the latest ZigBee 3.0 gateway drivers, ensuring a stable, wireless connection

ATTENTION! For proper operation, an additional ZigBee communication gateway is required, available in our offer.

Application examples:

You can easily configure the device to selected LED strips:

The Opt button on the housing is responsible for changing the mode between each of the compatible types of lighting strips.

The mini controller supports the following types of tapes:

• DIM- single color - LED strip dimmer - possibility of connecting 5 LED strips in parallel
• CCT- white color - from warm to cold + dimming - possibility of connecting 2 LED strips in parallel
• RGB- colors + dimming
• RGBW- colors + white + dimming
• RGB + CCT- colors + adjustable white + dimming

LED color markings on the controller:

Each color displayed on the controller indicates the current mode in which the device operates:

• WHITE -RGBCCT
• YELLOW -RGBW
• BLUE -RGB
• GREEN -CCT
• RED -DIM / dimmer / mono color
• PURPLE -frequency change
• JASNONIEBIESKI -on/off memory option

OPT button:

1. A short press will change the function (and automatically disconnect the ZigBee/RF link)
2. A longer press for 5 seconds will activate the memory function (disabled by default). This will preserve your pre-disconnect state

Reset button:

1. A short press will change the frequency (allowing adjustment for power supply)
2. A long press for 5 seconds will reset the controller, returning it to the default RGBCCT mode

Frequency Configuration:

The device allows you to adjust the frequency for power supplies, giving options 600 Hz, 800 Hz, 1000 Hz, 2000 Hz, 4000 Hz, 8000 Hz, with a default value of 1000 Hz. A short press of the "Reset" button will change the frequency to the next one. The indicator will flash several times, indicating the current frequency according to the number of flashes in the table below.

The controller can be connected with a bell button:

• A single press will turn the light on/off
• Holding the button will change the light intensity

Screenshots from the TUYA application:

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network problems. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

You can connect the cabling easily and quickly thanks to the included quick connectors:

Connection diagrams of DIM, RGBCCT, RGBW, RGB, CCT LED strips:

Dimensions:

Specification:

• App:YOURS
• Communication:ZigBee + RF 2.4 GHz (GL series pilots)
• Power supply:12 -24 V DC
• Output current:6 A/channel, max. 10 A for all channels
• Moc:max. 240 W at 24V, or 120 W at 12V
• Supported LED strips:RGBCCT, RGBW, RGB, CCT, DIM
• Cable installation:quick connectors
• Working temperature:-20℃ ~ 45℃
• Tightness class:IP20
• Flammability class:V-0

Dimensions:

• 17 x 42 x 38 mm

Included:

• Controller
• Instruction

Product code: LC098
