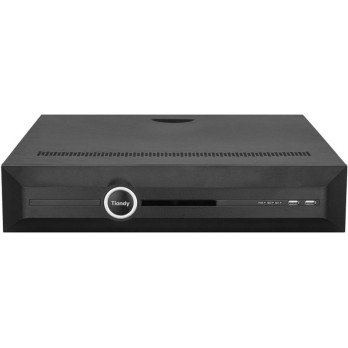

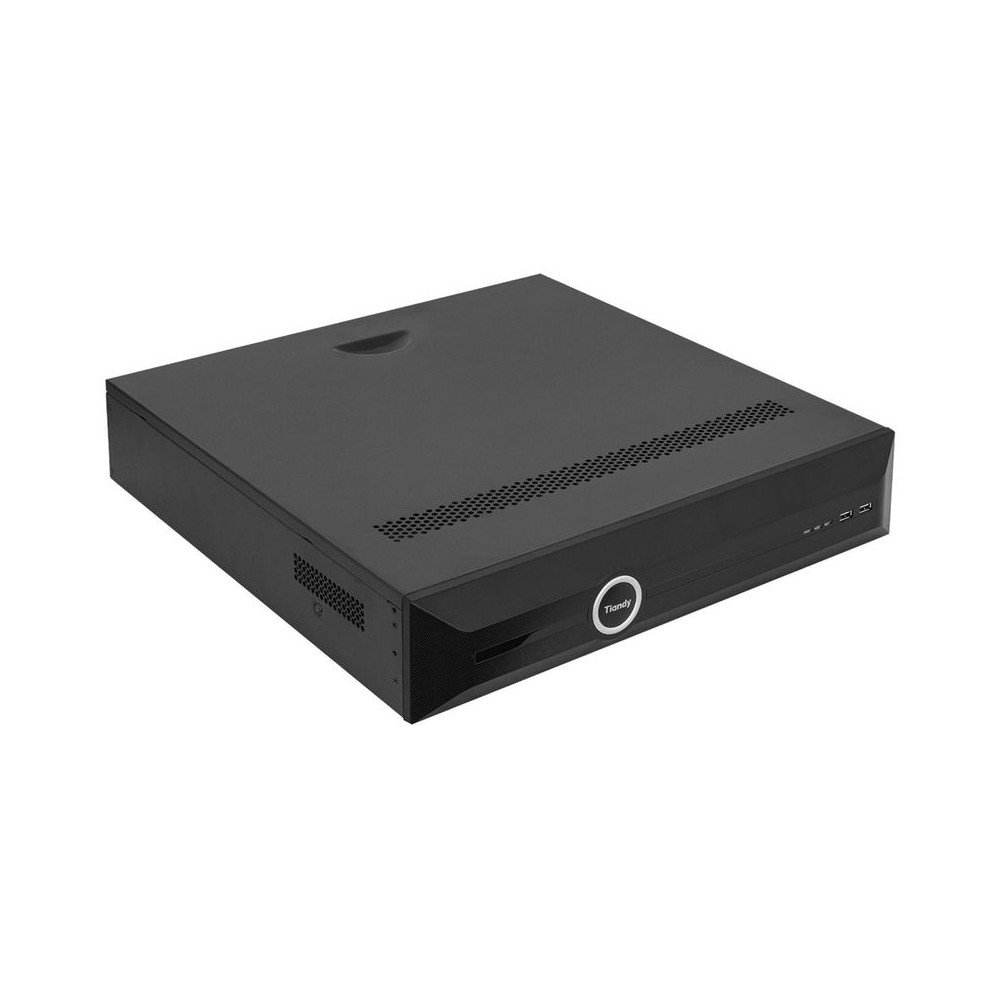

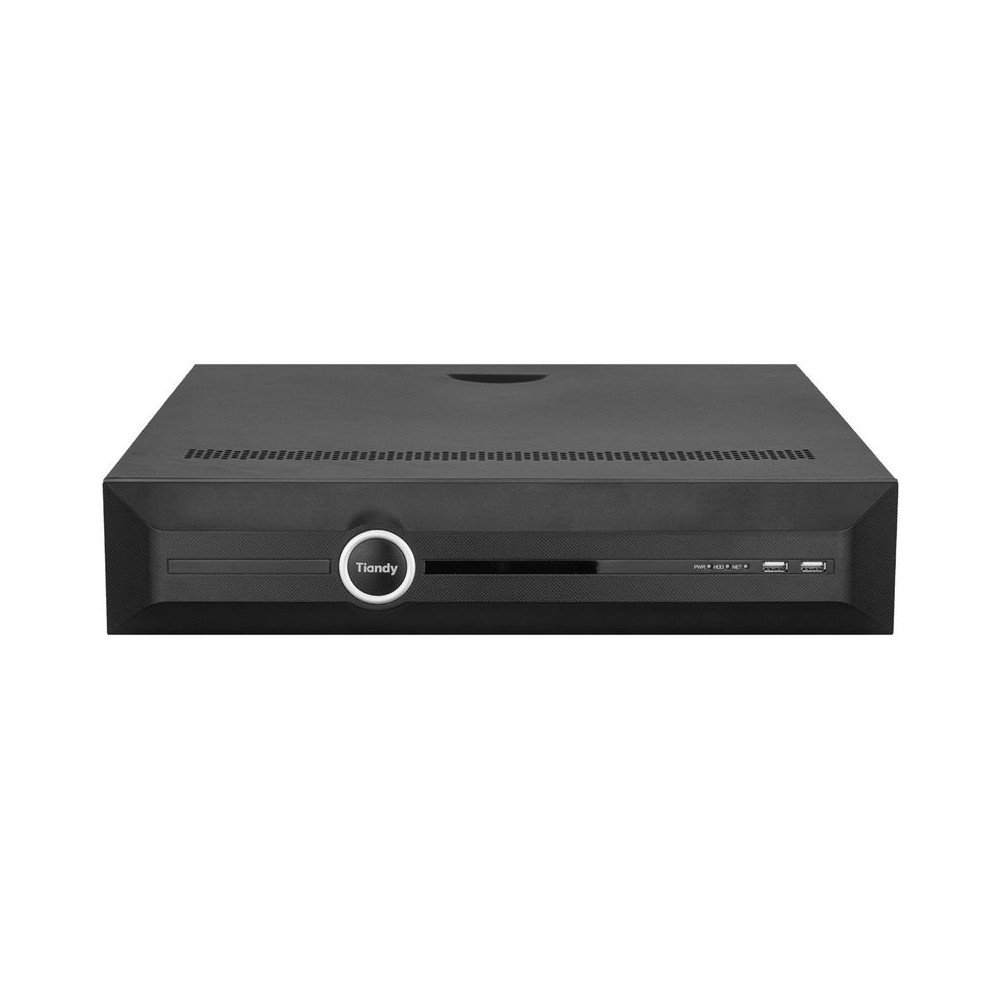

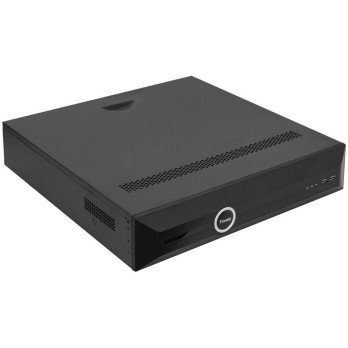

IP RECORDER TC-R3840 4HB 40 CHANNELS AI TIANDY

IP RECORDER TC-R3840 4HB 40 CHANNELS AI TIANDY

€11,370.79

Tax included

Series: AI
Supported resolutions: max. 16 Mpx
Supported hard drives: 8 x 24 TB SATA + 1 x eSATA
Video outputs: 2 pcs HDMI 4K, 2 pcs VGA
Audio inputs/outputs: 1 / 1; Image compression method: S+265 / S+264

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

The TC-R3840 4HB AI series digital recorder is a professional device used in IP monitoring installations.

In addition, the device supports advanced image analysis functions, such as face recognition and ANPR vehicle identification

Registration takes place in the H.265+ compression standard, which allows for obtaining the best image quality while using the minimum network bandwidth and disk capacity.

The menu has been designed in a way that makes it easy for anyone, even a novice user, to navigate and make changes to the recorder settings.

Supported standards:	IP
He would be:	AI
Number of supported channels:	40
Supported resolutions:	max. 16 Mpx
AI implemented by the recorder:	face detection Face recognition Face comparison with images from the database Support for up to 20 face databases, including 100,000 face photos Video structuring crossing the line double crossing the line perimeter protection abandoned/missing object running wandering around parking detection heat map sleep detection on duty detection of people on duty Intelligent motion detection (distinguishing between people and vehicles) VCA - metadata handling, behavior analysis, safety helmet detection, license plate recognition, electric bike detection
AI implemented by cameras:	crossing the line double crossing the line perimeter protection abandoned/missing object running wandering detection in a given area Parking monitoring mode heat map signal loss indication License plate recognition detection of people on duty crowd detection safety helmet detection electric bike detection counting people Smoke detection fire detection Face recognition face detection - recognizing facial attributes and expressions Measuring human body temperature classification of people and vehicles
Mobile phone access:	Port: 3000 or cloud access (P2P) Android: Free appEasyLive Plus iOS (iPhone): Free appEasyLive Plus
Access from PC:	Ports 80, 443, 3000, 3001, 3002, 23002 PC: Free applicationEasy7 Smart Client Express Chrome, Firefox, Safari, Edge browser
Supported hard drives:	8 x 24 TB SATA + 1 x eSATA Possibility of operating disks in a RAID JBOD/0/1/5/6/10 array
Video outputs:	2 szt. HDMI 4K, 2 pcs VGA
Throughput (bitrate):	400 Mbps (incoming) (without AI) 320 Mbps (incoming) (AI)
Audio inputs/outputs:	1 / 1
Image compression method:	S+265 / H.265 / S+264 / H.264
Archiving on external media:	Archiving to a USB drive (pendrive, external drive)
Network interface:	2 x RJ-45 - 10 / 100 / 1000 Mb/s
ONVIF:	Not
Default IP address:	192.168.1.3
Default administrator login/password:	admin / - An administrator password must be set at first startup
USB:	2 x USB 2.0 1 x USB 3.0
Alarm inputs/outputs:	16 / 4
Switch POE:	NO
Power supply:	100 ... 240 V AND
Power consumption:	18 W (bez HDD)
Working temperature:	-10 °C ... 55 °C
Libra:	6.2 kg

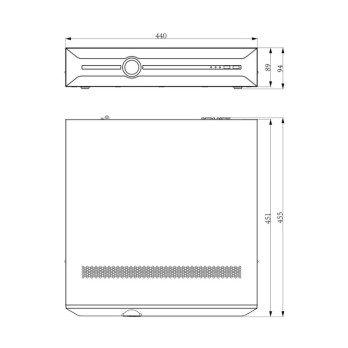

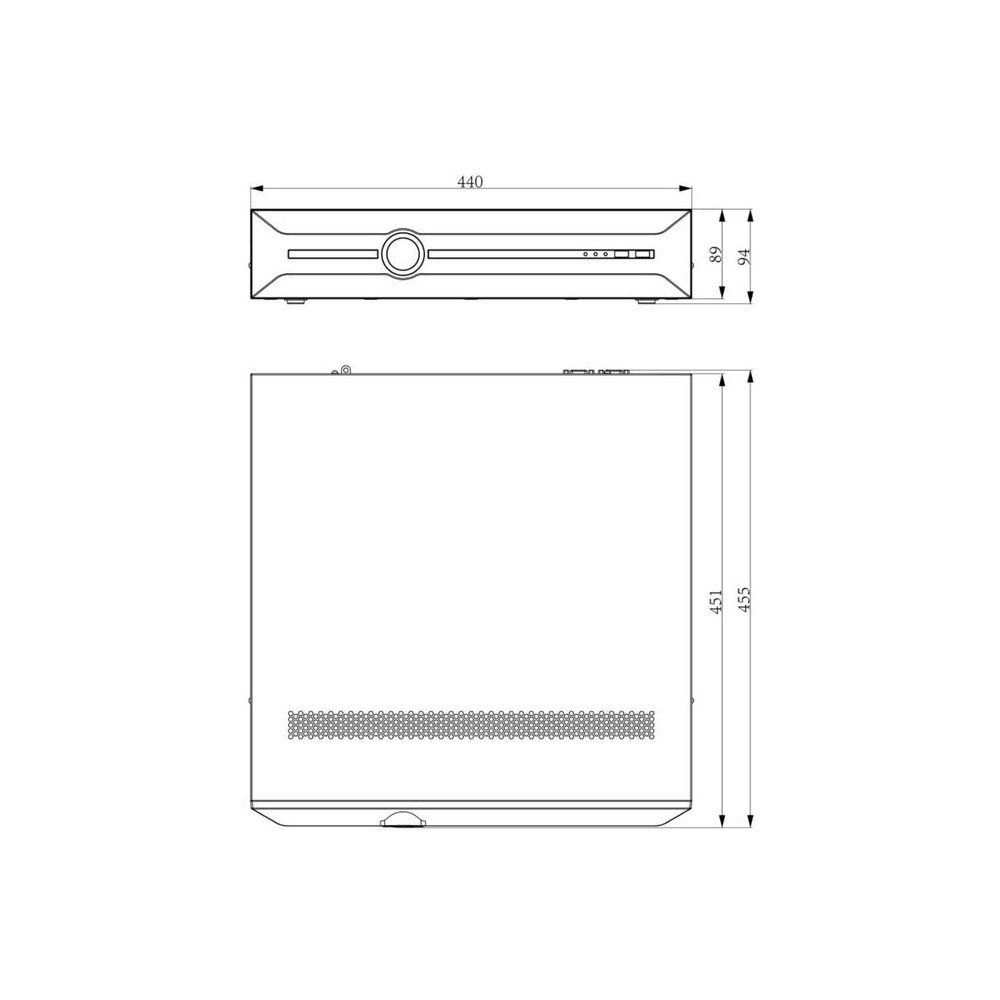

Dimensions:	440 x 455 x 94 mm
Supported languages:	Polish, English, Albanian, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Turkish, Ukrainian, Italian
NDAA Certification:	Not
Manufacturer / Brand:	TIANDY
Guarantee:	3 lata
