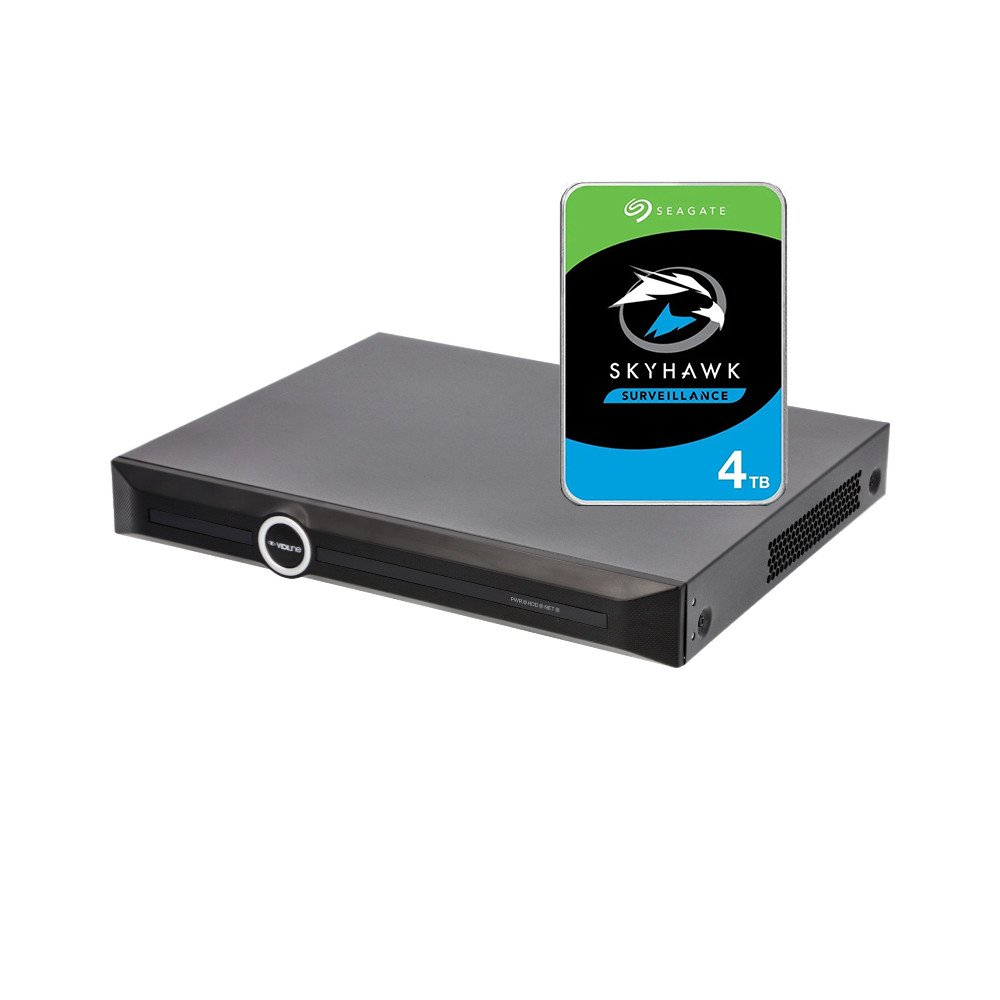

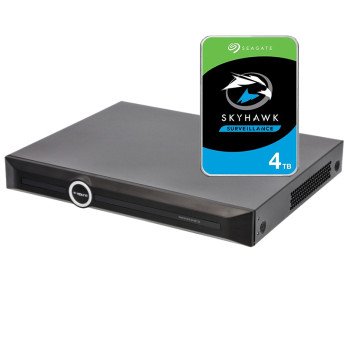

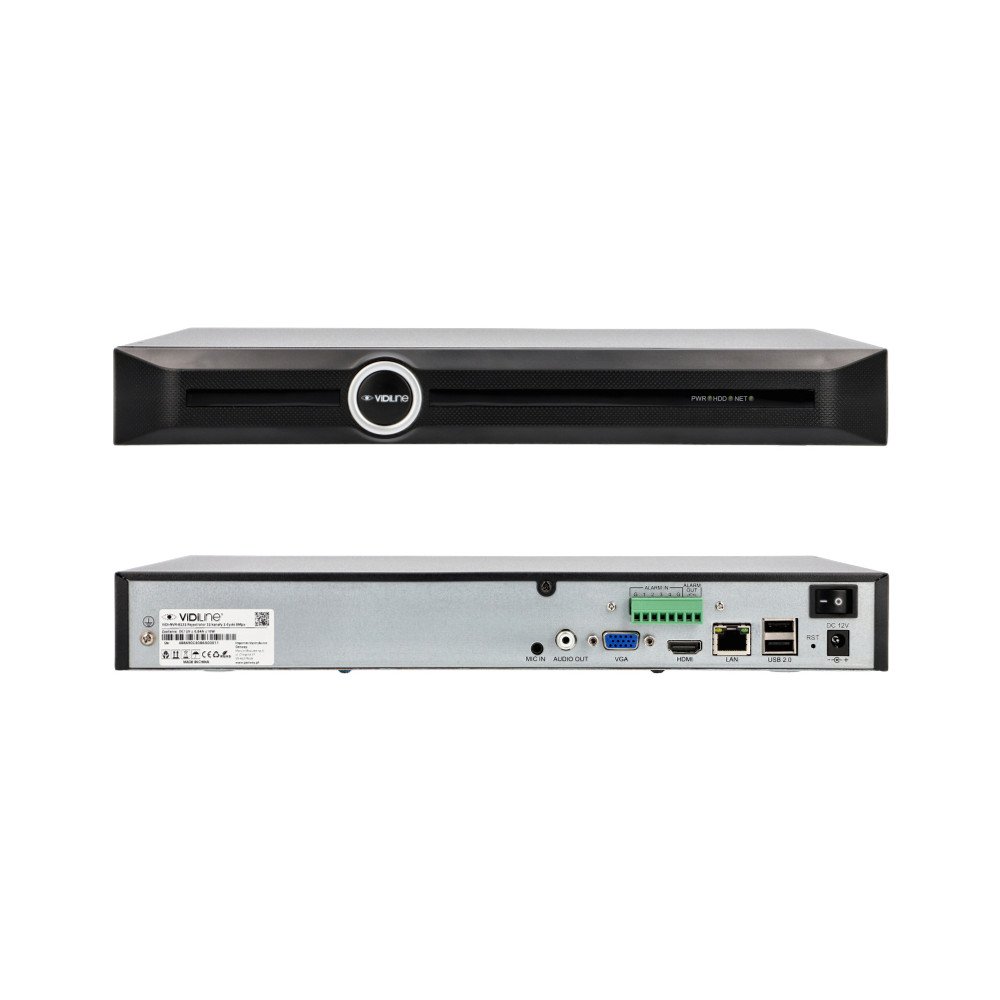

ViDiLine 32 Channel HDMI 4K 8Mpx IP Recorder Set + Seagate 4TB Drive

Technical data:

• Technology:IP
• Number of video channels:32 IP
• Video outputs:1xVGA / 1xHDMI / 4k on HDMI output
• Supported IP cameras:do 8Mpx
• Bitrate:160/48 Mbps
• Alarm I/O:4/1
• Compression:H.264, H.265, S+265
• Number of HDDs:2 pcs. 10TB SATA III
• Onvif:Profil S/T/G
• P2P:Yes - preview via smartphone

Recorder compatible with Tianda products! Full technical data can be found in the catalog card available in the attachments. ViDiLine 32-channel recorder

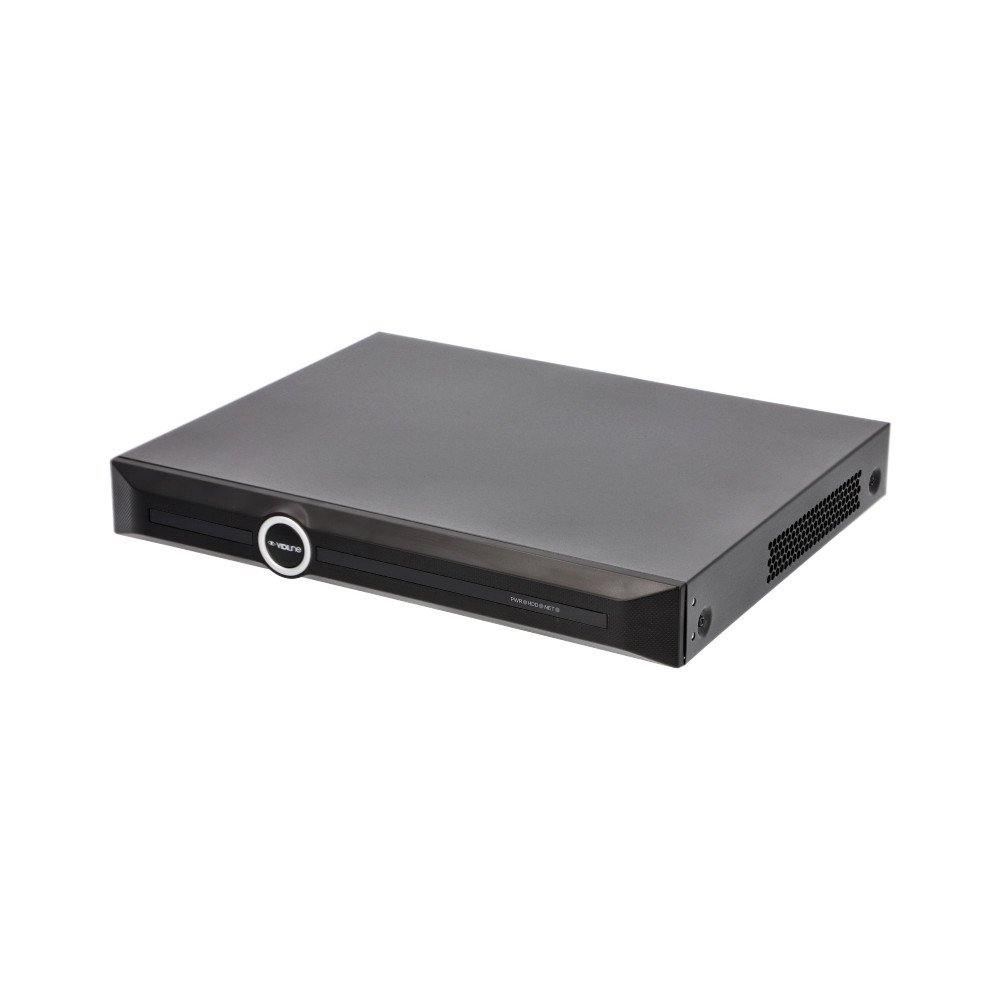

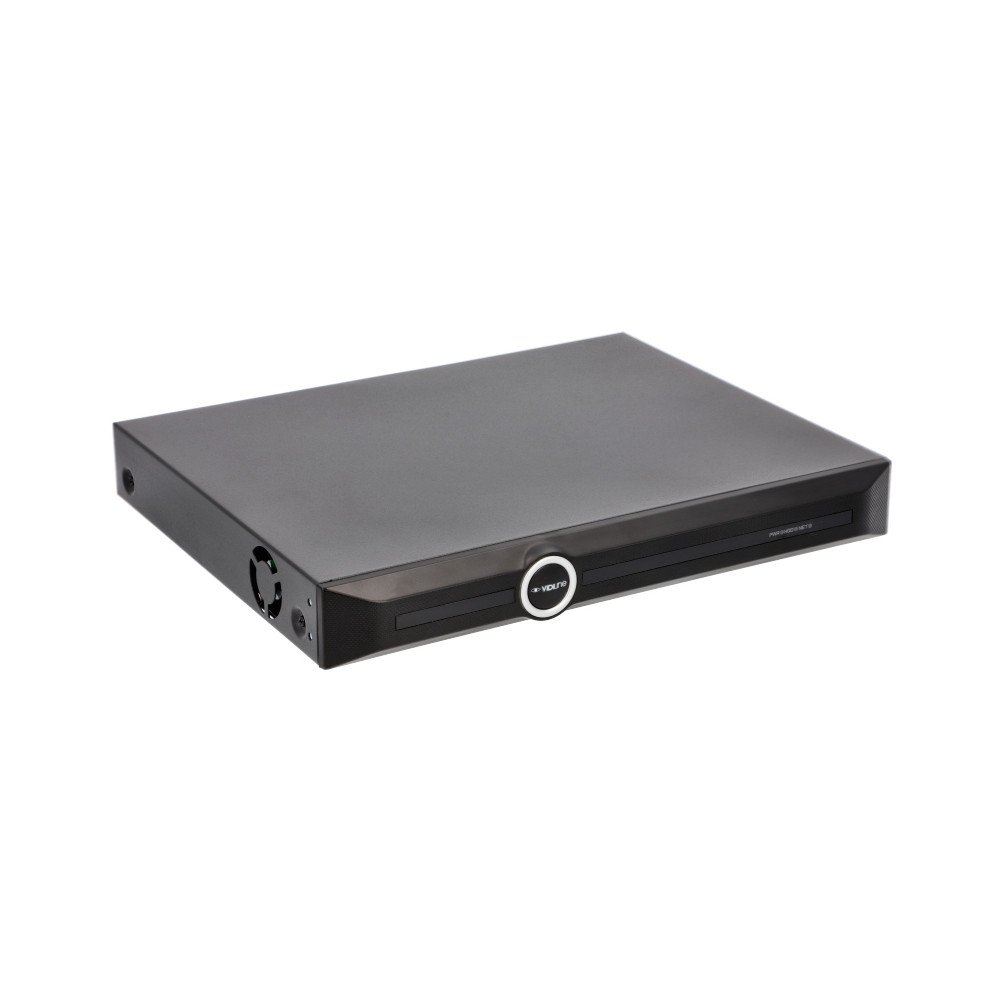

The ViDiLine VIDI-NVR-8232 recorder is a 32-channel IP recorder, supporting cameras up to 8 Mpx and two SATA drives up to 10 TB per disk. The recorder is intended for monitoring larger facilities such as companies or squares. The recorder ensures full compatibility with ViDiLine and Tiandy cameras via a private communication protocol. Support for S+265 compression effectively reduces the size of recordings by up to 75%, ensuring a longer period of stored recordings. The recorder has an HDMI 4K and VGA output for connecting a monitor. Four inputs and one output allow integration with other systems, e.g. alarm systems, or increasing the functionality of the recorder itself. Thanks to the Onvif protocol, the recorder supports cameras from other manufacturers. The recorder allows you to search for recordings by analyzing the image in terms of IVA rules.

Motion detection

The recorder supports recording after motion detection. This means that if there is a change in the scene in the camera's field of view, it is interpreted as motion detection. The recorder records this event as an alarm event that stands out on the timeline, making it easy to determine when the alarm occurred. Alarm notifications are sent to the phone with the application in the form of push notifications.

Support for Intelligent Image Analysis modes

The Intelligent Image Analysis (IVA) system adds intelligence to threat detection and enables intelligent searches for recorded incidents stored in the DVR. In addition, IVA allows you to create a virtual fence that triggers an alarm when crossed, detect items left or taken from the marked zone, count alarms, and other functions. VidiLine cameras and recorders are equipped with modern technological solutions enabling intelligent processing of the recorded image in real time. Thanks to IVA technology, we increase the level of security and effectiveness of monitoring.

Smartphone application

The VideoSight / ViDiView application allows you to connect the recorder to the Internet and add it to a cloud account, which allows you to view recorded materials live, view and download saved videos, monitor system and motion detection alarms, and perform basic device configuration - all using a dedicated smartphone application. Thanks to this application, you can also immediately view the image from the cameras and receive notifications when motion is detected in the cameras' field of view.

Equipment

• Support for up to 32 channels— this number of IP cameras allows for monitoring of a larger facility, such as a company or a square;
• Support for 8 Mpix cameras— the recorder allows you to operate cameras up to 8 Mpix, i.e. 4K image resolution;
• Space for 2 SATA drives— the recorder supports up to 10 TB per disk, which allows you to store recordings for a long time;
• Alarm inputs/outputs— four alarm inputs and one alarm output allow monitoring to be integrated, e.g. with an alarm system;
• Preview on your phone— the recorder connects to a dedicated cloud via P2P, providing a view from the camera and the ability to manage it using the VideoSight / ViDiView mobile application for smartphones;
• Remote management— thanks to connection to the cloud via P2P, we can manage the recorder configuration remotely from anywhere;
• Onvif S/T/G protocol support- thanks to this, cameras from other companies with Onvif can be connected to the recorder via this integration protocol;
• HDMI and VGA image output— allows you to connect a monitor or TV with a resolution of up to 4K;
• Advanced IVA— the recorder has advanced algorithms such as helmet detection, presence at the workplace, taking or leaving an object and many others, and allows you to search for recordings according to IVA rules without prior setting.

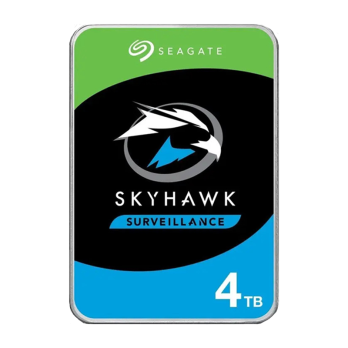

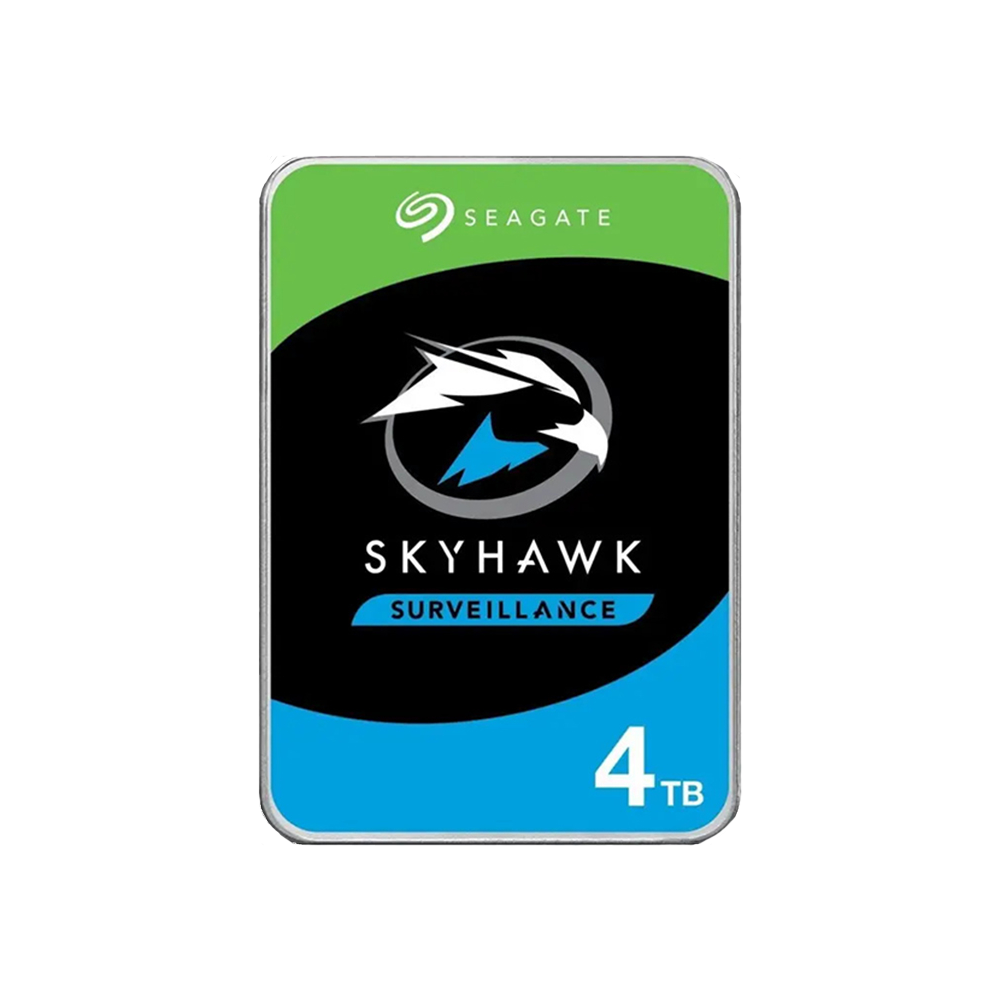

Disk parameters Basic parameters:

• Model: ST4000VX015

• He would be: SkyHawk

• Nominal capacity: 4 TB (4000 GB)

• Guaranteed number of sectors: 7 814 037 168

• Interface: SATA III 6Gb/s

• Recording method: CMR (Conventional Magnetic Recording)

• Buffer (cache): 256 MB

• Data transmission speed: do 180 MB/s

Mechanical and physical features:

• Number of platters (disks): 2

• Number of heads: 4

• Dimensions:

  • Height: 20.2 mm

  • Width: 101.6 mm

  • Length: 146.99 mm

• Libra: 490 g (typical)

Power consumption:

• Starting current (12V): 1.8 A

• Working mode: 3.7 W

• Idle mode: 2.5 W

• Sleep/standby mode: 0.25 W

Environmental conditions:

• Operating temperature: 0°C do 65°C

• Storage temperature: -40°C do 70°C

• Relative humidity (operation): 5% to 90% (non-condensing)

• Relative humidity (storage): 5% do 95%

• Working height: -304 m do 3048 m

Performance and reliability:

• Average delay: 6.0 ms

• MTBF (mean time between failures): 1,000,000 hours

• AFR (annual failure rate): 0.87%

• Number of loading/unloading cycles of heads: 600 000

• Permissible annual enrollment load: up to 180 TB/year

• Uncorrectable reading error: 1 in 10^14 bits

Acoustics:

• Idle mode (typical): 2.3 int

• Read/Write (typical): 2.7 internal
