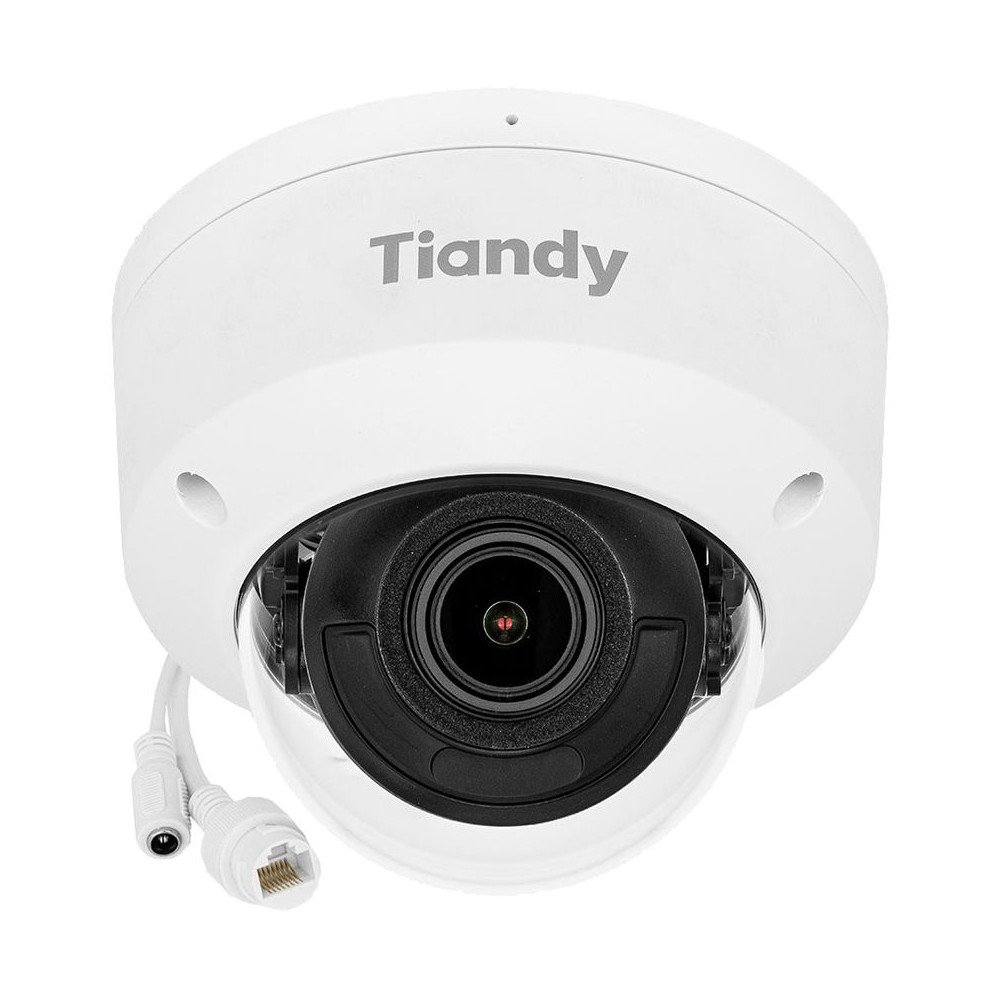

KAMERA IP TC-C34KN SPEC:I3/A/E/Y/2.8-12MM/V4.2 - 4 Mpx 2.8 ... 12 mm TIANDY

KAMERA IP TC-C34KN SPEC:I3/A/E/Y/2.8-12MM/V4.2 - 4 Mpx 2.8 ... 12 mm TIANDY

€1,217.24
Tax included
  • Resolution: 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080; Transducer: 1/2.9"
  • Lens: - Motozoom
  • Viewing angle: 104° ... 30°
  • IR illuminator range: 30 m
  • Memory card slot: Supports Micro SD cards up to 512GB
  • Image compression method: S+265
  • Audio: Built-in microphone
  • Power supply: PoE (802.3af), 12 V DC
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

IP camera with efficient H.265 / H.264 image compression algorithm ensuring clean and smoother image transmission in a maximum resolution of 4 MPx

PoE power supply option in accordance with the 802.3af standard makes the device even more universal and easier to install

The range of the illuminator provided by the manufacturer depends on the environmental conditions (air transparency, surroundings, wall color, i.e. the so-called scene reflectance)

Standard: IP
Resolution: 2688 x 1520 - 4 Mpx ,
2560 x 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p ,
1280 x 720 - 720p
Converter: 1/2.9 "
Progressive Scan CMOS
Lens: 2.8 ... 12 mm - Motozoom
Viewing Angle:
  • 104° ... 30° (manufacturer's data)
  • 97° ... 29° (our tests)
IR illuminator range: 30 m

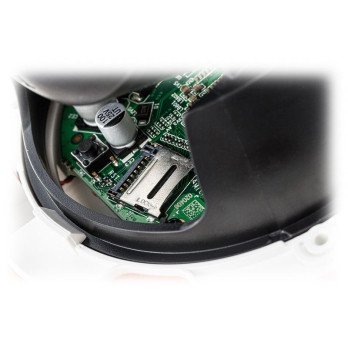

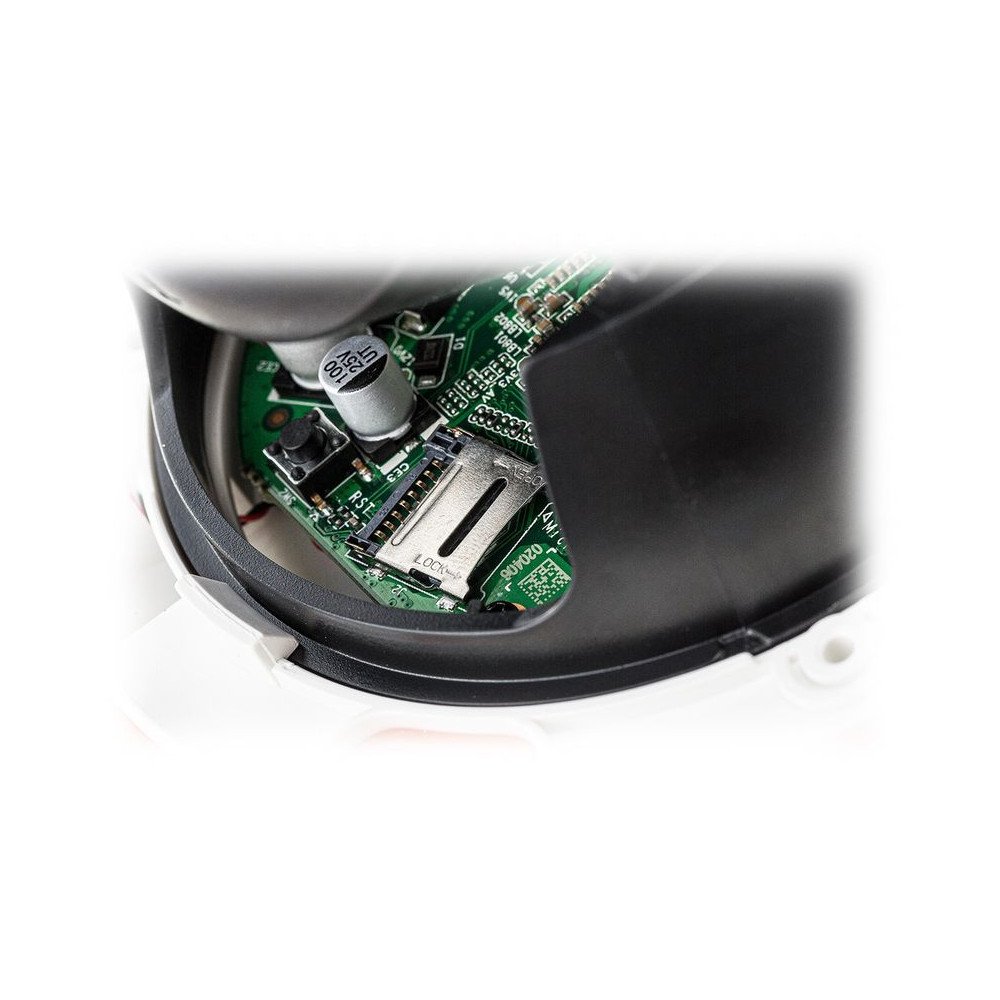

Memory card slot: Micro SD card support up to 512GB
Image compression method: S+265 / H.265 / H.264
Alarm inputs/outputs: NO
Audio:
  • Built-in microphone
  • Audio transmission over the network
Main stream transmission speed: 25 kl/s @ 4 Mpx
Network interface: 10/100 Base-TX (RJ-45)
WEB Server: Built-in
Max. number of online users: 2
ONVIF: NO
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express
Default IP address: DHCP The 192.168.1.2
Default administrator login/password: admin / -
An administrator password must be set at first startup
Web access ports: 80, 443, 3000, 3001, 3002, 23002
Access port via mobile application: 3000, 3001
Access ports via PC application: 3000, 3001
Port ONVIF: 80
Intelligent face analysis:
  • crossing the line
  • intrusion
Selected features:
  • WDR - 120 dB - Wide dynamic range of lighting
  • 2D-DNR, 3D-DNR - Digital noise reduction in the image
  • F-DNR (Defog) - Reduction of noise related to precipitation
  • ROI - improving the quality of selected image fragments
  • ANR - image recording on the card when there is no connection with the recorder (network failure) and subsequent synchronization
  • BLC/HLC - background light/strong light compensation
  • ICR - Mechanical infrared filter
  • Day/night mode
  • Ability to change resolution, quality and bandwidth
  • Privacy zones
  • Motion detection
Security:
  • Surge protection: 2 kV
  • Lightning protection: 6 kV
Power supply:
  • People (802.3AF),
  • 12 in DC / 630 mA
Power consumption: ≤ 7 W
Case: Dome - Plastic
Color: White
Tightness class: IP66
Mechanical protection class: NO
Operating temperature: -30 °C ... 60 °C
Libra: 0.4 kg

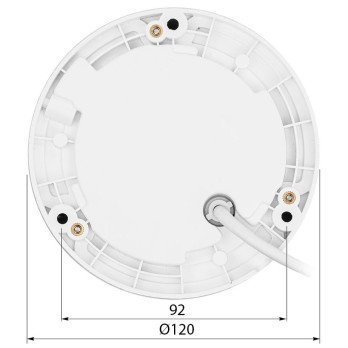

Dimensions: Ø 120 x 96 mm
Supported languages: Polish, English, Albanian, Arabic, Spanish, Korean, French, Dutch, Hebrew, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian
Manufacturer / Brand: TIANDY
Guarantee: 3 lata
Tiandy
NS34324
1 Item

Data sheet

Protocol
BLE
CIP
DHCP
GRE
LIN
ONVIF
PoE
Voltage
12V
IP Class
IP66
Image compression method
H.264
H.265
