Kamera termowizyjna IP Tiandy TC-C35LQ SPEC:I5W/E/Y/T/6MM/V4.2 6.8 mm - 720p, - 5 Mpx 6 mm

Kamera termowizyjna IP Tiandy TC-C35LQ SPEC:I5W/E/Y/T/6MM/V4.2 6.8 mm - 720p, - 5 Mpx 6 mm

€12,336.91
Tax included
  • Transducer: Uncooled VOx microbolometer
  • Viewing angle: 26°
  • Resolution: 1280 x 720 px, 704 x 576 px 2880 x 1620; Transducer: 1/2.7"
  • Viewing angle: 53°
  • RS-485 interface; Memory card slot: Supports Micro SD cards up to 512GB
  • Alarm inputs/outputs: 2 / 1; Audio: Built-in microphone, Support two-way audio
  • Power supply: PoE (802.3af), 12 V DC
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Camera compatible with ViDiLine products!

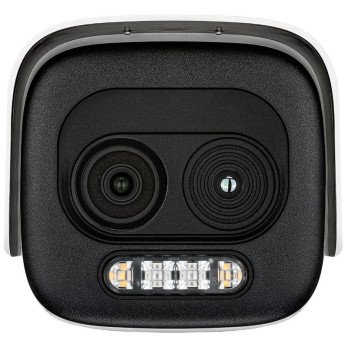

The TC-C35LQ SPEC:I5W/E/Y/T/6MM/V4.2 dual thermal imaging camera is a modern solution that allows you to detect the presence of people, animals and vehicles regardless of the prevailing visual conditions

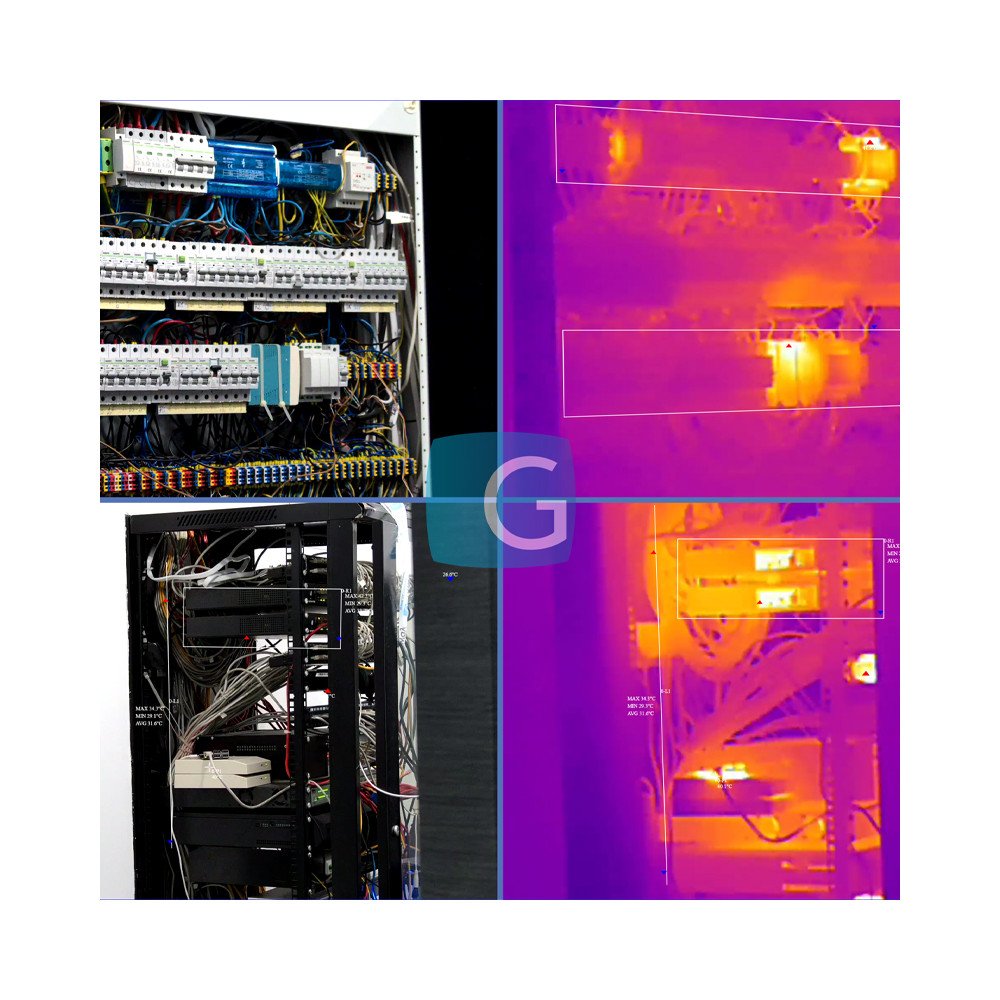

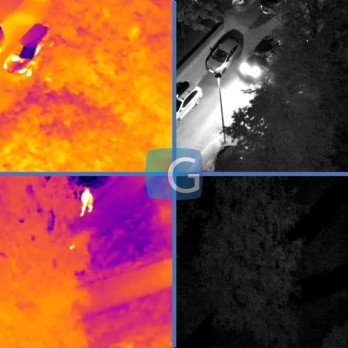

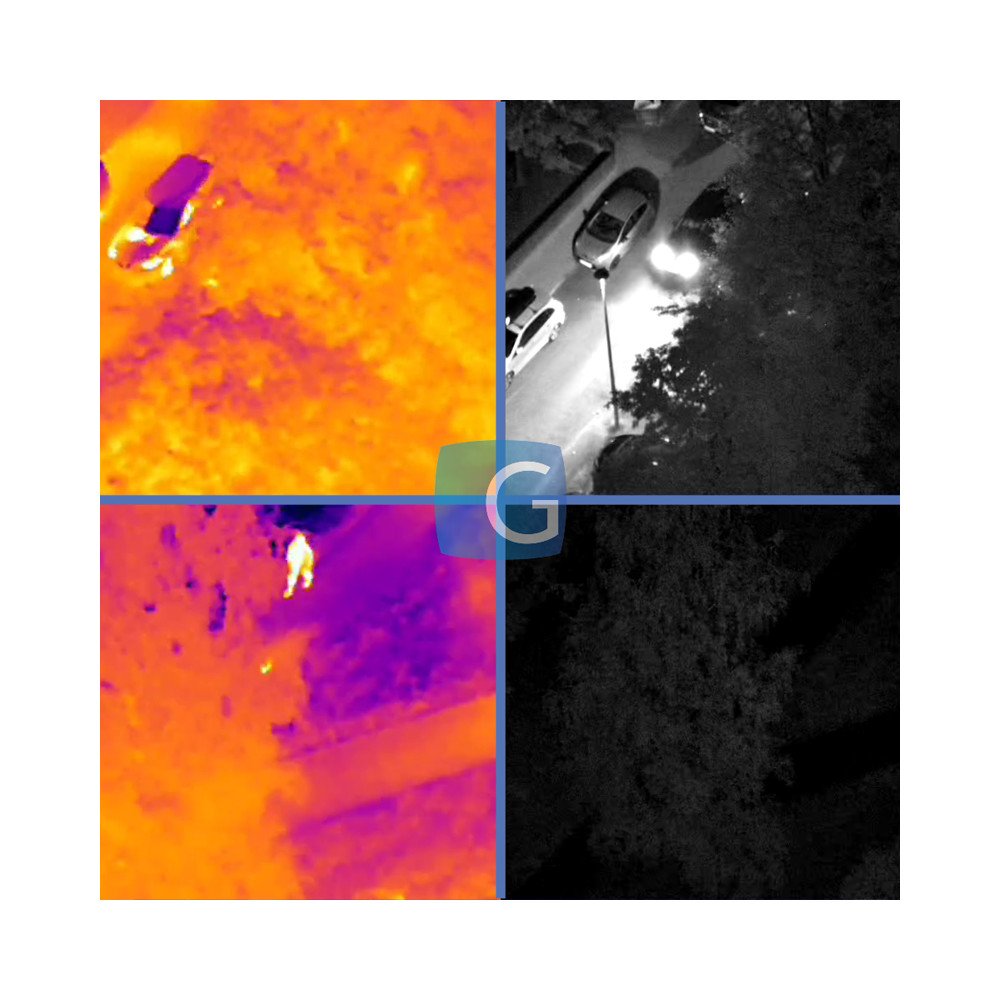

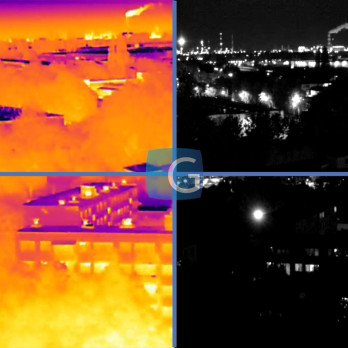

The device is equipped with a sensitive VOx microbolometer, allowing you to observe objects in fog, smoke and in the absence of lighting.

THERMAL IMAGE CAMERA:

Converter: Uncooled VOx microbolometer
Spot size: 12 µm
Thermal sensitivity (NETD): 55 mK @ F1.1
Spectral range: 8 µm ... 14 µm
Lens: 6.8 mm
Viewing Angle: 26 °
Resolution: 1280 x 720 px - 720p ,
704 x 576 px ,
640 x 480 px ,
352 x 288 px

VISUAL CAMERA:

Resolution: 2880 x 1620 - 5 Mpx
2688 x 1520 - 4 Mpx
2560 x 1440 - 3.7 Mpx
2304 x 1296 - 3 Mpx
Converter: 1/2.7 " Progressive Scan CMOS
Lens: 6 mm
Viewing Angle: 53 °
IR illuminator range: 50 m

General data:

Standard: IP
Video output: NO
Interface RS-485: Not

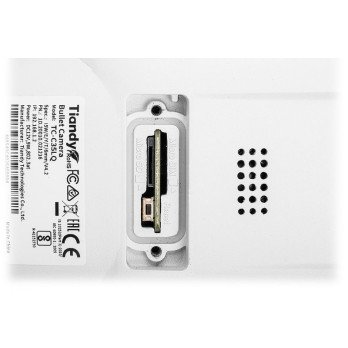

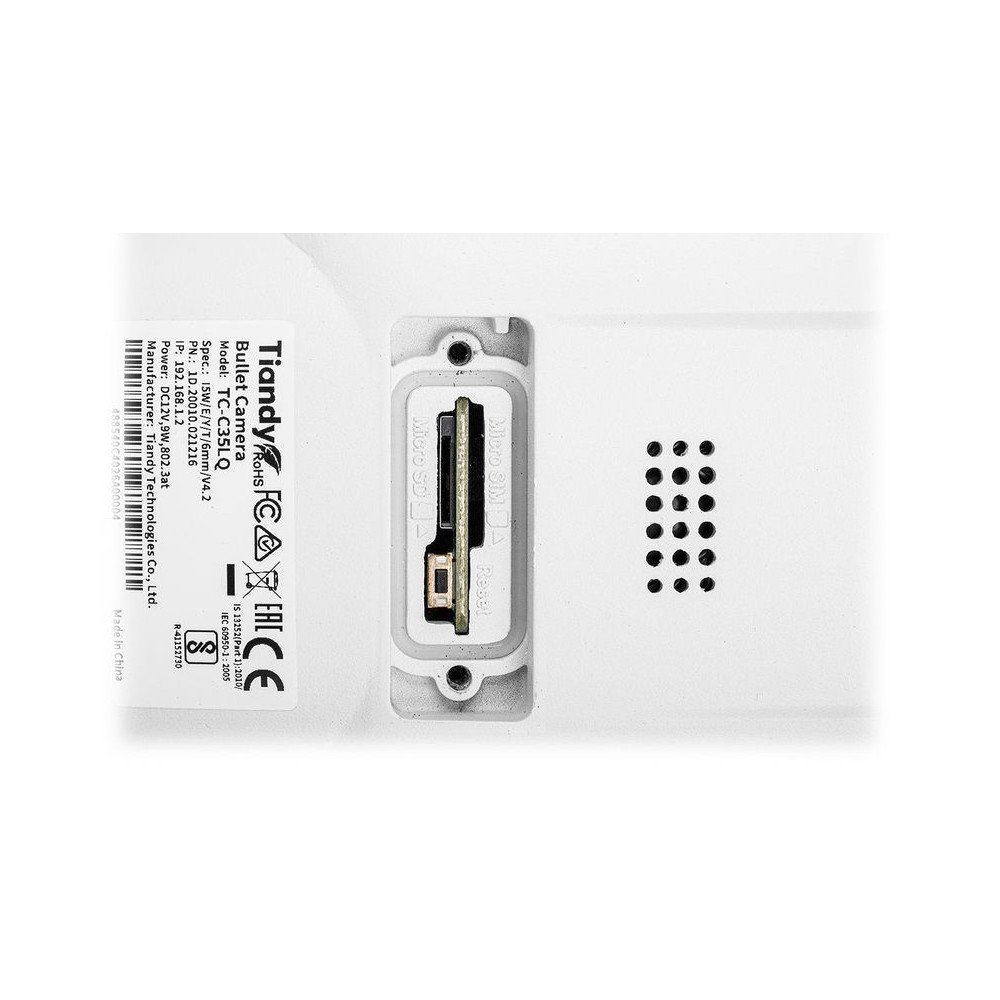

Memory card slot: Micro SD card support up to 512GB
Image compression method: S+265 / H.265 / H.264
Alarm inputs/outputs: 2 / 1
Audio:
  • Built-in microphone,
  • Built-in speaker
  • Audio input
  • Two-way audio support
  • Audio output
Main stream transmission speed:
  • 25 fps @ 1280x960
  • 25 kl/s @ 5 Mpx
Interface: 10/100 Base-T (RJ-45)
WEB Server: Built-in
Max. number of online users: 3
ONVIF: Not
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express
Default IP address: DHCP the 192.168.1.2
Default administrator login/password: admin / -
An administrator password must be set at first startup
Web access ports: 80, 443, 3000, 3001, 3002, 23002
Access port via mobile application: 3000, 3001
Access ports via PC application: 3000, 3001
Port ONVIF: 80
Intelligent face analysis:
  • crossing the line
  • intrusion
  • classification of people and vehicles
Selected features:
  • WDR - Wide dynamic range of lighting
  • ROI - improving the quality of selected image fragments
  • 3D-DNR - Digital image noise reduction
  • BLC/HLC - background light/strong light compensation
  • ICR - Mechanical infrared filter
  • Day/night mode (color/bw/auto)
  • Automatic white balance
  • AGC - Automatic image gain control
  • Sharpness - Sharpening the contours of the image
  • Motion detection
  • Detection of people smoking cigarettes
  • High temperature indication
Power supply:
  • People (802.3AF),
  • 12V DC
Power consumption: ≤ 9 W
Case: Compact - Metal
Color: White
Tightness class: IP67
Operating temperature: -35 °C ... 65 °C
Libra: 1.47 kg

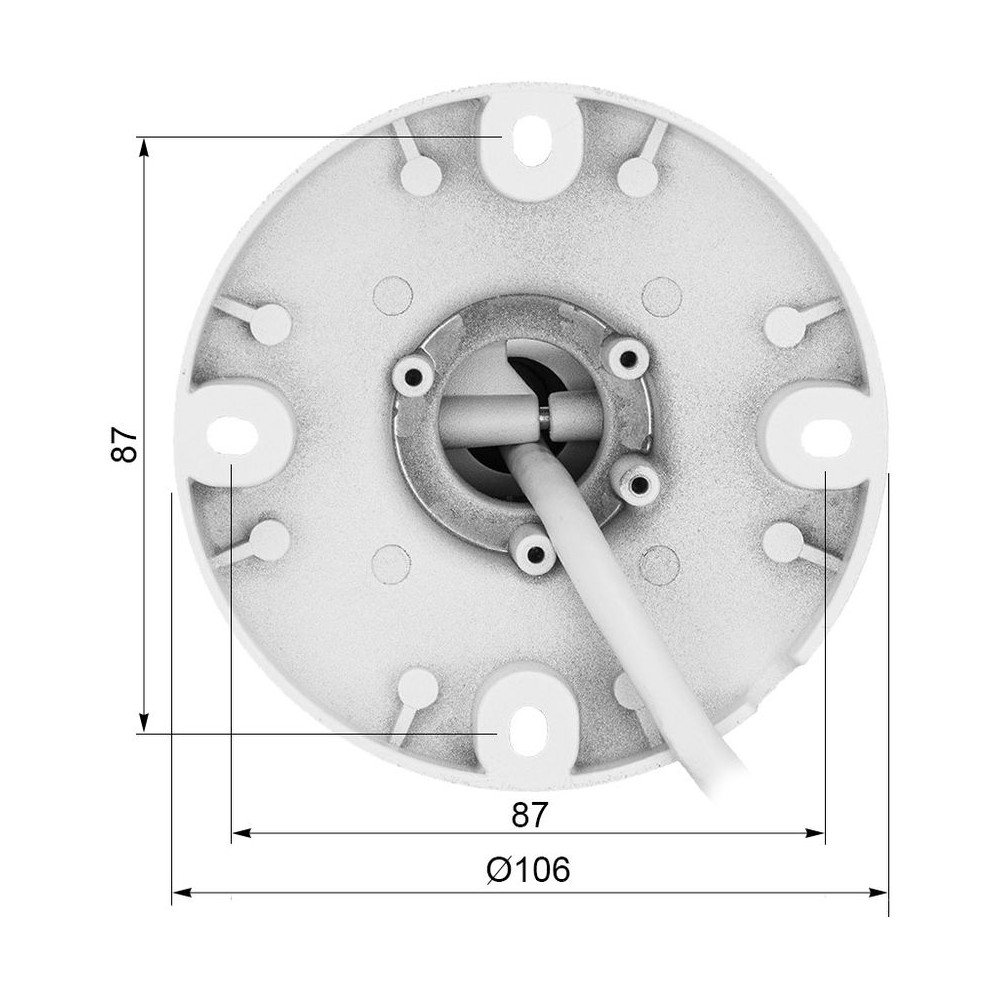

Dimensions: 327 x 115 x 109 mm
Supported languages: Polish, Albanian, English, Arabic, Spanish, French, Hebrew, Dutch, Korean, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian
Manufacturer / Brand: TIANDY
Guarantee: 3 lata
Tiandy
NS32843
1 Item

Data sheet

Protocol
ARP
BLE
DHCP
GRE
LIN
ONVIF
PoE
RS-485
Voltage
12V
IP Class
IP67
Image compression method
H.264
H.265
