- Resolution: 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080
- Converter: 1/2.8
- Viewing angle: 100°
- Range of white light illuminator (LED): 15m
- Memory card slot: Supports Micro SD cards up to 512GB
- Image compression method: S+265 Audio: Built-in microphone, Audio transmission over the network

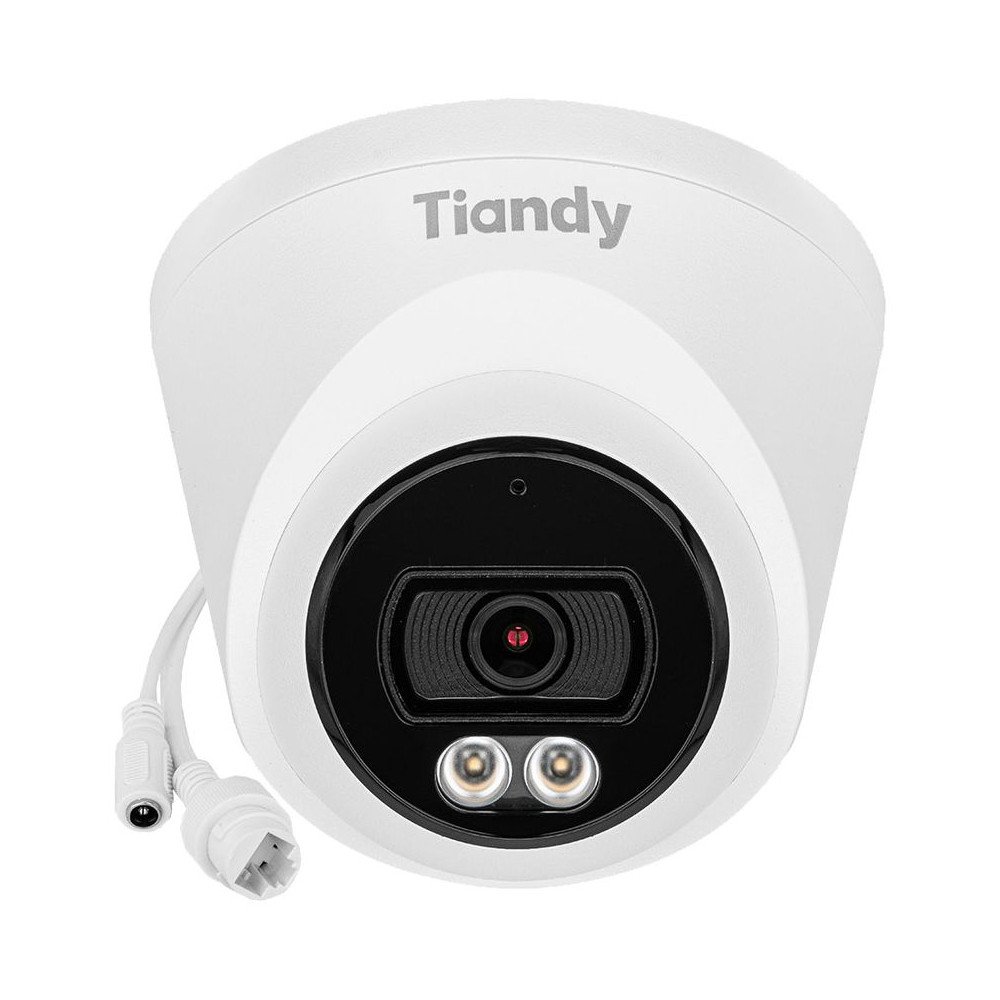

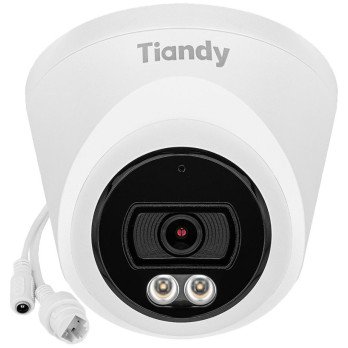

Kamera IP TC-C34XP SPEC:W/E/Y/2.8MM/V4.0 Color Maker
€1,233.68
Tax included
- Resolution: 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080
- Converter: 1/2.8
- Viewing angle: 100°
- Range of white light illuminator (LED): 15m
- Memory card slot: Supports Micro SD cards up to 512GB
- Image compression method: S+265 Audio: Built-in microphone, Audio transmission over the network
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Parameter | Specification |
|---|---|
| Standard | IP |
| Resolution | 2592 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
| Converter | 1/2.8" Progressive Scan CMOS |
| Lens | 2.8 mm |
| Viewing angle | 100° (manufacturer's data), 91° (our tests) |
| Range of white light illuminator (LED) | 15 m |
| Memory card slot | Micro SD card support up to 512GB |
| Image compression method | S+265 / H.265 / H.264 |
| Alarm inputs/outputs | - |
| Audio | Built-in microphone, Audio transmission over the network |
| Main stream transmission speed | 25 kl/s @ 4 Mpx |
| Interface | 10/100 Base-TX (RJ-45) |
| WEB Server | Built-in |
| Max. number of online users | 2 |
| ONVIF | - |
| Access from your mobile phone | Port: 3000 or cloud access (P2P), Android: Free EasyLive Plus app, iOS (iPhone): Free EasyLive Plus app |
| Access from a PC | Port: 3000 or cloud access (P2P), PC: Free Easy7 Smart Client Express application |
| Default IP address | DHCP the 192.168.1.2 |
| Default administrator login/password | admin / - An administrator password must be set at first startup |
| Access ports via www | 80, 443, 3000, 3001, 3002, 23002 |
| Access port via mobile application | 3000, 3001 |
| Access ports via PC application | 3000, 3001 |
| Port ONVIF | 80 |
| Intelligent face analysis | crossing the line, intrusion |
| Selected functions | WDR - 120 dB - Wide dynamic range of lighting, 3D-DNR - Digital image noise reduction, F-DNR (Defog) - Reduction of noise related to precipitation, ROI - improving the quality of selected image fragments, BLC/HLC - background light/strong light compensation, ICR - Mechanical infrared filter, Day/night mode, Motion detection, Privacy zones |
| Power supply | People (802.3AF), 12 V / 590 mA |
| Power consumption | ≤ 7 W |
| Case | Dome - Metal + Plastic |
| Color | White |
| Tightness class | IP66 |
| Mechanical protection class | - |
| Operating temperature | -40 °C ... 65 °C |
| Libra | 0.33 kg |
| Dimensions | Ø 117 x 96 mm |
| Supported languages | Polish, English, Albanian, Arabic, Spanish, Korean, French, Dutch, Hebrew, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian |
| Manufacturer / Brand | TIANDY |
| Guarantee | 3 lata |
NS33585
1 Item
Data sheet
- Protocol
- BLE
CIP
DHCP
GRE
LIN
ONVIF
PoE - Voltage
- 12V
- IP Class
- IP66
- Image compression method
- H.264
H.265
