- Resolution: 2880 x 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080; Transducer: 1/2.7"
- Viewing angle: 109°
- IR illuminator range: 50 m
- Range of white light illuminator (LED): 15 m
- Audio: Built-in microphone

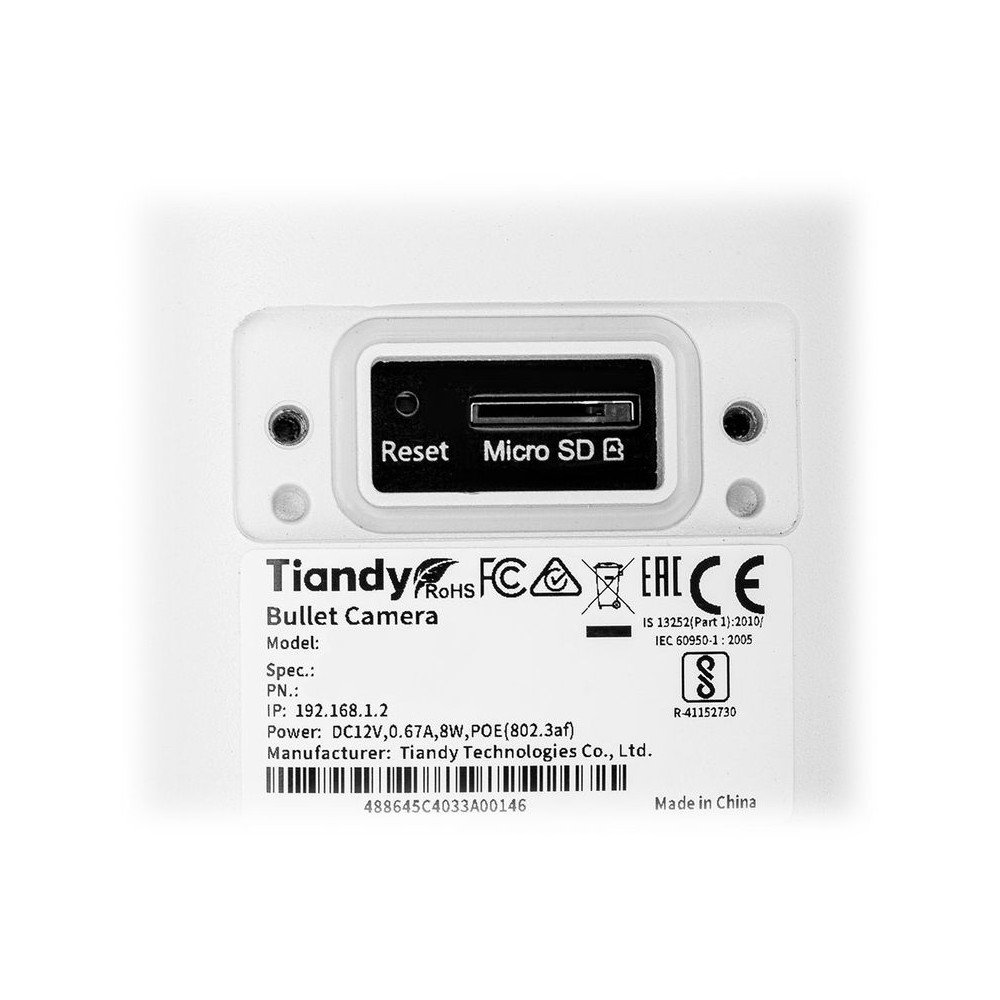

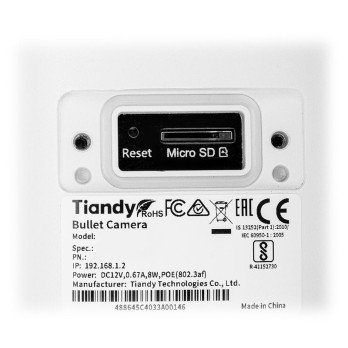

- Memory card slot: Supports Micro SD cards up to 512GB
- Image compression method: S+265
- Power supply: PoE (802.3af), 12 V DC
- Seria: Lite, Color Maker

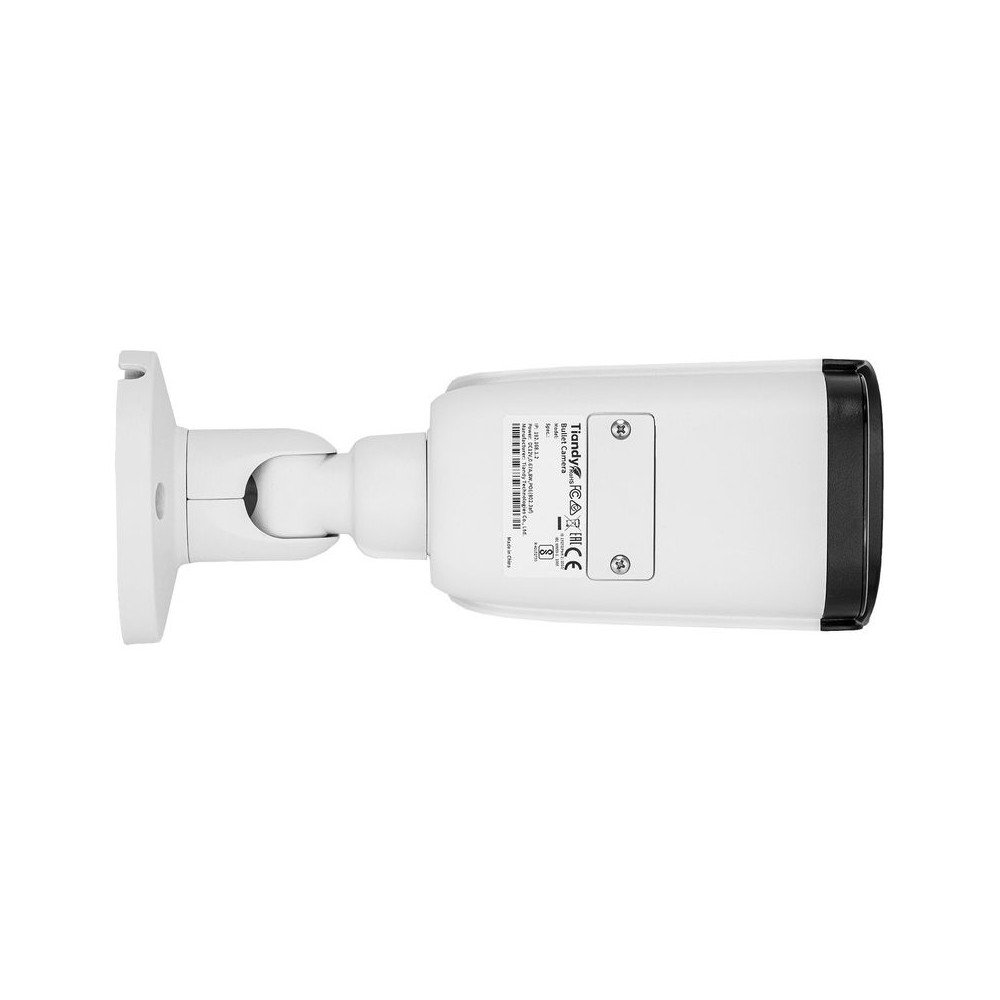

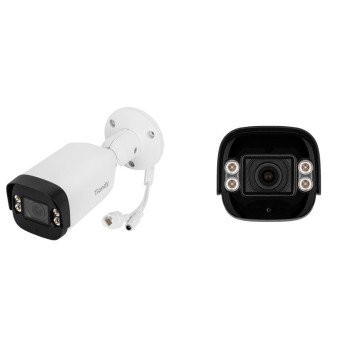

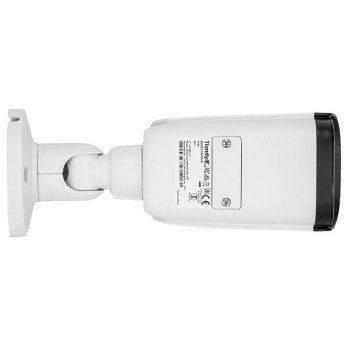

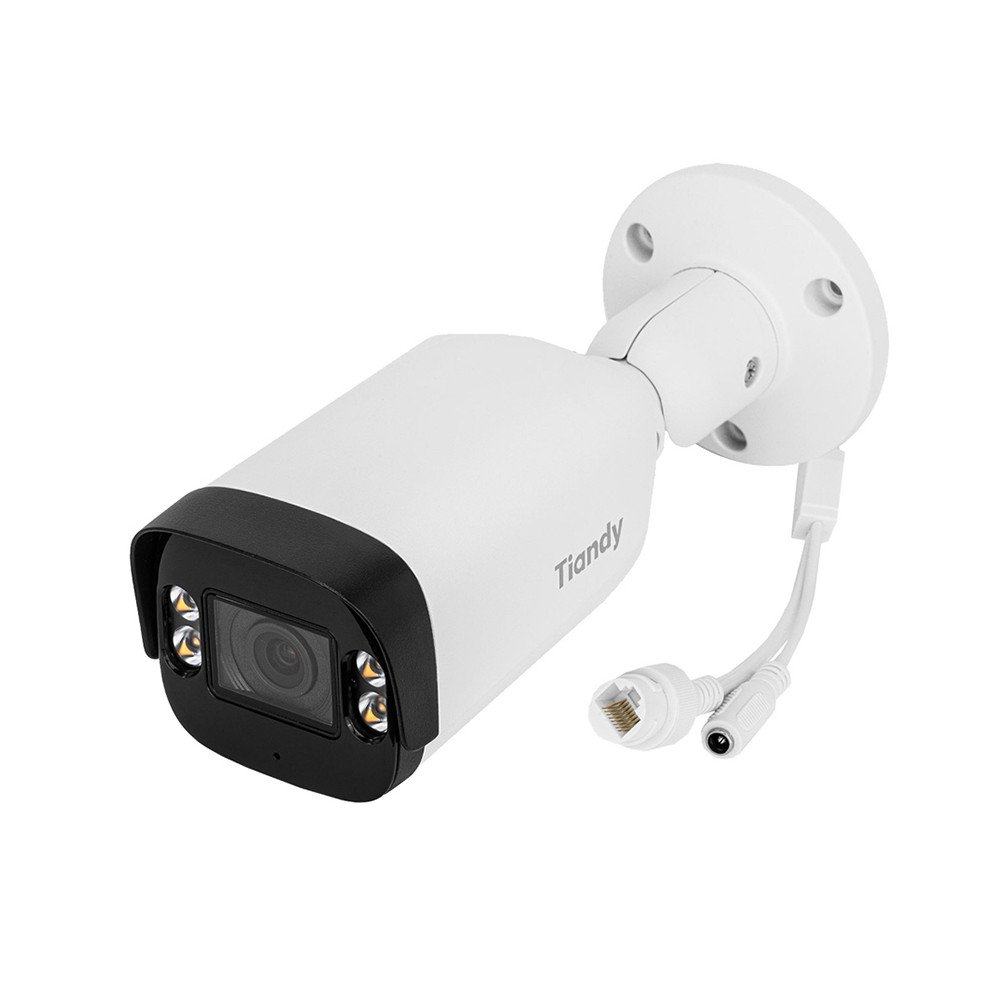

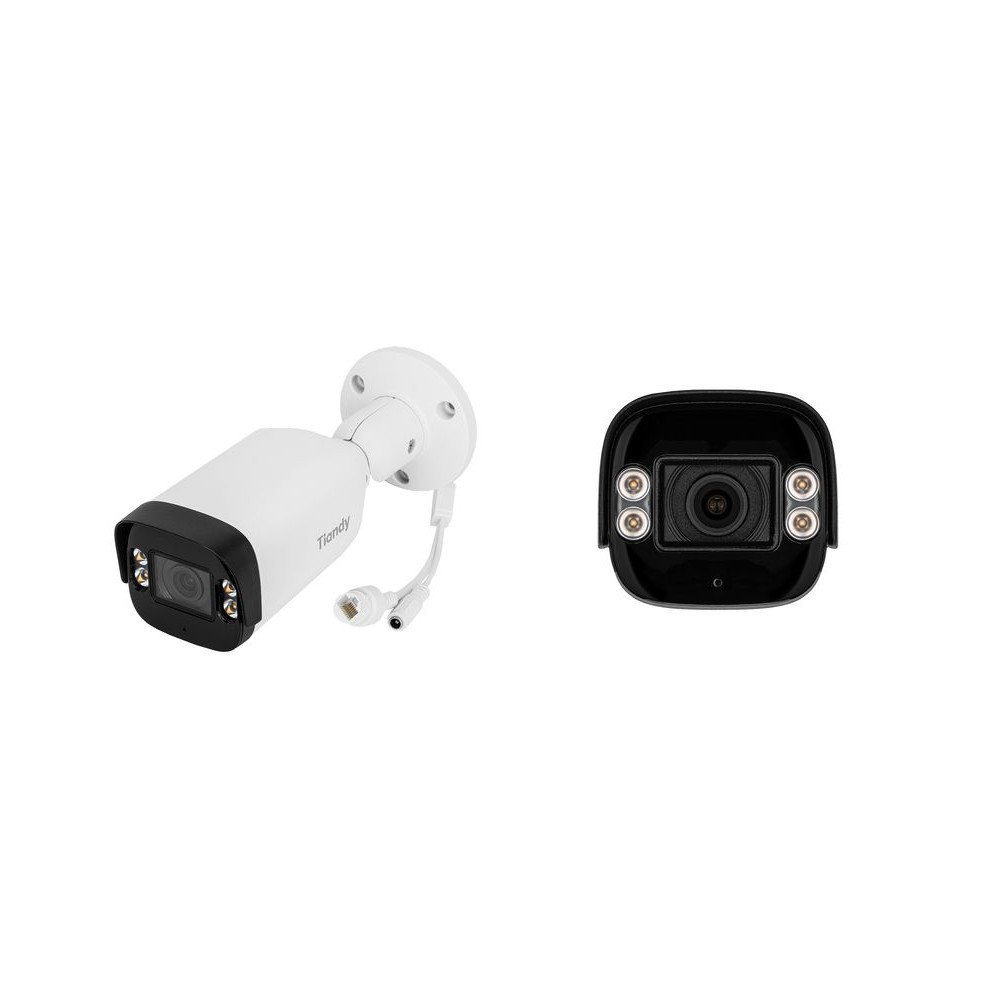

Kamera IP TC-C35US SPEC:LK/I5W/E/Y/M/S/2.8MM/V5.0 Color Maker - 5 Mpx 2.8 mm TIANDY
€1,198.96
Tax included
- Resolution: 2880 x 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080; Transducer: 1/2.7"
- Viewing angle: 109°
- IR illuminator range: 50 m
- Range of white light illuminator (LED): 15 m
- Audio: Built-in microphone
- Memory card slot: Supports Micro SD cards up to 512GB
- Image compression method: S+265
- Power supply: PoE (802.3af), 12 V DC
- Seria: Lite, Color Maker
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Lite series IP camera with efficient S+265 image compression algorithm ensuring efficient, smooth image transmission
The Color Maker series camera allows you to obtain clear, colorful images even in very unfavorable lighting conditions
When Color Maker is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality
PoE power supply option in accordance with the 802.3af standard makes the device even more universal and easier to install
The range of the illuminator provided by the manufacturer depends on the environmental conditions (air transparency, surroundings, wall color, i.e. the so-called scene reflectance)
The camera meets the IP67 tightness class
| Standard: | IP |
| Resolution: | 2880 x 1620 - 5 Mpx , 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Converter: | 1/2.7 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| Viewing Angle: | 109 ° |
| IR illuminator range: | 50 m |
| Range of white light illuminator (LED): | 15 m |
| Audio: |
|
| Memory card slot: | Micro SD card support up to 512GB |
| Image compression method: | S+265 / H.265 / H.264 |
| Alarm inputs/outputs: | NO |
| Main stream transmission speed: | 25 kl/s @ 5 Mpx |
| Interface: | 10/100 Base-TX (RJ-45) |
| WEB Server: | Built-in |
| Max. number of online users: | 2 |
| ONVIF: | NO |
| Mobile phone access: | Port: 3000 or cloud access (P2P)
|
| Access from PC: | Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express |
| Default IP address: | 192.168.1.2 |
| Default administrator login/password: | admin / - An administrator password must be set at first startup |
| Web access ports: | 80, 433, 3000, 3001, 3002, 23002 |
| Access port via mobile application: | 3000, 3001 |
| Access ports via PC application: | 3000, 3001 |
| Port ONVIF: | 80 |
| Intelligent face analysis: | crossing the line - perimeter protection |
| Selected features: |
|
| Power supply: |
|
| Power consumption: |
|
| Case: | Compact - Metal |
| Color: | White |
| Tightness class: | IP67 |
| Mechanical protection class: | NO |
| Operating temperature: | -40 °C ... 65 °C |
| Libra: | 0.92 kg |

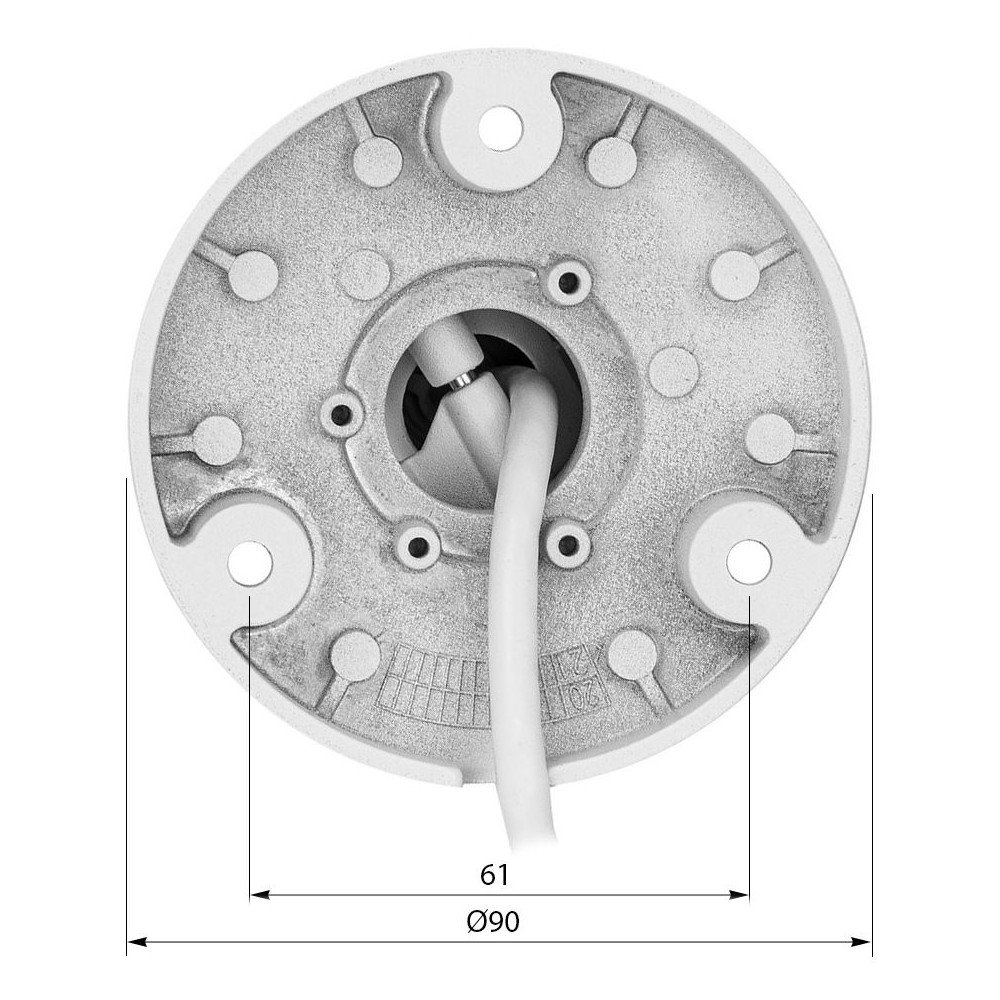

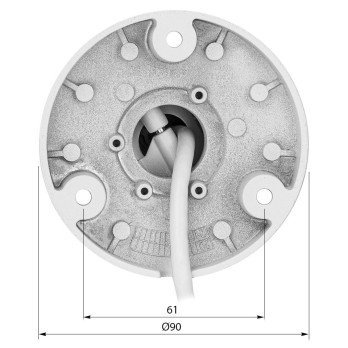

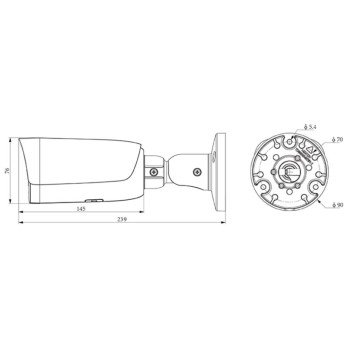

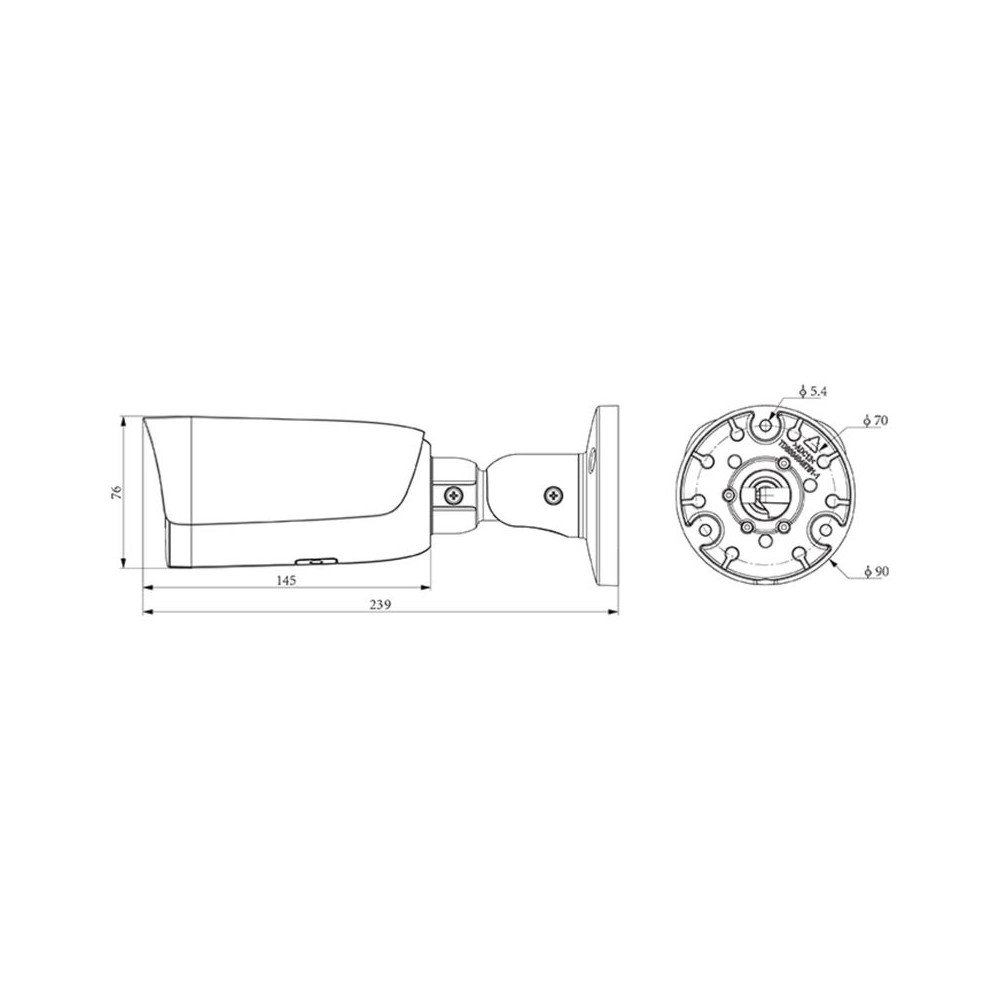

| Dimensions: | 239 x 90 x 90 mm |
| Supported languages: | Polish, English, Albanian, Arabic, French, Hebrew, Spanish, Dutch, Korean, Portuguese, German, Russian, Thai, Turkish, Ukrainian, Italian, Vietnamese |
| Manufacturer / Brand: | TIANDY |
| He would be: | Lite, Color Maker |
| Guarantee: | 3 lata |
NS33530
1 Item
Data sheet
- Protocol
- BLE
CIP
GRE
LIN
ONVIF
PoE - Voltage
- 12V
- IP Class
- IP67
- Image compression method
- H.264
H.265
