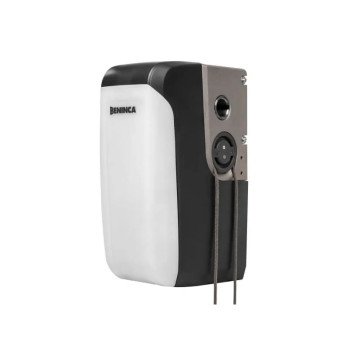

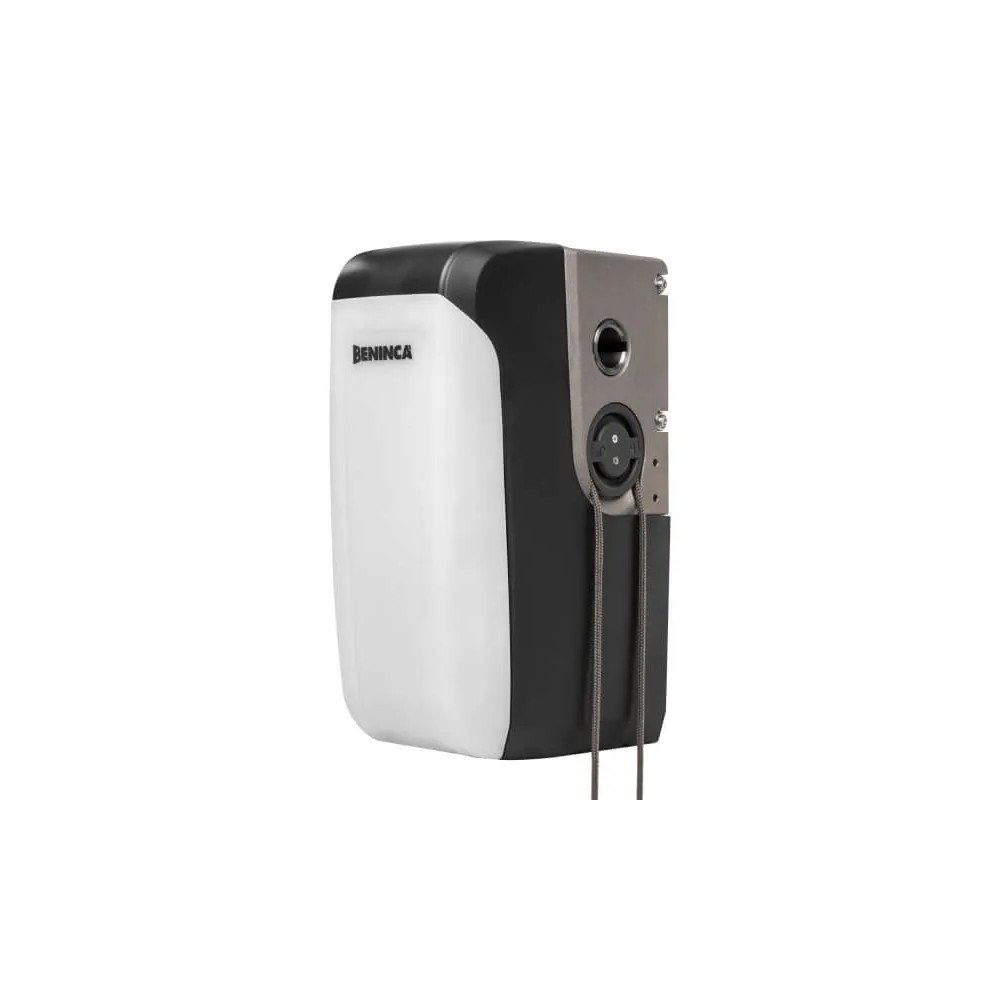

KJACK24.80 - set up to 35m2

• easy to install, mounted directly on the sectional gate shaft with dimensions of 25.4 mm (adapters available for shaft diameters of 30mm, 31mm, 75mm, 40mm)
• electromechanical gear motor for side mounting with a built-in control unit equipped with a 115/230 Vac switching power supply, which allows for low energy consumption and longer actuator life
• the control unit, easily accessible thanks to the hinged front cover, is equipped with an innovative system (ESA +) that reduces energy consumption, which guarantees power consumption in standby mode below
• compact size (11 cm wide), which allows quick and easy installation even in limited space
• ideal for automating large gates or when intensive use is required
• the encoder guarantees the highest safety and precision during gate movement
• Built-in STC system for precise torque management
• guarantee of operation even in the event of a power failure thanks to batteries that can be perfectly integrated with the engine (2 batteries 1.2 Ah)
• built-in battery charging card
• anti-crush system with amperometric obstacle detection
• Designed to connect X.BE accessories for integration with KNX installations and programming via the BeUP app and PRO.UP interface
• Built-in quick unlocking system in manual maneuver

Technical data:

• Power supply: 230Vac (50-60Hz)
• Current: 3.3 A
• Torque: 80 Nm
• Maximum output revolutions: 20
• Output speed: 22 r.p.m.
• Shaft diameter: 1" (25.4mm)
• Duty cycle: 720 cycles/day
• Degree of protection: IP40
• Operating temperature: -20°C/+50°C
• Maximum gate area: 35m²
• Lubrication: Grease
• Weight: 7.69 kg
