BENINCA KIT-KBULL6M.PM-LAMP set for sliding gates with a maximum weight of 600 kg. 230 Vac actuator for gates weighing up to 600 kg. Built-in control panel with a 433.92 MHz radio receiver. Mechanical limit switches.
KIT-KBULL6M.PM-LAMP KIT FOR SLIDING GATES
€3,387.23
Tax included
BENINCA KIT-KBULL6M.PM-LAMP set for sliding gates with a maximum weight of 600 kg. 230 Vac actuator for gates weighing up to 600 kg. Built-in control panel with a 433.92 MHz radio receiver. Mechanical limit switches.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
KIT-KBULL6M.PM-LAMP is a single-phase actuator (230V) with a built-in control unit for residential use. It is possible to install magnetic limit switches and an easy-to-use unlocking device.
Technical Data:
- Weight: 10.6 Kg
- Duty cycle: 30%
- Max. gate weight: 500 Kg
- Power: 235 W
- Current: 1.3 A
- Sprocket drive equipment: M4 Z18
- Opening speed: 10.5 m/min
- Force: 18 Nm
- Degree of protection: IP 44
- Operating temperature: -20/+70° C
- Power supply: 230 Vac

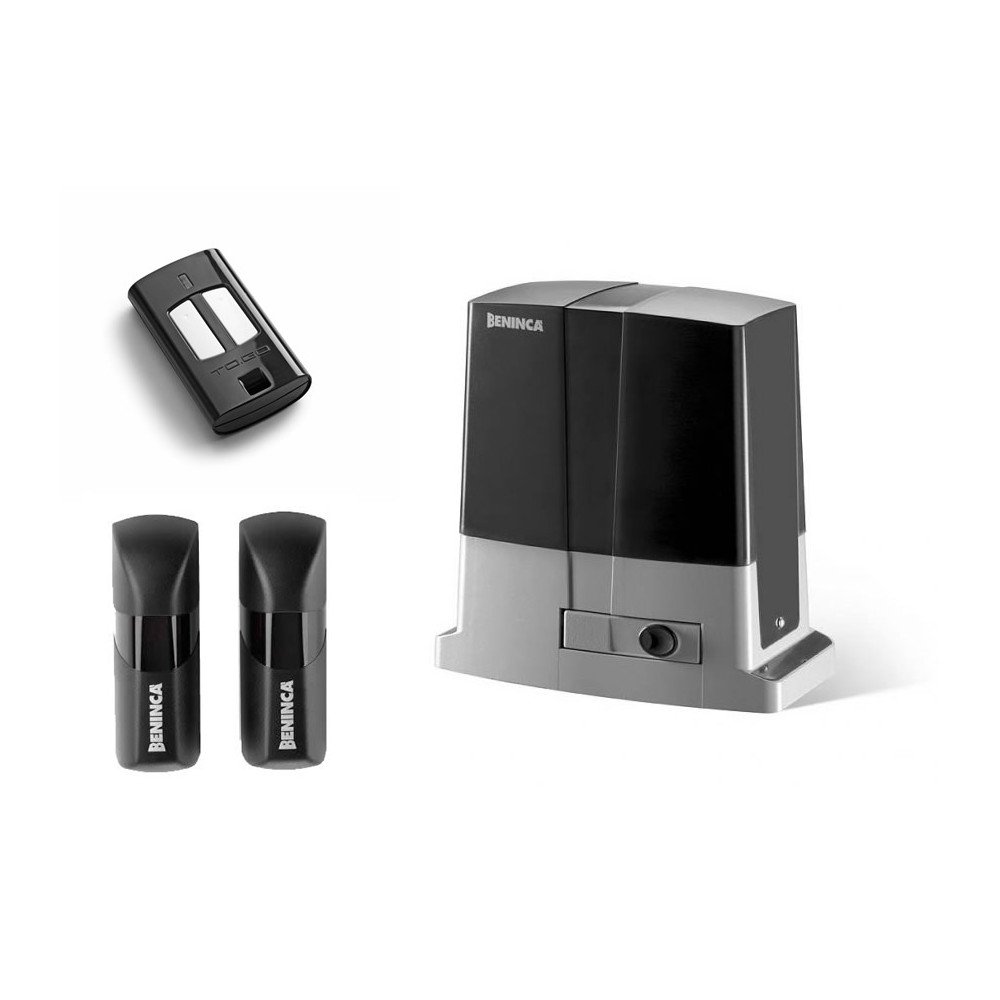

Set includes
- 1 KBULL6M.P 9B actuator with control unit and receiver
- photocell PUPIL
- 1 pilot TO.GO2WV
- LAMPI.LED flashing lamp 12-230V
- set of fastening elements
- assembly instructions
- warranty card
