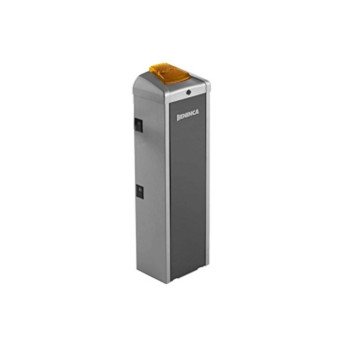

EVA 8 - 5B - barrier

• Built-in radio receiver
• 24 Vdc electromechanical barrier for intensive work. The arm can be mounted on the right or left side (easy to change the arm mounting side).
• Easy and quick programming of the control panel thanks to its location at the top of the barrier (above the engine) using an LCD display.
• Parking function - prevents bumper driving.
• Intuitive control panel programming and barrier operation.
• Possibility of integrating FTC.S photocells with the barrier housing thanks to the hide-away system.
• Emergency battery power supply (optional). If the voltage drops below 19V, the barrier opens automatically (as a function).
• Control panel with built-in 433.92 MHz radio receiver (64 variable codes).
• Control panel with built-in battery charging card.
• The barrier is equipped with an absolute encoder.
• Amperometric anti-crushing protection.
• New quick unlock system.
• Integrated lamp housing (requires EVA.LAMP flashing lamp circuit).
• 2 mechanical limit switches.
• Easy, fast and reliable arm balancing system.
• Does not include foundation plate and arm.

Technical data:

• Power supply 230 Vac (50-60Hz)
• Motor power supply 24 Vdc
• Current 1.6 A
• Torque 285 Nm
• Opening time 3.5" - 6"
• Duty cycle intensive use
• IP44 protection level
• Operating temperature -20°C / +50°C
• Weight 105 kg
