Set for garage, industrial and roller doors with a chain unlocking system
K.VN.M20.OSE - disassembly kit chain + chain
€7,743.99
Tax included
Set for garage, industrial and roller doors with a chain unlocking system
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

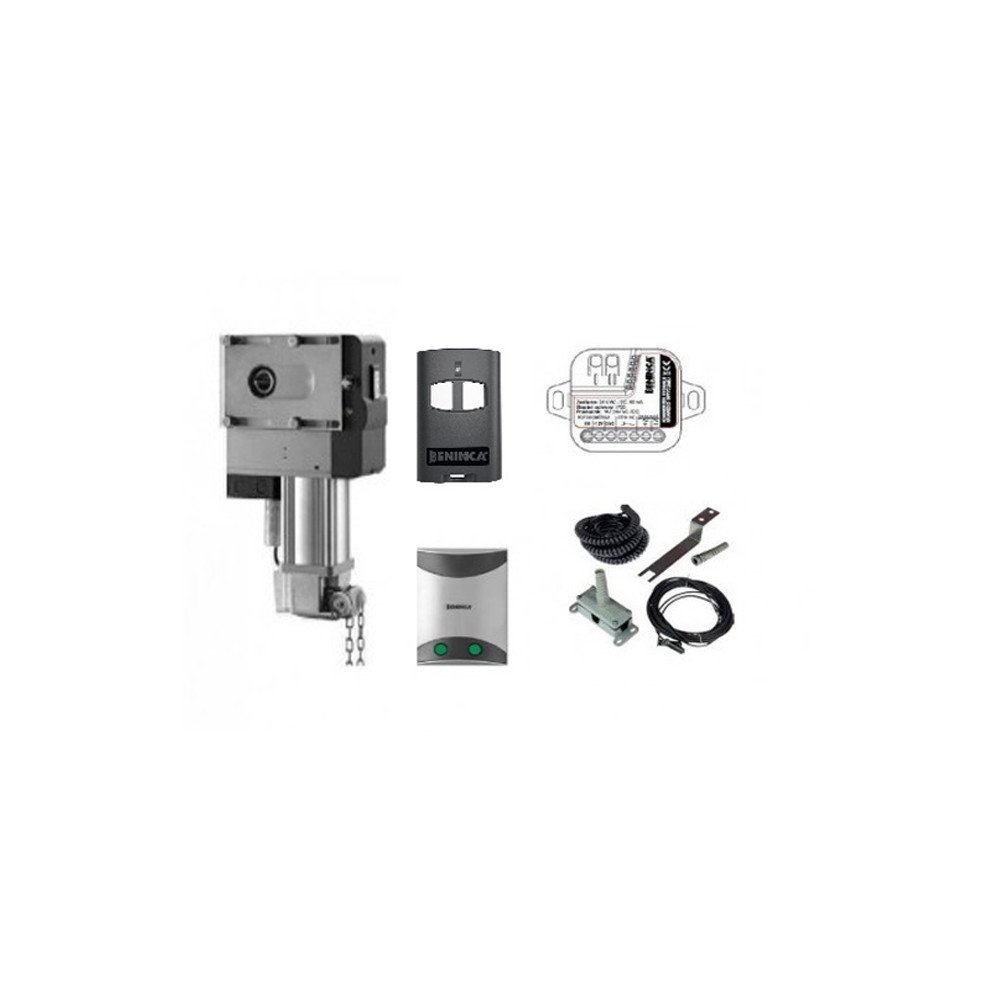

The set consists of:
- 1 x VN.S20 – Actuator 230V, 130 Nm, oil bath gear, cord release, area up to 35m2 1
- Control unit with built-in receiver, open/close buttons CELL.P
- Optical edge converter KASK_12
- 1 x SC.OSE Optical Edge
- 1 x TO.GO2A 2-channel remote control (433.92MHz ARC code)
Technical data:
- Power supply 230 Vac (50-60Hz)
- Current 3.3 A
- Torque 130 Nm
- Maximum output rpm 18
- Output speed 24 r.p.m
- Shaft diameter 1" (25.4mm)
- Limit switch shaft speed reduction 1/20
- Duty cycle 30%
- IP40 protection level
- Operating temperature -20°C / +50°C
- Maximum gate area 35 m2/max
- Lubrication Oil
- Weight 14.7 kg
