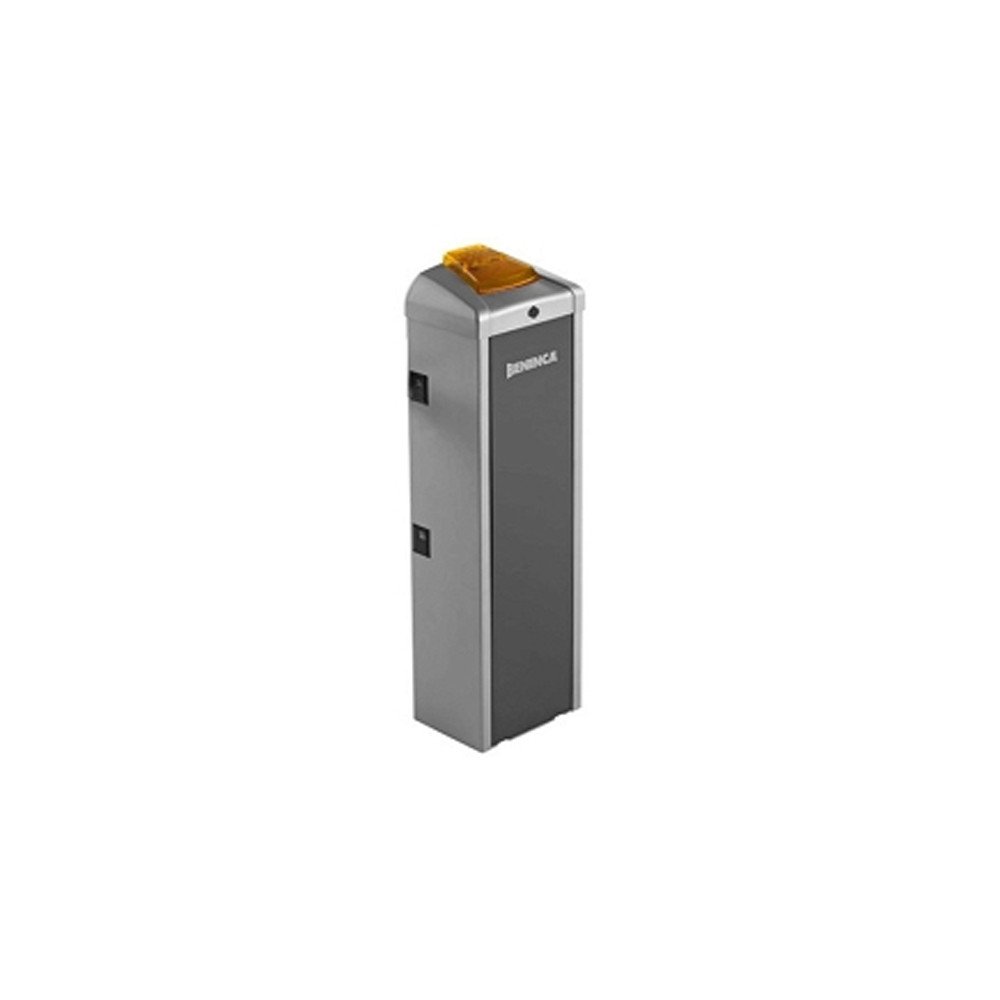

EVA 7 - 5 B - barrier

• Built-in CP.EVA control panel.
• Travel up to 7 meters.
• The arm can be mounted on the right or left side (easy to change the arm mounting side).
• Easy and quick programming of the control panel thanks to its location at the top of the barrier (above the engine).
• Intuitive control panel programming and barrier operation.
• Possibility of integrating FTC.S photocells with the FTC.S barrier housing thanks to the hide-away system.
• Emergency battery power supply (optional).
• Amperometric anti-crushing protection.
• External unlock.
• Three adjustable limit switches in the opening and closing phases.
• 2 mechanical limit switches.
• Easy, fast and reliable arm balancing system.
• Standard: 2 springs 480 mm.
• Galvanized, painted housing and cover.
• Does not include foundation plate, receiver or arm.

Technical data:

• Power supply 230 Vac (50-60Hz)
• Motor power supply 24 Vdc
• Current 1.6 A
• Torque 285 Nm
• Opening time 5" - 7"
• Duty cycle intensive use
• IP44 protection level
• Operating temperature -20°C / +50°C
• Weight 105 kg
