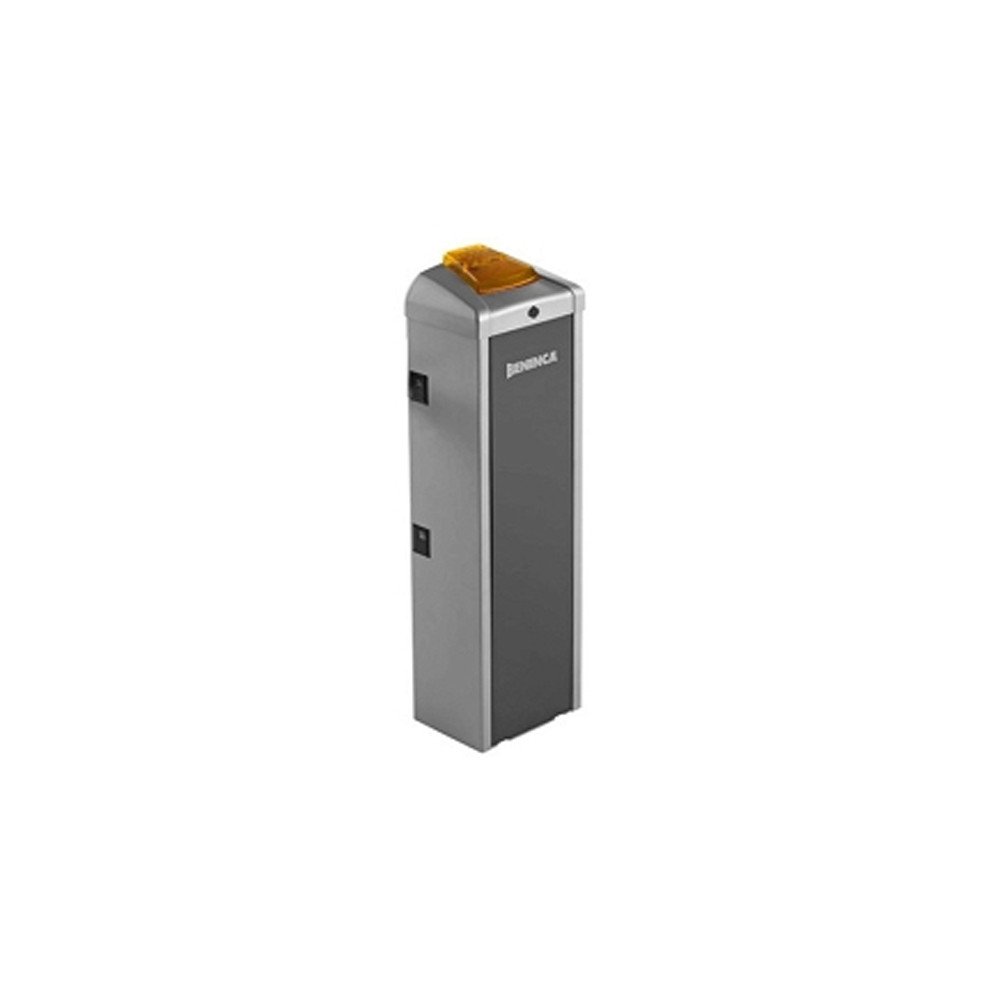

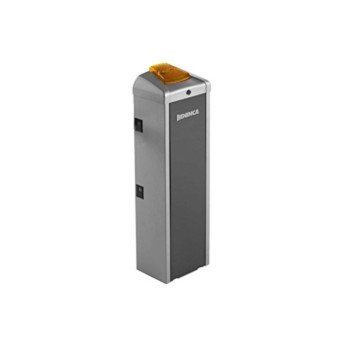

EVA 5 - 5B barrier

• Built-in CP.EVA control panel.
• Travel up to 5 meters.
• Galvanized, painted housing and cover.
• The arm can be mounted on the right or left side (easy to change the arm mounting side).
• Easy and quick programming of the control panel thanks to its location at the top of the barrier (above the engine).
• Possibility of integrating FTC.S photocells with the FTC.S barrier housing thanks to the hide-away system.
• Emergency battery power supply (optional).
• Amperometric anti-crushing protection.
• External unlocking.
• Integrated lamp housing (requires EVA. LAMP flashing lamp circuit).
• Three adjustable limit switches in the opening and closing phases.
• 2 mechanical limit switches.
• Easy, fast and reliable arm balancing system.
• Does not include foundation plate, receiver or arm

Technical data:

• Power supply 230 Vac (50-60Hz)
• Motor power supply 24 Vdc
• Current 1.6 A
• Torque 205 Nm
• Opening time 3" - 5"
• Duty cycle intensive use
• IP44 protection level
• Operating temperature -20°C / +50°C
• Weight 55 kg
