The swing gate kit is a reliable, quiet and easy-to-install mechanical actuator, equipped with two mechanical limit switches.
KBOB2124E-PM set with 24V encoder
€8,399.46
Tax included
The swing gate kit is a reliable, quiet and easy-to-install mechanical actuator, equipped with two mechanical limit switches.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Technical data:
- Power supply: 230V AC (50-60Hz)
- Motor power supply: 24V DC
- Current: 5.5A
- Maximum force: 1800N
- Opening time: 9 - 21 s
- Duty cycle: intensive use
- Screw pitch: 270 mm
- Maximum screw pitch: 325 mm
- Degree of protection: IP44
- Encoder: BRANCH
- Operating temperature: -20°C / +50°C
- Maximum leaf length: 2.1 m
- Weight: 8.2 kg

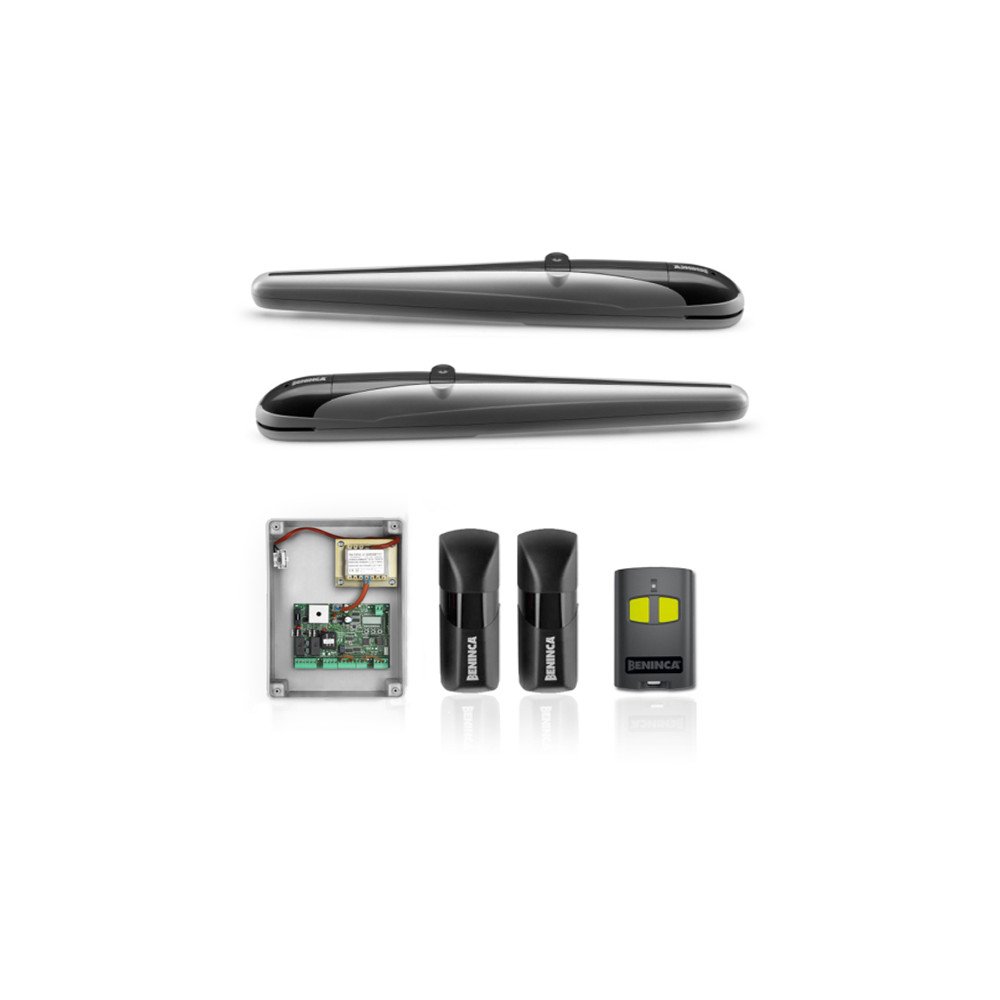

The set includes:
- 2 BOB2124E actuators with encoder
- 1 HEADY24 control unit with radio receiver
- 1 pair of PUPILLA photocells
- 1 TO.GO2VA two-channel remote control
