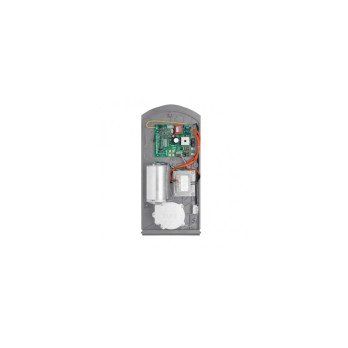

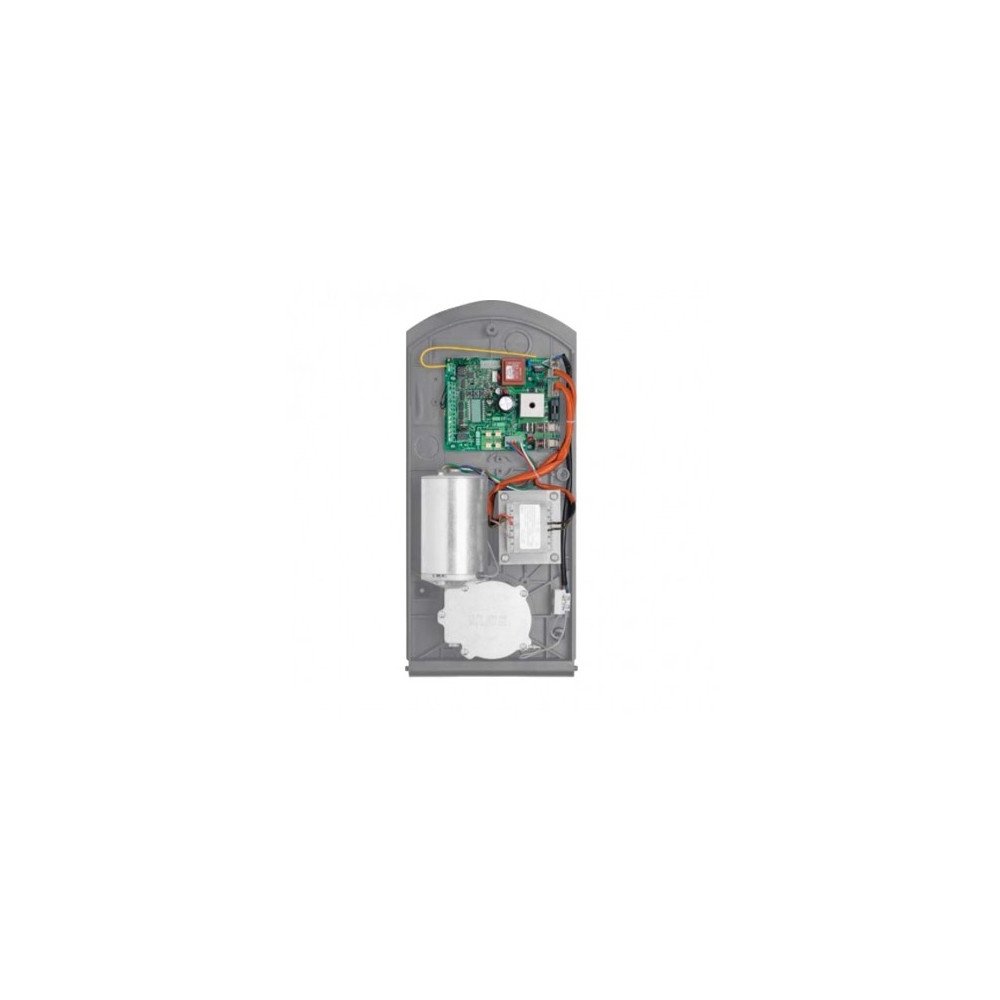

Control unit for the JM.3ESA TURBO actuator
CP.JT - central do JM3 TURBO
€1,014.40
Tax included
Control unit for the JM.3ESA TURBO actuator
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Technical data:
- Built-in LCD display
- Built-in 433.92MHz radio receiver. Possibility to upload 64 fixed, variable or ARC codes
- Built-in ESA energy saving system
- Built-in terminal blocks
- Entrance with photocells
- Step by step inputs, open, close and stop
- 8K2 safety edge input
- Output for service lighting, gate position indicator, second radio channel
- Body photochambers
- Auto-learning function
- Electronic regulation of actuator parameters with automatic power measurement at every point on the road (STC SYSTEM)
- Protection against crushing thanks to the use of an amperometric sensor and encoder connection
- Regulation with releases in the opening and closing phase
- Configuring functions and managing remote controls using the ADVANTOUCH device
- Possibility to check the current number of cycles
- Access password for programming the control panel
- Possibility to set a reminder for a service inspection
- Power supply for the control panel: 230Vac, motor: 24Vdc 150W
