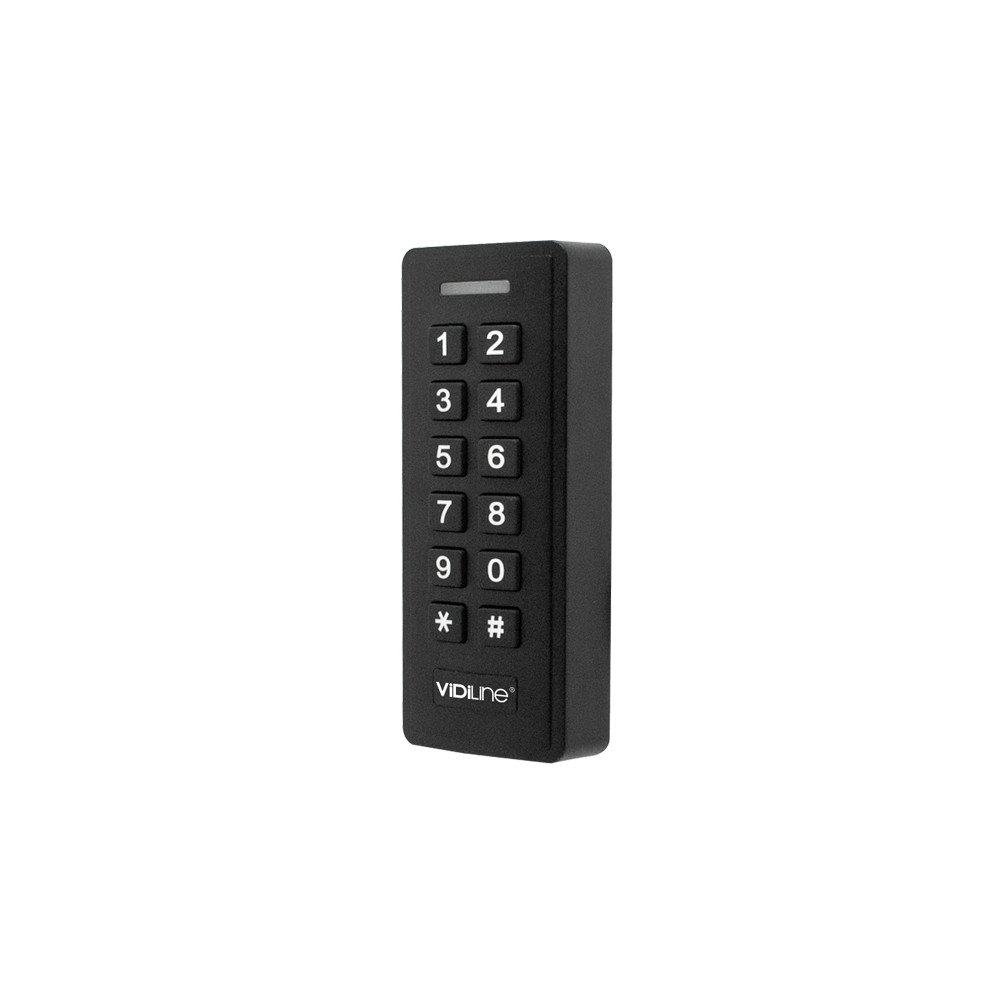

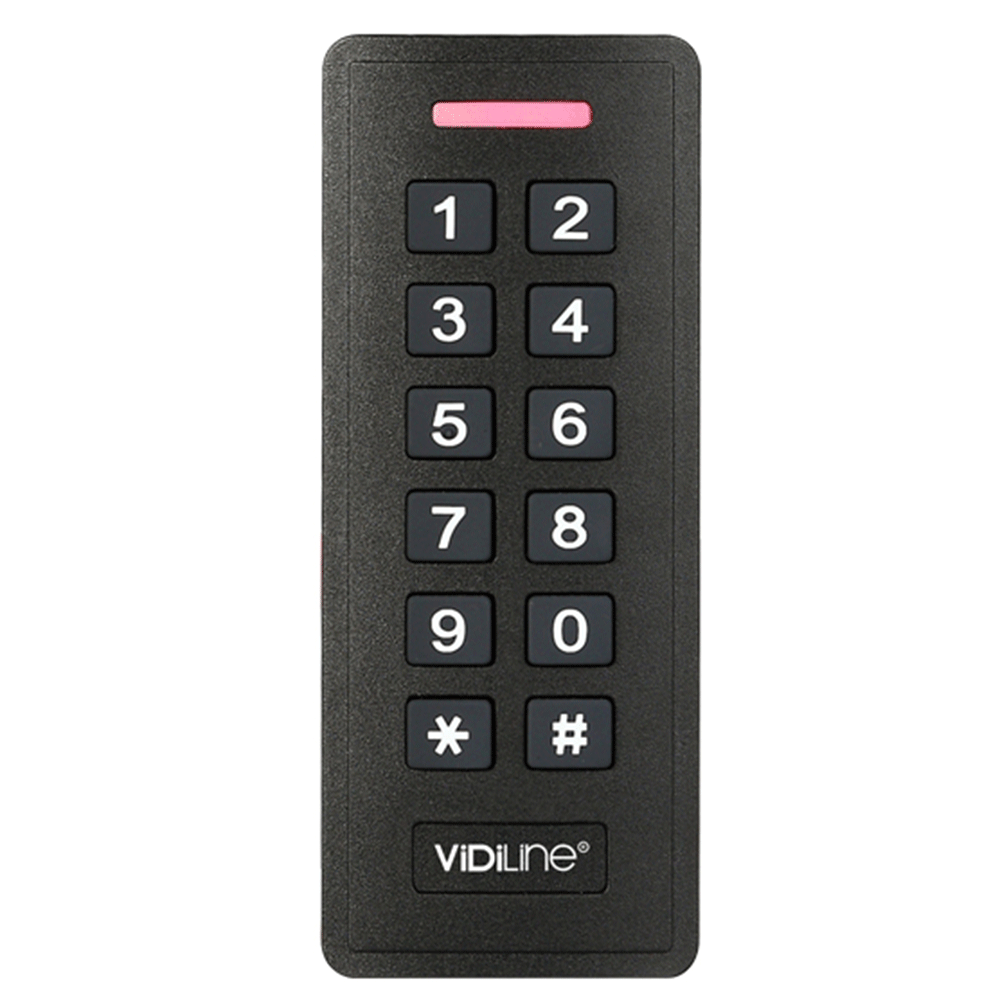

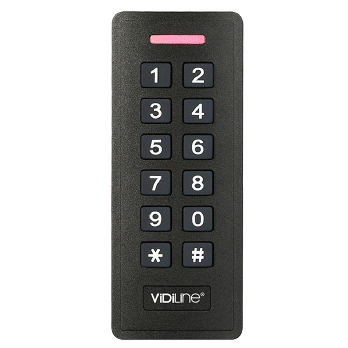

Code lock EM MF reader VIDI-AC-2CS-V2 controller

VIDI-AC-2CS-V2is a multifunctional, autonomous single door controller or reader in the Wiegand standard. It uses an Atmel microcontroller that ensures maximum performance in any environment. The operation is user-friendly, and the low power consumption extends the life of the device.

VIDI-AC-2CS-V2supports 1000 users (998 standard + 2 forced), whose data can be sent to other controllers (up to 10 pieces). The device supports multi-access mode: card, code, card and code, multiple cards, multiple codes. Special functions are available: block input, lock mode, Wiegand 26~37 bit interface, etc.

• Waterproof, IP66
• One relay, keypad
• 1000 users (987 basic + 1 authorized + 2 forced + 10 guest users)
• PIN Length: 4~6 digits
• Card type: 125kHz and 13.56MHz
• Wiegand interface 26~44 bit (input/output)
• Works as a Wiegand reader with LED and buzzer output
• Block input
• Three-color LED signaling diode
• Integrated alarm and buzzer output
• Mono and bi stable mode
• Transferring user data
• Airlock mode
• Built-in photoresistor as a tamper alarm
• Backlit keyboard
