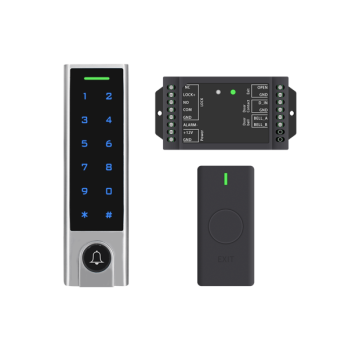

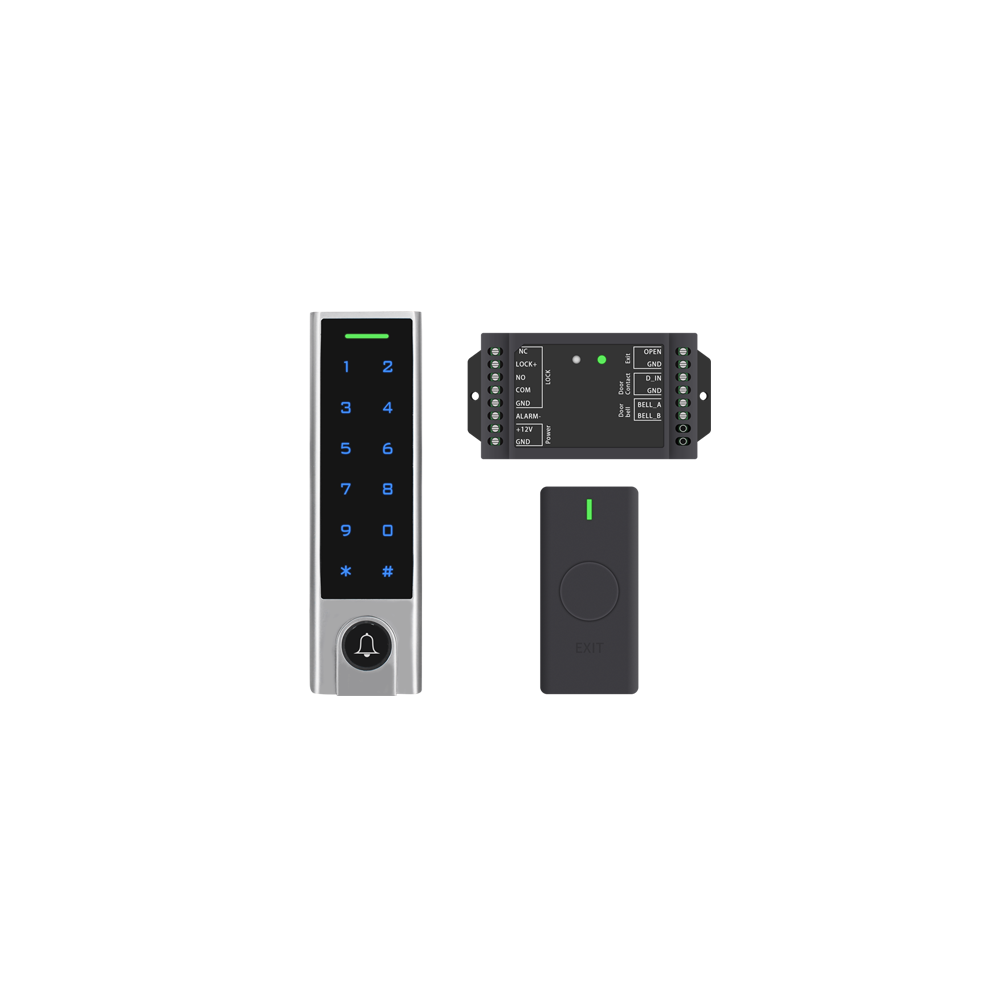

ViDi-AC-4CS-WKIT4 wireless access control kit PIN code Doorbell EM card PIN code

The most important parameters:

• Installation: Surface-mounted
• Physical backlit numeric keypad
• Wireless keyboard and doorbell button
• Metal, resistant housing
• Panel tightness: IP65
• Power supply for the hitch/jumper directly from the controller
• One relay, up to 1000 users
• PIN length: 4~8 digits
• Card reader: 125 kHz
• Additional operation: reed switch, exit button, bell

Full technical data can be found in the manual available in the attachments

ViDi-AC-4CS-WKIT4 is a modern, wireless access control kit designed for single doors. Thanks to the energy-saving design, the keyboard and exit button can operate for up to a year on just 3 AAA batteries and 1 lithium battery, assuming 20 uses per day. The built-in system informs about low battery level, ensuring continuity of operation. Battery powered eliminates the need to run cabling between the panel and the controller.The modular structure of the entire system ensures a high level of security.

The controller has a modern, backlit numeric keyboard. The durable IP65 housing allows for outdoor installation, and touch buttons and a dedicated bell button ensure convenient operation.

The external panel allows you to unlock access using a PIN code (4 to 8 digits) or a proximity card in the 125 kHz (EM) standard. The panel supports up to 1,100 users - 1,000 standard and 100 guests - enabling convenient and safe access management.

The wireless exit button allows you to conveniently unlock the door from a distance of up to 10-15 meters, ensuring comfortable and wireless operation of the system.

The controller allows integration with many system elements - it has an input for a door opening sensor (reed switch), a wired exit button and a connector for an external bell. An additional alarm connector allows cooperation with the alarm system, increasing the level of installation security.
