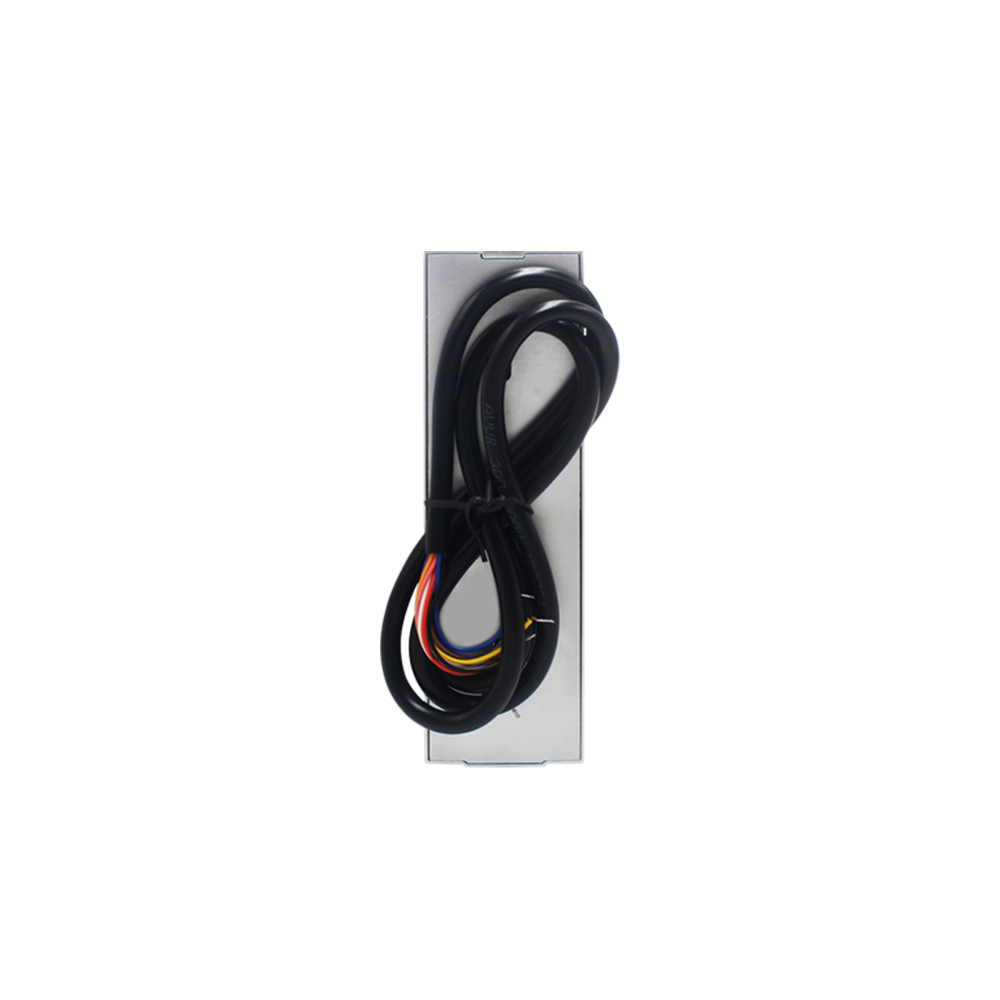

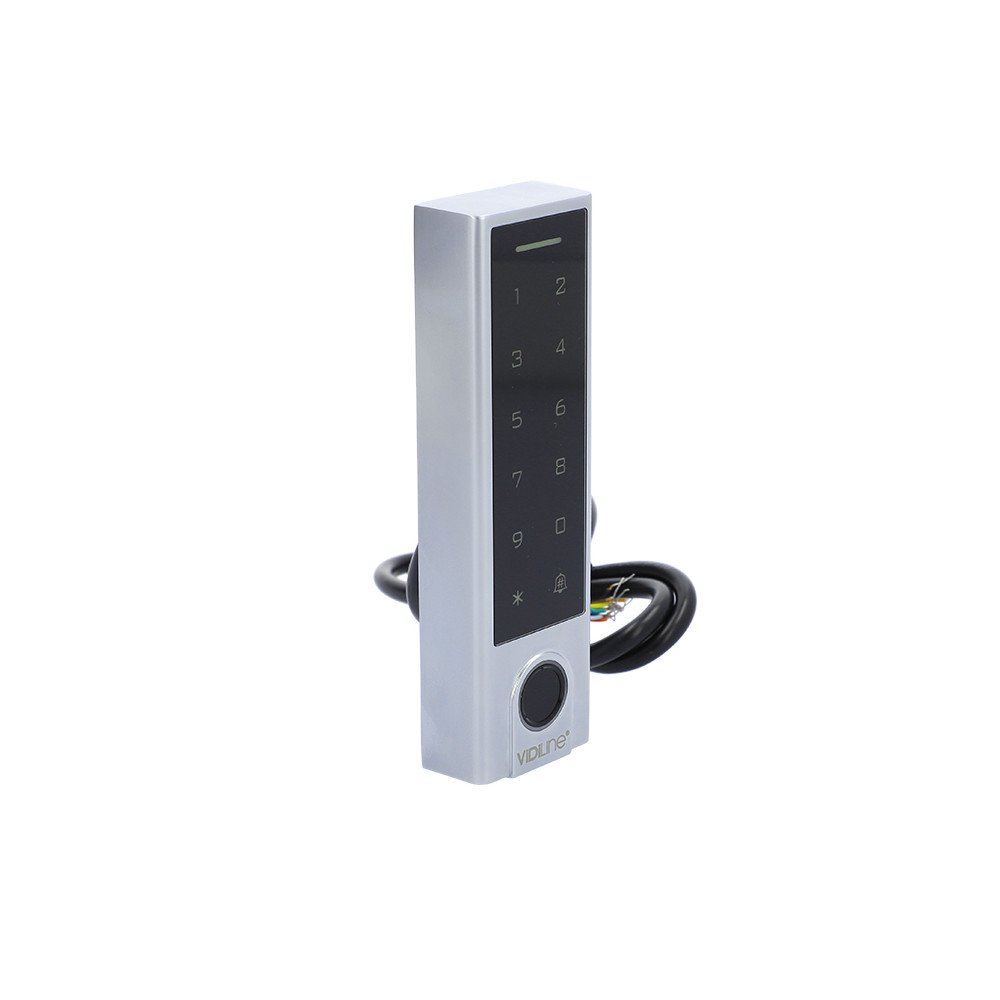

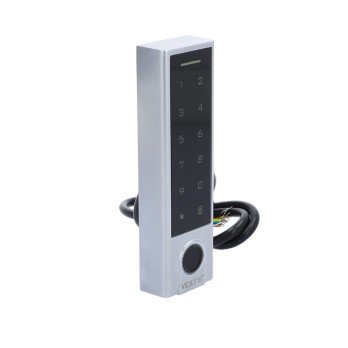

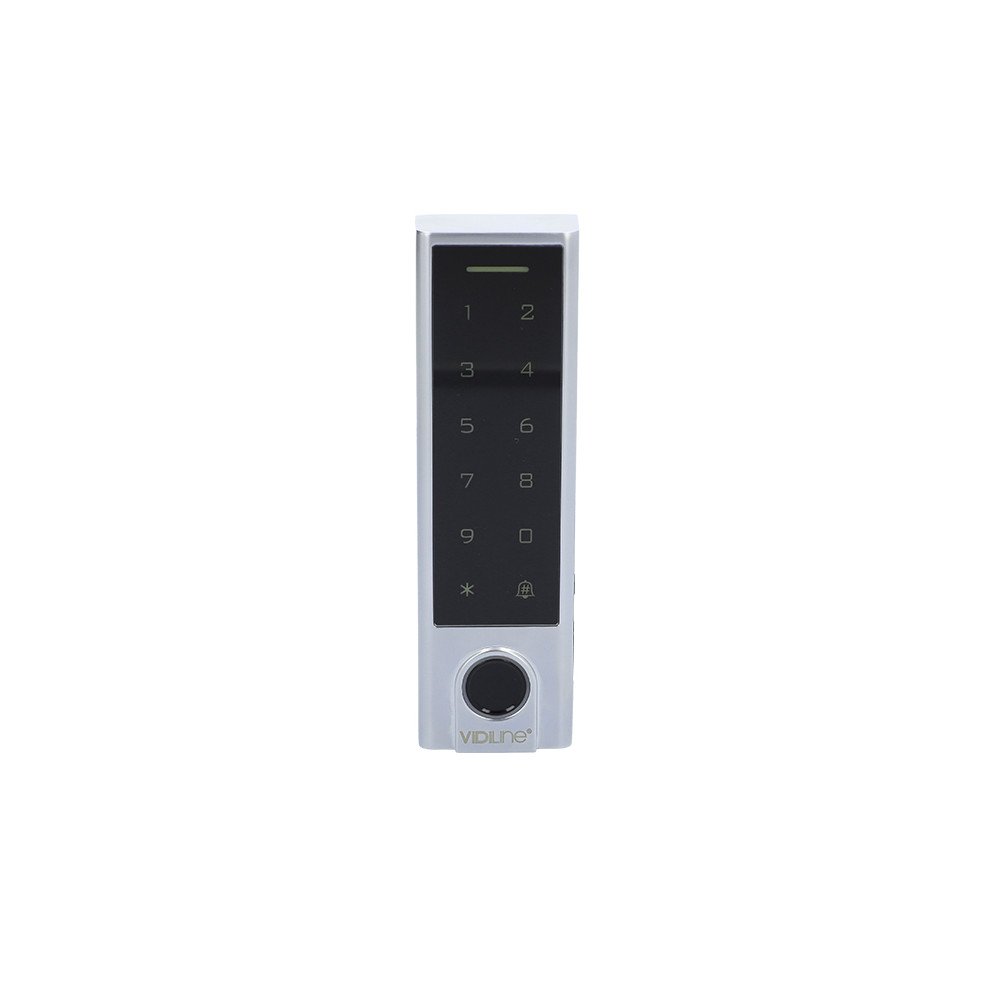

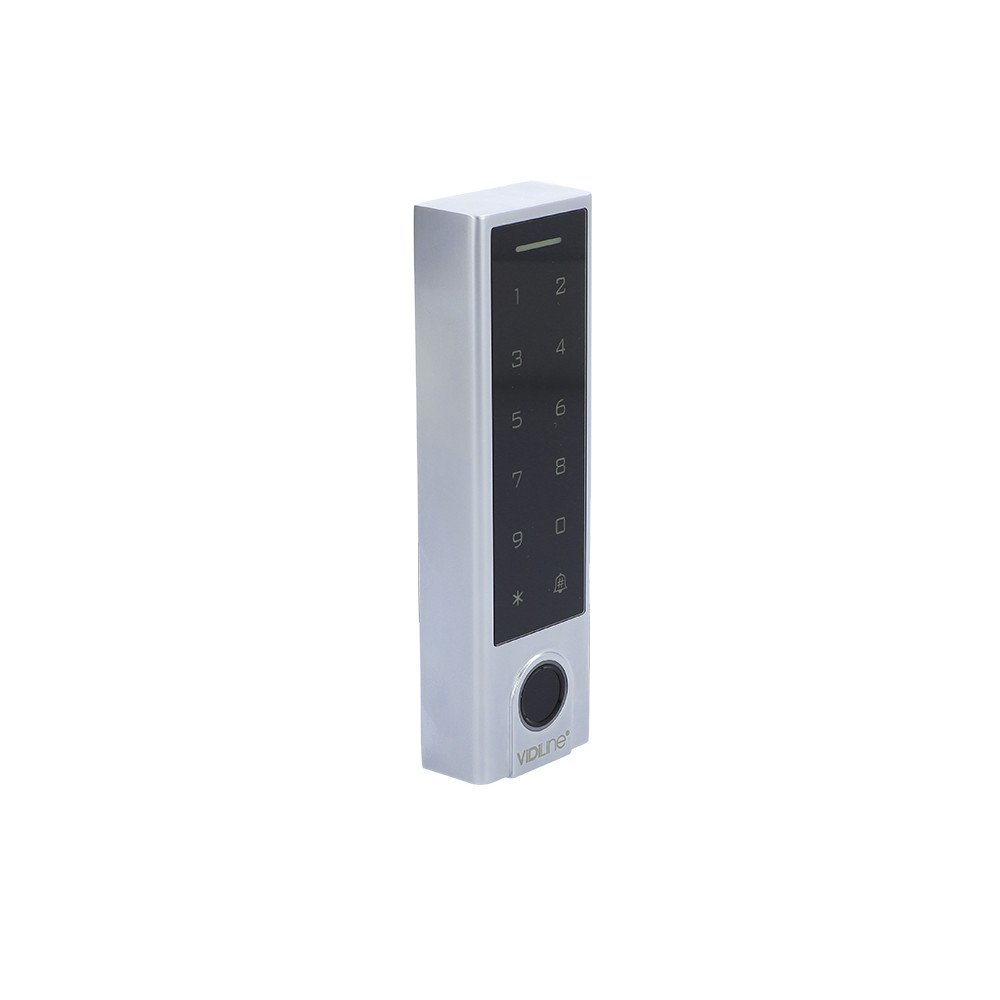

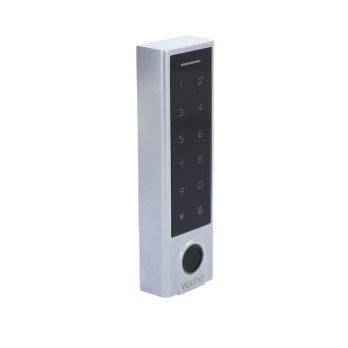

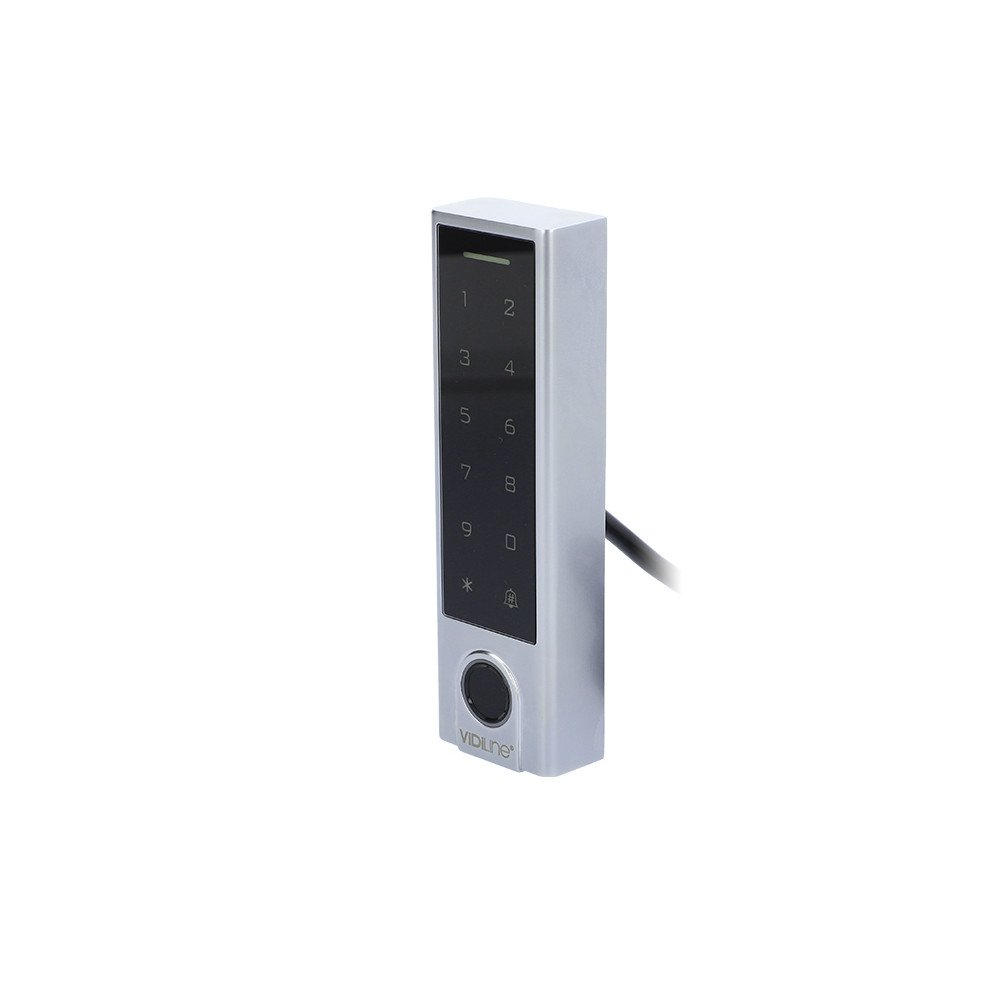

VIDI-AC-F3 EM MF Tuya Wifi Code Fingerprint Reader

A stand-alone access controller with the option of switching it to the Wiegand reader mode. The device is equipped with an Atmel micro controller, which makes the device work stably. Operating and setting the controller is very simple. Additionally, the device has low power consumption.

Specification:

• Capacitive touch fingerprint reader
• Metal, vandal-proof housing
• IP66 tightness
• One relay, up to 1000 users
• PIN Length: 4~6 digits
• 125kHz and 13.56MHz card reader
• Wiegand output/input for 125kHz cards: 26~44bit
• Wiegand output/input for 13.56MHz cards: 26~44bit, 56 and 58 bit
• Working mode as a Wiegand reader with LED and buzzer
• Block adding cards
• Tri-color LED status indicator
• Alarm output
• Mono and bi stable mode
• Transferring PIN numbers and cards to another device
• Airlock mode
• Photoresistor as a tamper sensor
• Backlit keyboard, auto power off after 20 seconds of inactivity

The device is made of aluminum alloy, which makes it very durable, and the touch keyboard makes using the device intuitive and easy.

The controller supports up to 1000 users (988 basic + 2 forced + 10 guest users). All data can be transferred to another device (excluding fingerprints). ViDi-AC-F3 has different operation modes: card/PIN/fingerprint/card+PIN/multiple fingerprints. Additional controller functions: block input, lock mode, Wiegand interface and others.

You don't need additional gates, which helps reduce costs. Install the device, connect the power supply and that's it. A simple and quick solution.

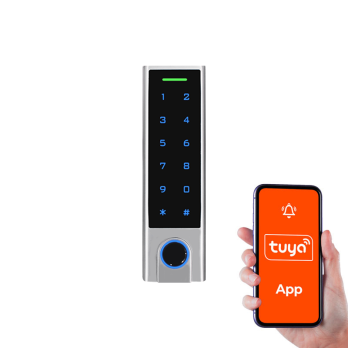

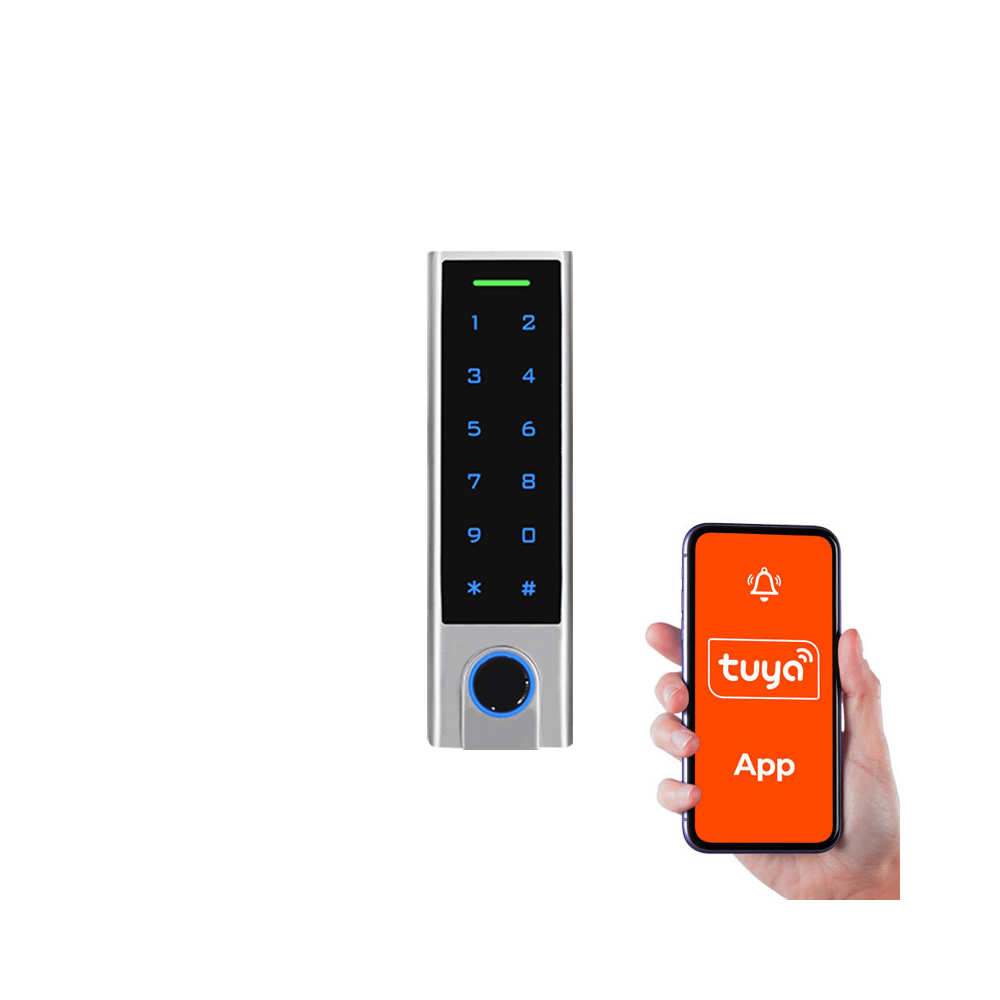

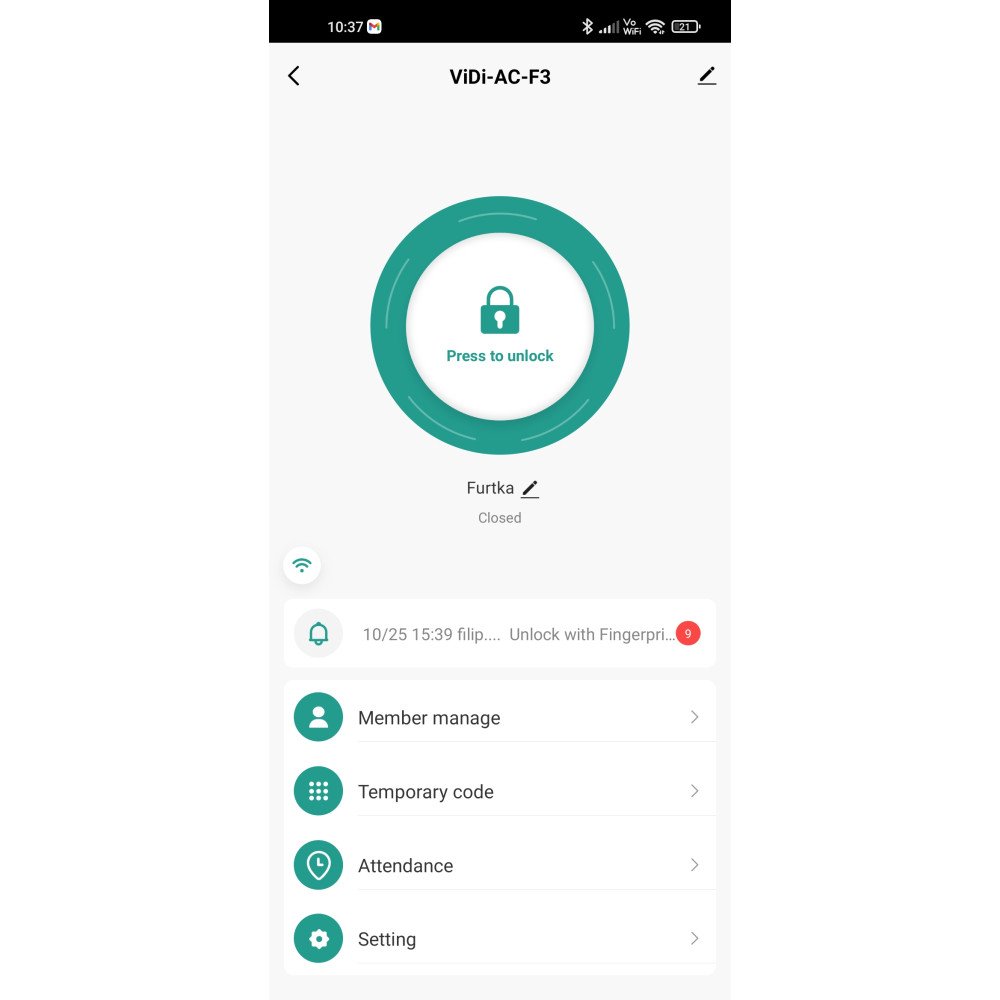

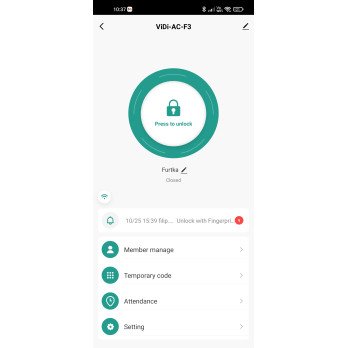

Pair your device with the app and manage users from your smartphone, regardless of where you are or where the lock is installed. The lock itself must have a Wi-Fi connection configured.

From your smartphone, you can create a PIN valid for a set period of time, e.g. for guests who came for the weekend. You can also set the number of times a given code can be used, e.g. you set the PIN 342564, which will allow the inspector to enter only once. The device will sound an error message when you use this code again.

The Tuya Smart application displays an event log, which allows you to check whether a given code/user has used it or has already entered this room.
