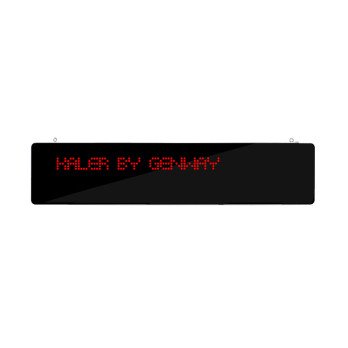

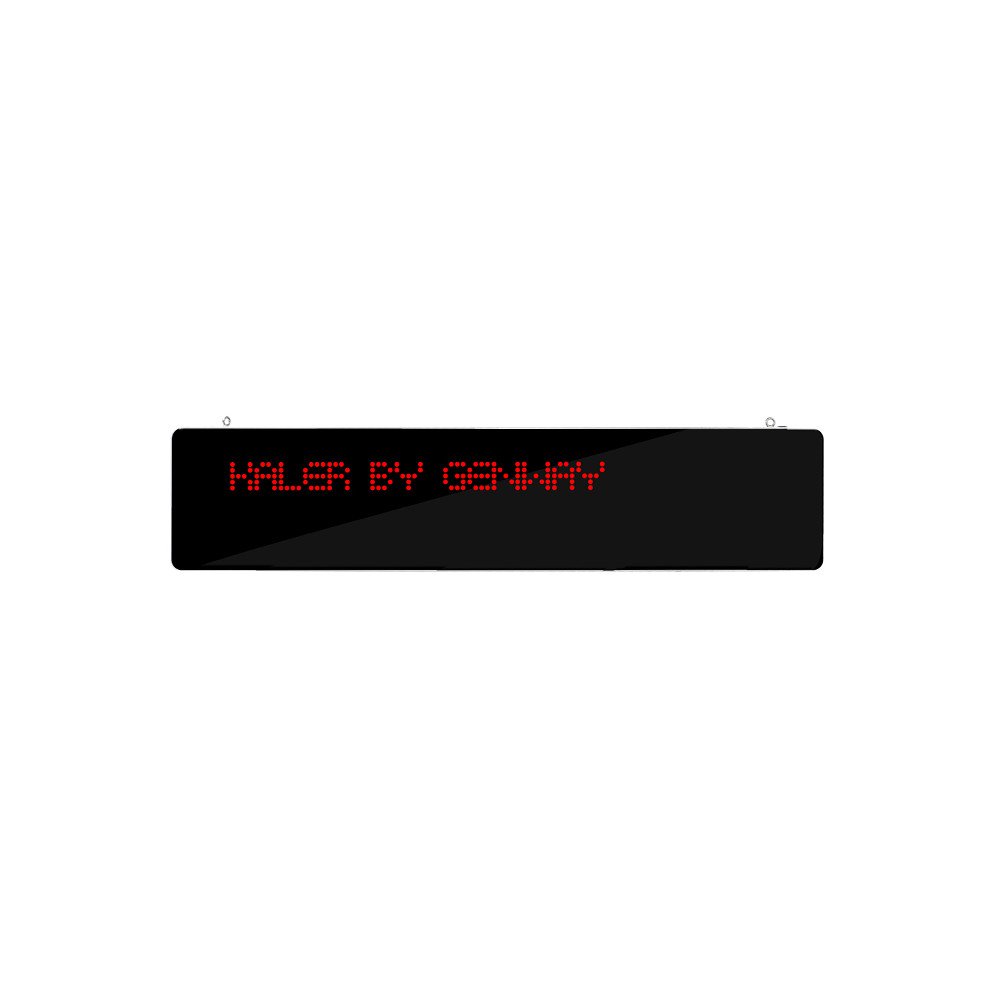

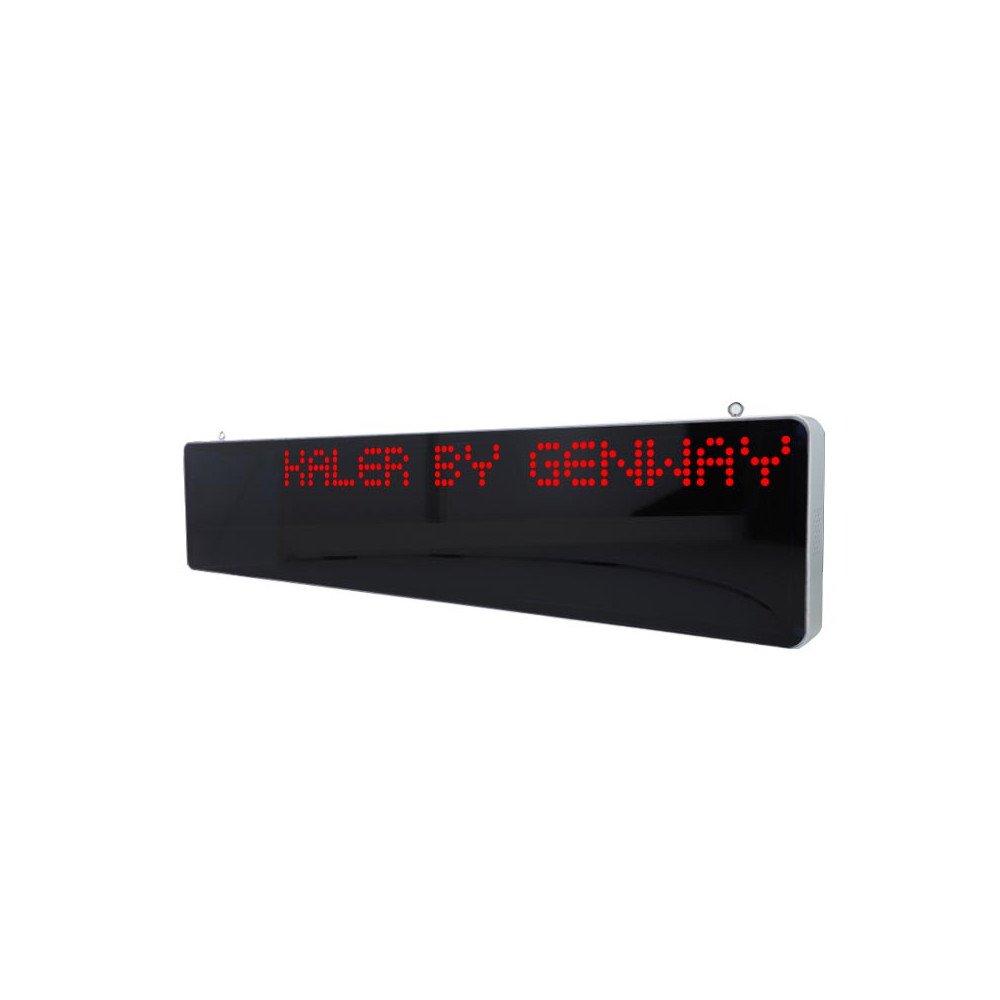

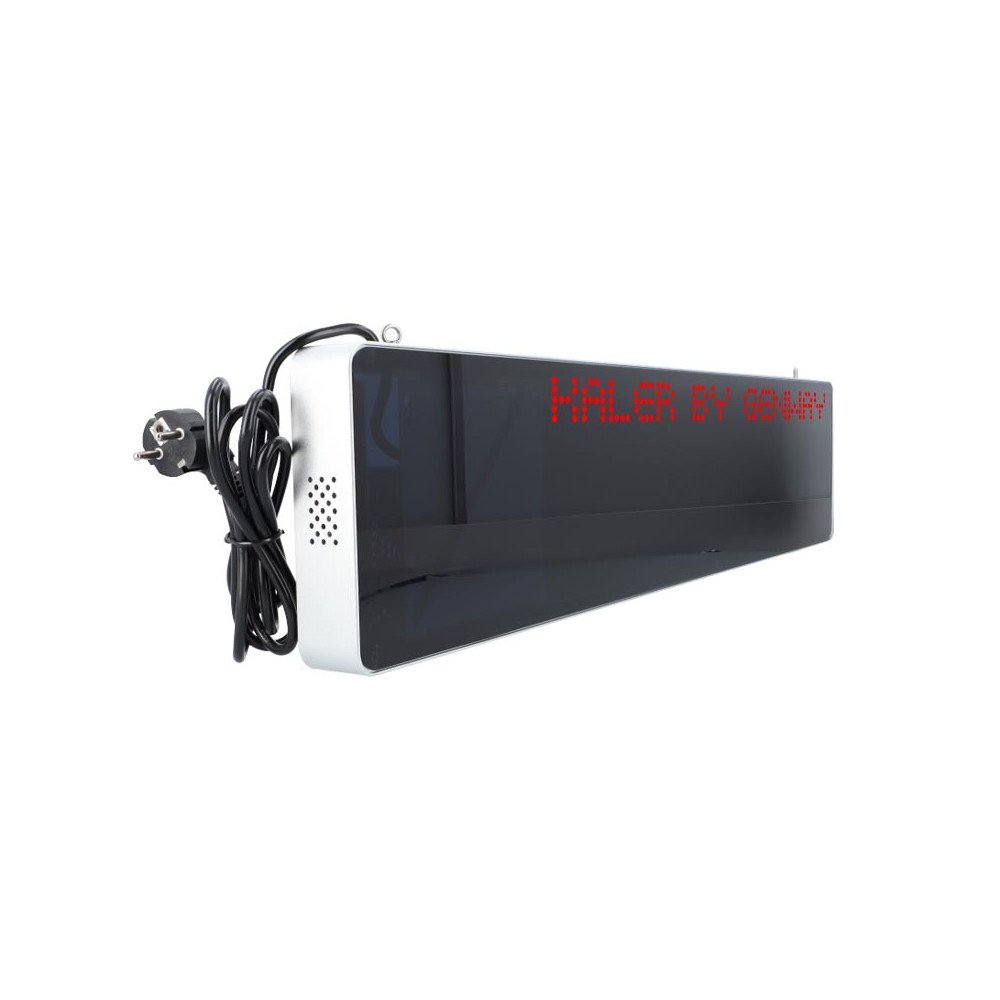

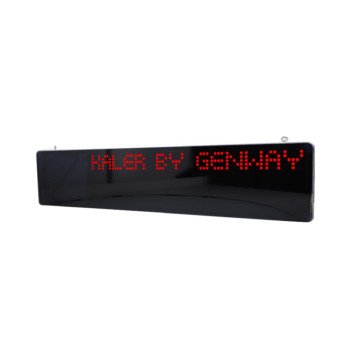

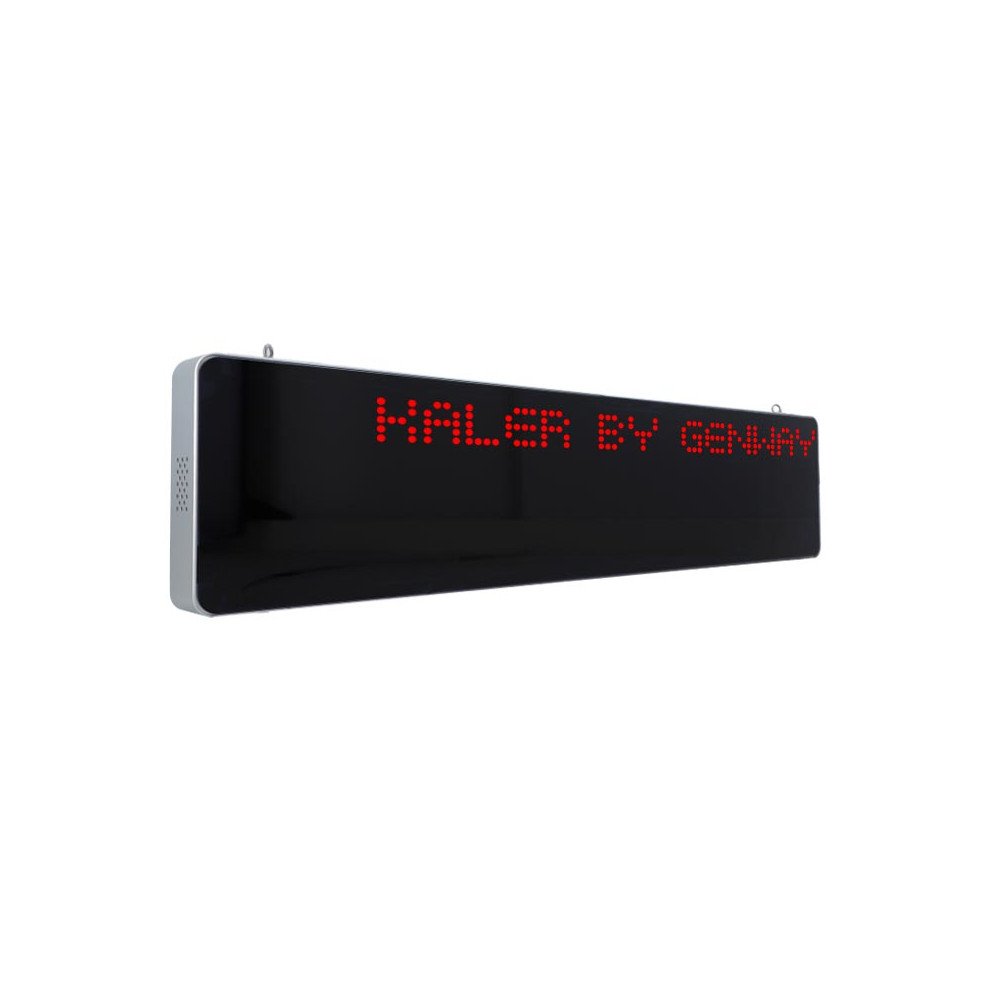

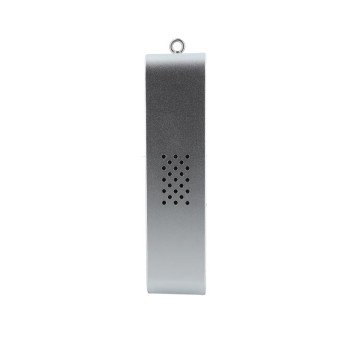

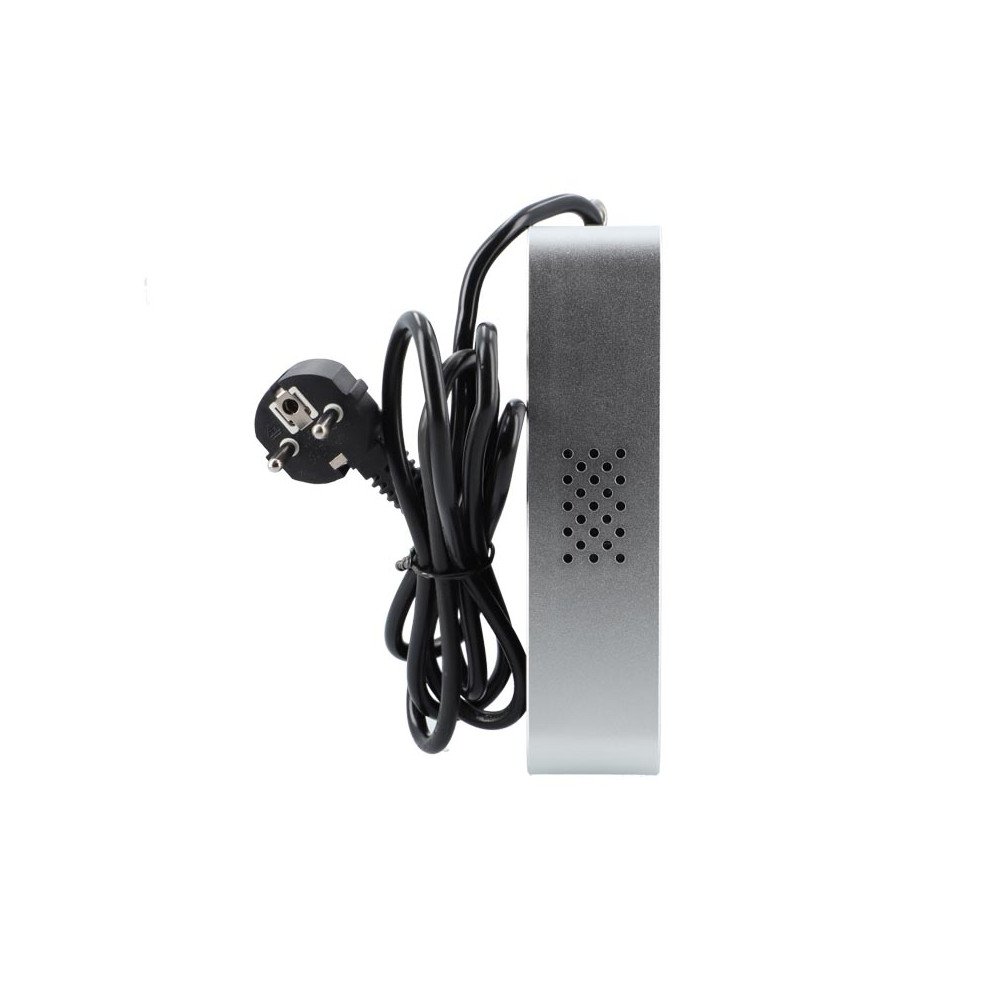

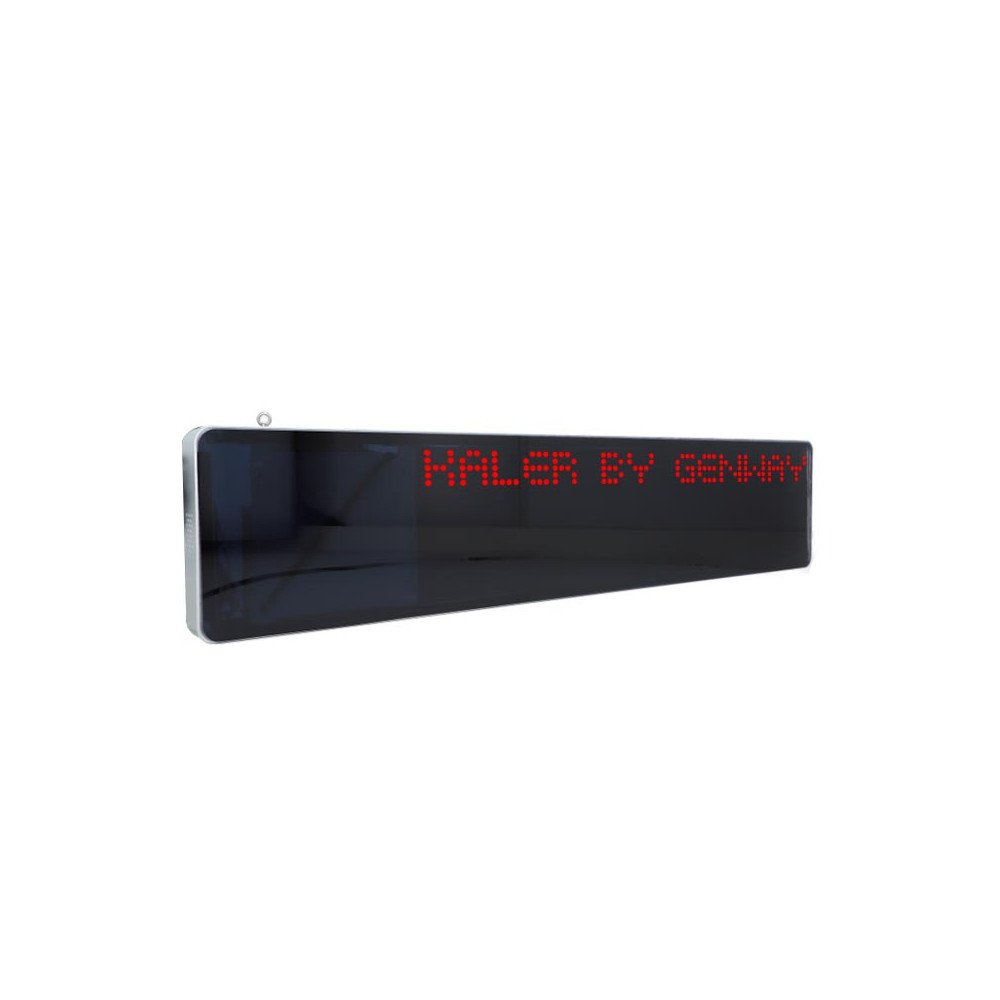

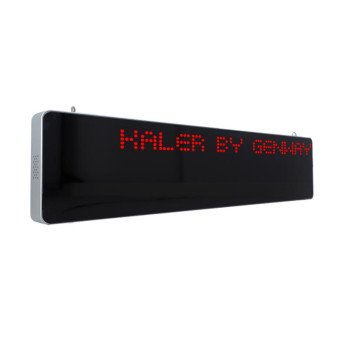

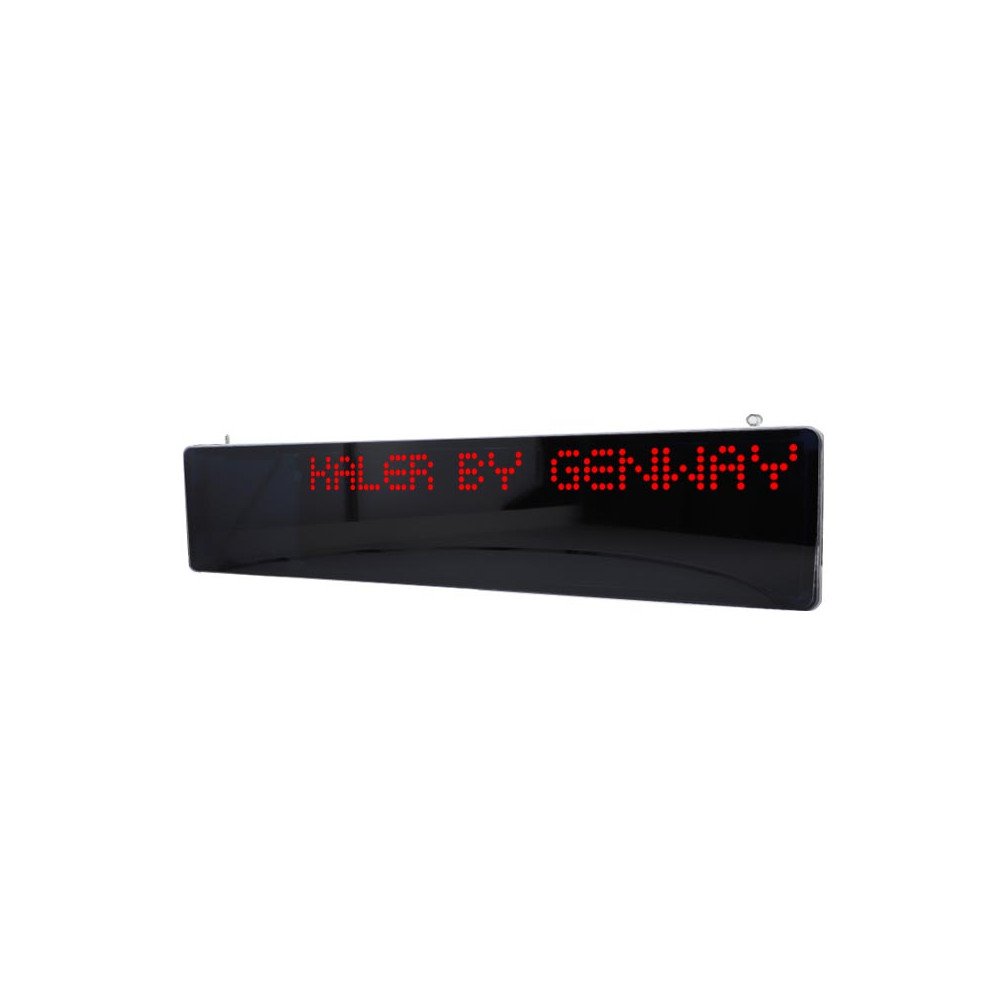

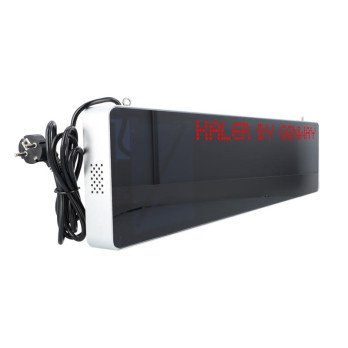

KLR-DSD Long Range Notification Display

• Supply voltage: AC 230 [V]
• Current intensity: 0.22 [A]
• Power consumption: 51 W
• Dimensions: 762 × 155 × 38 [mm]
• Cooperation with: Kaler Standard and Kaler Long Range
• Call notification in the form of sound and on the LED display
• Clear, double-sided display with high contrast

Kaler Long Range is an advanced paging system based on Long Range (LoRa) technology with a frequency of 434 MHz. Thanks to its large range and extensive notification management, it is ideal for hospitals, clinics and industrial facilities. The system eliminates the need to run cabling to some devices, which reduces costs and installation time. Simple configuration allows for quick implementation, and a wide range of transmitters and receivers allows you to tailor the system to the specific needs of each facility, ensuring reliability and convenience of use.

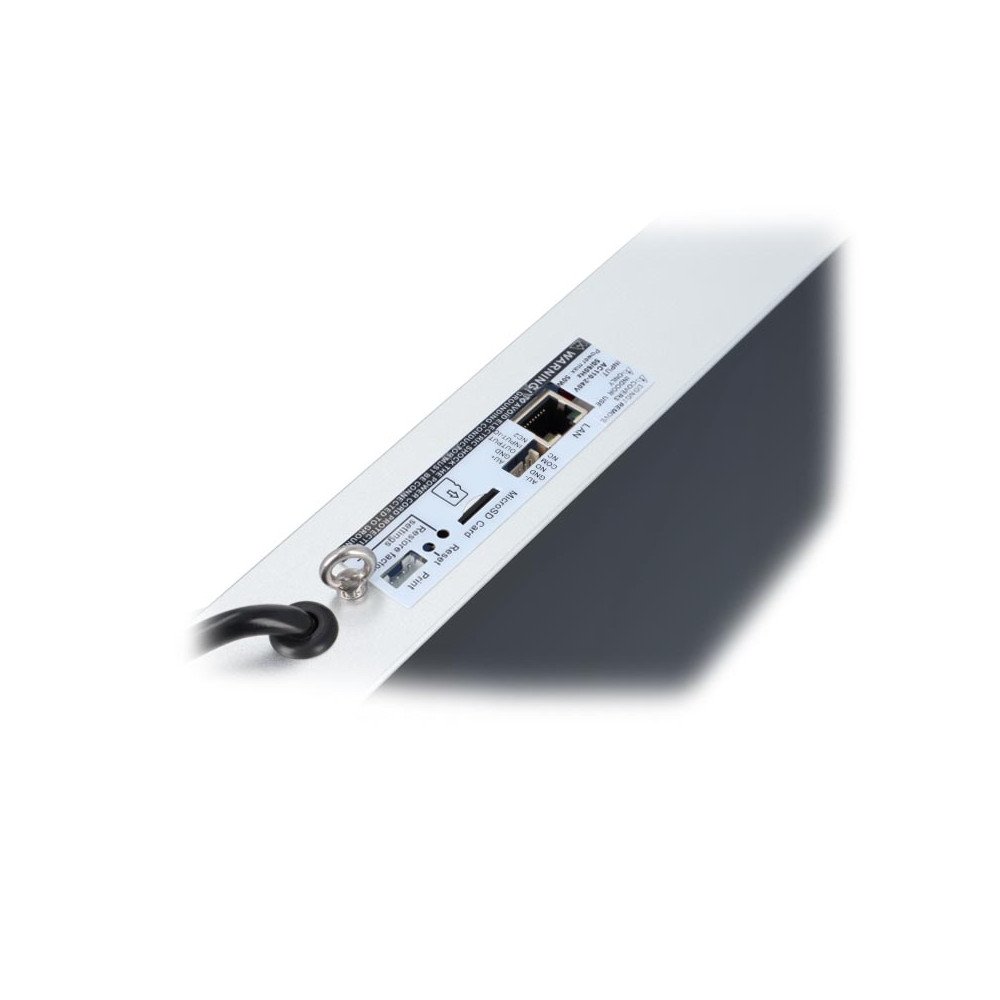

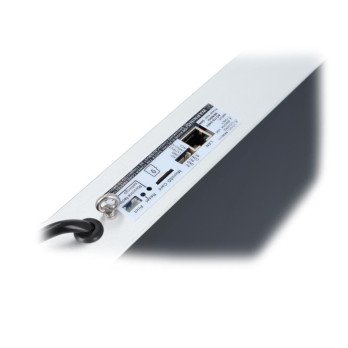

KLR-DSD is a wired numeric board that serves as a notification receiver in the Kaler Long Range paging system. Displays notifications in the form of numbers or text, supplemented with sound signals, enabling quick identification of the call. The double-sided display allows for installation in corridors, and its large, readable screen ensures excellent visibility of messages from all sides. In standby mode, the board can display additional information, such as order messages or the current time, which increases its functionality. Communication with the rest of the system takes place via LAN and requires KLR-BLR/KLR-BRF and KLR-OSD/KLR-SK devices to operate. Thanks to this, the facility's staff can quickly and precisely identify the source of the call, which is particularly important in environments such as hospitals and nursing homes, where response time is crucial.

The receiver-board is most often mounted at the entrance to rooms such as bathrooms, patient rooms, corridors or waiting rooms, enabling staff to quickly and precisely determine where help is needed. Paging systems are used in hospitals, nursing homes, restaurants, factories, hotels, prisons, schools and shopping centers, ensuring fast and reliable communication. They enable immediate response to the needs of patients, guests and employees in workplaces, and are also useful in public bathrooms, classrooms, warehouses and offices. Thanks to their universality, these systems not only increase safety, but also improve communication and increase operational efficiency in various environments.
