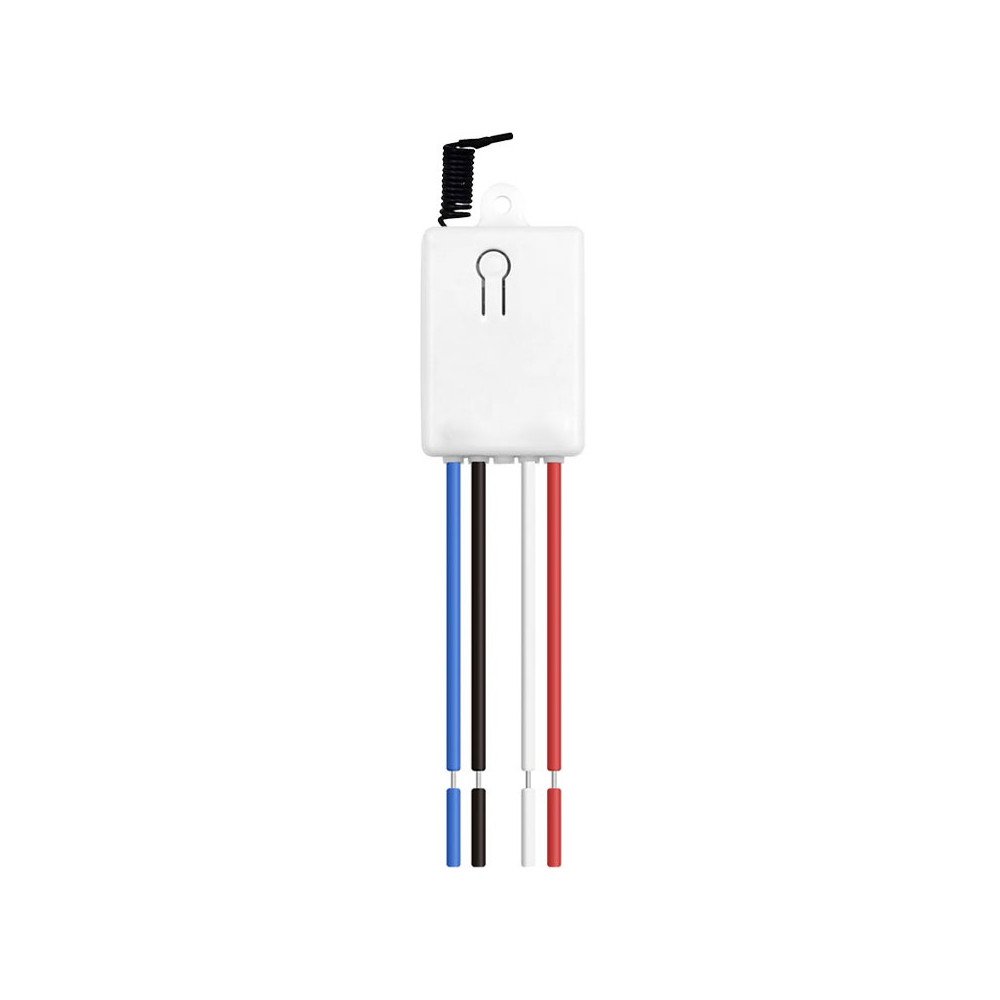

KAL-RELAY-230 Wireless 230V lighting relay for KAL-ST1-LIGHT

• Range in open space: ≤ 25 [m]
• Transmission frequency: 433 [MHz]
• Cooperation with KAL-ST1-LIGHT
• Material: ABS
• Programming button on the housing
• Power supply for the relay module: WE 230 V AC; OUT 230 V AC
• Relay load capacity: max. 10 A
• Max. inductive load: 500 W
• Max. capacitive load: 200 W
• Dimensions: 50 × 30 × 21 [mm]

Kaler Standard is a reliable paging system based on 433 MHz radio communication, ideal for hospitals, clinics and industrial facilities. It enables calls to be quickly transferred between transmitters and receivers, eliminating the need for cabling, which significantly reduces costs and speeds up installation. Thanks to the intuitive configuration, the system is ready for operation in a few moments. A wide range of transmitters and receivers allows for perfect adjustment to the individual needs of each facility, guaranteeing reliability and comfort of use.

The KAL-RELAY-230 wireless relay is a receiver powered by 230 V AC, enabling you to turn on and off the lighting connected to its output. Dedicated to work with KAL-ST1-LIGHT, it eliminates the need for additional cabling, which facilitates installation and reduces costs. Thanks to its compact design, it can be used in installation boxes and inside lighting fixtures.

Paging systems are used in hospitals, nursing homes, restaurants, factories, hotels, prisons, schools and shopping centers, ensuring fast and reliable communication. They enable immediate response to the needs of patients, guests and employees in workplaces, and are also useful in public bathrooms, classrooms, warehouses and offices. Thanks to their universality, these systems not only increase safety, but also improve communication and increase operational efficiency in various environments.
