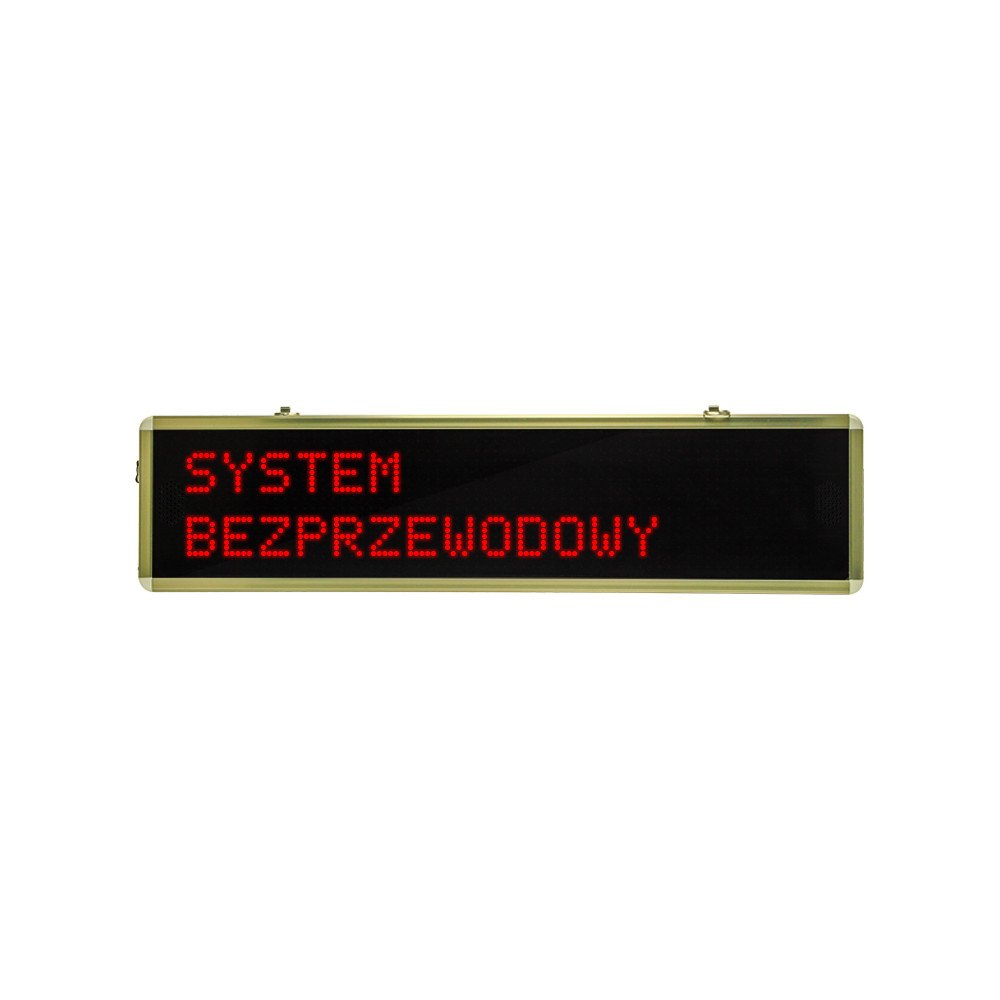

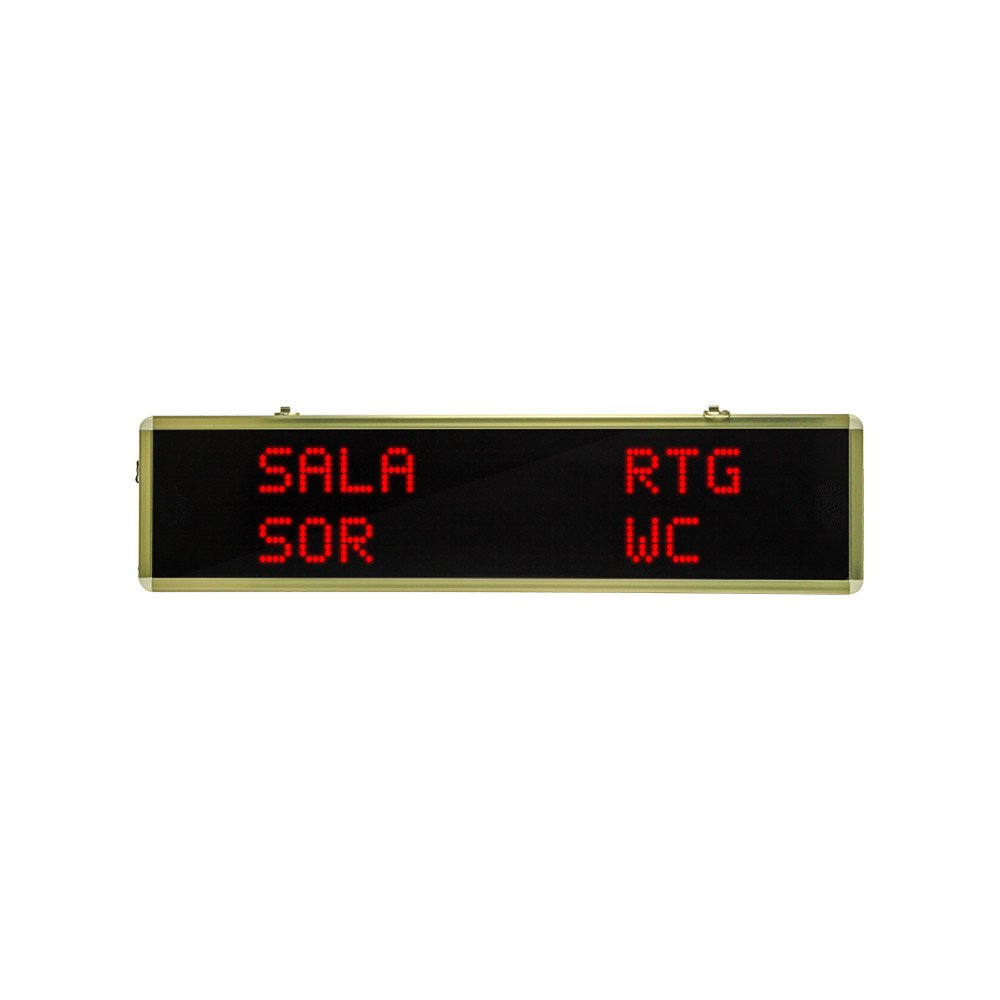

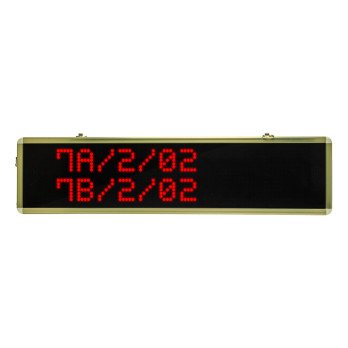

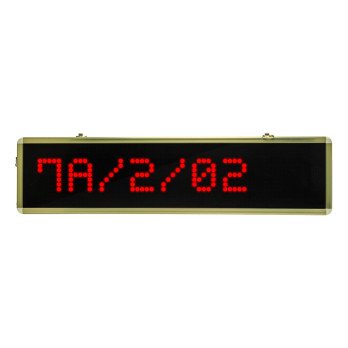

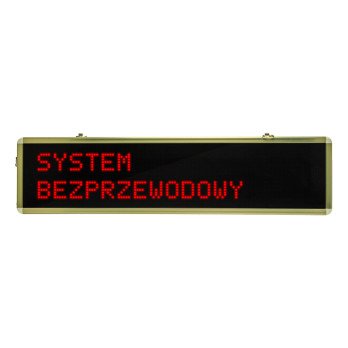

KAL-1000 Wireless LED Color Display Standard

Technical parameters:

• Voltage: DC 5 [V]
• Current: 3 [A]
• Range in open space: 300 [m]
• Reception sensitivity: -100 [dBm]
• Transmission frequency: 433 [MHz]
• The set includes a power supply from AC 230 V to DC 5 V
• Support for up to 400 call buttons
• Connectivity to a computer via software, system management
• Function of copying data to a second (same) device
• Dimensions: 750 × 180 × 28 [mm]

Full documentation can be found in the attachments below.

Kaler Standard is a reliable paging system based on 433 MHz radio communication, ideal for hospitals, clinics and industrial facilities. It enables calls to be quickly transferred between transmitters and receivers, eliminating the need for cabling, which significantly reduces costs and speeds up installation. Thanks to the intuitive configuration, the system is ready for operation in a few moments. A wide range of transmitters and receivers allows for perfect adjustment to the individual needs of each facility, guaranteeing reliability and comfort of use.

Advanced wireless notification board based on a paging system. The device is distinguished by a colorful, seven-color LED display that can show 1, 2 or 4 calls simultaneously. Each call can be personalized by assigning an individual color and ringtone, making it much easier to quickly identify the source of the alarm. The receiver supports up to 400 call buttons and informs about the low battery level in the buttons. Additionally, the system offers the possibility of management via dedicated computer software in Polish. The software enables, among others: editing buttons, managing call history (with the option of exporting to Excel) and creating automatic backups. The option of viewing calls on the floor plan in real time and personnel management make KAL-1000 a comprehensive solution.

The receiver-board is most often mounted at the entrance to rooms such as bathrooms, patient rooms, corridors or waiting rooms, enabling staff to quickly and precisely determine where help is needed. Paging systems are used in hospitals, nursing homes, restaurants, factories, hotels, prisons, schools and shopping centers, ensuring fast and reliable communication. They enable immediate response to the needs of patients, guests and employees in workplaces, and are also useful in public bathrooms, classrooms, warehouses and offices. Thanks to their universality, these systems not only increase safety, but also improve communication and increase operational efficiency in various environments.
