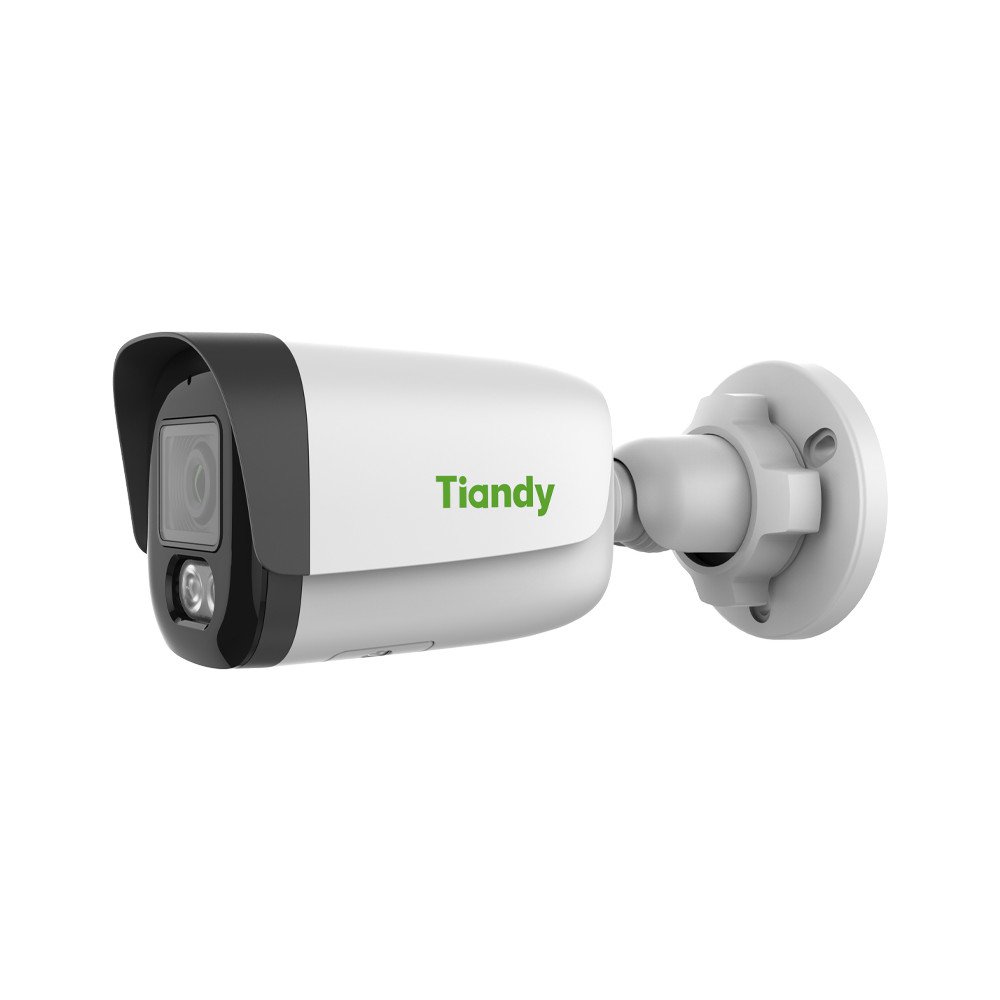

TC-C35WS Spec I5W/E/Y/S/2.8mm/V5.0 IP Network Camera

Main parameters:

• Metal + plastic housing
• S+265/H.265/H.264B/H.264M/H.264H
• Color: 0.002 lux at (F1.6, AGC ON), black and white: 0 lux with IR
• Infrared range 50m
• Built-in microphone
• Support for microSD/microSDHC/microSDXC cards up to 512 GB
• Intelligent supervision support
• Human/vehicle classification support
• Operating conditions -40℃~65℃ (without light on), humidity 95% or lower (no condensation)
• DC12V±25%, MAKS. 7 W, POE 802.3af; MAKS. 7,5 W
• IP67

The transducer used transmits an image in a very high resolution of 2592x1520. This high resolution allows you to enlarge the live image and identify people or vehicle registration numbers.

Tiandy cameras, regardless of the model, use only glass lenses consisting of multiple layers (including anti-reflective, scratch-resistant) manufactured by the Japanese company Fujinon, a tycoon in this industry. Glass optics do not change their parameters with temperature changes, as is the case with lenses made of plastic. In addition, the glass allows much more light to pass through, making the image brighter at night.

Privacy zones are image areas that are freely configurable by the user and are excluded from monitoring. Precise control over the shape, size and position of the masks allows for efficient adaptation of the cameras' functionality to the place of observation. Thanks to the private mask system, it is possible to record images while respecting the privacy rights of third parties.

The camera is equipped with a micro SD card slot up to 512 GB. This allows us to record the image on the card in the event of a problem with the camera-recorder connection. After fixing the problem, the camera will automatically transfer the recording from the card to the recorder's disk.

Our camera guarantees uninterrupted operation at extreme temperatures and is dustproof thanks to the tightness classIP67.

The camera offers live image preview on mobile devices. All you need to do is download the EasyLive application for free from the AppStore or Google Play and enjoy remote viewing from your cameras.

The camera has a LAN port with PoE in the 802.3af standard. This solution allows you to simultaneously power the camera from a PoE switch and send data to the recorder via one network cable. There is no need for additional wiring for power supply, which reduces installation costs.

Compensation for image vibration resulting from rapidly moving objects is performed by dynamically reducing its quality. The balance between image quality and resulting image shake helps avoid blur.

The camera allows you to view different types of video streams at the same time. The main stream emits an image in full resolution, which is saved on disk or is visible after switching on the preview from a given channel to full screen. The image for split and remote viewing is broadcast in an additional stream with a lower resolution.

Saves 5 times disk space. When running a test monthly recording of 8 channels in 1080p resolution, in the H.264 standard you need 10TB of space, in H.265 - 5TB, and in S.265+ 2TB is enough for a month.
