Resolution:Camera PTZ : 2560 x 1440, Panoramic camera : 4096 x 1860;Sensor:Camera PTZ : 1/2.8 " STARVIS™ CMOS, Panoramic camera : 2 x 1/2.7 ";View angle:Camera PTZ : 52 ° ... 3 ° Panoramic camera : 180 °;Optical zoom:x 25;Digital zoom:x 16;Range of IR illumination:100 m;White light LED illuminator range:50 m;Rotation speed (manual control):0.1 °/s ... 180 °/s (horizontal), 0.1 °/s ... 90 °/s (vertical);Image compression method:Smart H.265+;Alarm inputs / outputs:2 / 1;Audio:Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 512GB;Power supply:PoE (802.3at), 12 V DC;

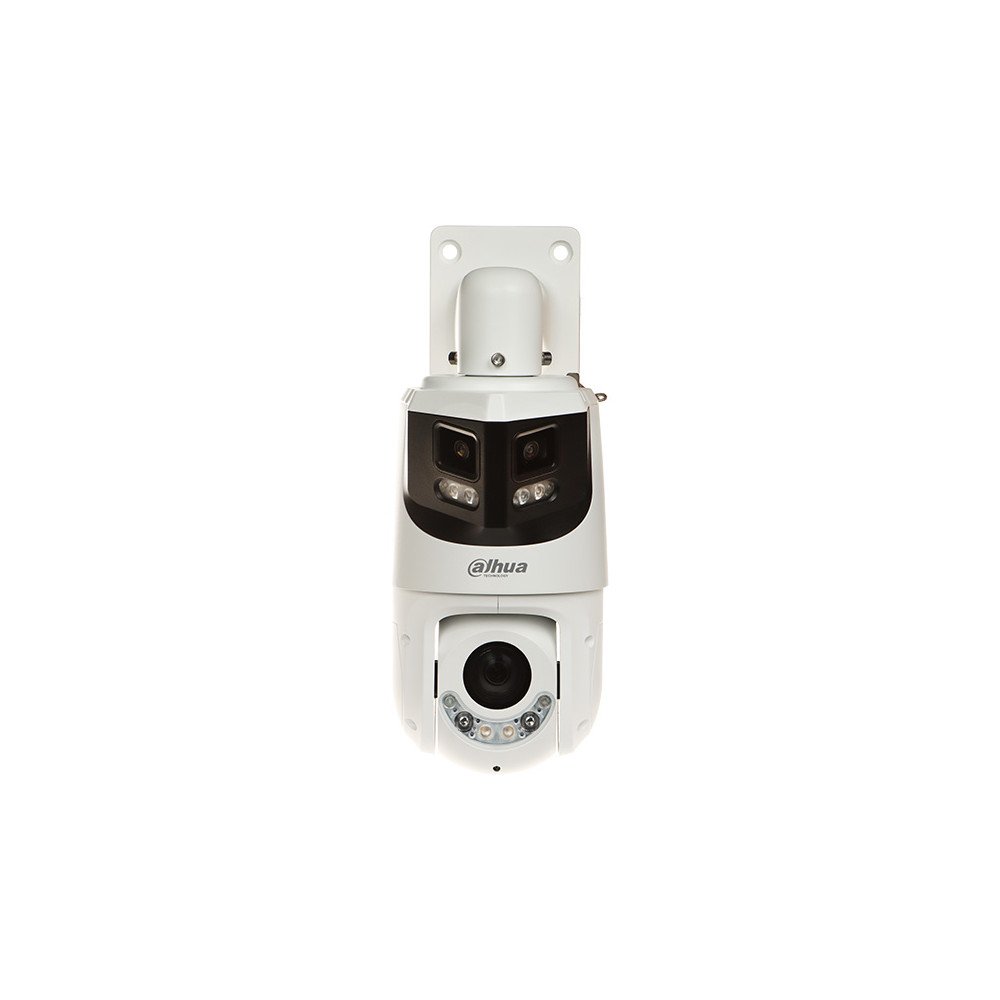

IP SPEED DOME CAMERA SDT4E425-8P-GB-APV1 TiOC WizSense Smart Dual Light 4 Mpx 5...125 mm + 8 Mpx PANORAMIC, DAHUA
€2,132.03
Tax included
Resolution:Camera PTZ : 2560 x 1440, Panoramic camera : 4096 x 1860;Sensor:Camera PTZ : 1/2.8 " STARVIS™ CMOS, Panoramic camera : 2 x 1/2.7 ";View angle:Camera PTZ : 52 ° ... 3 ° Panoramic camera : 180 °;Optical zoom:x 25;Digital zoom:x 16;Range of IR illumination:100 m;White light LED illuminator range:50 m;Rotation speed (manual control):0.1 °/s ... 180 °/s (horizontal), 0.1 °/s ... 90 °/s (vertical);Image compression method:Smart H.265+;Alarm inputs / outputs:2 / 1;Audio:Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 512GB;Power supply:PoE (802.3at), 12 V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | Camera PTZ :2560 x 1440 - 3.7Mpx,2304 x 1296 - 3Mpx,1920 x 1080 -1080p,1280 x 960 - 1.3Mpx,1280 x 720 -720p, Panoramic camera :4096 x 1860 - 7.6Mpx,2048 x 928 - 1.9Mpx,1920 x 1080 -1080p,1280 x 720 -720p |
| Sensor: | Camera PTZ : 1/2.8 " STARVIS™ CMOS,Panoramic camera : 2 x 1/2.7 " Progressive Scan CMOS |
| Lens: | Camera PTZ : 5 ... 125 mm,Panoramic camera : 2 x 2.8 mm |
| View angle: | Camera PTZ : 52 ° ... 3 °Panoramic camera : 180 ° |
| Optical zoom: | x 25 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 100 m @ Camera PTZ30 m @ Panoramic camera |
| White light LED illuminator range: | 50 m @ Camera PTZ30 m @ Panoramic camera |
| Preset rotation speed: | 180 °/s (horizontal)90 °/s (vertical) |
| Rotation speed (manual control): | 0.1 °/s ... 180 °/s (horizontal),0.1 °/s ... 90 °/s (vertical) |
| Horizontal rotation range: | 360 ° - continuous |
| Vertical rotation range: | -15 ° ... 90 ° |
| RS-485 interface: | |
| Number of presets: | 300 |
| Horizontal scan: | |
| Route settings: | 8 |
| Image compression method: | Smart H.265+ /H.265/ Smart H.264+ /H. 264B/ H.264M /H.264H/MJPEG |
| Alarm inputs / outputs: | 2 / 1 |
| Audio: | Audio inputAudio outputSpeaker built-in - Alarm sirenAudio detectionBi-directional audio streaming support |
| Main stream frame rate: | Camera PTZ : 25fps@ 3.7Mpx Panoramic camera : 25fps@ 7.6Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| Memory card slot: | Micro SD card support up to 512GB |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent image analysis: | crossing the line (tripwire) intrusion detection of entry into the area / exit from the area loitering detection abandoned/missing object fast moving parking detectioncrowd gathering estimationobject detection (people, vehicle)Intelligent Object TrackingSMD 4.0 - searching for an object classified as: human, motor vehicle - increased detection distance and resistance to false alarms |
| Main features: | Thanks to the "Starlight" technology used, the camera only needs very low lighting to obtain a clear color imageSmart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image qualityActive deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking blue and red light and siren sound or voice prompts WDR - 120 dB - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction F-DNR (Defog) - Reduction of image noise caused by precipitation EIS - Electronic Image Stabilization ROI - improve the quality of selected parts of image Image rotation and mirrorBLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Day/night mode Auto White Balance AGC - Automatic Gain ControlSharpness - sharper image outlinesConfigurable: brightness, contrast, saturationNAS - Network Attached Storage support Motion Detection Filtering of false alarms based on the recognition of persons and vehiclesOvervoltage protectionProtection against lightning discharges : 6 kV |
| Housing: | Speed Dome, Metal + Plastic |
| Color: | White + Black |
| "Index of Protection": | IP66 |
| I rating: | |
| Power supply: | People (802.3at),12 VDC/ 3 A (not included) |
| Power consumption: | ≤ 14 W (typical),25 W (max) |
| Operation temp: | -40 °C ... 65 °C |
| Weight: | 3.1 kg (without bracket)3.7 kg (with bracket) |
| Dimensions: | 160 x 194 x 311 mm (without bracket)160 x 284 x 397 mm (with bracket) |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
