Resolution:Camera PT, Camera 2 : 1920 x 1080,;Sensor:Camera PT, Camera 2 : 1/2.8 ";View angle:Camera PT, Camera 2 : 87.5 °;Range of IR illumination:30 m;White light LED illuminator range:30 m;Rotation speed (manual control):0.1 °/s ... 36 °/s (horizontal), 0.1 °/s ... 25 °/s (vertical);Image compression method:Smart H.265+;Audio:Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 256GB;Power supply:PoE (802.3af), 12 V DC;

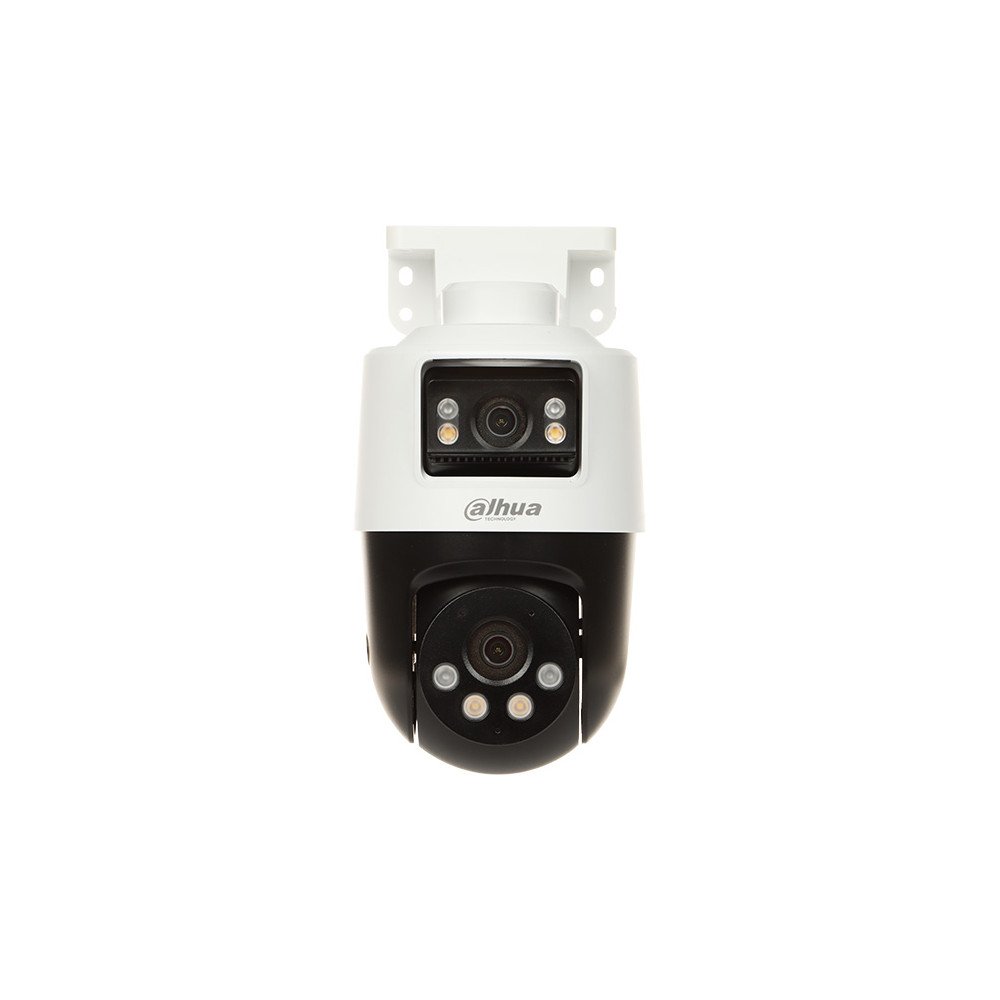

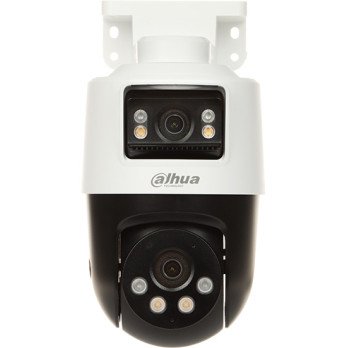

PT OUTDOOR IP CAMERA SDT2A200-2F-NB-A-PV WizSense Smart Dual Light - 1080p 4 mm DAHUA
€437.29
Tax included
Resolution:Camera PT, Camera 2 : 1920 x 1080,;Sensor:Camera PT, Camera 2 : 1/2.8 ";View angle:Camera PT, Camera 2 : 87.5 °;Range of IR illumination:30 m;White light LED illuminator range:30 m;Rotation speed (manual control):0.1 °/s ... 36 °/s (horizontal), 0.1 °/s ... 25 °/s (vertical);Image compression method:Smart H.265+;Audio:Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 256GB;Power supply:PoE (802.3af), 12 V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | Camera PT, Camera 2 :1920 x 1080 -1080p,1280 x 720 -720p, |
| Sensor: | Camera PT, Camera 2 : 1/2.8 " Progressive Scan CMOS |
| Lens: | Camera PT, Camera 2 : 4 mm |
| View angle: | Camera PT, Camera 2 : 87.5 ° |
| Optical zoom: | |
| Digital zoom: | |
| Range of IR illumination: | 30 m @ Camera PT, Camera 2 |
| White light LED illuminator range: | 30 m @ Camera PT, Camera 2 |
| Preset rotation speed: | 36 °/s (horizontal)25 °/s (vertical) |
| Rotation speed (manual control): | 0.1 °/s ... 36 °/s (horizontal),0.1 °/s ... 25 °/s (vertical) |
| Horizontal rotation range: | Camera PT : 0 ° ... 350 °Camera 2 : 0 ° ... 290 ° (manual adjustment) |
| Vertical rotation range: | Camera PT : 0 ° ... 90 °Camera 2 : -10 ° ... 15 ° (manual adjustment) |
| RS-485 interface: | |
| Number of presets: | 50 |
| Horizontal scan: | |
| Route settings: | |
| Image compression method: | Smart H.265+ /H.265/ Smart H.264+ /H. 264B/ H.264M /H.264H |
| Alarm inputs / outputs: | |
| Audio: | Audio inputAudio outputSpeaker built-in - Alarm sirenAudio detectionBi-directional audio streaming support |
| Main stream frame rate: | Camera PT, Camera 2 : 25fps@1080p |
| Network interface: | 10/100 Base-T (RJ-45) |
| Memory card slot: | Micro SD card support up to 256GB |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent image analysis: | Identification of the type of the observed object (human, vehicle) - Deep Learning technologySMD 3.0 - searching for an object classified as: human, motor vehicle |
| Main features: | Smart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image qualityActive deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking white light and siren sound D-WDR - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction Image rotation and mirrorBLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Day/night mode Auto White Balance AGC - Automatic Gain ControlSharpness - sharper image outlinesConfigurable: brightness, contrast, saturation Motion Detection Filtering of false alarms based on the recognition of persons and vehiclesOvervoltage protectionProtection against lightning discharges : 2 kV |
| Housing: | Mini Speed Dome, Plastic |
| Color: | White + Black |
| "Index of Protection": | IP66 |
| I rating: | |
| Power supply: | People (802.3AF),12 VDC/ 1.5 A (not included) |
| Power consumption: | ≤ 4 W (typical),12 W (max) |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.62 kg (with bracket) |
| Dimensions: | 110 x 159 x 210 mm (with bracket) |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
