Resolution:2560 x 1440, 2304 x 1296, 1920 x 1080;Sensor:1/3 ";View angle:78 °;White light LED illuminator range:30 m;Range of IR illumination:30 m;Memory card slot:Micro SD memory cards up to 256GB support (possible local recording);Image compression method:H.265+;Audio:Microphone built-in, Speaker built-in, Bi-directional audio streaming support, Audio detection;Interface:Wi-Fi - IEEE 802.11 b/g/n, 10/100 Base-T;Intelligent Image Analysis:Human detection;Main features:Active deterrence function;Power supply:12V DC;

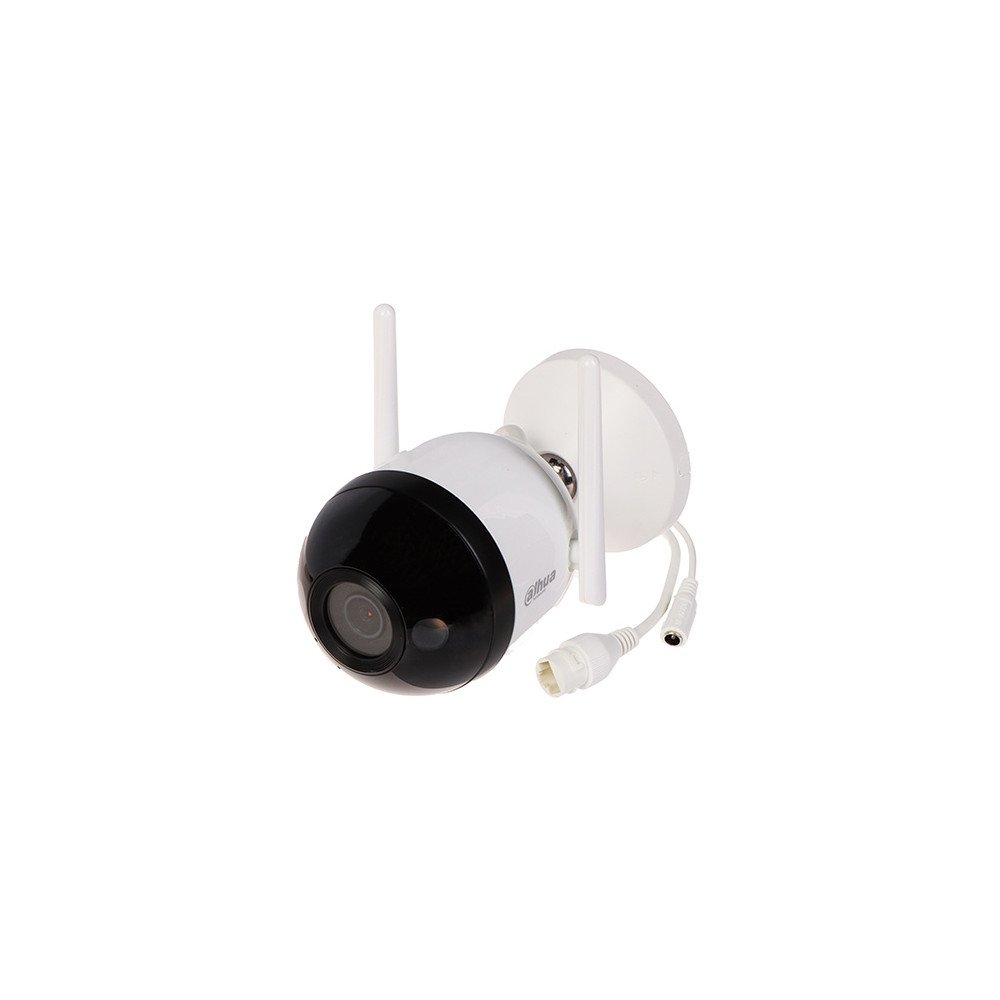

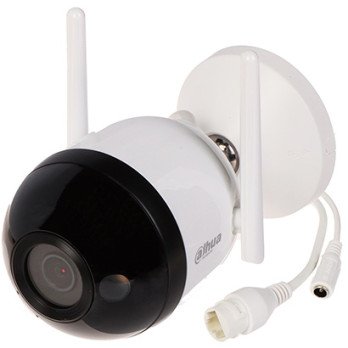

IP CAMERA F4C-PV-0360B Wi-Fi, Smart Dual Light Active Deterrence - 3.7 Mpx 3.6 mm DAHUA
€89.79
Tax included
Resolution:2560 x 1440, 2304 x 1296, 1920 x 1080;Sensor:1/3 ";View angle:78 °;White light LED illuminator range:30 m;Range of IR illumination:30 m;Memory card slot:Micro SD memory cards up to 256GB support (possible local recording);Image compression method:H.265+;Audio:Microphone built-in, Speaker built-in, Bi-directional audio streaming support, Audio detection;Interface:Wi-Fi - IEEE 802.11 b/g/n, 10/100 Base-T;Intelligent Image Analysis:Human detection;Main features:Active deterrence function;Power supply:12V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | 2560 x 1440 - 3.7Mpx, 2304 x 1296 - 3Mpx, 1920 x 1080 -1080p, 1280 x 960 - 1.3Mpx, 1280 x 720 -720p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 3.6 mm |
| View angle: | 78 ° |
| White light LED illuminator range: | 30 m |
| Range of IR illumination: | 30 m |
| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Image compression method: | H.265+ /H.265/ H.264+ /H.264H/H. 264B/H.264 |
| Alarm inputs / outputs: | |
| Audio: | Microphone built-in,Speaker built-in,Bi-directional audio streaming support,Audio detection |
| Main stream frame rate: | 25fps@ 3.7Mpx |
| Interface: | Wi-Fi - IEEE 802.11 b/g/n, 2.4 GHz, 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Intelligent image analysis: | Human detection |
| Main features: | Active deterrence function D-WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image BLC/HLC - Back Light / High Light CompensationDay/night mode ICR - Movable InfraRed filter WB - White Balance (ATW/AWB/manual/indoor/outdoor) AGC - Automatic Gain ControlPossibility to change the resolution, quality and bit rateImage rotation and mirror Motion Detection - max. 4 configurable zones Privacy zones - max. 4 |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P)Android: Free applicationDMSS iOS (iPhone): Free applicationDMSS |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Power supply: | 12 VDC/ 550 mA |
| Power consumption: | ≤ 6.6 W @ 12 VDC |
| Housing: | Compact - Plastic |
| Color: | White + Black |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.26 kg |
| Dimensions: | 131 x 78 x 97 mm |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
