- Sensor: 1/2.9" Sony CMOS
- Matrix size: 5 Mpx
- Resolution: 2592 x 1944 px
- IR illuminator range: 60 m
- Viewing angle: 91° ... 28°
- Optical zoom: x 4; Rotation speed (manual control): 20°/s (horizontal), 25°/s (vertical)
- Power supply: 12 V DC / 860 mA
AHD, HD-CVI, HD-TVI, CVBS SPEED OUTDOOR CAMERA OMEGA-PTZ-52H4-4 - 5 Mpx 2.8 ... 12 mm
€698.73
Tax included
- Sensor: 1/2.9" Sony CMOS
- Matrix size: 5 Mpx
- Resolution: 2592 x 1944 px
- IR illuminator range: 60 m
- Viewing angle: 91° ... 28°
- Optical zoom: x 4; Rotation speed (manual control): 20°/s (horizontal), 25°/s (vertical)
- Power supply: 12 V DC / 860 mA
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

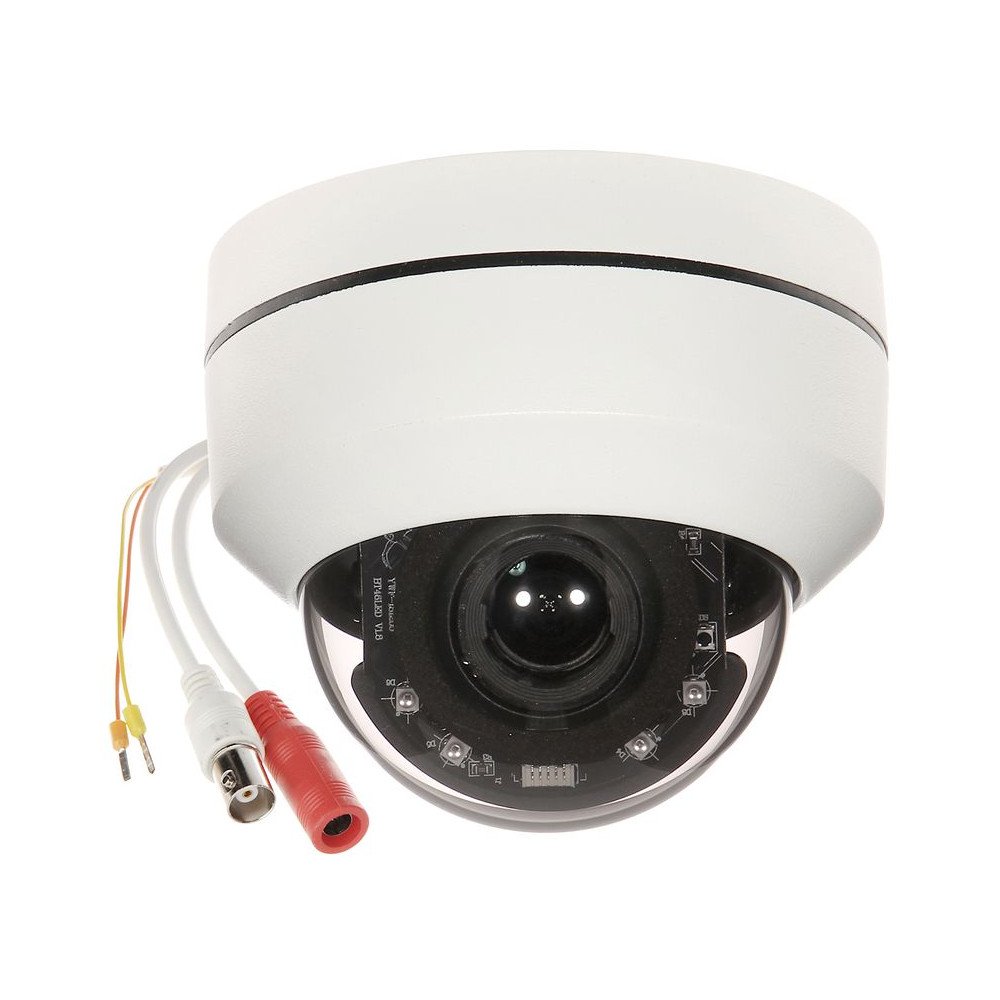

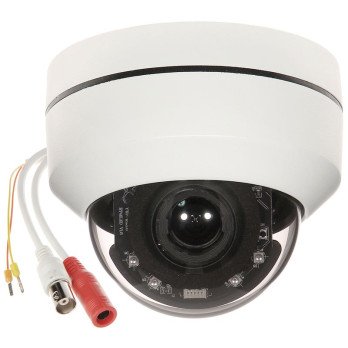

Very small, external PTZ camera with a motor zoom lens
The AHD / HD-CVI / HD-TVI interface enables the transmission of an analog video signal via a coaxial cable in a resolution of max. 8 Mpx (4K UHD)
There are no delays during transmission and the original, high image quality is maintained
The range of the illuminator provided by the manufacturer depends on the environmental conditions (air transparency, surroundings, wall color, i.e. the so-called scene reflectance)
The camera meets the IP66 tightness class
Attention!
Changing the camera ID address is done by calling two presets in turn: first preset 97, and then the preset number corresponding to the new camera ID address
To change the standard via RS-485 (using the keyboard or from the recorder level):
Call preset 137 2x to change to AHD
Call preset 138 2x to change to TVI
Call preset 139 2x to change to CVI
Call preset 140 2x to change to CVBS
| Standard: | AHD, HD-CVI, HD-TVI, CVBS |
| Converter: | 1/2.9 " Sony CMOS |
| Matrix size: | 5 Mpx |
| Resolution: |
|
| IR illuminator range: | 60 m |
| Lens: | 2.8 ... 12 mm - Motozoom |
| Viewing Angle: |
|
| Optical zoom: | x 4 |
| Digital zoom: | x 16 |
| Rotation speed depends on the ZOOM value: | NO |
| Automatic IR illuminator: | NO |
| Horizontal rotation range: | 0° ... 350° - The head rotation is limited by the limit switch |
| Vertical rotation range: | 0 ° ... 70 ° |
| Rotational speed (manual control): | 20°/s (horizontal), 25 °/s (pion) |
| Rotational speed with presets: | 25°/s (horizontal) 20 °/s (pion) |
| Control: | Via the RS-485 interface Default address : 1, 2400 bit/s |
| Protocols: | Pelco-D, Pelco-P (auto detection) |
| Signal-to-noise ratio (S/N): | 50 dB |

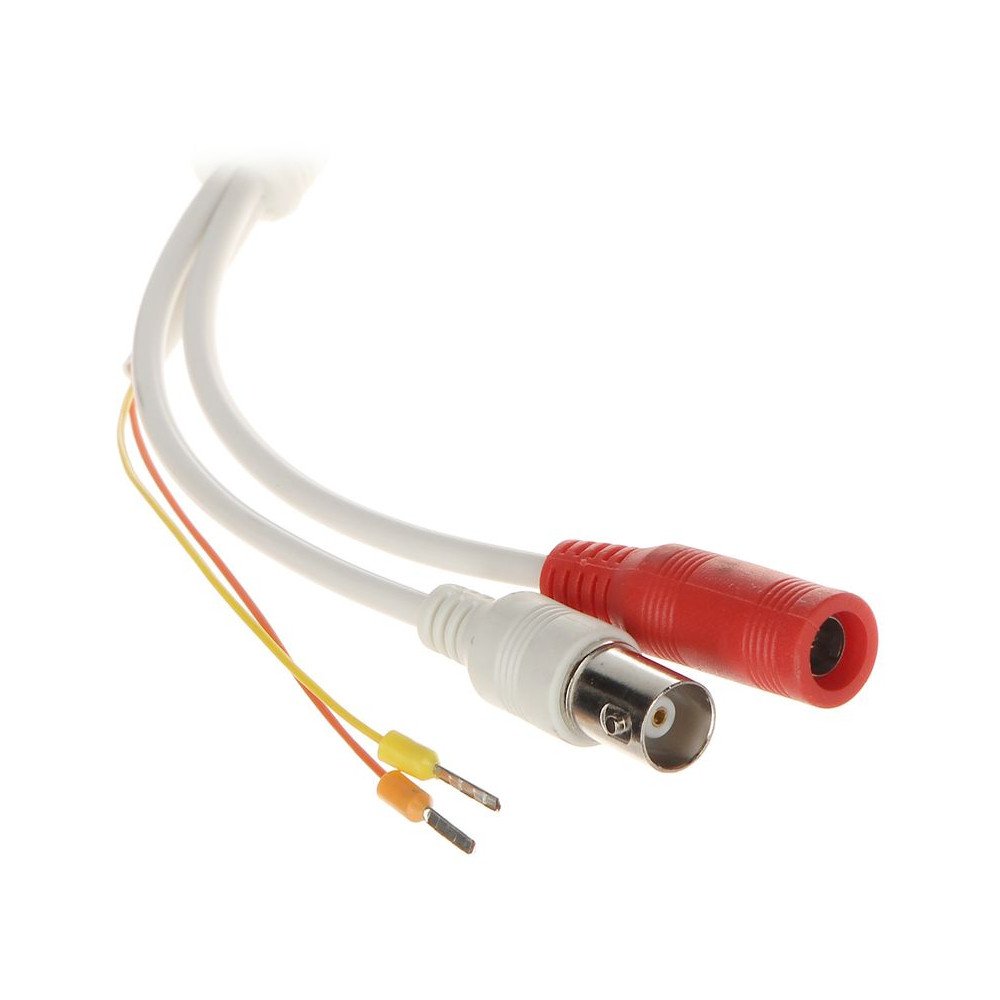

| Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp 75 Ω |
| Audio: | NO |
| Number of presets: | 220 |
| Set traffic routes: | 8 |
| Horizontal Scanning: | NO |
| Parking (Park action): | Recalling a preset item after a specified period of inactivity |
| Alarm inputs/outputs: | NO |
| Selected features: |
|
| OSD menu: | NO |
| Power supply: | 12 V DC / 860 mA |
| Power consumption: | ≤ 10.3 W |
| Case: | Speed Dome, Plastik |
| Color: | White |
| Tightness class: | IP67 |
| Vandal-proof: | NO |
| Operating temperature: | -40 °C ... 60 °C |
| Libra: | 0.57 kg |

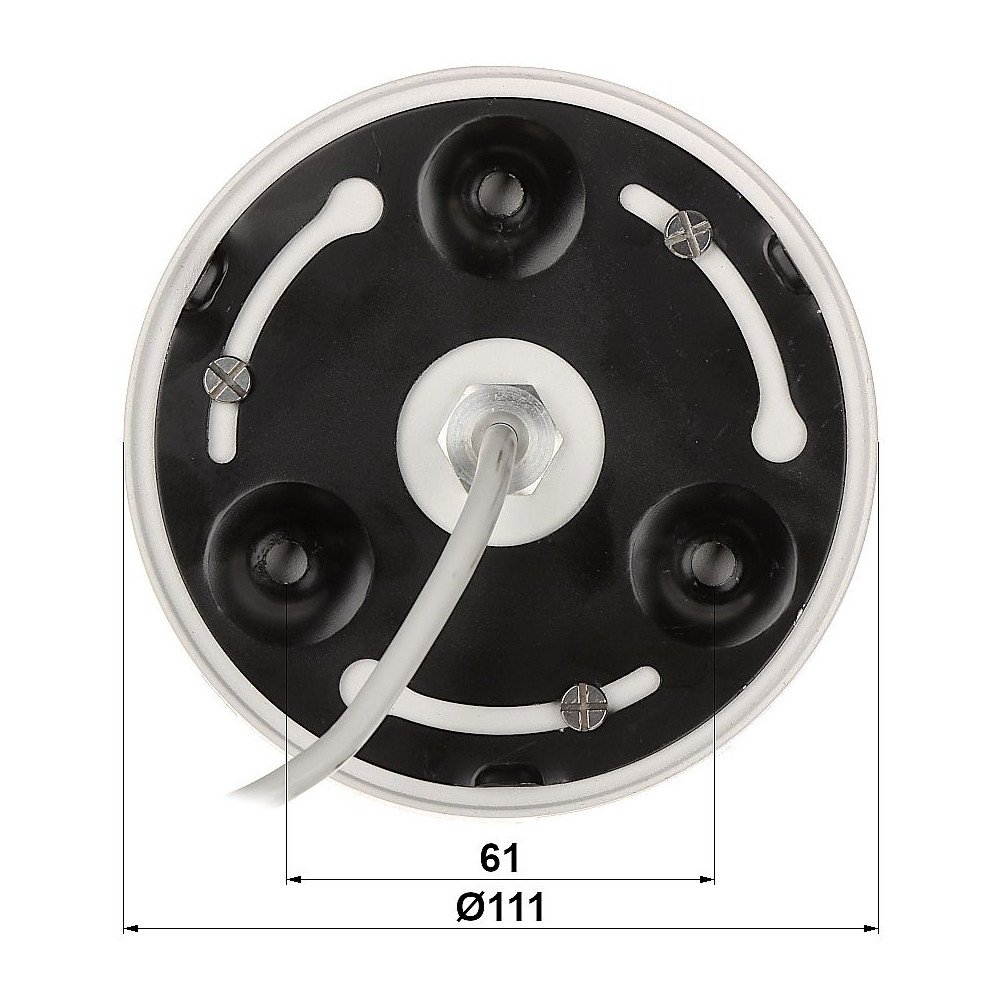

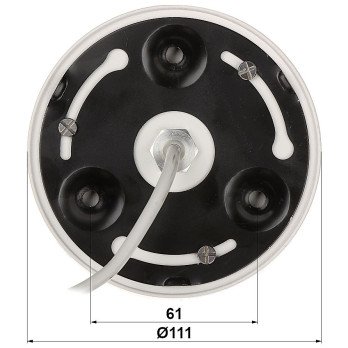

| Dimensions: | Ø 110 x 100 mm |
| Supported languages: | English |
| Guarantee: | 2 lata |
