Resolution:2304 x 1296, 1920 x 1080;Sensor:1/2.8 ";View angle:87 °;Range of IR illumination:30 m;White light LED illuminator range:30 m;Rotation speed (manual control):0.1 °/s ... 74 °/s (horizontal) 0.1 °/s ... 36 °/s (vertical);Image compression method:H.265+;Memory card slot:Micro SD card support up to 256GB;Audio:Bi-directional audio streaming support;Main features:Wi-Fi Module - IEEE 802.11 b/g/n, SMD 3.0 - searching for an object classified as: human, motor vehicle;Power supply:12V DC;

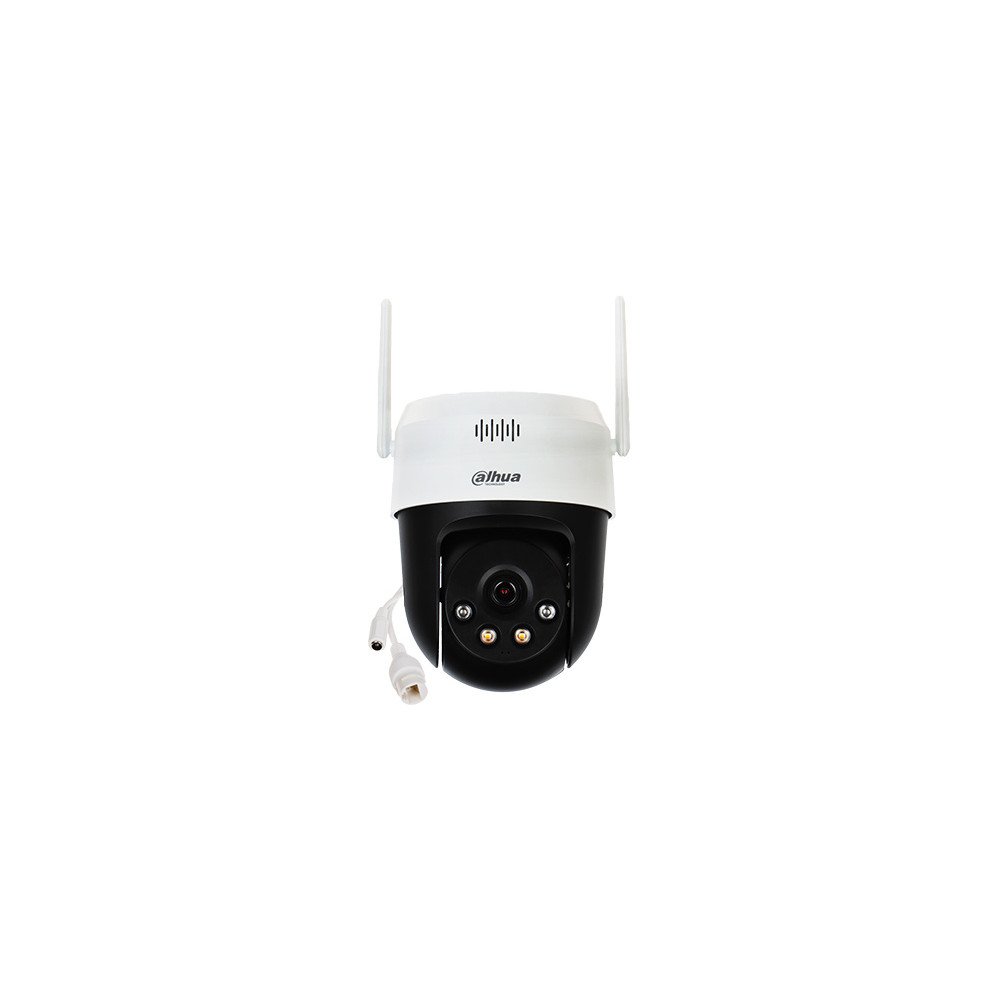

IP SPEED DOME CAMERA P3AE-PV Picoo A2 Wi-Fi - 3 Mpx 4 mm DAHUA
€55.72
Tax included
Resolution:2304 x 1296, 1920 x 1080;Sensor:1/2.8 ";View angle:87 °;Range of IR illumination:30 m;White light LED illuminator range:30 m;Rotation speed (manual control):0.1 °/s ... 74 °/s (horizontal) 0.1 °/s ... 36 °/s (vertical);Image compression method:H.265+;Memory card slot:Micro SD card support up to 256GB;Audio:Bi-directional audio streaming support;Main features:Wi-Fi Module - IEEE 802.11 b/g/n, SMD 3.0 - searching for an object classified as: human, motor vehicle;Power supply:12V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | 2304 x 1296 - 3Mpx, 1920 x 10801080p, 1280 x 720 -720p |
| Sensor: | 1/2.8 " Progressive Scan CMOS |
| Lens: | 4 mm |
| View angle: | 87 ° |
| Optical zoom: | |
| Digital zoom: | |
| Range of IR illumination: | 30 m |
| White light LED illuminator range: | 30 m |
| Video output: | |
| Rotation speed (manual control): | 0.1 °/s ... 74 °/s (horizontal)0.1 °/s ... 36 °/s (vertical) |
| Preset rotation speed: | max. 62 °/s (horizontal) max. 36 °/s (vertical) |
| Horizontal rotation range: | 0 ° ... 345 ° - Rotation of the head is limited by stops |
| Vertical rotation range: | 0 ° ... 80 ° |
| RS-485 interface: | |
| Number of presets: | 300 |
| Horizontal scan: | |
| Route settings: | |
| Image compression method: | H.265+ /H.264/H.265/MJPEG/ H.264+ |
| Alarm inputs / outputs: | |
| Main stream frame rate: | 25fps- 5Mpx |
| Memory card slot: | Micro SD card support up to 256GB |
| Interface: | Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Audio: | Microphone built-inSpeaker built-inAudio detectionBi-directional audio streaming support |
| Mobile phones support: | Port 37777Android: Free applicationDMSS iOS (iPhone): Free applicationDMSS |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Default IP address: | 192.168.1.108 |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent image analysis: | intrusion linkage tracking crossing the line (tripwire) |
| Main features: | When Smart Dual Light is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves the image qualityActive deterrence function - Light and sound alarmIntelligent Object TrackingWi-Fi module - IEEE 802.11 b/g/n, D-WDR - Wide Dynamic Range Day/night mode BLC - Back Light Compensation HLC - High Light Compensation (spot) ICR - Movable InfraRed filter motion detection based on human detectionSMD 3.0 - searching for an object classified as: human, motor vehicle |
| Power supply: | 12 VDC/ 1 A |
| Power consumption: | ≤ 11 W |
| Housing: | Speed Dome, Plastic |
| Color: | White |
| "Index of Protection": | IP66 |
| Operation temp: | -30 °C ... 55 °C |
| Weight: | 0.44 kg |
| Dimensions: | Ø 111 x 141 mm (without bracket) |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
