Resolution:2560 x 1440;Sensor:Camera PTZ : 1/2.8 ", Panoramic camera : 1/2.8 ";View angle:Camera PTZ : 52 ° ... 3 °, Panoramic camera : 101 °;Optical zoom:x 25;Digital zoom:x 16;Range of IR illumination:100 m;Rotation speed (manual control):0.1 °/s ... 200 °/s (horizontal) 0.1 °/s ... 120 °/s (vertical);Image compression method:H.265+;Alarm inputs / outputs:2 / 1;Audio:Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 512GB;Power supply:PoE (802.3at), 12 V DC;

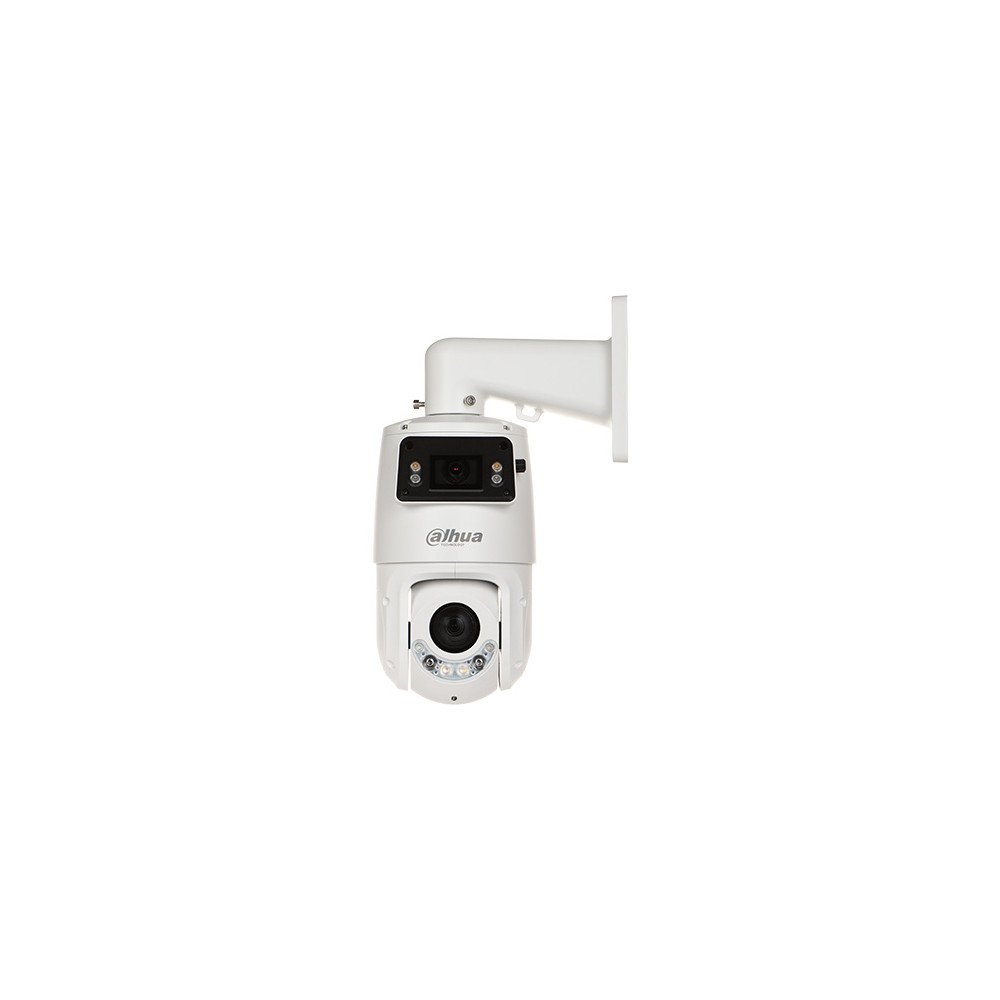

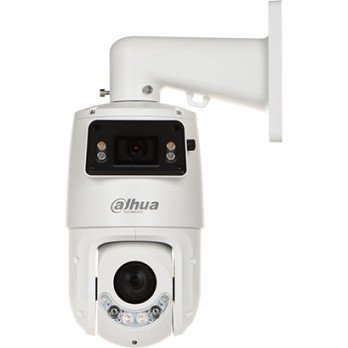

IP SPEED DOME CAMERA SDT4E425-4F-GB-A-PV1-0400 PANORAMIC TiOC WizSense Smart Dual Light - 3.7 Mpx 5 ... 125 mm, 2.8 mm DAHUA
€1,835.90
Tax included
Resolution:2560 x 1440;Sensor:Camera PTZ : 1/2.8 ", Panoramic camera : 1/2.8 ";View angle:Camera PTZ : 52 ° ... 3 °, Panoramic camera : 101 °;Optical zoom:x 25;Digital zoom:x 16;Range of IR illumination:100 m;Rotation speed (manual control):0.1 °/s ... 200 °/s (horizontal) 0.1 °/s ... 120 °/s (vertical);Image compression method:H.265+;Alarm inputs / outputs:2 / 1;Audio:Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 512GB;Power supply:PoE (802.3at), 12 V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Sensor: | Camera PTZ : 1/2.8 " STARVIS™ CMOSCamera 2 : 1/2.8 Progressive Scan CMOS |
| Matrix size: | Camera PTZ : 4Mpx Camera 2 : 4Mpx |
| Resolution: | Camera PTZ, Camera 2 :2560 x 1440 - 3.7Mpx,2048 x 1536 - 3Mpx,2304 x 1296 - 3Mpx,1920 x 1080 -1080p,1280 x 960 - 1.3Mpx,1280 x 720 -720p |
| Lens: | Camera PTZ : 5 ... 125 mmCamera 2 : 2.8 mm |
| View angle: | Camera PTZ : 52 ° ... 3 °Camera 2 : 101 ° |
| Optical zoom: | x 25 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 100 m @ Camera PTZ30 m @ Camera 2 |
| White light LED illuminator range: | 50 @ Camera PTZ30 @ Camera 2 |
| Preset rotation speed: | 240 °/s (horizontal)200 °/s (vertical) |
| Rotation speed (manual control): | 0.1 °/s ... 200 °/s (horizontal)0.1 °/s ... 120 °/s (vertical) |
| Horizontal rotation range: | 360 ° - continuous |
| Vertical rotation range: | -15 ° ... 90 ° |
| RS-485 interface: | |
| Number of presets: | 300 |
| Horizontal scan: | |
| Route settings: | 8 |
| Image compression method: | H.265+ /H.265/ H.264+ /H.264/MJPEG |
| Alarm inputs / outputs: | 2 / 1 |
| Audio: | External microphone inputAudio outputAudio detectionSpeaker built-in - Alarm sirenBi-directional audio streaming supportDigital Noise Reduction |
| Main stream frame rate: | Camera PTZ : 25fps@ 4Mpx Camera 2 : 25fps@ 4Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| Memory card slot: | Micro SD card support up to 512GB |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent image analysis: | Intelligent Object Tracking crossing the line (tripwire) detection of entry into the area / exit from the area intrusion fast moving classification of people and vehiclescrowd gathering estimation |
| Main features: | Smart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image qualityActive deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking blue and red light and siren sound or voice prompts WDR - 120 dB - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction F-DNR (Defog) - Reduction of image noise caused by precipitation EIS - Electronic Image Stabilization ROI - improve the quality of selected parts of image Quick Pick - AI technology enabling, together with the recorder, quick identification of interesting objects (people/vehicles) based on an artificial intelligence algorithm. It allows to extract and compare the colors of clothes and vehiclesSMD 4.0 - searching for an object classified as: human, motor vehicle - increased detection distance and resistance to false alarmsImage rotation and mirrorBLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Day/night mode Auto White Balance Sharpness - sharper image outlinesConfigurable: brightness, contrast, saturationNAS - Network Attached Storage support Configurable Privacy Zones Motion Detection Filtering of false alarms based on the recognition of persons and vehicles |
| Power supply: | People (802.3at),12 VDC/ 3 A (power adapter included) |
| Power consumption: | ≤ 12 W (typical),25 W (max) |
| Housing: | Speed Dome, Plastic |
| Color: | White |
| Operation temp: | -40 °C ... 65 °C |
| "Index of Protection": | IP66 |
| Weight: | 3.4 kg |
| Dimensions: | 152 x 185 x 305 mm (without bracket) |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
