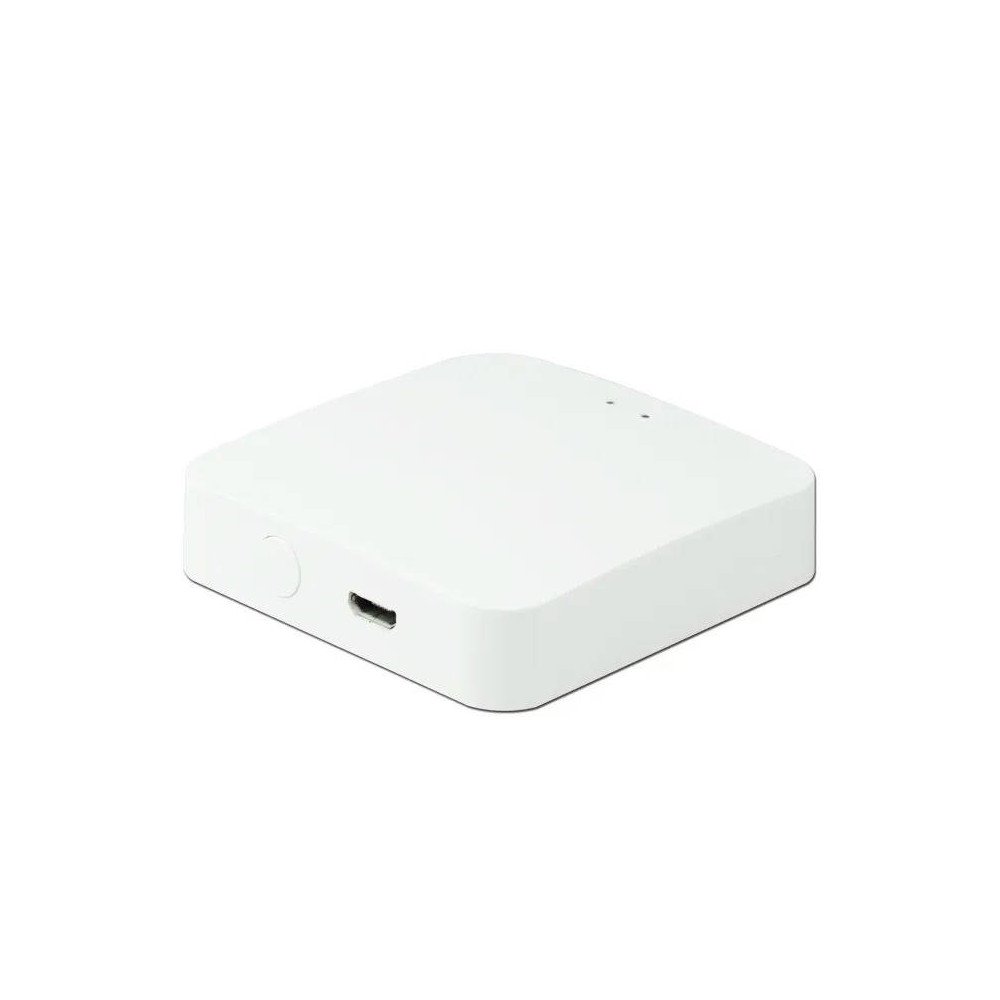

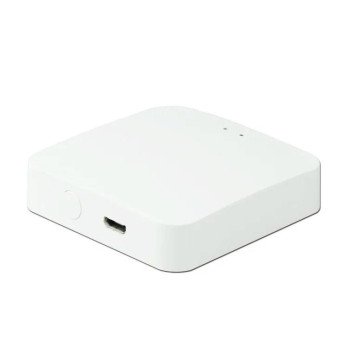

Multibramka Mini Alarm ZigBee Bluetooth WiFi TUYA

➡️ Multigateway that will allow you to connect sensors or other ZigBee or Bluetooth elements to your TUYA application, but that's not all! The offered Multigateway can also function as an alarm control panel including selected ZigBee and Bluetooth sensors from your network.

⭐Main advantages⭐

✅ Supportsover 50 devices ZigBeeand25 BT devicesonline at the same time

✅ ZigBee multigateway allows you to connect ZigBee and Bluetooth MESH devices to your TUYA network

✅ Has support for arming and disarming the alarm of ZigBee sensors on your network. These do not have to be sensors connected to this gateway

✅ The gateway connects directly to your WiFi router - there is no need to connect a LAN cable

✅ Informs the user about secured device events

✅ Supports connecting other ZigBee and Bluetooth products

✅Voice controldevices connected to the gateway via Amazon Alexa or Google Assistant - only for devices compatible with these systems

✅2 different communication protocols in one device - ZigBee and Bluetooth

✔️ Multibramka ZigBee 3.0 + Bluetooth Mesh WiFi LOW

The latest generation Zigbee 3.0 and Bluetooth Mesh protocol together with the Tuya Smart application allow you to create a truly smart home. More and more smart home devices have a built-in Bluetooth chipset as the main communication medium.

This Zigbee + Bluetooth Mesh Multigateway provides local fast ZigBee and Bluetooth Mesh connectivity, greater automation capabilities, local memory for parameters and devices.

✔️ Support for three main communication protocols

One gateway can realize the connection and communication of the above various protocol devices, which makes it easier to build a smart home.

• BT MESH protocol
• protocol ZigBee 3.0

Thanks to the above-mentioned protocols, the gateway can connect intelligent devices such as BT mesh, ZigBee and Bluetooth.

Thanks to the technology used, it eliminates the disadvantages of wired and wireless networks and additionally enhances their advantages.

✔️ Remotely control all your devices

There is no need to separately control Bluetooth and ZigBee devices using two different interfaces, just control them using one Multigateway with group control support.

ℹ️ Screenshots from the TUYA application

✨ Discover completely new possibilities of the TUYA Smart Life system

In the TUYA app, your devices connected directly to WiFi can be automated with ZigBee and Bluetooth devices connected to this Multigateway.

Unlike WiFi devices, most of the automation takes place locally on your gateway, not in the cloud, which gives you a huge advantage in execution time and functionality.

Communication via Bluetooth MESH enables households, offices, factories and even entire cities to go from merely "connected" to truly "intelligent".

Thanks to significant improvements in the security system, double efficiency and a significant expansion of existing solutions, Bluetooth Mesh is an ideal candidate for a member of industrial Internet of Things solutions.

"Mesh" technology - works in such a way that all devices can communicate with each other without the need to connect to a central node. In this solution, the network area is essentially infinite, which makes it extremely useful for industrial applications of the Internet of Things, such as creating huge networks of connected sensors.

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device acts as a relay for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is sufficient that it has radio communication with another ZigBee device that has communication with the gateway. The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection.
• ZigBee devices and sensors consume very little energy, which gives a long battery life.
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub.
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds when their status changes. WiFi devices take about 5 seconds to connect to the network after a status change. ZigBee devices have a huge advantage when it comes to automating smart rules.
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago.

ℹ️ Specification:

• App:TUYA Smart / SmartLife
• Communication:ZigBee 3.0, WiFi 2.4 GHz, Bluetooth
• Power supply:DC 5V / 1A
• Operating temperature: -10 ~ 45 ℃
• Humidity during operation:5% ~ 90% RH (non-condensing)
• Port USB:MicroUSB
• WiFi Support:802.11 b/g/n 2.4 GHz
• Dimensions:60 x 60 x 15 mm

ℹ️ The set includes:

• Multibramka
• User manual
• microUSB power cable

Product code: T728
