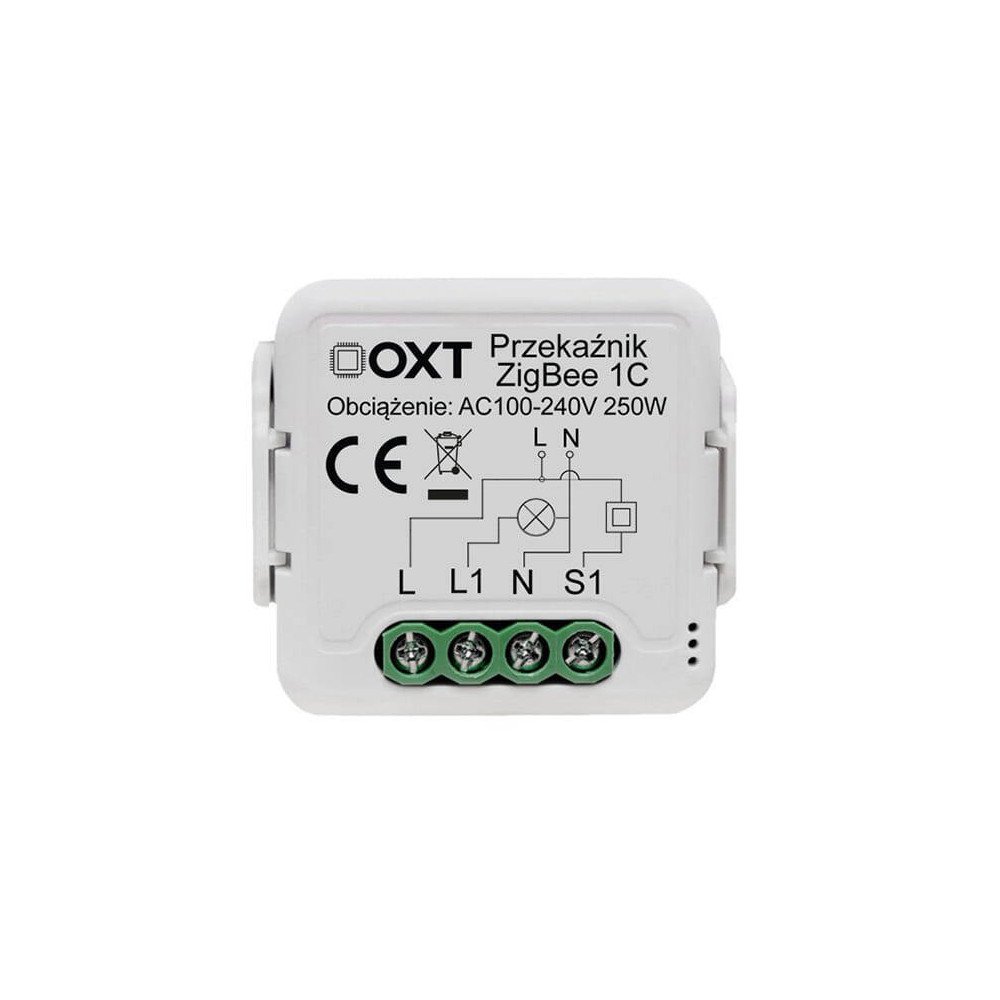

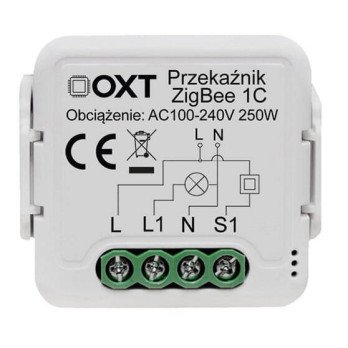

Relay Module | OXT Mini | ZigBee | TUYA

▶️ Turn a traditional switch or socket into a smart device controlled via the TUYA Smart app!

▶️ The compact ZigBee in-wall module lets you automate your home without replacing your electrical system.

▶️ Control and Compatibility

• ✅Works with different switches: compatible with both toggle (bistable) and push-button (monostable)
• ✅2-way / cross switch support:integrates with traditional wiring setups
• ✅Versatile use:control any load within the module’s power limits
• ✅Compact design:fits into a standard electrical wall box

▶️ Remote Control

• ✅Remote access:manage from anywhere via Tuya Smart or Smart Life app
• ✅Voice control:compatible with Amazon Alexa and Google Home

▶️ Automation Scenes

• ✅Timers schedules:set up automatic switching
• ✅Smart scenarios:create rules based on time, weather, or location

▶️ Ecosystem

• ✅Part of the TUYA ecosystem:supports scenes and automation rules in the app

⚠️ A ZigBee gateway is required.

ℹ️ You can find compatible models in our offer

ℹ️ Wiring Diagram

✅ ZigBee Technology

• ▶️MESH network– every powered ZigBee device extends the signal

• ▶️Fast response– reaction time from as low as 0.2 seconds

• ▶️Stable operation– even with many devices connected

• ▶️Event history– access data from previous months

• ▶️Energy efficiency– ideal for automation and battery-powered devices

ℹ️ Specifications:

▶️ Communication Control

• Protocol:ZigBee 3.0
• App:Tuya Smart / Smart Life

▶️ Technical Parameters

• Power supply:90–250 V AC / 50 Hz
• Max load:LED 250 W / resistive 2000 W
• Max current:10 A
• Wiring:requires both L and N

ℹ️ Package includes:

• 1× OXT Minist
• 1× Mounting clip
• 1× User manual

Product code: T261
