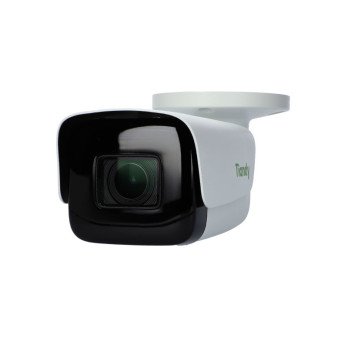

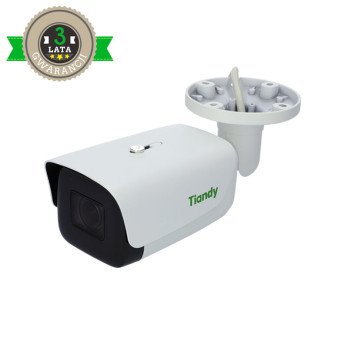

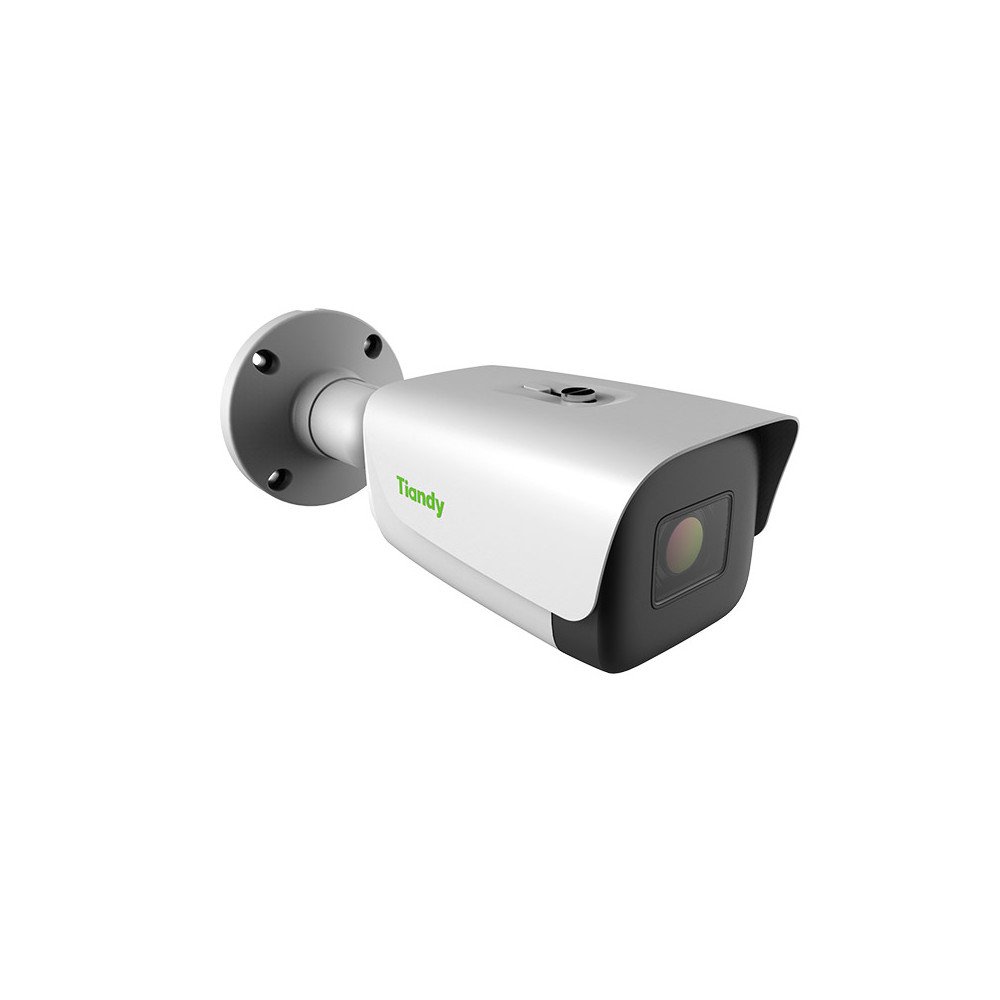

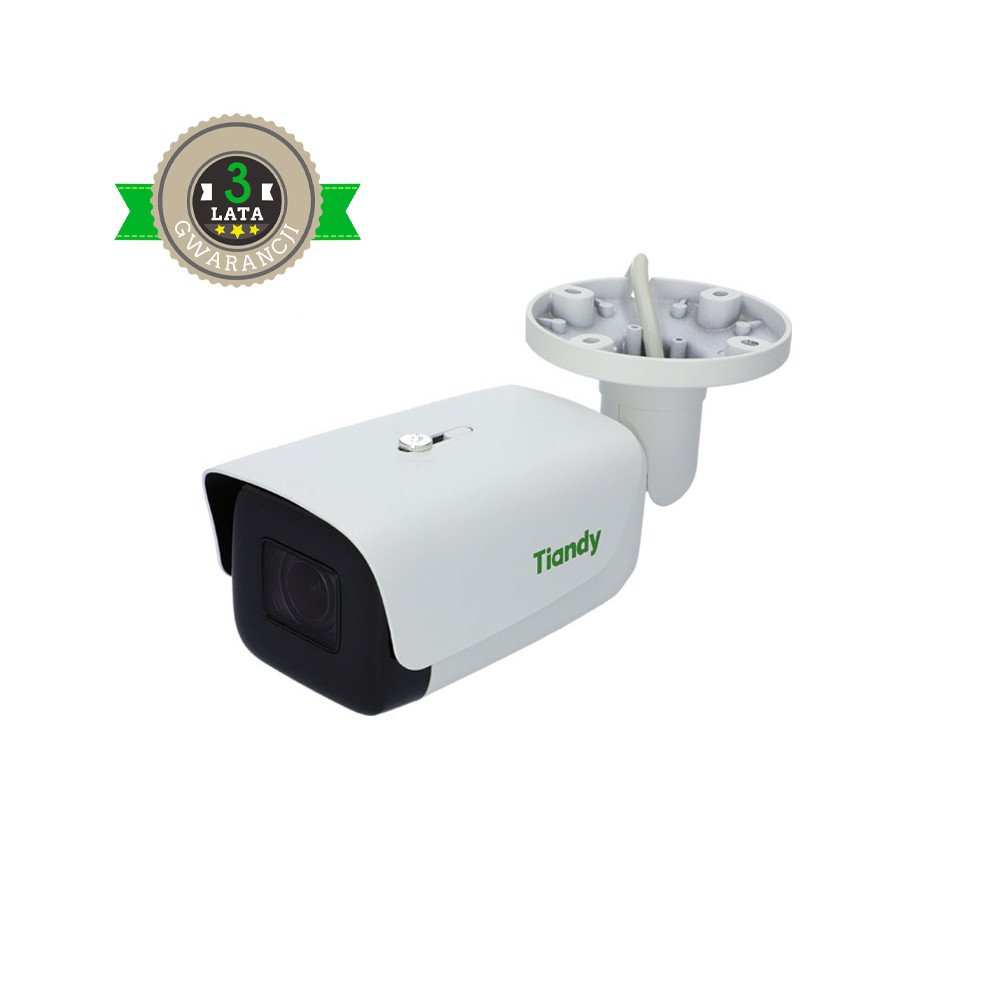

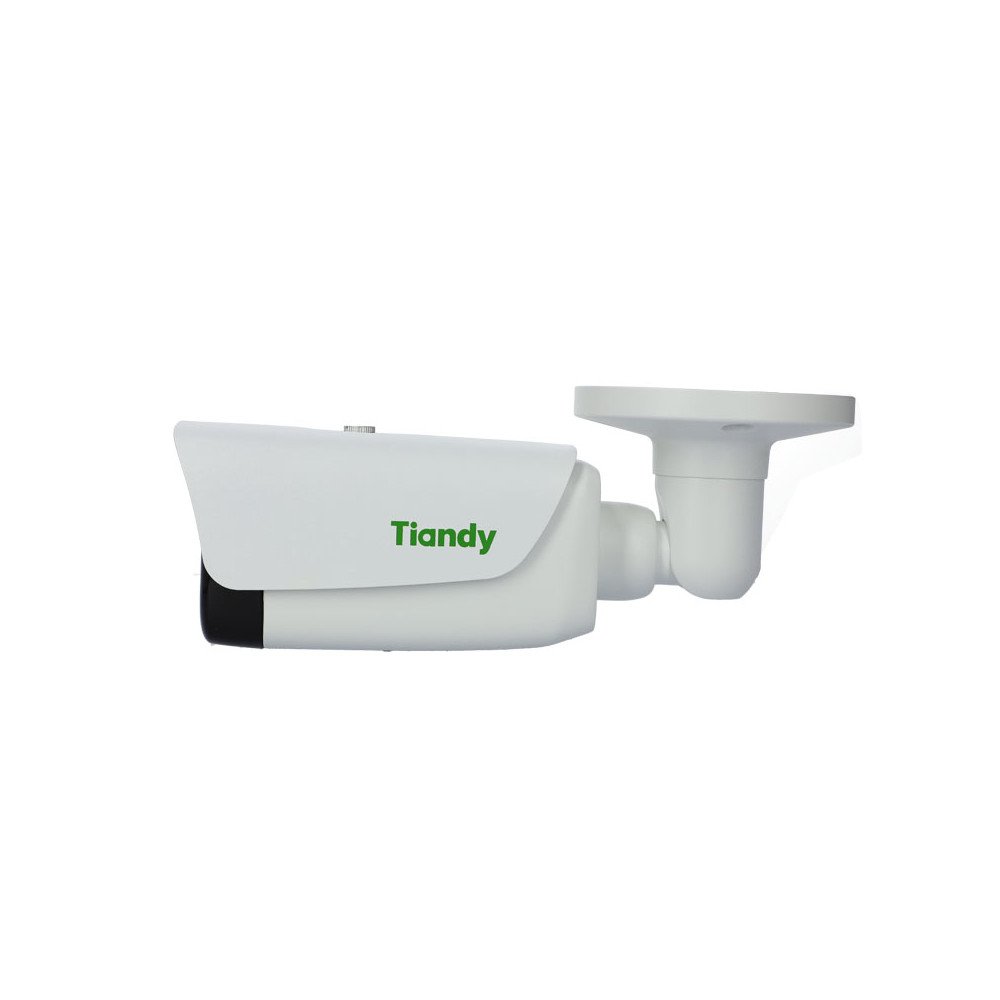

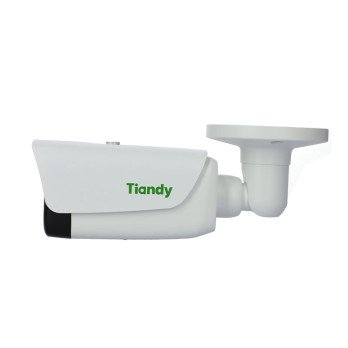

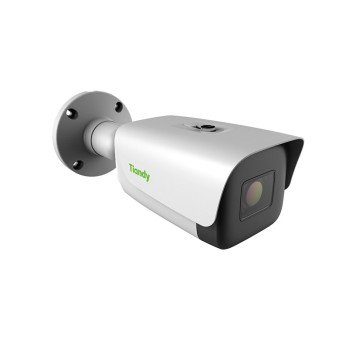

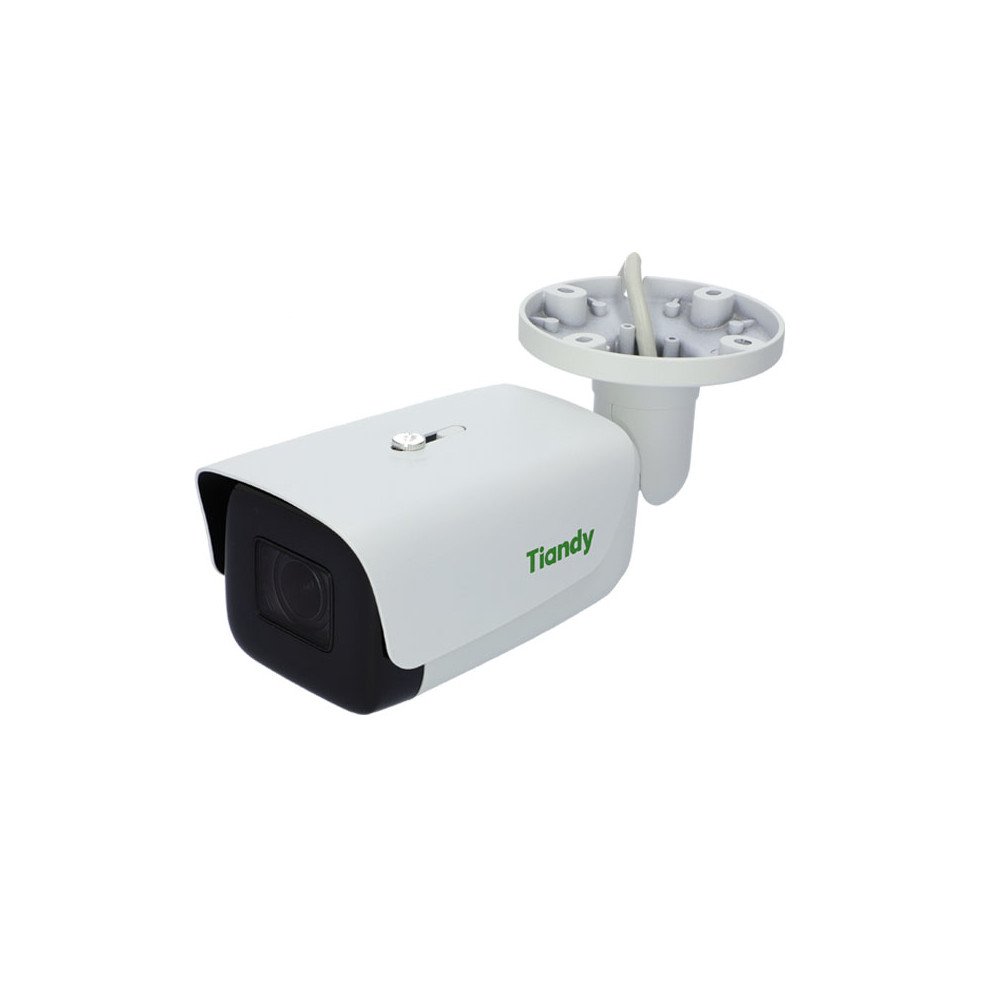

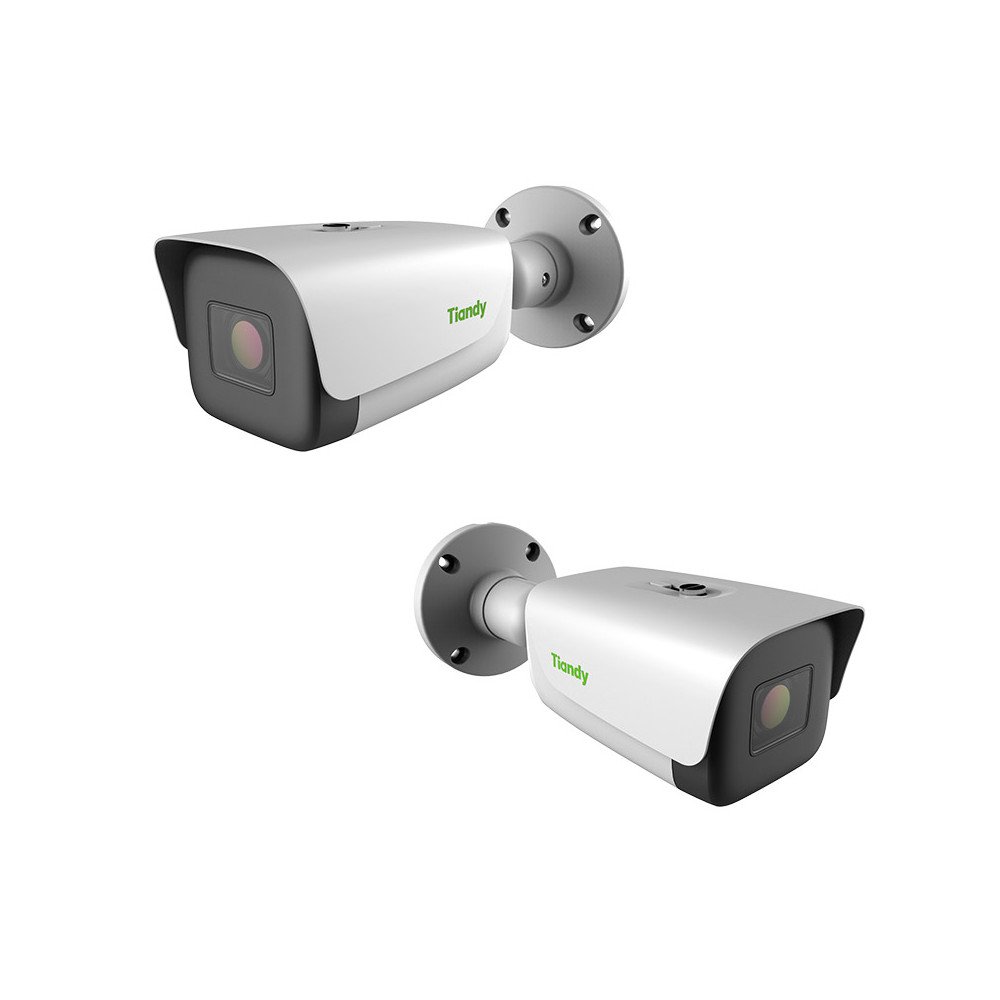

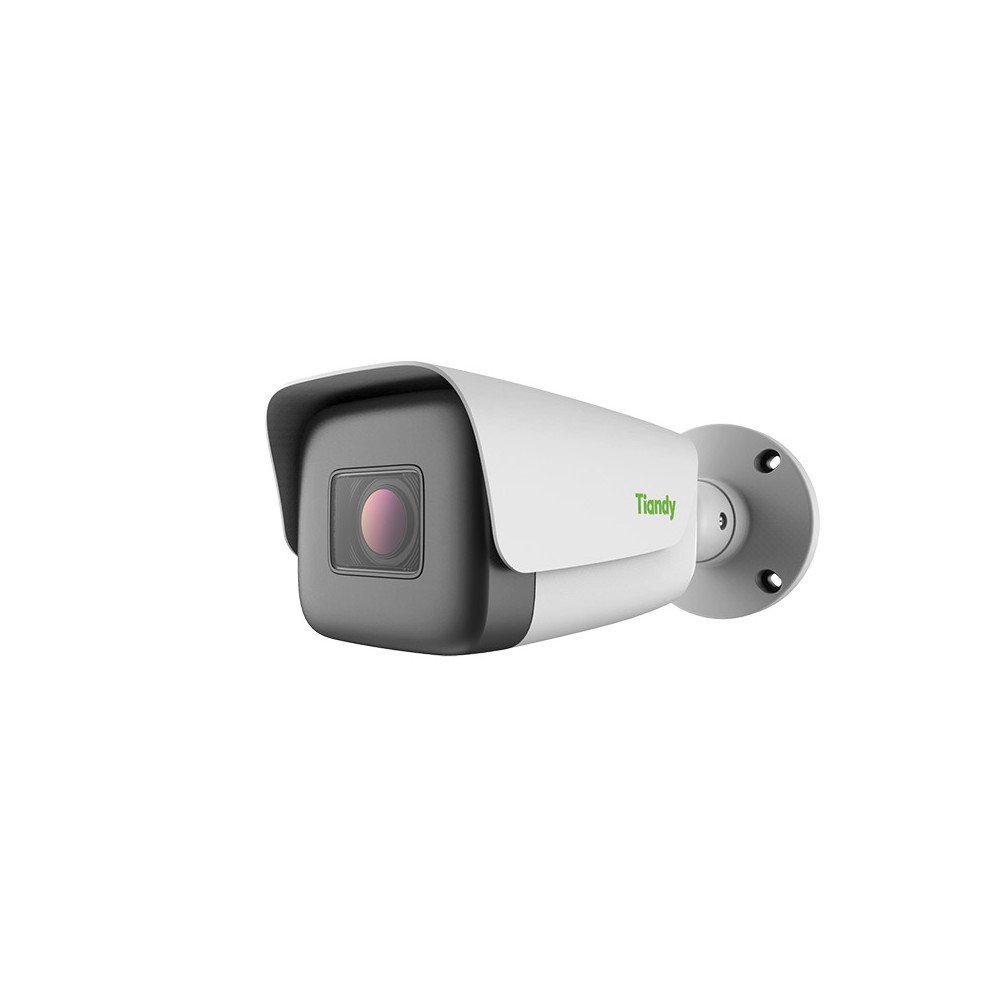

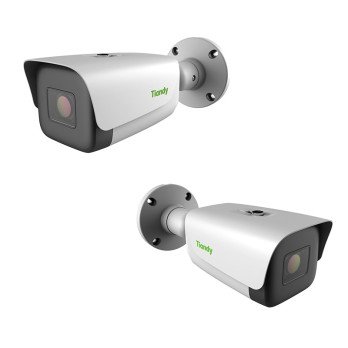

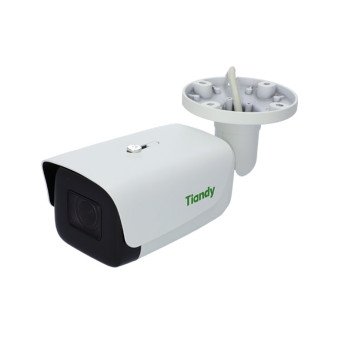

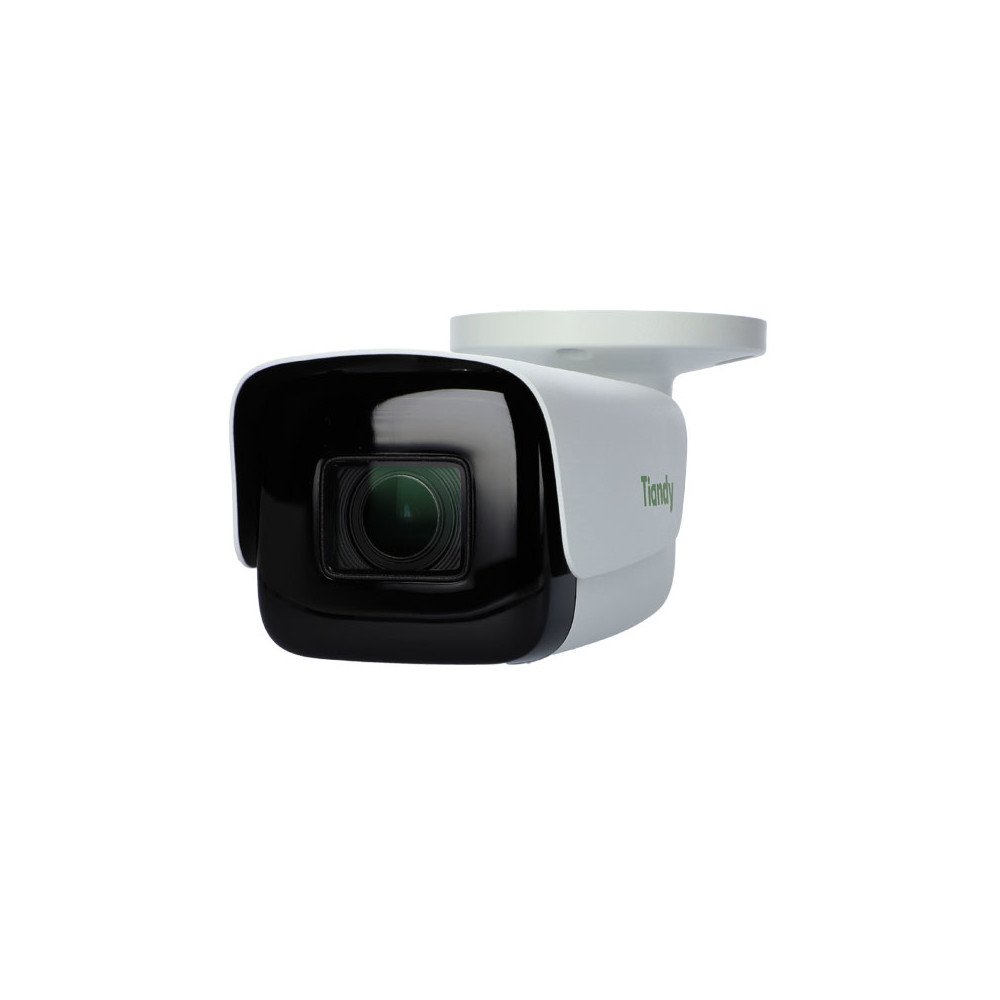

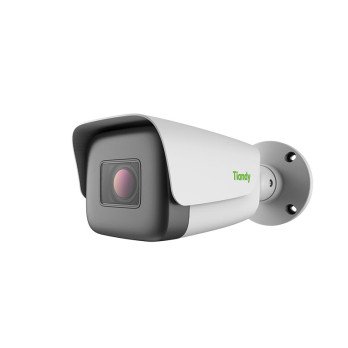

Tiandy TC-C38TS Starlight MotoZoom PRO Series IP network camera

Tiandy TC-C38TS Starlight MotoZoom Pro AI Series IP network camera

• Technology:IP
• Compression:s+265/H.265/H.264/MJPEG
• Image sensor:1/2.8" CMOS
• Resolution:3840 × 2160(8Mpx) 4K
• Night visibility:80 m
• Lens:2,7-13,5 mm
• Application:inside and outside
• Intelligent face analysis:Not
• People/Vehicles Classification:Not
• Power supply:12V DC PoE
• Onvif:Profil S/T/G/M
• Tightness class:IP67

Camera compatible with ViDiLine products!High-quality 4K image

The transducer used transmits an image in a very high resolution of 3840×2160. This high resolution allows you to enlarge the live image and identify people or vehicle registration numbers.

Multi-coated glass lens

Tiandy cameras, regardless of the model, use only glass lenses consisting of multiple layers (including anti-reflective, scratch-resistant) manufactured by the Japanese company Fujinon, a tycoon in this industry. Glass optics do not change their parameters with temperature changes, as is the case with lenses made of plastic. In addition, the glass allows much more light to pass through, making the image brighter at night.

Color image in low light

Series cameraSTARLIGHTis characterized by high sensitivity of up to 0.002 lux in color, below this value the image is shown in black and white, which is the best result in this class of IP cameras.

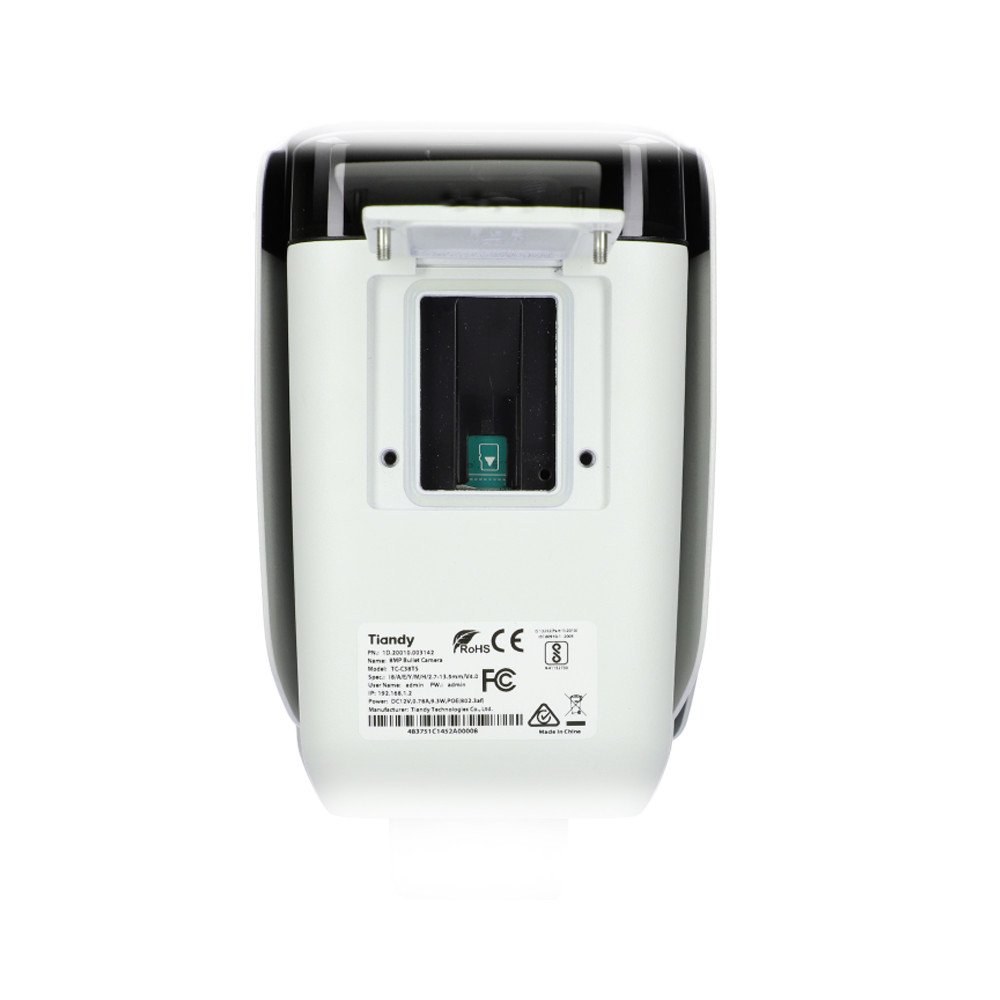

Built-in micro SD slot

The camera is equipped with a micro card slotSD up to 512 GB. This allows us to record the image on the card in the event of a problem with the camera-recorder connection. After fixing the problem, the camera will automatically transfer the recording from the card to the recorder's disk.

Intelligent detection

When configuring the intelligent video analysis function, you can specify what object the rule should react to, whether the alarm should be triggered by any object, by people, by vehicles or by people and vehicles. After appropriate configuration, the camera algorithm will filter out false triggers that we are not interested in.

HeatMap function

Heat map(Heat Map)is a great marketing tool, perfect for stores and supermarkets. Thanks to it, you can learn about customer behavior and tendencies. A function that records a customer's foot traffic over a given period of time and displays temporal and spatial density statistics in different colors(red color high density, blue small)

IP67 protection factor

Our camera guarantees uninterrupted operation at extreme temperatures and is dustproof thanks to the IP67 tightness class.

Smart IR

It allows you to instantly change basic image parameters, such asexposure, contrast or brightness. The signal processor continuously analyzes the image and immediately after detecting overexposure, it reduces the power of the infrared illuminator. Thus, the image becomes clearer and overexposures disappear - instead of a white spot, you can clearly see the object. The practicality of this function is best seen when observing people or vehicles approaching the camera, e.g. when observing entrances.

Defog - Fog correction

Defog is an advanced image correction system that allows you to significantly improve the readability of recordings recorded in difficult weather conditions. Rain, fog, snowfall or smog may limit the visibility of monitoring facilities. Thanks to the camera with the Defog function, it is possible to significantly increase the transparency of the observed place.

ROI - Regions of Interest

Region Of Interest allows you to set up to 8 key regions that the user is interested in. It is possible to set the main stream in the selected area and the additional stream outside this area. This saves more space on your hard drive.

BLC - Immunity to sunlight

Backlight compensation is a mechanism that actively adjusts the readability of the foreground of the observed area. The BLC function automatically controls the brightness level of the entire recording and allows you to maintain effective recording of particularly sunlit objects.

HLC - Resistance to light sources

High light compensation allows you to identify strong light sources and automatically compensate for their impact on the camera sensor. Thanks to the HLC function, the camera gains the ability to record in detail objects located behind neutralized lighting points.

Privacy masks

Privacy zones are image areas that are freely configurable by the user and are excluded from monitoring. Precise control over the shape, size and position of the masks allows for efficient adaptation of the cameras' functionality to the place of observation. Thanks to the private mask system, it is possible to record images while respecting the privacy rights of third parties.

Corridor mode

Modern high-resolution IP cameras generate a wide panoramic image in a horizontal orientation, which is suitable for monitoring large areas. However, in some situations (monitoring corridors, streets, tunnels, etc.) it is better to use a vertical position. Just rotate the camera 90 degrees and turn on the "corridor" function. This will adjust the camera settings to its new position.

Built-in microphone

The camera has a built-in microphone.

Remote image viewing

The camera offers live image preview on mobile devices. All you need to do is download the EasyLive Plus application for free from the AppStore or Google Play and enjoy remote viewing from your cameras.

Power over Ethernet

The camera has a LAN port with PoE in the 802.3af standard. This solution allows you to simultaneously power the camera from a PoE switch and send data to the recorder via one network cable. There is no need for additional wiring for power supply, which reduces installation costs.

H.264/H.265/S+265 video compression

Saves 5 times disk space. When running a test monthly recording of 8 channels in 1080p resolution, in the H.264 standard you need 10 TB of space, in H.265 - 5 TB, and in S.265+ 2 TB is enough for a month.

Digital image stabilization

Compensation for image vibration resulting from rapidly moving objects is performed by dynamically reducing its quality. The balance between image quality and resulting image shake helps avoid blur.

Triple video stream

The camera can export 3 different types of video streams at one time. At the same time, it emits a full resolution image in the main stream for viewing and storage purposes. The image for remote viewing is broadcast in an additional stream with a lower resolution. The third stream is intended for mobile devices.

IVA (Intelligent Image Analysis) Features

Tiandy cameras are equipped with modern technological solutions enabling intelligent processing of the recorded image in real time. IVA technology supports CCTV operators in taking immediate action when a critical situation occurs.

3D DNR

Spatial noise reduction offers us an even clearer image compared to the standard DNR function, which will ultimately reduce the size of the recording, thus saving more disk space.

WDR

Optimize the image by adjusting the gamma value to brighten dark areas and darken overly bright areas.

AWB

Automatic white balance improves image quality by adjusting the camera's response to different light temperatures in the environment, resulting in correctly reproduced colors.

AGC

Automatic gain control increases light sensitivity, allowing us to work in darker conditions. Any noise will also be amplified, so the setting of this parameter should be selected experimentally.
