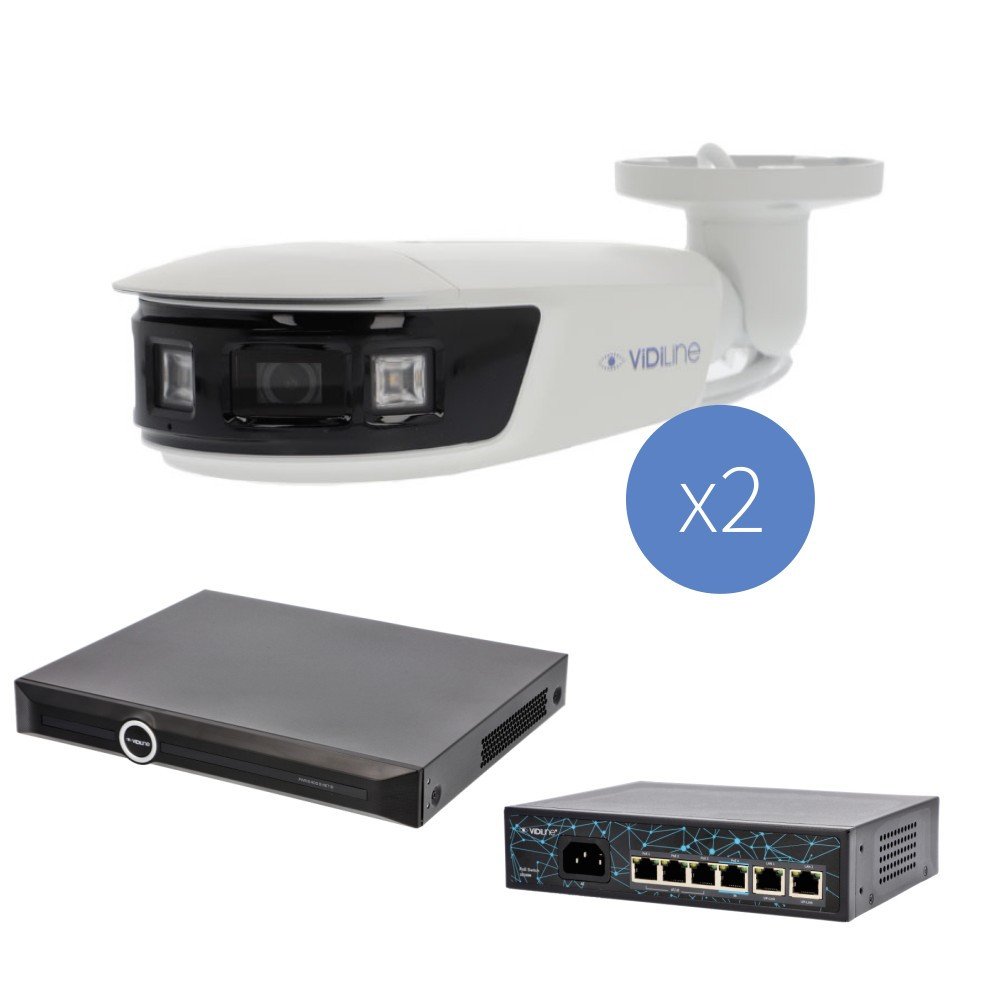

ViDiLine IP Monitoring Set 2 Cameras 8Mpx Panorama Recorder Switch

• RecorderSEE-NVR-8232 x1
• IP CameraVIDI-IPC-58V x2

• SwitchVIDI-F0420FBL_V2_2 x1

• Technology:IP
• Number of video channels:32 IP
• Video outputs:1xVGA / 1xHDMI / 4k on HDMI output
• Supported IP cameras:do 8Mpx
• Bitrate:160/48 Mbps
• Alarm I/O:4/1
• Compression:H.264, H.265, S+265
• Number of HDDs:2 pcs. 10TB SATA III
• Onvif:Profil S/T/G
• P2P:Yes - preview via smartphone

The ViDiLine VIDI-NVR-8232 recorder is a 32-channel IP recorder, supporting cameras up to 8 Mpx and two SATA drives up to 10 TB per disk. The recorder is intended for monitoring larger facilities such as companies or squares. The recorder ensures full compatibility with ViDiLine and Tiandy cameras via a private communication protocol. Support for S+265 compression effectively reduces the size of recordings by up to 75%, ensuring a longer period of stored recordings. The recorder has an HDMI 4K and VGA output for connecting a monitor. Four inputs and one output allow integration with other systems, e.g. alarm systems, or increasing the functionality of the recorder itself. Thanks to the Onvif protocol, the recorder supports cameras from other manufacturers. The recorder allows you to search for recordings by analyzing the image in terms of IVA rules.

The recorder supports recording after motion detection. This means that if there is a change in the scene in the camera's field of view, it is interpreted as motion detection. The recorder records this event as an alarm event that stands out on the timeline, making it easy to determine when the alarm occurred. Alarm notifications are sent to the phone with the application in the form of push notifications.

• Technology:IP
• Compression:S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Image sensor:1/2,7" CMOS
• Transducer sensitivity:0,0001 Lux
• Resolution:8Mpx 4640 × 1728 (25 kl/s)
• Lens:2,8 mm
• Tightness class:IP67
• Night Visibility Color:do 15 m
• Early Warning:Not
• Power supply:PoE, DC 12 V
• Onvif:Profil S/T/G/M
• Mobile application:No, ViDi View

The ViDiLine VIDI-IPC-58V W/E/A/S/G/O/2.8mm camera is a panoramic IP camera with a resolution of 8 Mpix in a tube housing made of plastic with Early Warning (EW) technology. It is an IP camera with two independent sensors and lenses with a resolution of 4 Mpix, placed in one shoe, providing an ultra-panoramic image. The key element of the camera is its super-sensitive sensor and high-quality 0.0001 Lux (F1.0) lens, which together allow you to obtain a clear, colorful image even in complete darkness. Additionally, the camera is equipped with three strong white light diodes that illuminate the area at night at a distance of up to 15 meters. This allows you to obtain a detailed, colorful image even at considerable distances from the camera, which is especially useful in poorly lit areas or in complete darkness. One of the camera's advanced features is the People/Vehicle classification, which significantly increases the reliability of motion detection while minimizing the number of false alarms.

Color image at night, provided by Polar Day technology, the successor to Color Maker in the VidiLine camera, is a breakthrough in the field of monitoring. The central element of this technology is a super-sensitive camera sensor combined with a high-quality lens. Thanks to this combination, the camera is capable of recording clear, colorful images in extremely low light conditions, as low as 0.0001 Lux (F1.0). This means that even in the darkest conditions, where the human eye is unable to see details, the VidiLine camera still effectively captures color images. An additional advantage of this camera is that it is equipped with four strong white light diodes. These LEDs are designed to effectively illuminate the area around the camera at night, at a distance of up to 30 meters. This functionality is extremely important because it not only ensures visibility in complete darkness, but also maintains the color image at a high level of detail.
