- Transducer: 1/2.7"
- Resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080; Viewing angle: 58° ... 2.8°
- Optical zoom: x 25; IR illuminator range: 150 m
- Rotation speed (manual control): 0.1°/s ... 200°/s (horizontal), 0.1°/s ... 120°/s (vertical)
- Image compression method: S+265
- Alarm inputs/outputs: 1 / 1; Audio: Audio In Audio Out
- Memory card slot: Supports Micro SD cards up to 512GB
- Power supply: PoE (802.3at), 12 V DC

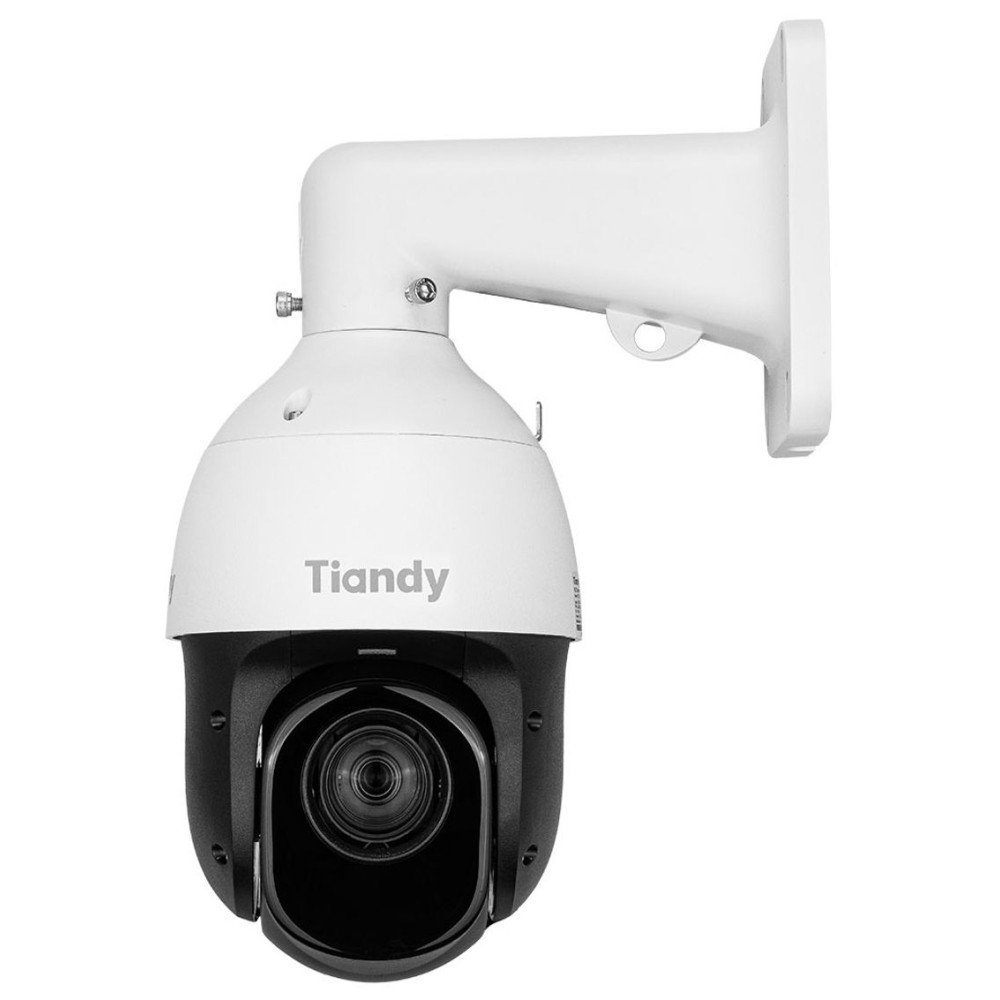

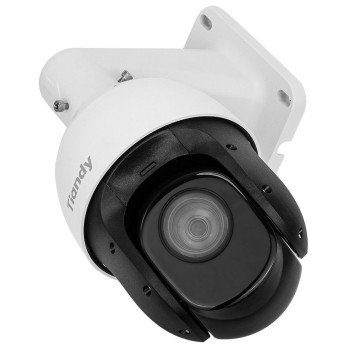

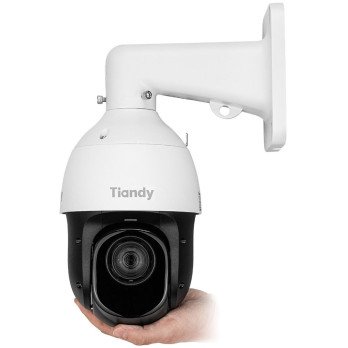

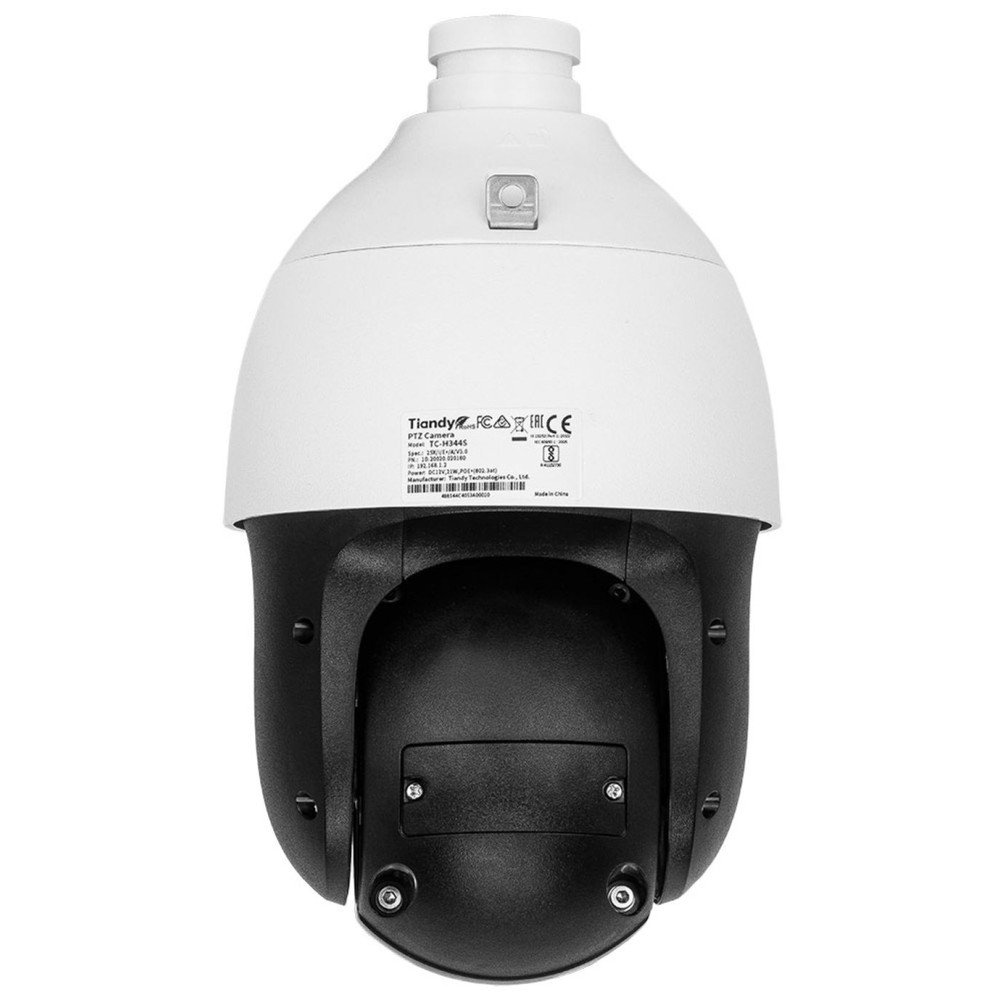

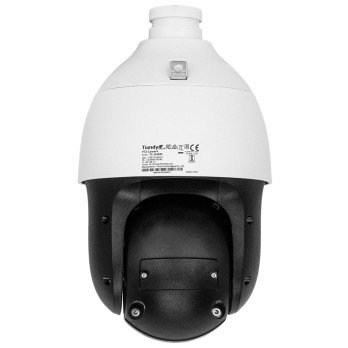

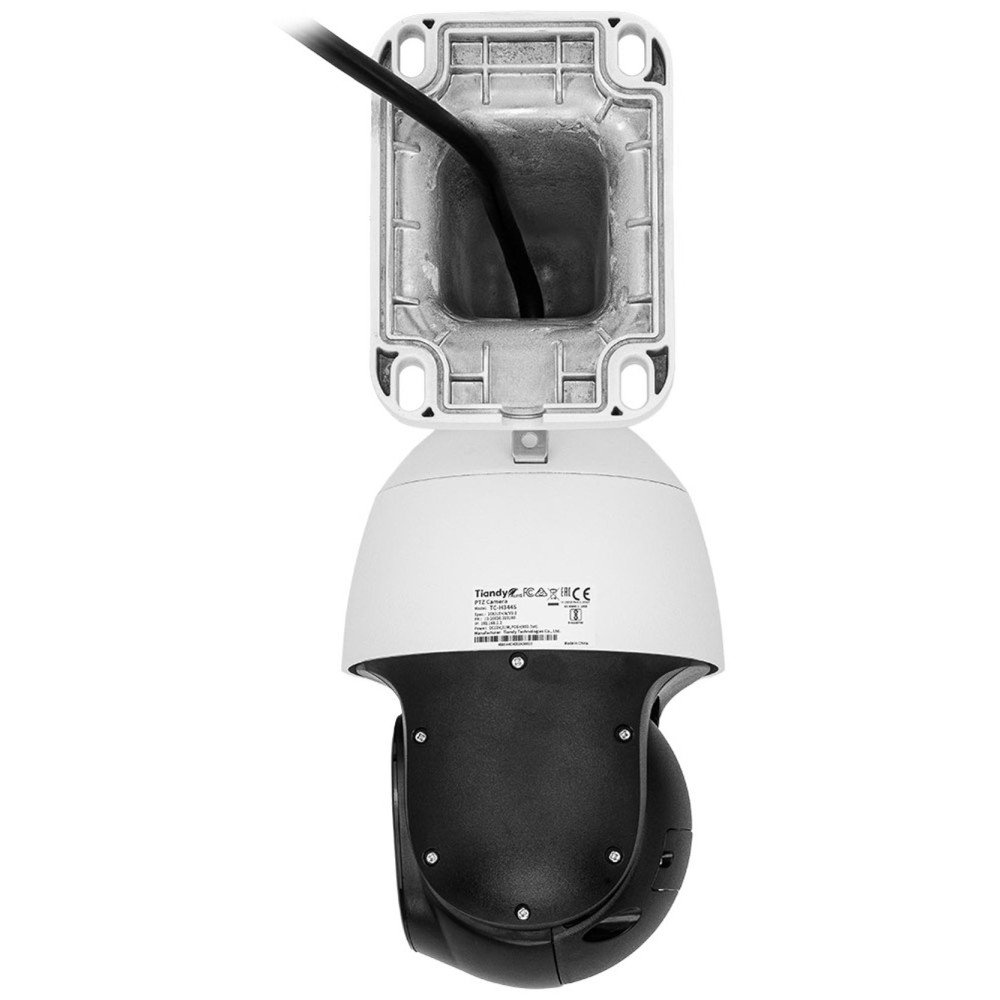

SPEED OUTDOOR IP CAMERA TC-H344S SPEC:25X/I/E+/A/V3.0 - 3.7 Mpx 4.8 ... 120 mm TIANDY
€5,736.69
Tax included
- Transducer: 1/2.7"
- Resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080; Viewing angle: 58° ... 2.8°
- Optical zoom: x 25; IR illuminator range: 150 m
- Rotation speed (manual control): 0.1°/s ... 200°/s (horizontal), 0.1°/s ... 120°/s (vertical)
- Image compression method: S+265
- Alarm inputs/outputs: 1 / 1; Audio: Audio In Audio Out
- Memory card slot: Supports Micro SD cards up to 512GB
- Power supply: PoE (802.3at), 12 V DC
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
IP camera with a very good, high resolution sensor
This makes it ideal for monitoring systems where identification of people or vehicles is required
The built-in infrared illuminator allows you to work at night, and the varifocal lens with a wide range of viewing angle adjustment allows for optimal image framing in all conditions.
The range of the illuminator provided by the manufacturer depends on the environmental conditions (air transparency, surroundings, wall color, i.e. the so-called scene reflectance)
PoE power supply option in accordance with the 802.3at standard makes the device even more universal and easier to install
For several IP cameras operating at resolution ≥ 1920 x 1080, we recommend using a network with a bandwidth of 1Gb/s
| Standard: | IP |
| Converter: | 1/2.7 " Progressive Scan CMOS |
| Resolution: | 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Lens: | 4.8 ... 120 mm |
| Viewing Angle: | 58 ° ... 2.8 ° |
| Optical zoom: | x 25 |
| Digital zoom: | x 16 |
| IR illuminator range: | 150 m |
| Video output: | NO |
| Rotational speed with presets: | 240°/s (horizontal)180 °/s (pion) |
| Rotational speed (manual control): | 0.1°/s ... 200°/s (horizontal),0.1 °/s ... 120 °/s (pion) |
| Horizontal rotation range: | 360° - continuous |
| Vertical rotation range: | -16 ° ... 90 ° |
| Interface RS-485: | NO |
| Number of presets: | 500 |
| Horizontal Scanning: | NO |
| Set traffic routes: | 8 |
| Image compression method: | S+265 / H.265 / H.264 / MJPEG |
| Alarm inputs/outputs: | 1 / 1 |
| Audio: | Audio inputAudio output |
| Main stream transmission speed: | 25 hr/s @ 3.7 |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of online users: | 7 |
| ONVIF: | NO |

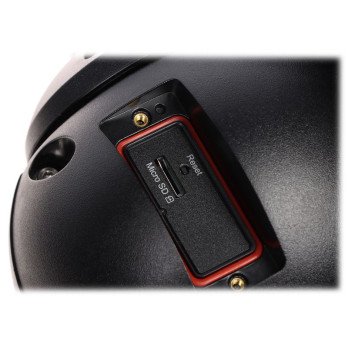

| Memory card slot: | Micro SD card support up to 512GB |
| Mobile phone access: | Port: 3000 or cloud access (P2P)Android: Free applicationEasyLive Plus iOS (iPhone): Free appEasyLive Plus |
| Access from PC: | Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express |
| Default IP address: | 192.168.1.2 |
| Default administrator login/password: | admin / - An administrator password must be set at first startup |
| Web access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| Access port via mobile application: | 3000, 3001 |
| Access ports via PC application: | 3000, 3001 |
| Port ONVIF: | 80 |
| Intelligent face analysis: | classification of people and vehiclescrossing the linedouble crossing the lineintrusionabandoned/missing objectillegal parkingcounting peopledetection of gatherings of peopleheat mapwandering detection in a given arearunningsafety helmet detectiondetection of people on dutyface detectionvideo sabotageIntelligent object tracking |
| Selected features: | WDR - 120 dB - Wide dynamic range of lighting2D-DNR, 3D-DNR - Digital noise reduction in the imageROI - improving the quality of selected image fragmentsF-DNR (Defog) - Reduction of noise related to precipitationANR - image recording on the card when there is no connection with the recorder (network failure) and subsequent synchronizationNAS support - Network Attached Storage - allows you to connect memory resources directly to the computer networkBLC/HLC - background light/strong light compensationDay/night modeICR - Mechanical infrared filterMotion detectionImage rotation and mirroringAdaptive adjustment of the IR illuminator power to the lens zoom and external lighting brightness |

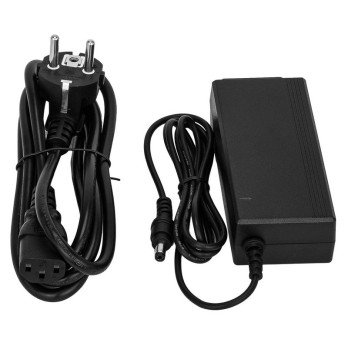

| Power supply: | People (802.3at),12V DC |
| Power consumption: | ≤ 19.4 W |
| Case: | Speed Dome, Aluminium |
| Color: | White + Black |
| Operating temperature: | -30 °C ... 65 °C |
| Tightness class: | IP66 |
| Vandal-proof: | NO |
| Libra: | 3 kg |

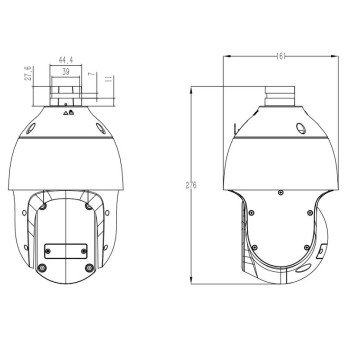

| Dimensions: | Ø 161 x 276 mm |
| Supported languages: | Polish, English, Albanian, Arabic, Korean, French, Hebrew, Spanish, Dutch, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 lata |
