APPLICATION – 1 or 2 actuators for swing gates, counter-rotating sliding gates, hydraulic actuators and industrial folding gates. AHU power supply – 230 Vac, motor power supply – 230 Vac 600W + 600W

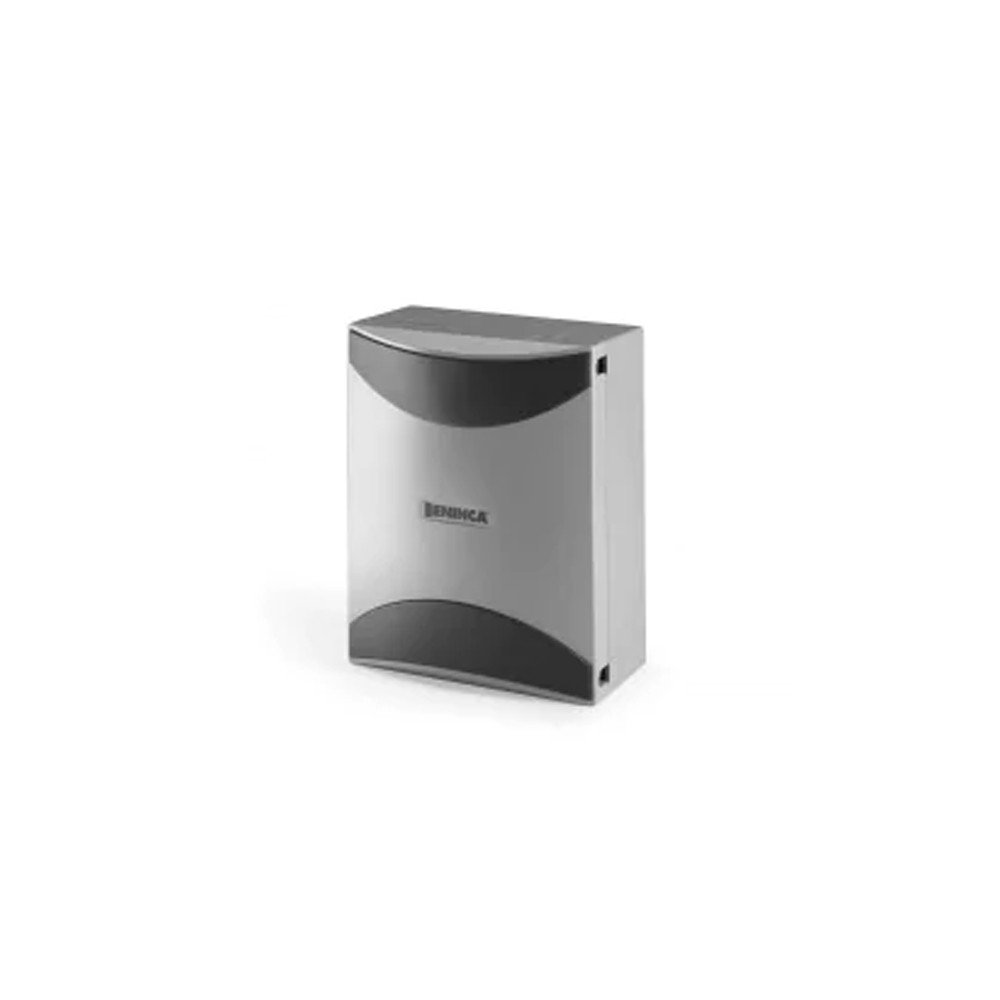

BRAINY 230V control panel with receiver
€2,122.57
Tax included
APPLICATION – 1 or 2 actuators for swing gates, counter-rotating sliding gates, hydraulic actuators and industrial folding gates. AHU power supply – 230 Vac, motor power supply – 230 Vac 600W + 600W
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
BASIC FUNCTIONS:
- Built-in LCD display.
- Built-in 433.92 MHz radio receiver. Possibility to upload 64 fixed, variable or ARC codes.
- Clamping cubes easy to use (removable).
- Input for connecting an encoder.
- Inputs for limit switches – separate for each actuator.
- Inputs: open, close and gate function (partial gate opening).
- Open the photocell input - close and open.
- 8K2 safety edge input.
- 230Vac and 12Vac/dc output for electric lock.
- Output for service lighting, gate position indicator, second radio channel and photocell test.
- Auto-learning function when using actuators with encoders.
- Electronic regulation of individual actuator parameters along with operating time.
- Electronic speed regulation.
- Configuring functions and managing remote controls using the ADVANTOUCH device.
- Possibility to check the current number of cycles.
- Access password for programming the control panel.
- Possibility to set a reminder for a service inspection.
