- Electromechanical barrier designed for intensive use in places such as company employee parking lots or airport parking lots
- Intuitive operation and programming of the control panel. Thanks to the hide-away system, the barrier can be integrated with photocells
- The control panel already has a built-in 433.92 MHz radio receiver (up to 64 variable codes) and a battery charging card
- The barrier is equipped with an absolute encoder - in the event of a power outage, the encoder remembers the position of the barrier arm and is immediately ready for normal operation when the power returns. There is no need to re-establish the position and "reset" the barrier
- Quick unlocking system - the barrier can be unlocked yourself
- The barrier has an integrated lamp housing (an EVA.LAMP flashing lamp circuit is additionally required)
- 2 mechanical limit switches

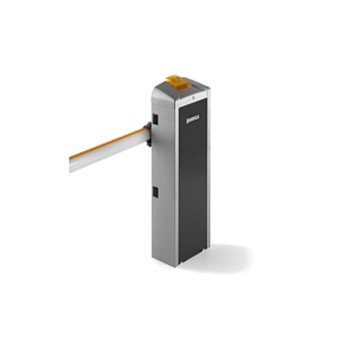

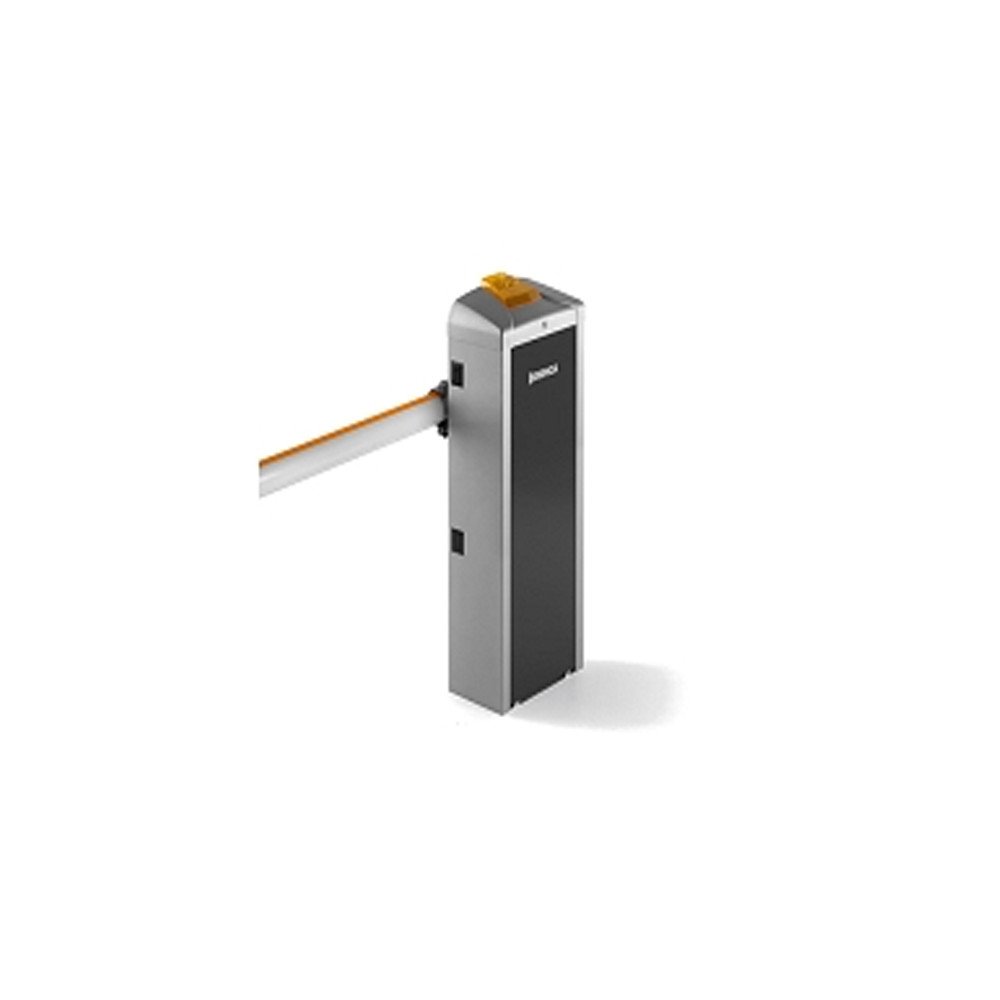

K.EVA.8 basic set
€24,724.66
Tax included
- Electromechanical barrier designed for intensive use in places such as company employee parking lots or airport parking lots
- Intuitive operation and programming of the control panel. Thanks to the hide-away system, the barrier can be integrated with photocells
- The control panel already has a built-in 433.92 MHz radio receiver (up to 64 variable codes) and a battery charging card
- The barrier is equipped with an absolute encoder - in the event of a power outage, the encoder remembers the position of the barrier arm and is immediately ready for normal operation when the power returns. There is no need to re-establish the position and "reset" the barrier
- Quick unlocking system - the barrier can be unlocked yourself
- The barrier has an integrated lamp housing (an EVA.LAMP flashing lamp circuit is additionally required)
- 2 mechanical limit switches
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The set consists of:
- EVA.8-5B - central unit with built-in radio receiver, springs, arm holder and integrated lamp housing
- EVA8.2A - aluminum, elliptical arm, 8 meters long, with a plug and rubber profile (arm in 2x 4 m sections + EVA8.G connector)
- EVA.CAT8 - set of stickers
- EVA.LAMP - lamp module
- TO.GO2A - 2-channel remote control
- FTC - complete photo chambers
Technical data:
- power supply: 230V AC (50-60 Hz)
- motor power supply: 24V DC
- current: 1.6A
- torque: 285 Nm
- opening time: 3.5" - 6"
- protection level: IP44
- operating temperature: -20°C/+50°C
- weight: 105 kg
