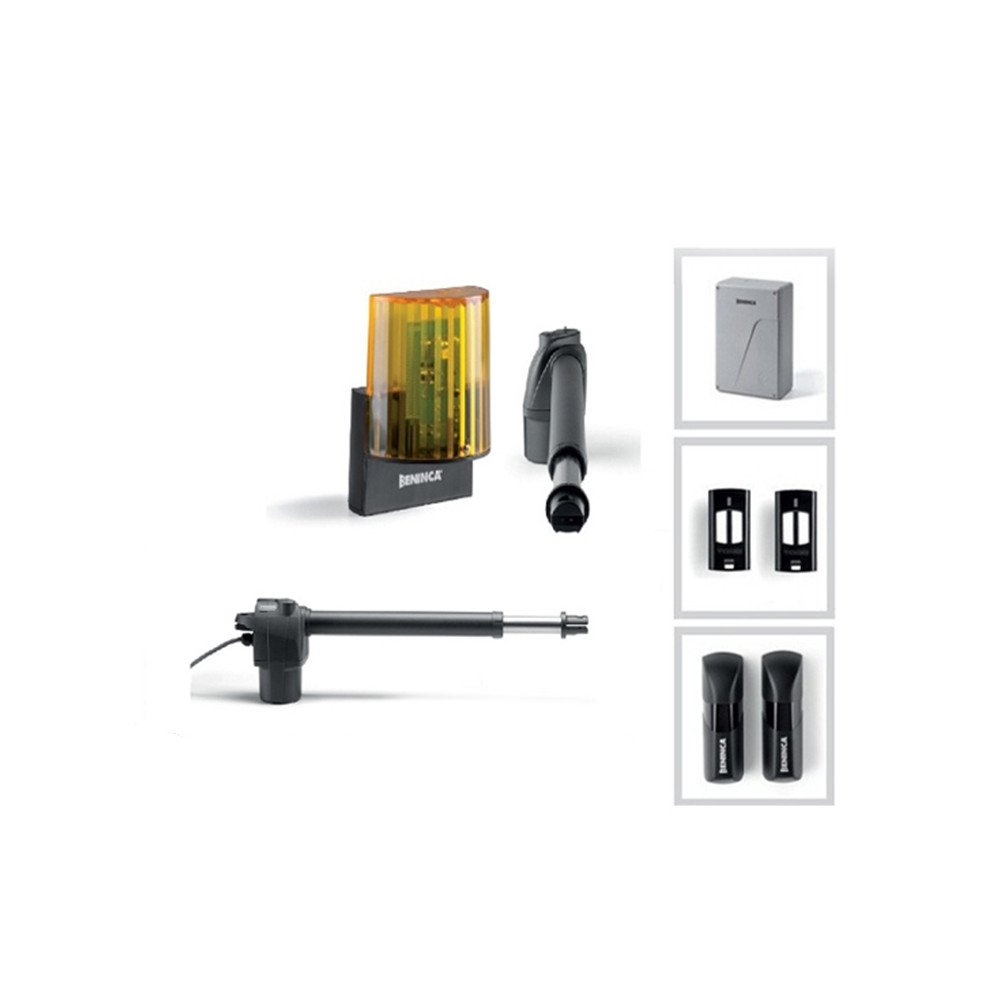

BILL Beninca 30 swing gate operator, lamp, 2-remote controls

The BENINCA BILL 30 swing gate drive is designed to automate the operation of double-leaf gates with a maximum leaf length of3,0 m.Maximum mounting depth of the hinge - up to10 cm.

The set includes:

• 2 BENINCA BILL 30 electromechanical actuators with mounting elements
• BENINCA HEADY control unit with built-in radio receiver
• Housing for the control panel
• BENINCA PUPILLA photocells with a 180-degree adjustment angle
• 2 x BENINCA TOGO2WV 2-channel remote control
• original BENINCA LAMPI.LED LED signal lamp with antenna
• mounting brackets
• keys for emergency opening of the gate in the event of a power failure
• starting capacitors
• user manuals in Polish
• warranty card BENINCA POLSKA - 2 YEAR WARRANTY
• receipt or VAT invoice

Characteristic:

• Non-reversing Beninca electromechanical actuator, reliable and quiet in operation
• Aesthetic appearance
• Worm wheel protected by a dirt collection ring, stainless steel piston, ideal for sandy terrain or for work in difficult weather conditions
• Easy and quick to install thanks to its universal design and appropriate installation conditions

Headquarters functions:

• Control unit for 1 or 2 motors, ideal for swing gates
• Easy programming thanks to the built-in display
• Control of the number of cycles on the display
• Electronic torque regulation
• Built-in 433.92 MHz radio receiver. Possibility to upload 64 permanent or variable codes
• 24V output for signaling the gate status
• Release function in the opening and closing phase - constant value
• Programmable photocell input for special settings when opening
• Wicket function
• Output of a second radio channel to automate other devices
• It can work with hydraulic actuators
• Possibility to check the current number of cycles
• Access password for programming the control panel
