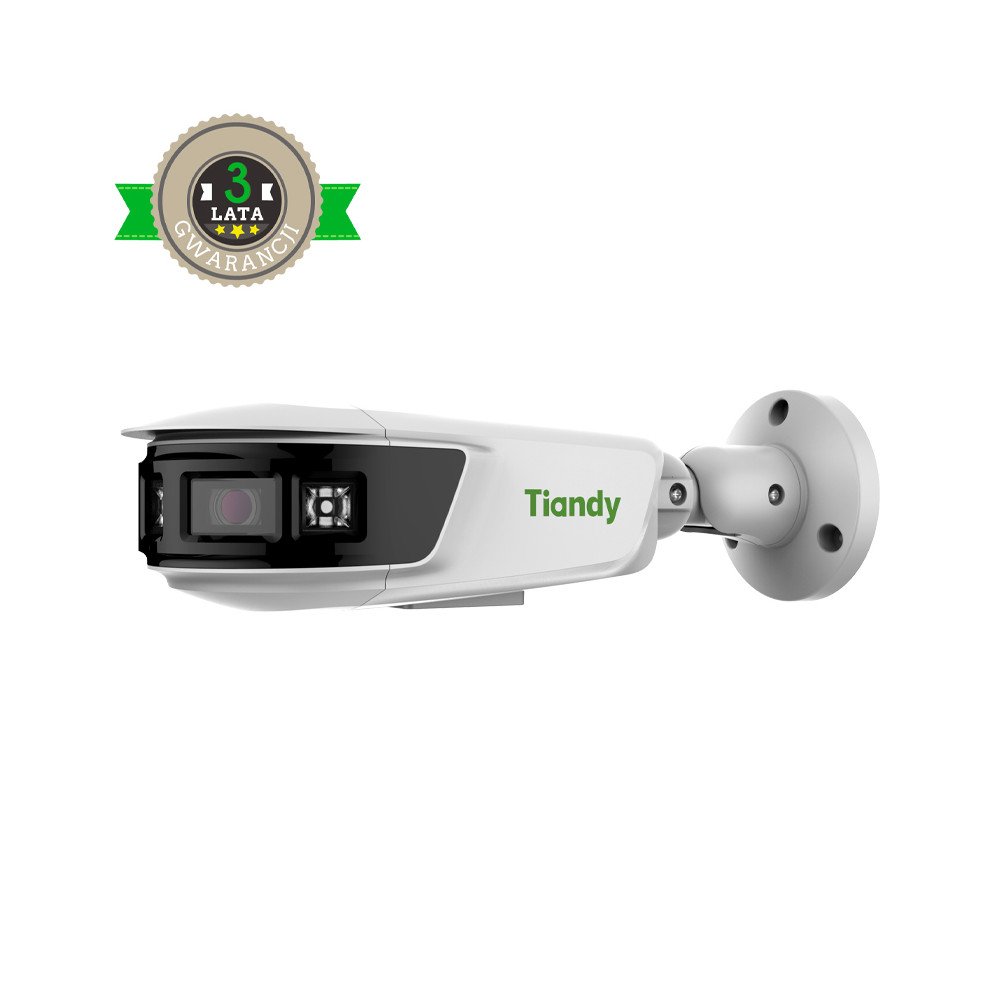

Tiandy 8 Mpix Wide Angle IP Camera TC-C382V Spec: W/E/Y/S/H/2.8mm

Technical data:

• Technology:IP
• Compression:S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Image sensor:2x 1/2,7" CMOS 8Mpix
• Resolution:4640 × 1728
• Night visibility:LEDdo 15 m
• Focal Length:2x 2,8 mm
• People/vehicles classification
• Early warning
• Power supply:DC 12V / PoE
• Onvif:Profil S/T/G/M

Camera compatible with ViDiLine products! Full technical data can be found in the catalog card available in the attachments. Tianda's wide-angle camera with Polar Day technology

The camera from the renowned company Tiandy TC-C382V uses advanced Polar Day technology to provide detailed, colorful images at night. It is an IP camera with two independent sensors and lenses with a resolution of 4 Mpix, placed in one shoe, providing an ultra-panoramic image. The key element of the camera is its super-sensitive sensor and high-quality 0.0001 Lux (F1.0) lens, which together allow you to obtain a clear, colorful image even in complete darkness. Additionally, the camera is equipped with three strong white light diodes that illuminate the area at night at a distance of up to 15 meters. This allows you to obtain a detailed, colorful image even at considerable distances from the camera, which is especially useful in poorly lit areas or in complete darkness. One of the camera's advanced features is the People/Vehicle classification, which significantly increases the reliability of motion detection while minimizing the number of false alarms.

Wide Angle Camera

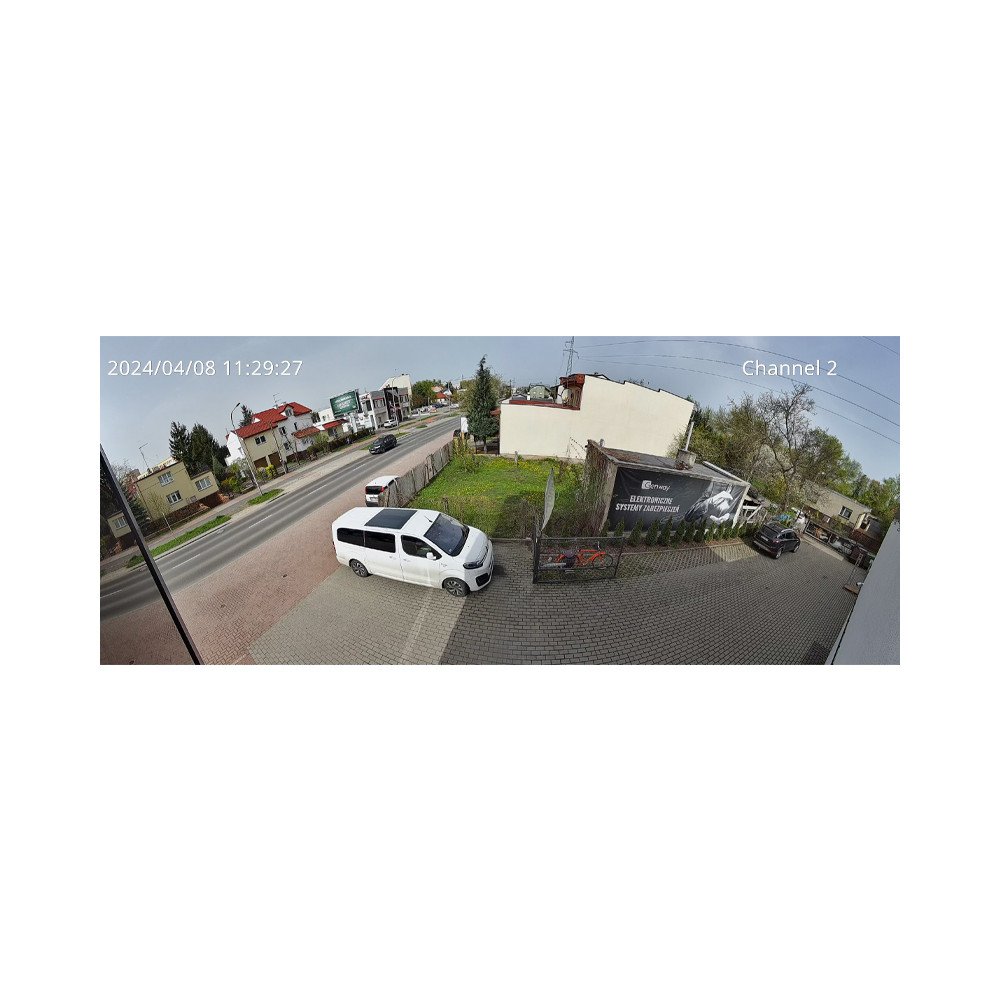

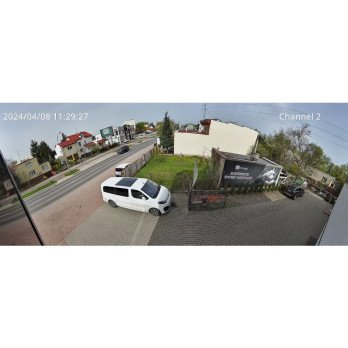

The wide-angle camera is equipped with two independent cameras placed in one housing, which guarantees exceptional image quality and an extremely wide field of view. Thanks to an advanced algorithm, images from both cameras are combined into one wide-angle image, transmitted via one IP channel. This modern solution enables precise monitoring of large areas using a smaller number of cameras, which significantly reduces the costs associated with installing and operating the system. Perfect for applications where it is crucial to cover large spaces simultaneously without compromising image quality - from large commercial spaces to wide courtyards.

Classification People Vehicles

The camera's People/Vehicle classification function is a key element of the monitoring system, ensuring exceptional efficiency and accuracy in motion detection. This advanced technology allows the camera to intelligently distinguish between the movement of people and vehicles, which significantly increases the level of security and effectiveness of monitoring. This significantly reduces the number of false alarms, which are often a problem in less advanced monitoring systems. For example, the camera can distinguish the movement of animals, trees due to wind, or other insignificant changes in the environment that would traditionally trigger a false alarm. The People/Vehicle classification feature of Tianda cameras is a significant improvement in intelligent surveillance, offering users a higher level of control and security.

Polar Day

The color image at night, provided by Polar Day technology, the successor to Color Maker in the Tiandy camera, is a breakthrough in the field of monitoring. The central element of this technology is a super-sensitive camera sensor combined with a high-quality lens. Thanks to this combination, the camera is capable of recording clear, colorful images in extremely low light conditions, as low as 0.0001 Lux (F1.0). This means that even in the darkest conditions, where the human eye is unable to see details, Tianda's camera still effectively captures color images. An additional advantage of this camera is that it is equipped with four strong white light diodes. These LEDs are designed to effectively illuminate the area around the camera at night, at a distance of up to 30 meters. This functionality is extremely important because it not only ensures visibility in complete darkness, but also maintains the color image at a high level of detail.

Basic IVA

The camera has algorithms for crossing the line and entering the area, which allows for more precise detection of potential threats.

Early Warning (EW)

The function deters an intruder before he enters the property through optical and acoustic signaling from the camera, increasing security.

Built-in microphone and speaker

The camera has a built-in microphone for recording image and sound and a loudspeaker thanks to which we can conduct a conversation or play a warning message, e.g. after an alarm is triggered.

Alarm inputs/outputs

IP cameras enable integration with external security and automation systems, offering users advanced monitoring and response options.

Onvif protocol support

Thanks to this, the camera can be connected via this integration protocol to recorders from other companies that have Onvif.

Preview on your phone

The camera connects to a dedicated cloud via P2P, giving you a view from the camera and the ability to manage it using the EasyLive Plus mobile application for smartphones.

Image recording on SD card

The camera has a built-in SD card slot, so we do not need a recorder to save recordings from the camera.

PoE power supply

Using one twisted-pair cable, the image from the camera and power are transmitted at the same time, simplifying cabling and connection to a minimum.

Degree of protection IP67

It means adapting the camera to work even in the most difficult weather conditions.
