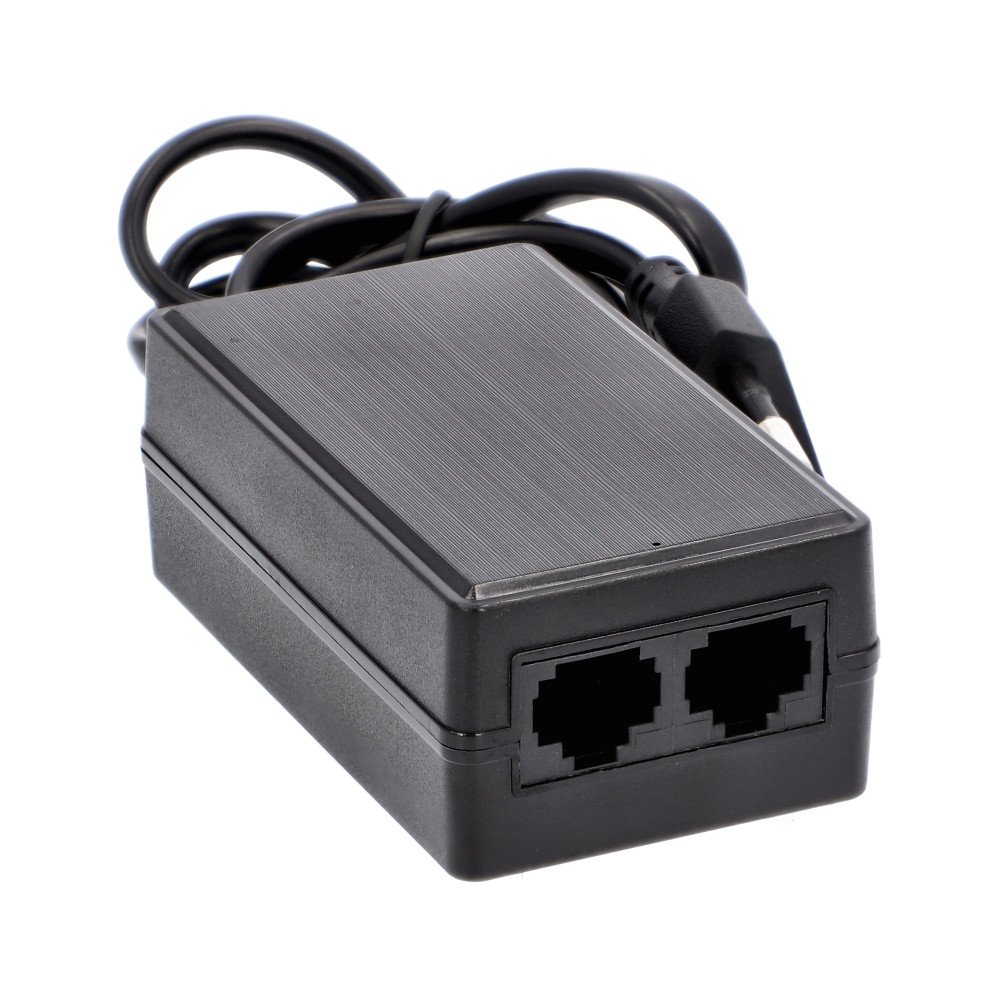

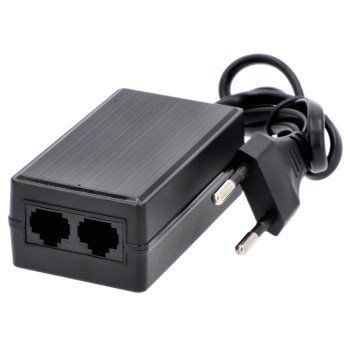

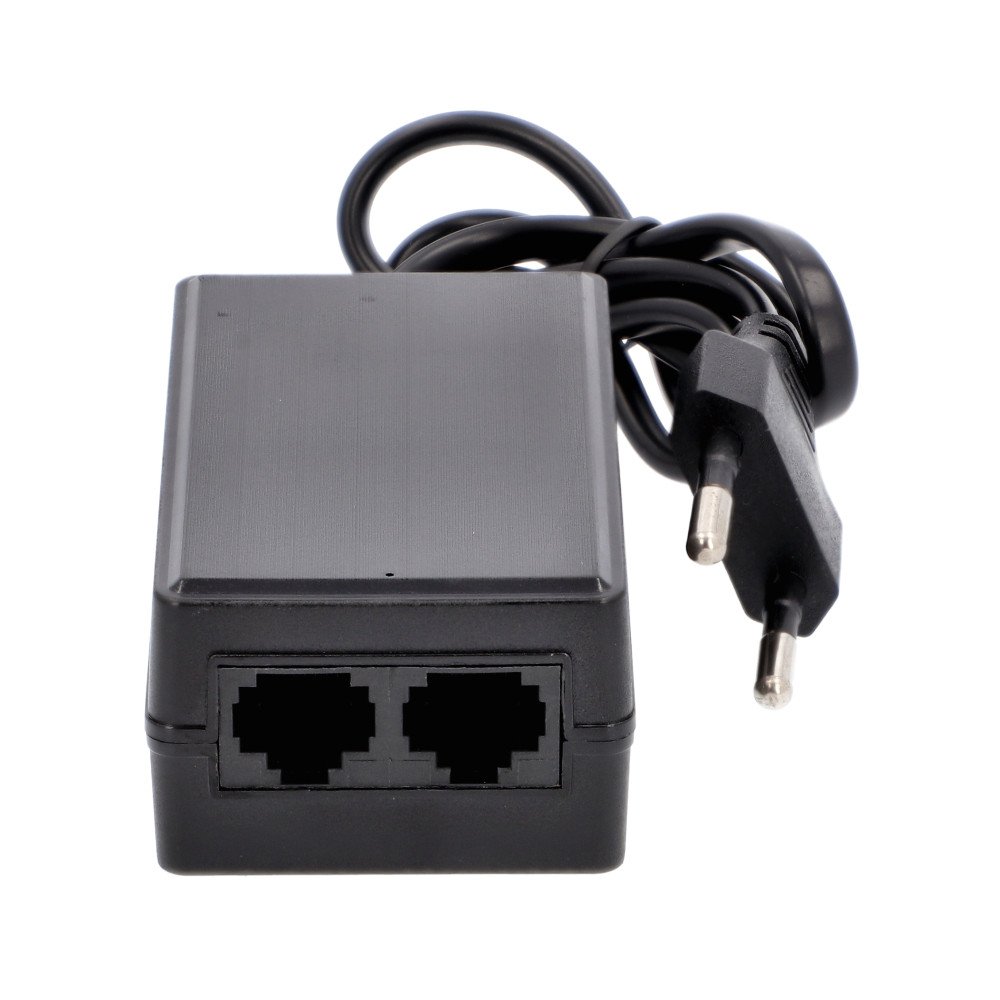

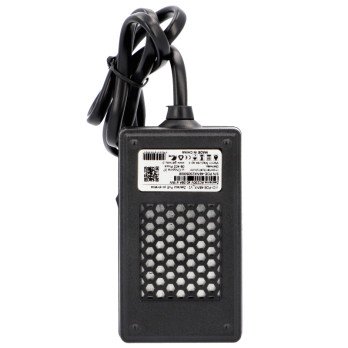

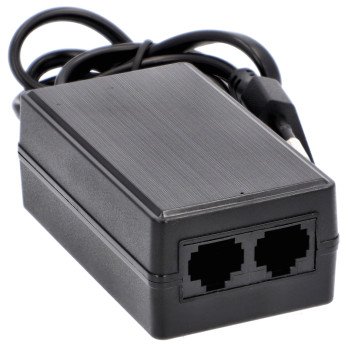

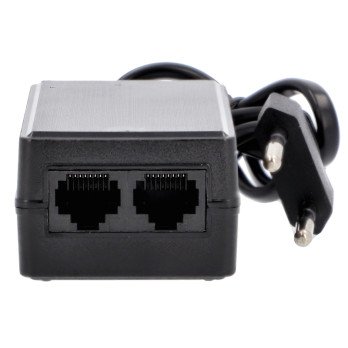

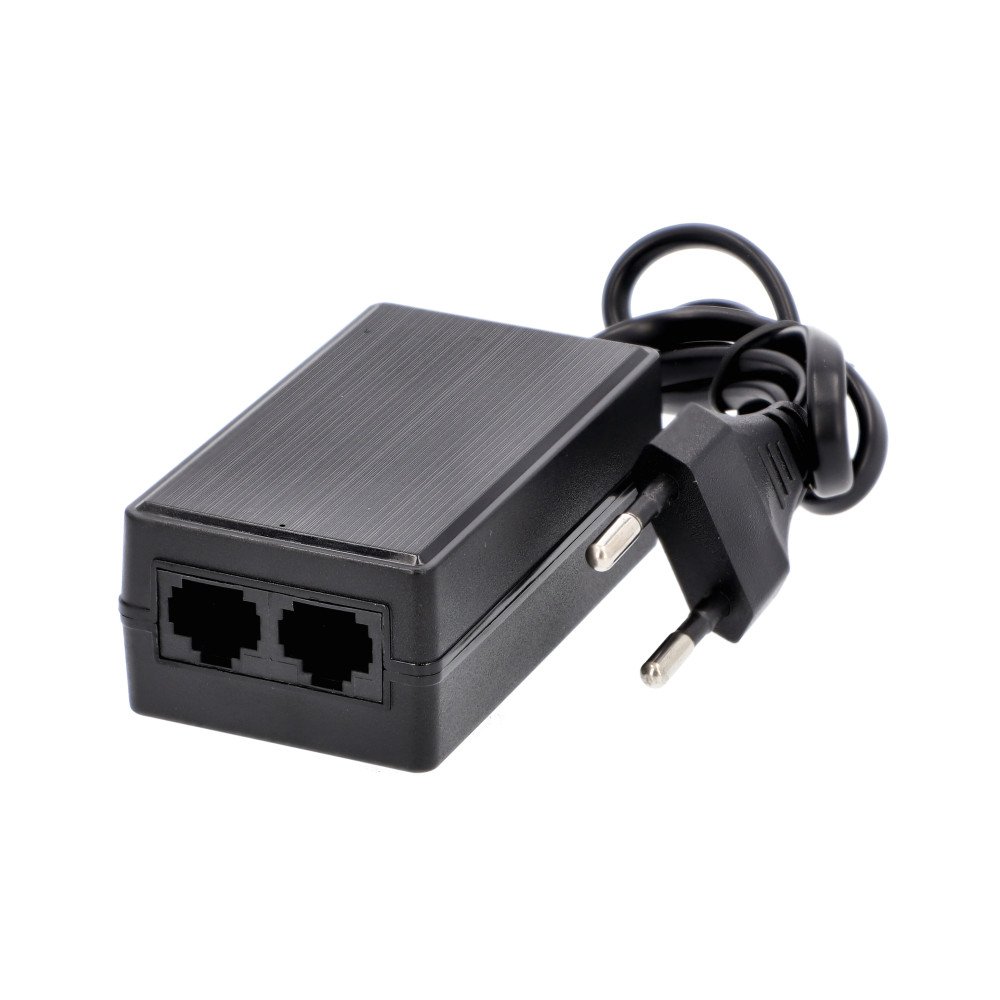

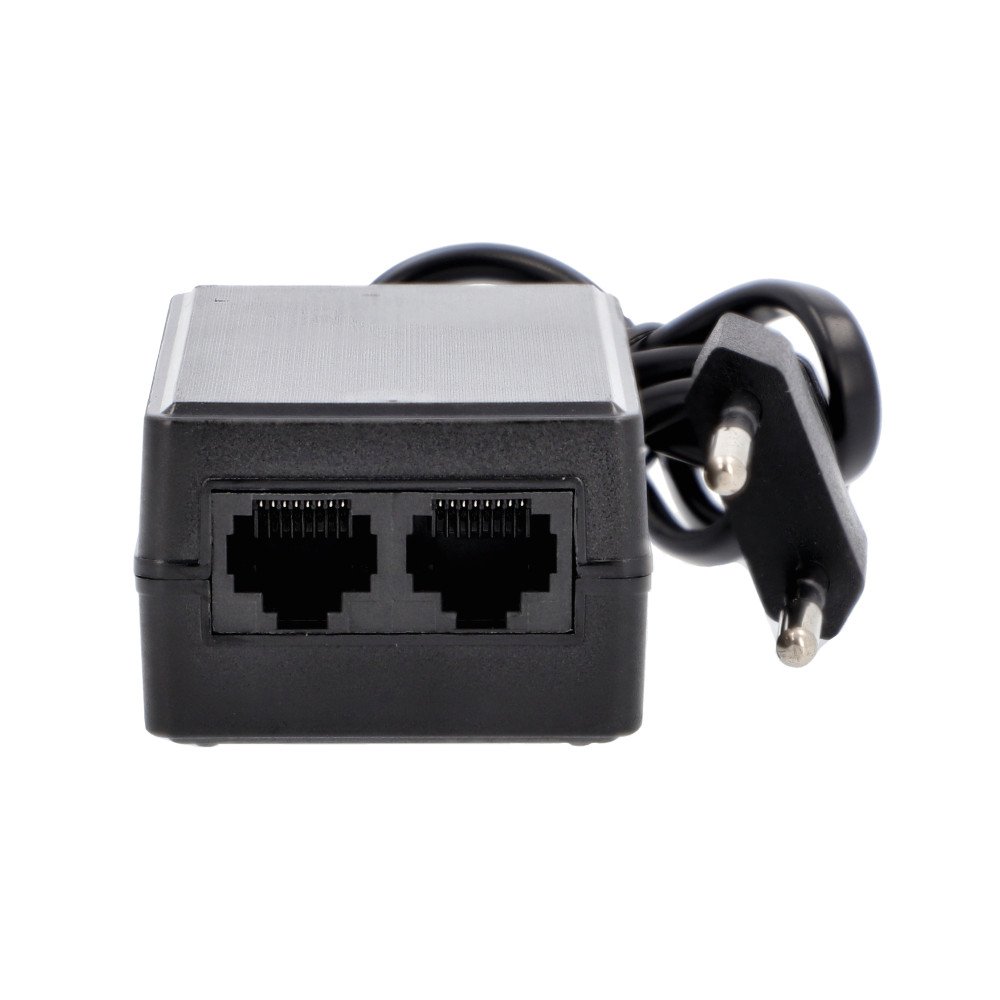

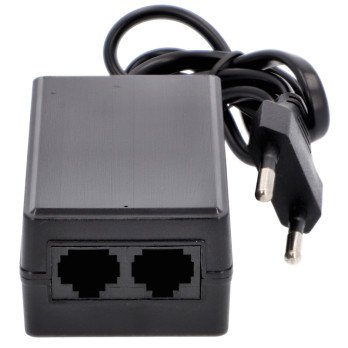

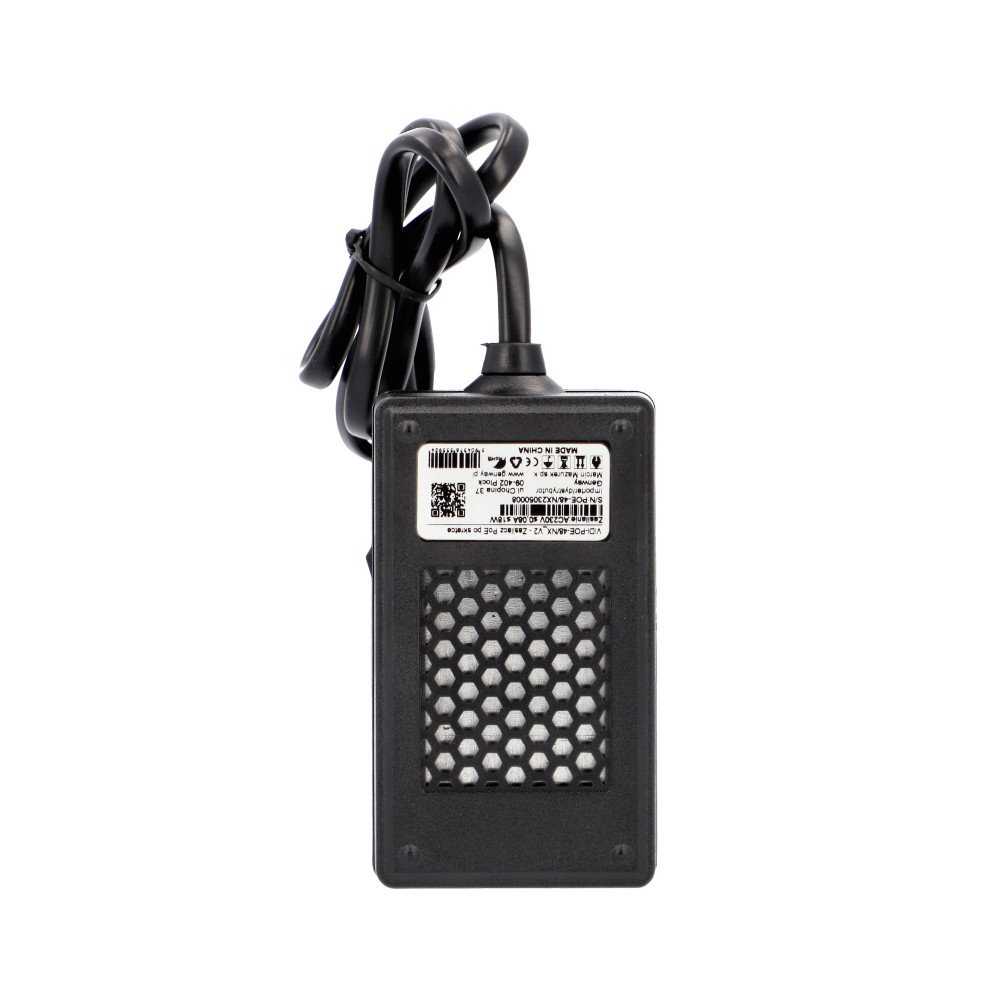

PoE Injector PoE power supply via twisted pair 48V DC

• RJ45 network port:2x z PoE
• Supply voltage:AND 230 V
• Transmission speed:10/100 Mbps
• PoE output power:≤ 18W
• Band:4 Gb/s
• Address Mac:8K
• Maximum transmission distance:do 100 m
• Protocols:802.3 of/at

Detailed specifications can be found in the catalog card available in the attachments below.

The "PoE Injector" power supply is a tool that enables simultaneous supply of both power and data to devices compatible with the PoE standard. This technology is extremely useful in a variety of applications, especially where running separate cables for power and data would be inefficient or difficult. The power supply supports power supply on two RJ45 ports, which means that the power supply can work as a two-port PoE switch. The power supply is powered by AC 230 V.

The switch has high-class surge protection up to 6 kV and ESD protection up to 8 kV, which can briefly connect the overvoltage to ground, thus protecting the rest of the system. Such surges can be caused by a variety of factors, including lightning, power grid surges, and induced voltages in circuits. Additionally, the power supply has protection against short circuits and overheating.

An example of using a PoE power supply is a system where we want to connect an IP camera that requires PoE power directly to the router, but we do not want to use a dedicated PoE switch, or when we want to add a device requiring PoE power to a classic IP network.

NOTE: If the power supply is intended for continuous operation, the rated current of the power supply should not exceed 80% of the maximum current. Special attention should be paid to properly cooling the power supply during operation to ensure proper operation.
