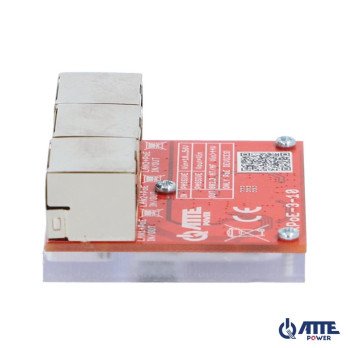

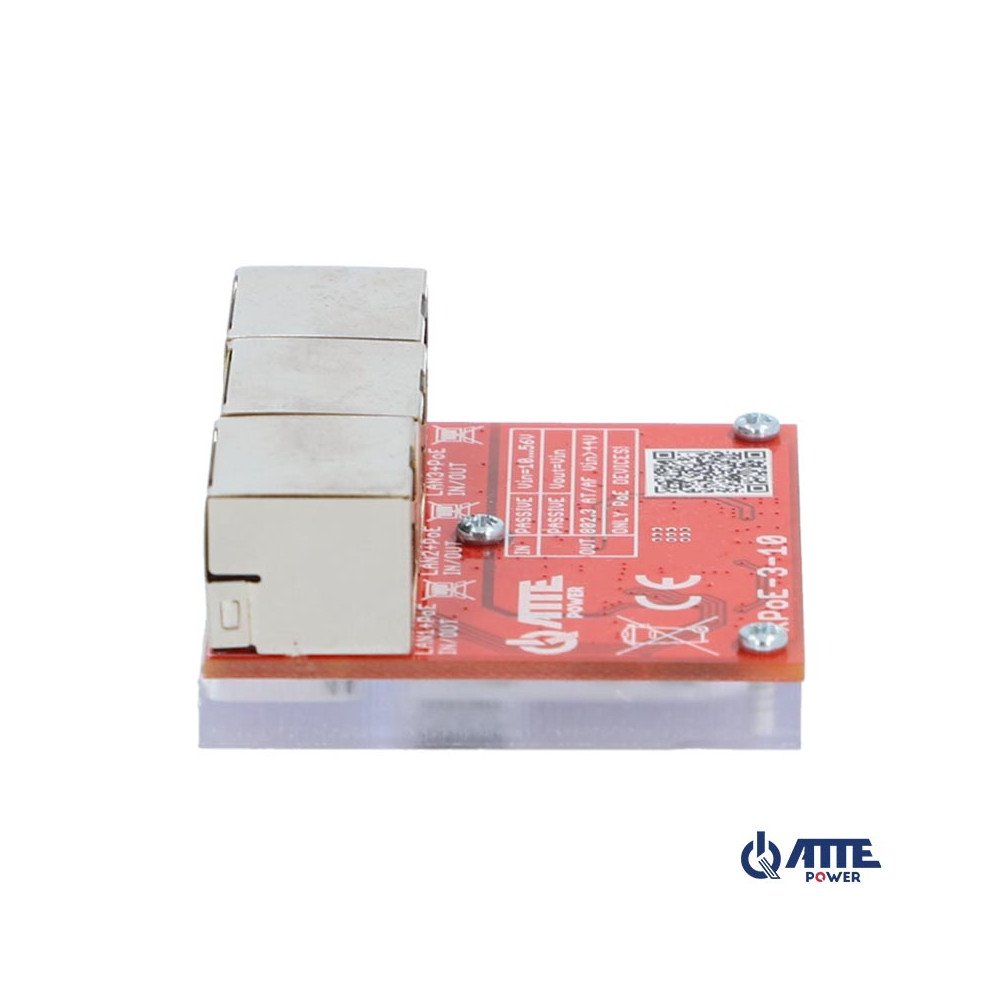

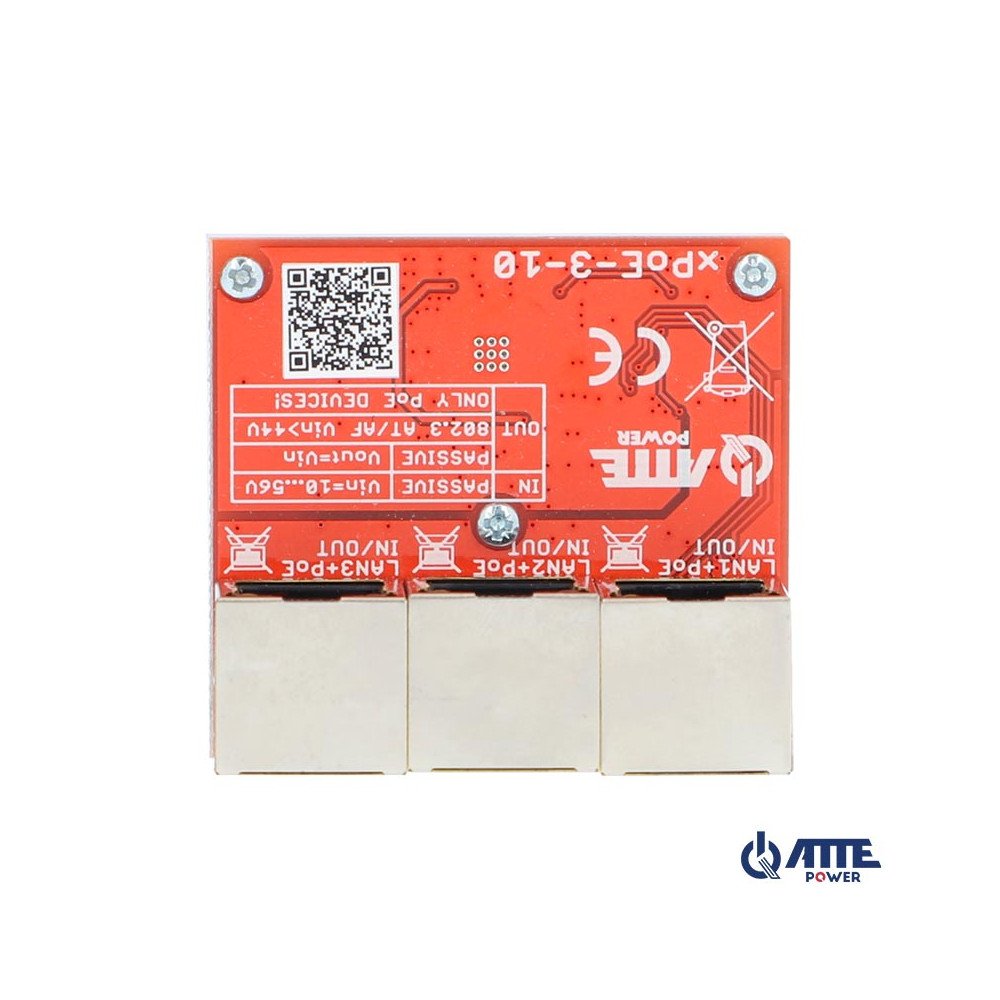

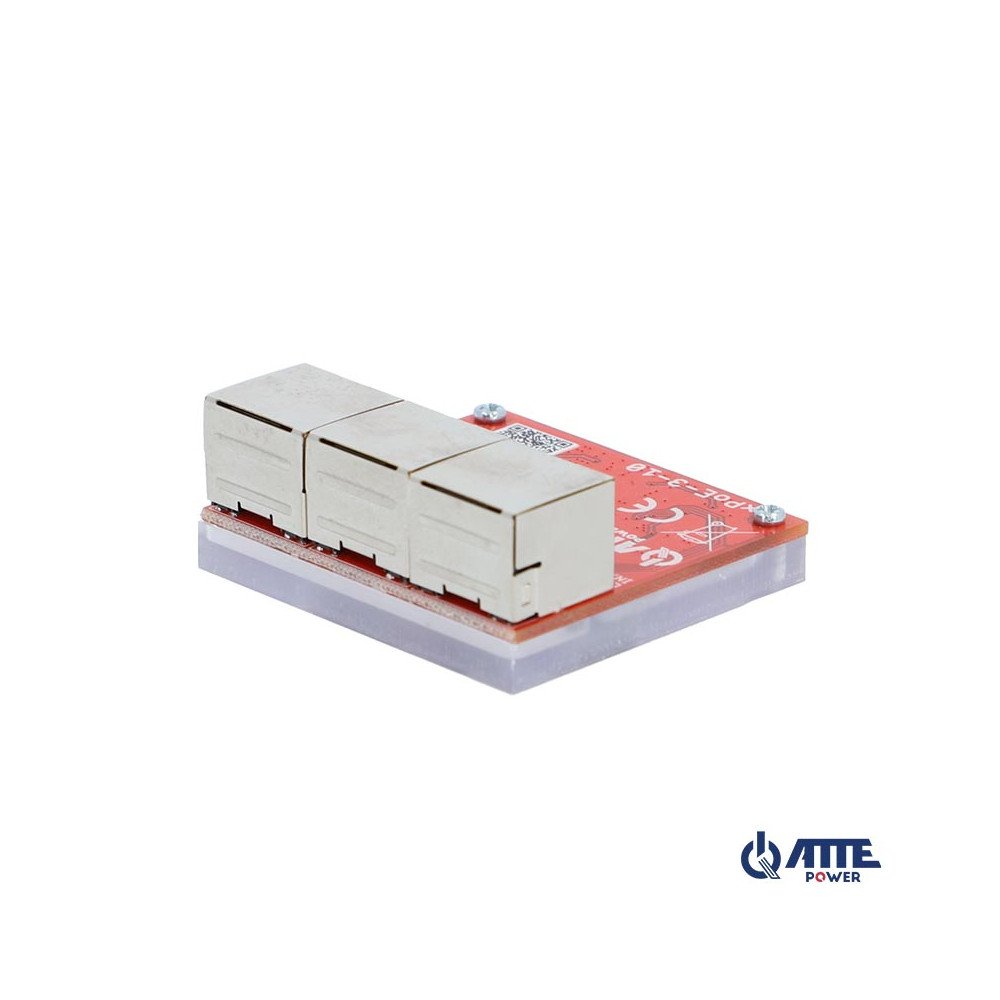

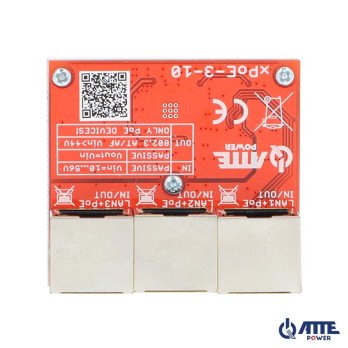

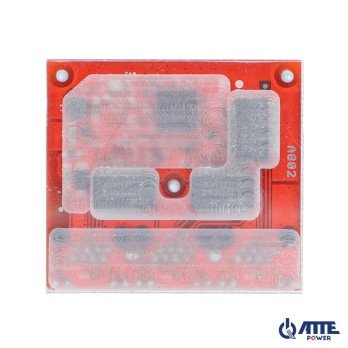

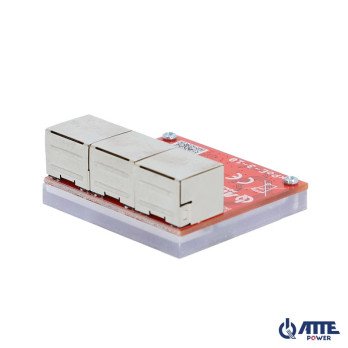

3-port PoE switch 10/100Mbps, extender (3xPoE IN/OUT PASSIVE), powered by PoE (max 70W) ATTE XPOE-3-10

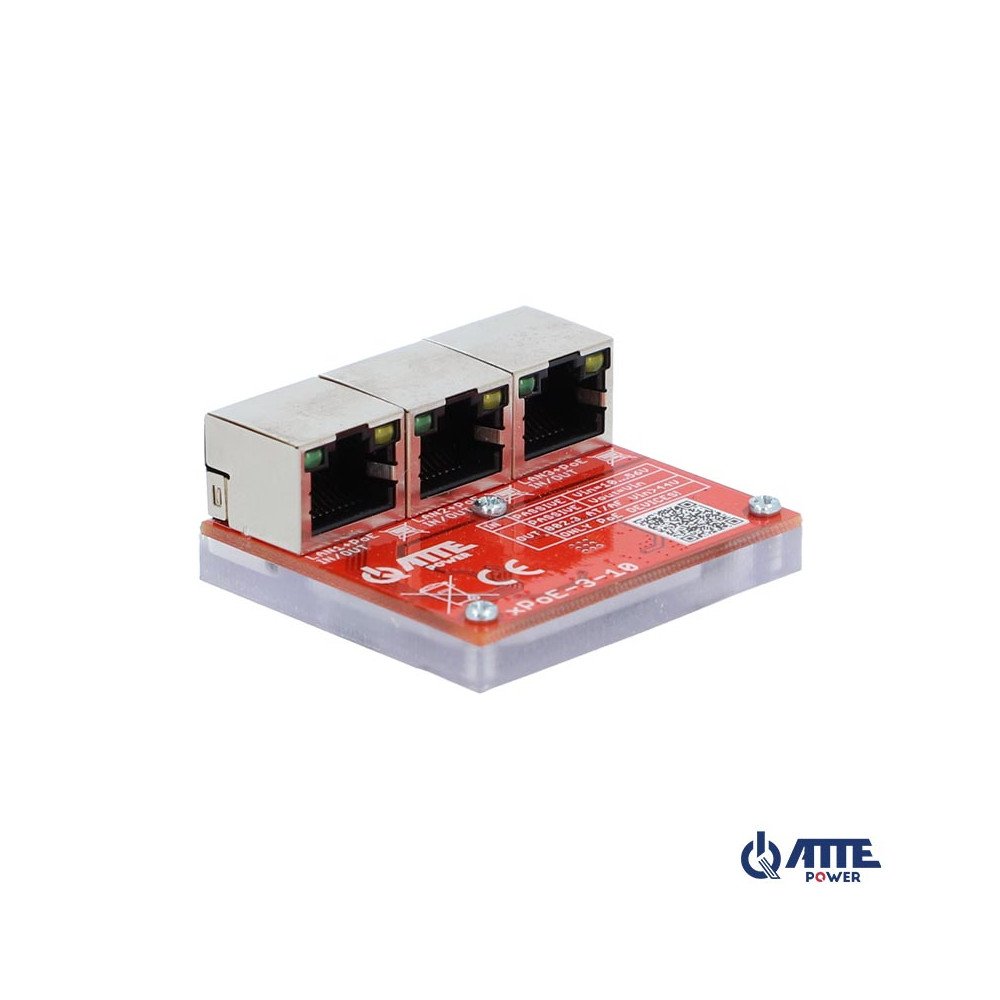

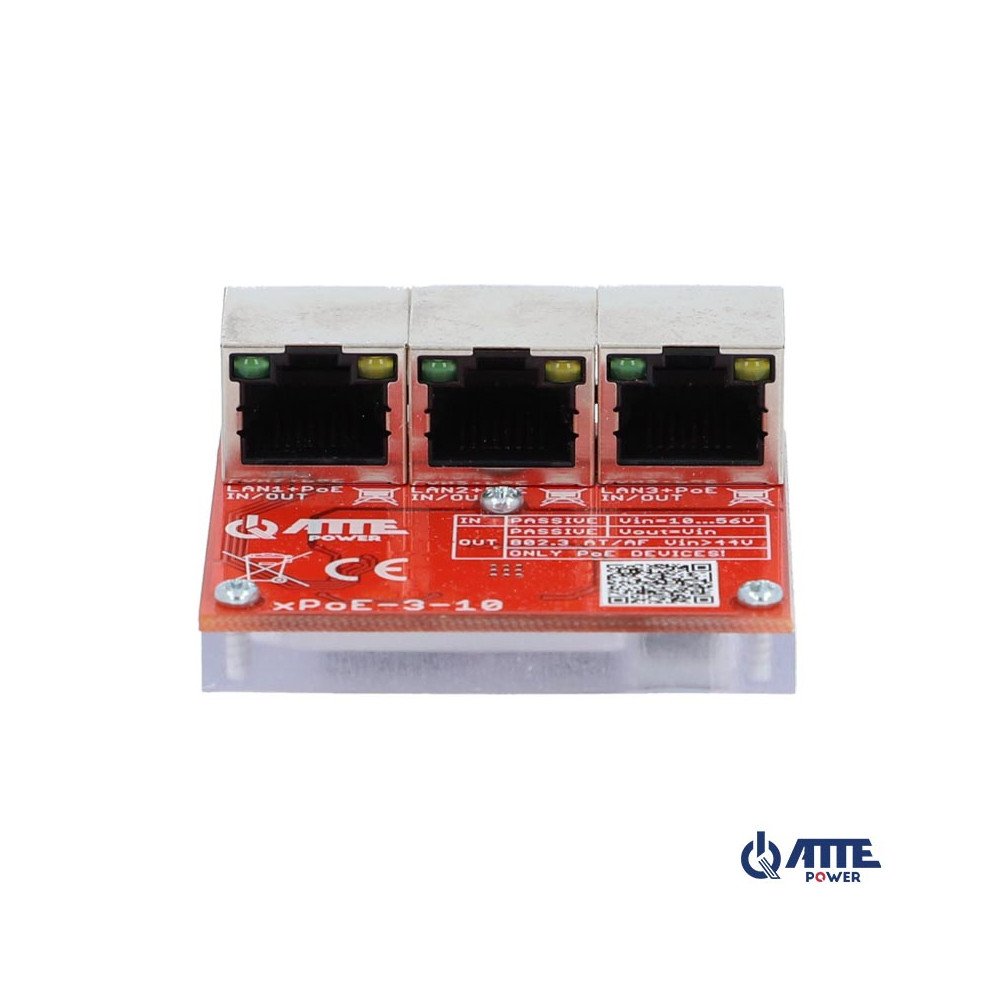

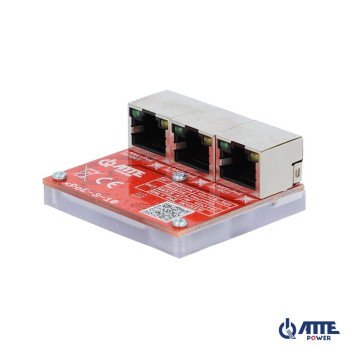

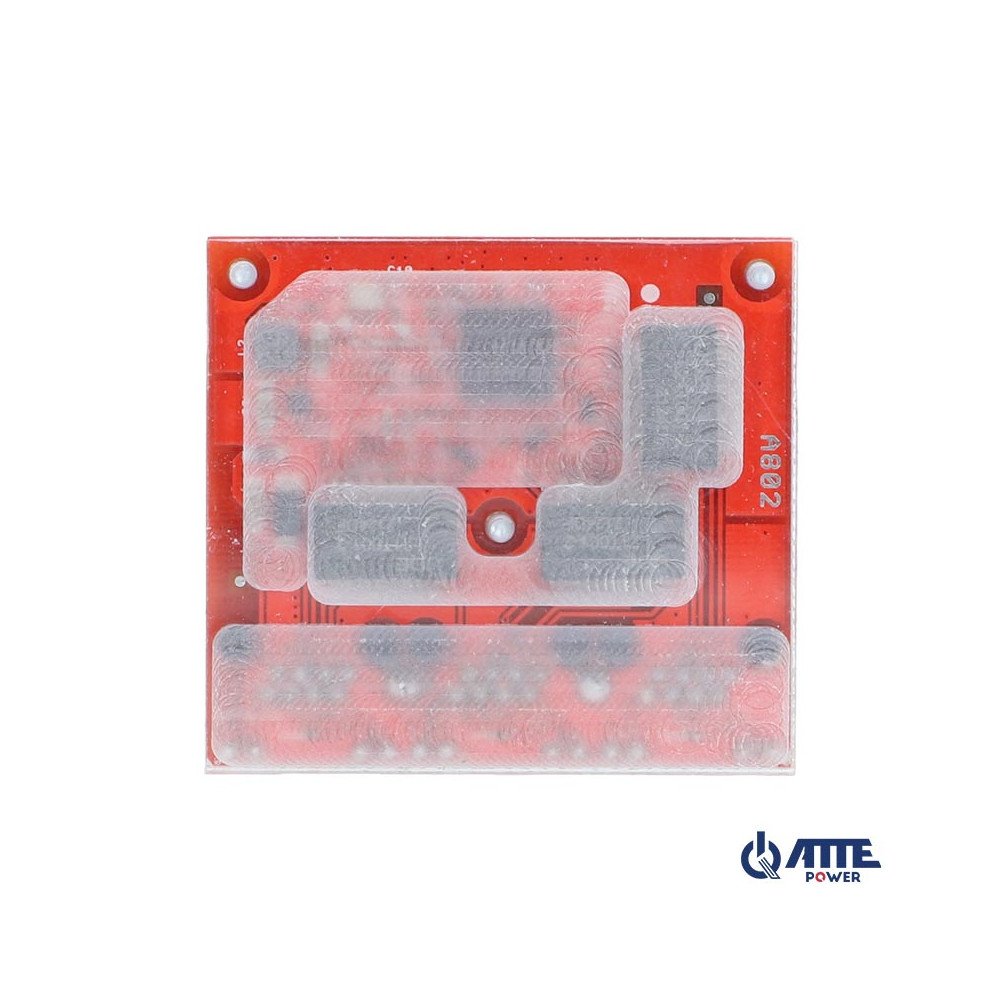

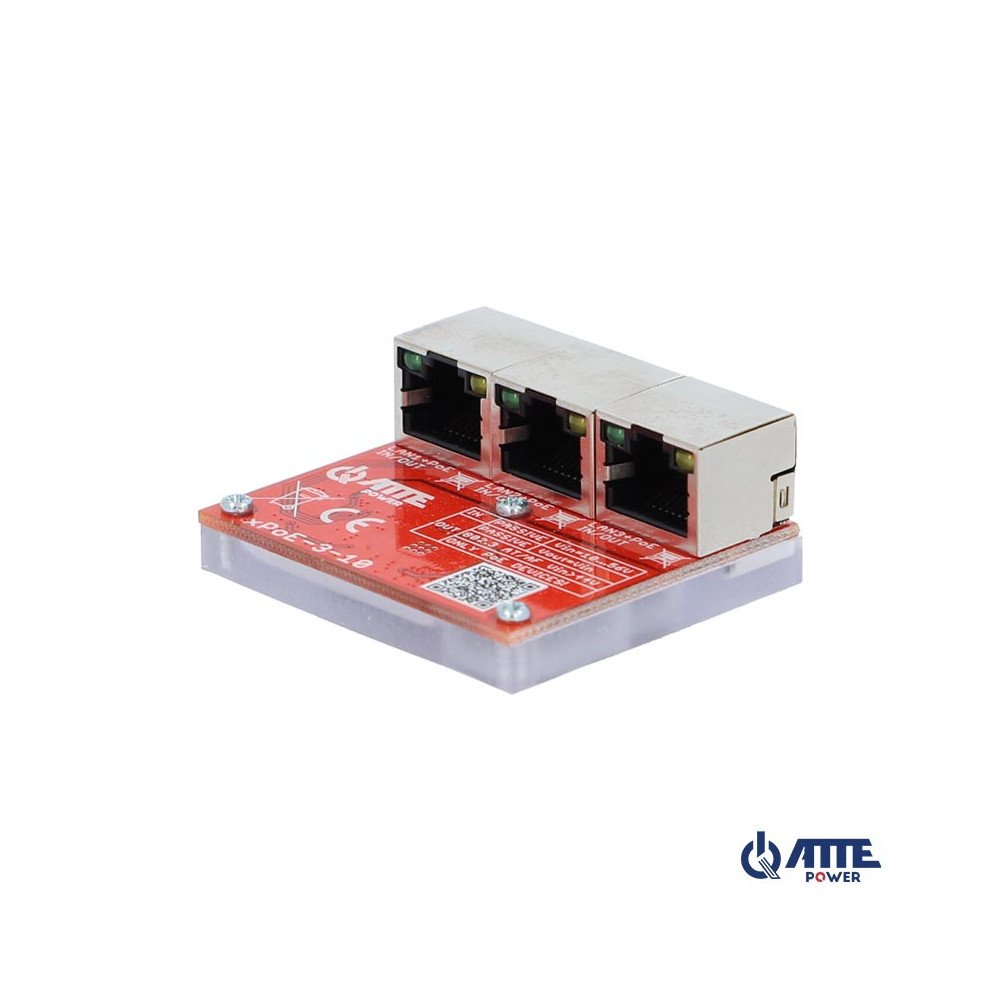

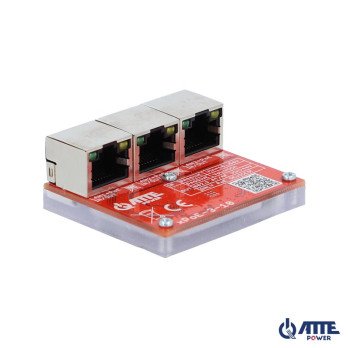

3-port PoE switch 10/100Mbps ATTE XPOE-3-10
€266.10
Tax included
3-port PoE switch 10/100Mbps, extender (3xPoE IN/OUT PASSIVE), powered by PoE (max 70W) ATTE XPOE-3-10
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
- The miniature design allows installation in a box under the camera
- powered from another PoE Passive switch
- distributes power to 2 PoE 802.3at/af cameras
- one device can power another (Atte Power Tree)
- amplifies and splits the network signal (fully functional 100Mbps switch)
- up to 70W total power for all ports
- easy and quick commissioning without the need to configure parameters
- wide range of operating temperatures
- very low power consumption ( 1W)
Technical data:
| Characteristic | Value |
|---|---|
| LAN ports | 3 RJ45 ports 10/100Mbps (auto MDI-MDIX, auto-negotiation) |
| Port functions | LAN 1 ... LAN 3: PoE INPUT (switch power supply): PASSIVE (up to 70W @55V) PoE PINS: 4.5 (V+) 7.8 (V-) |
| Port functions | LAN 1 ... LAN 3: PoE OUTPUT (power supply for PoE receivers): PASSIVE (up to 70W), 802.3af (up to 15.4W), 802.3at (up to 30W) PoE PINS: 4.5 (V+) 7.8 (V-) |
| Output voltage | Vout = Vin Attention! For PoE receivers 802.3at/af Vin 44VDC |
| Supply voltage | 10 ... 56 VDC (Vin) |
| Power consumption | 0,8 W |
| Port security | LAN 1 ... LAN 3: Overvoltage protection |

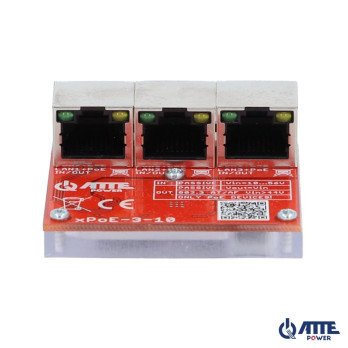

| Work signaling | LED in RJ45 connectors: LAN 1 ... LAN 3 (yellow) - presence of PoE power on the LAN 1 ... LAN 3 port LAN 1 ... LAN 3 (green) - link and data transmission on the LAN 1 ... LAN 3 port |
| Housing design | Polycarbonate |
| Operating temperature | -25°C...+65°C |
| Degree of protection | IP20 |
| Dimensions | 51 x 47 x 21 mm |
| Libra | 0,035kg |
