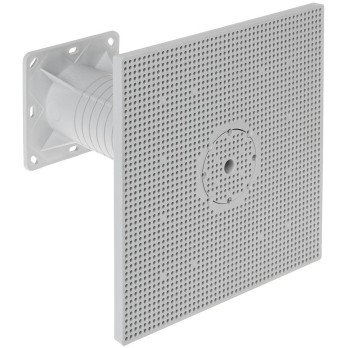

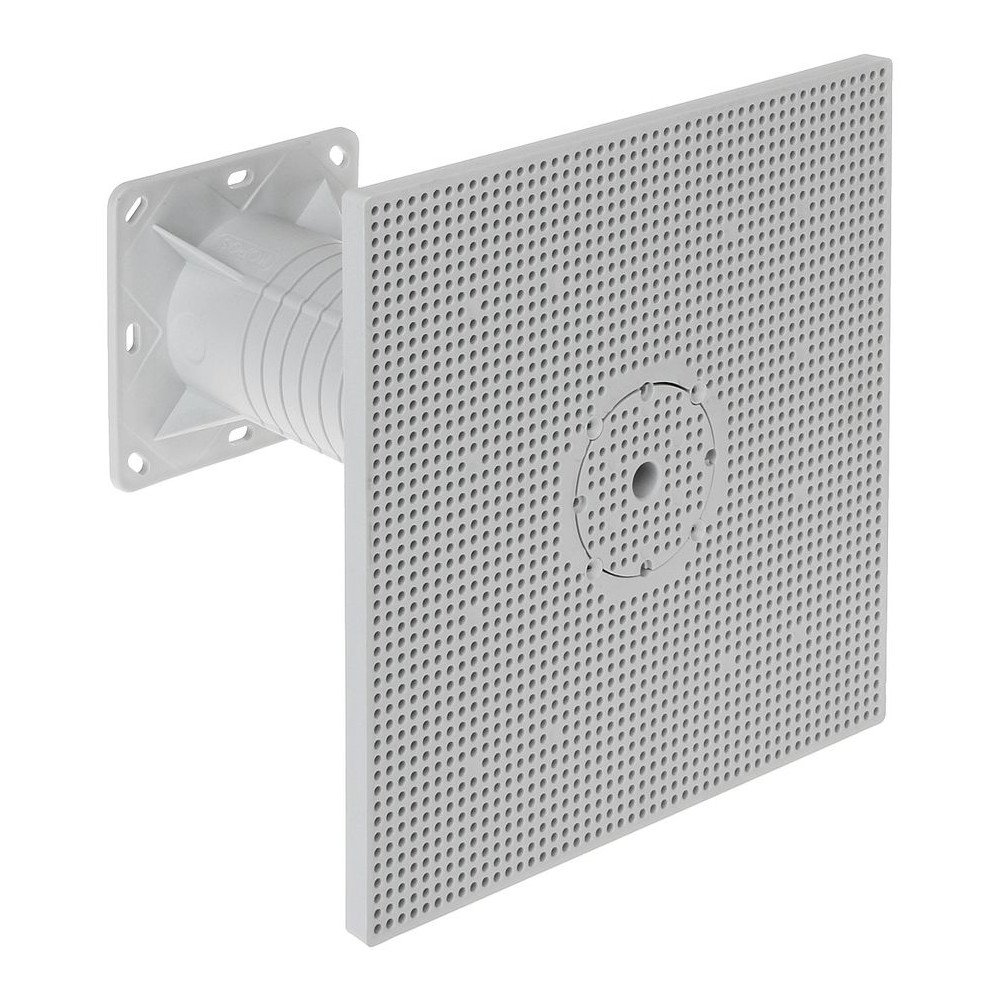

MOUNTING PLATE FOR INSULATION MDZ-XL-KB

€239.79

Tax included

Voltage isolation: ~ 400 V
Material: Self-extinguishing material
Color: Light gray
Insulation layer thickness: 50... 200 mm
Mounting hole spacing: 60 mm

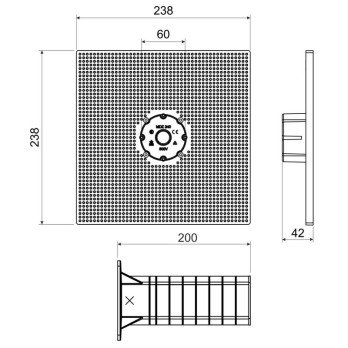

Dimensions: Ø 63 x 39 mm (can) 238 x 238 x 42 mm (mounting plate) 120 x 120 x 200 mm (carrier)

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

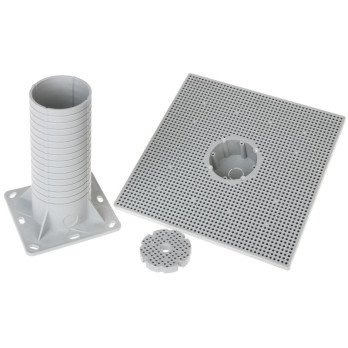

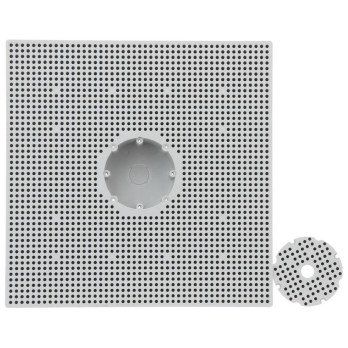

Mounting plate with an electrical installation box for installing electrical devices (e.g. outdoor lighting, motion detectors, etc.) on insulated building facades with a thickness of 50 to 200 mm

Durable construction

Elimination of thermal bridges

Before installation, it is necessary to cut the carrier, including the attached insulation, to the required length, according to the thickness of the insulation layer.

Number of segments:	1
Voltage isolation:	~ 400 V
Selected features:	for insulation systems temperature range: -25 °C ... 60 °C load capacity 40 N - 180 mm from the wall flammability index: 850 °C 4 mounting points (can) Expansion plugs, mounting screws, cover flush with the box - included
Material:	Self-extinguishing material
Color:	Light grey
Libra:	0.57 kg
Insulation layer thickness:	50 ... 200 mm
Mounting hole spacing:	60 mm
Dimensions:	Ø 63 x 39 mm (can) 238 x 238 x 42 mm (mounting plate) 120 x 120 x 200 mm (media)
Manufacturer / Brand:	DUNES
Guarantee:	2 lata
