SWITCHING BUFFER POWER SUPPLY DRC-100A

SWITCHING BUFFER POWER SUPPLY DRC-100A

€410.87
Tax included
  • Input voltage: 100 ... 240 V AC
  • Output voltage: 12 ... 15 V DC
  • Current capacity (total): 7 A
  • Battery charging current: 2.5 A
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system.

The DRC-100A is designed to be mounted on a 35 mm DIN rail

Power supply type: Impulse
Input voltage: 100 ... 240 V AND
Output voltage:
  • 12 ... 15 V DC (buffer operation)
  • 13.8 V DC (battery mode)
Current efficiency (total): 7 A
Battery charging current: 2.5 A
Moc: 96.6 W (max)
Security:
  • Short-circuit protection
  • Surge protection
  • Overload
  • Reverse connection
  • Against excessive discharge
Power supply operation check:
  • Signaling the presence of output voltage
  • Technical outputs of relay type Bat. Low, AC OK
Housing type: Plastic, mounting on a DIN rail, TS-35
Libra: 0.350 kg

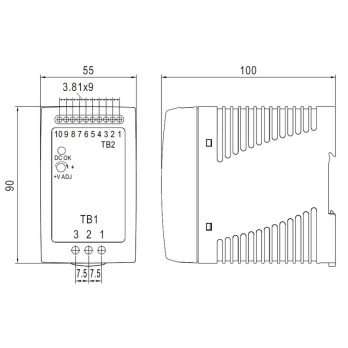

Dimensions: 55 x 90 x 100 mm
Manufacturer / Brand: MEAN WELL
Guarantee: 2 lata
