Encryptor: Yes Card reader: No Housing: Stainless steel Intended use: Internal/External Keyboard backlight: Yes Mounting: Flush-mounted

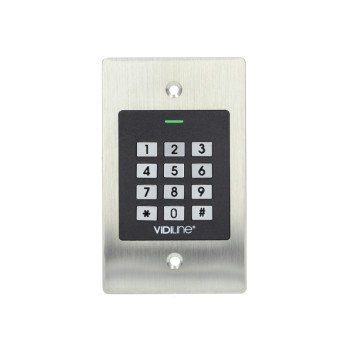

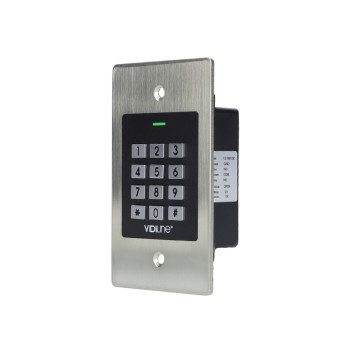

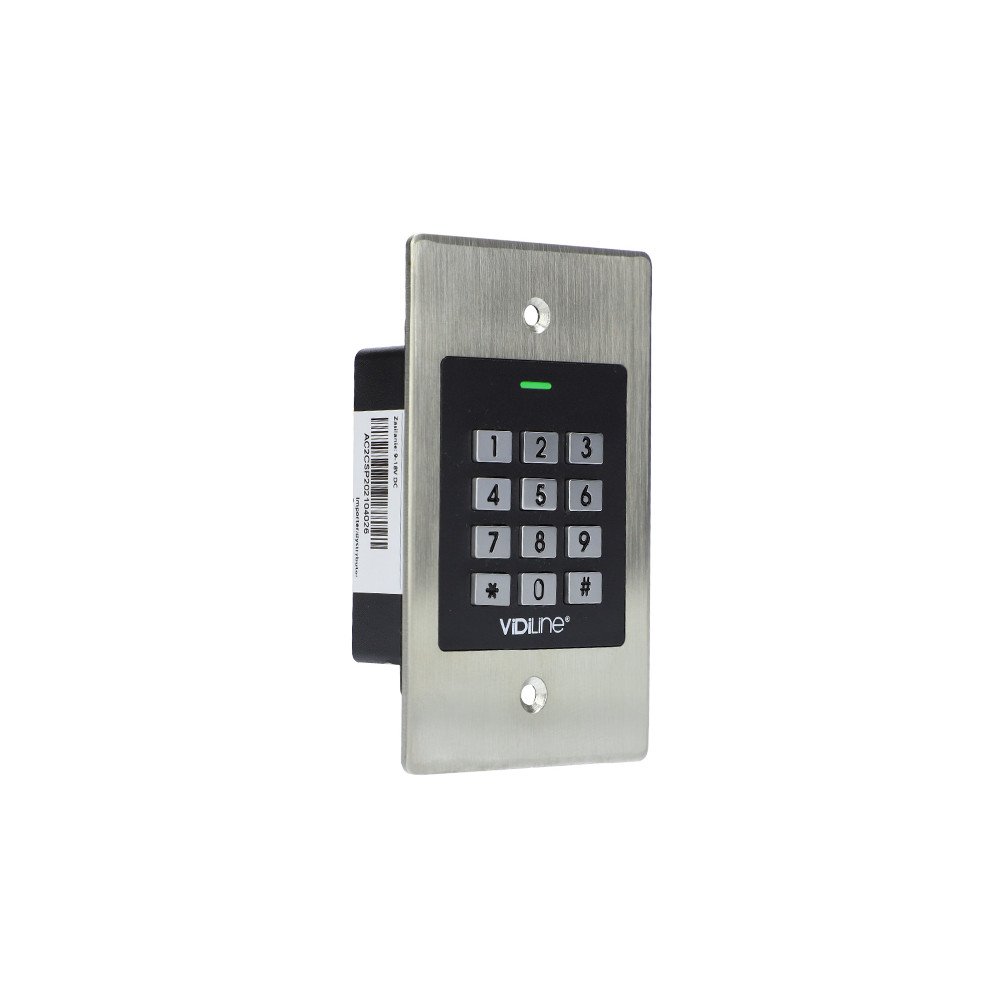

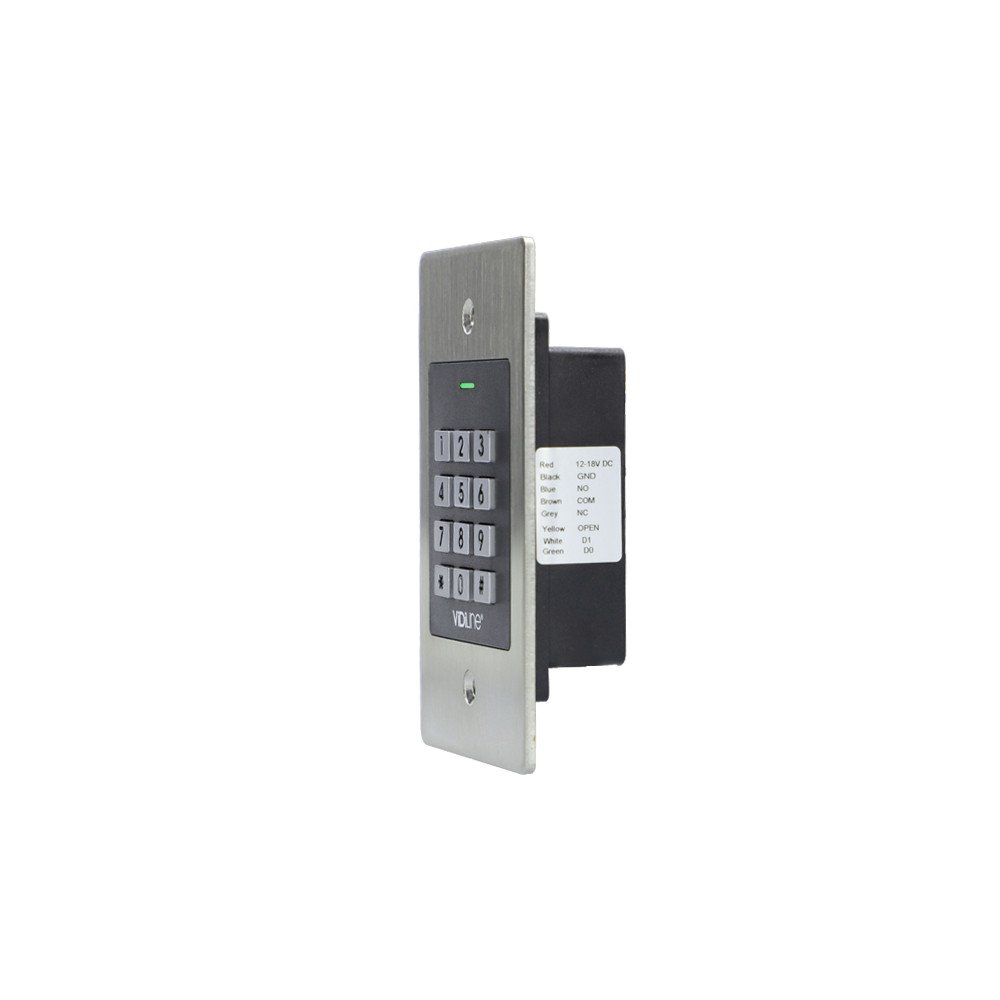

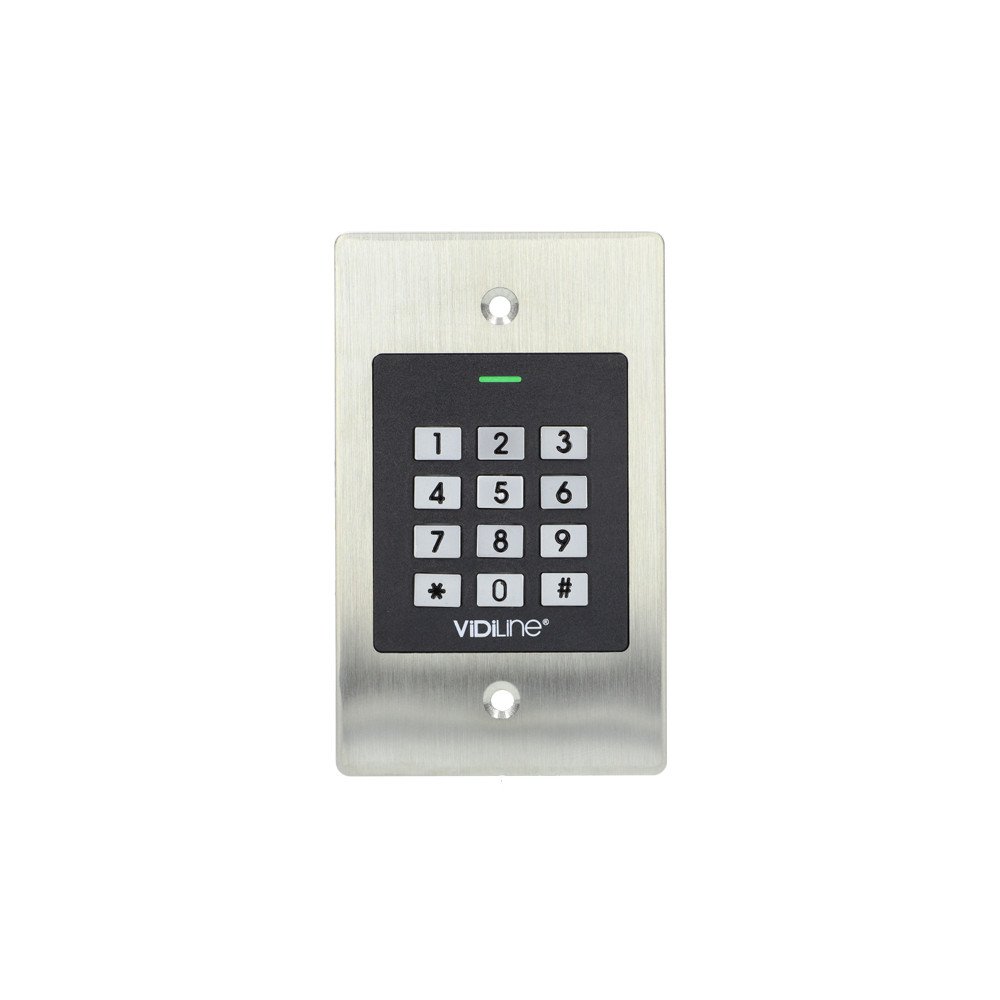

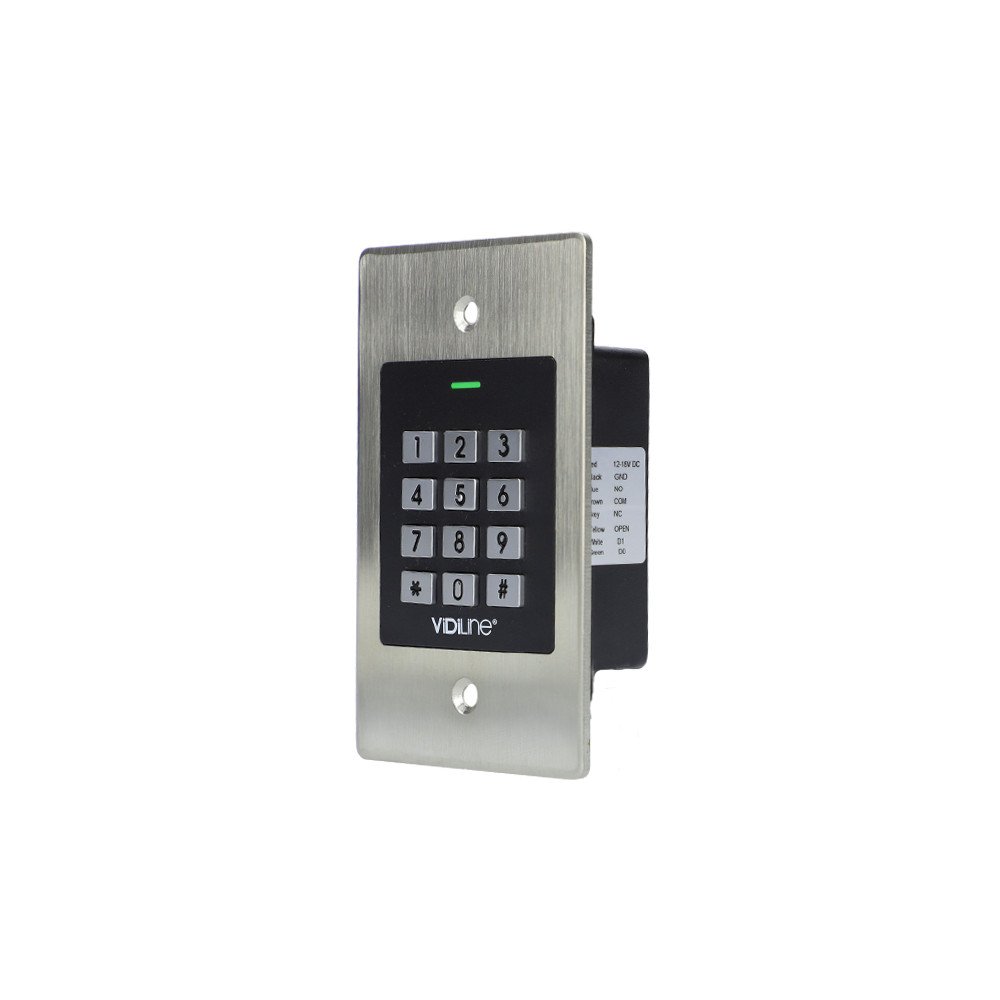

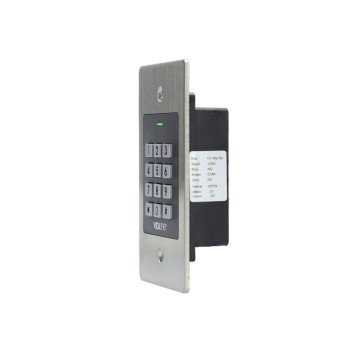

Autonomous Code Lock, Flush-mounted Card Reader VIDI-AC-2CS-P
€215.25
Tax included
Encryptor: Yes Card reader: No Housing: Stainless steel Intended use: Internal/External Keyboard backlight: Yes Mounting: Flush-mounted
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Autonomous access controller with a card reader and encoder in a flush-mounted version
VIDI-AC-2CS-Pis a multi-functional, autonomous single door controller. Made of high-quality materials, resistant to extreme weather conditions. It uses an Atmel microcontroller that ensures maximum performance in any environment. The operation is user-friendly.
Characteristics:- Compact design, metal plate for flush mounting
- Waterproof with IP66 certification
- One relay
- Support for up to 1000 users (990 normal and 10 guests)
- 3 types of access: access card, PIN number, access card with PIN number
- Supported card type: 125kHz
- PIN length 4~6 digits
- Tamper alarm
- Wiegand 26 bit output
- Wiegand 26/34 bit input with automatic identification
Our panel guarantees uninterrupted operation at extreme temperatures and is dustproof thanks to the IP66 tightness class.
Installation options:- Elevations
- Walls
- Door
- Fence posts
- Door frames

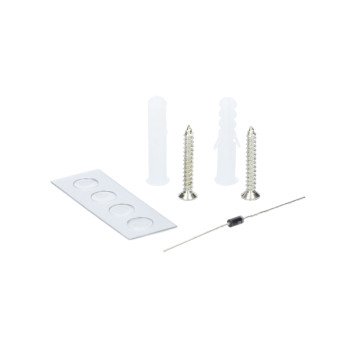

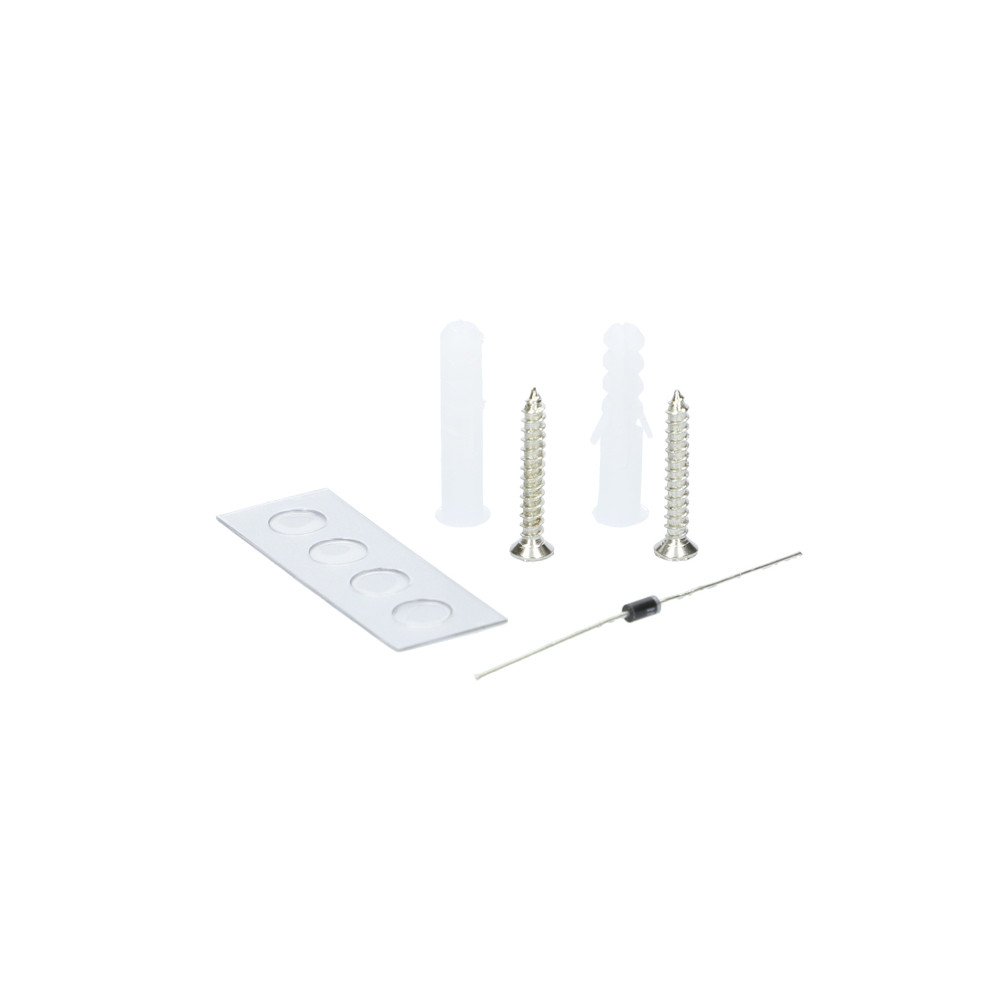

- Device 1 pc.
- Dioda 1N4004
- Mounting pins
- Mounting screws
- Key
- Screw-on covers
| Capacity Normal users Guests | 1000 cards/PIN numbers 990 10 |
| Power supply Power consumption in standby mode Energy consumption during operation | 12~18V DC ≤30mA ≤120mA |
| Keyboard | 12 buttons |
| Card reader Frequency Reading distance | EM 125kHZ 0~6cm |

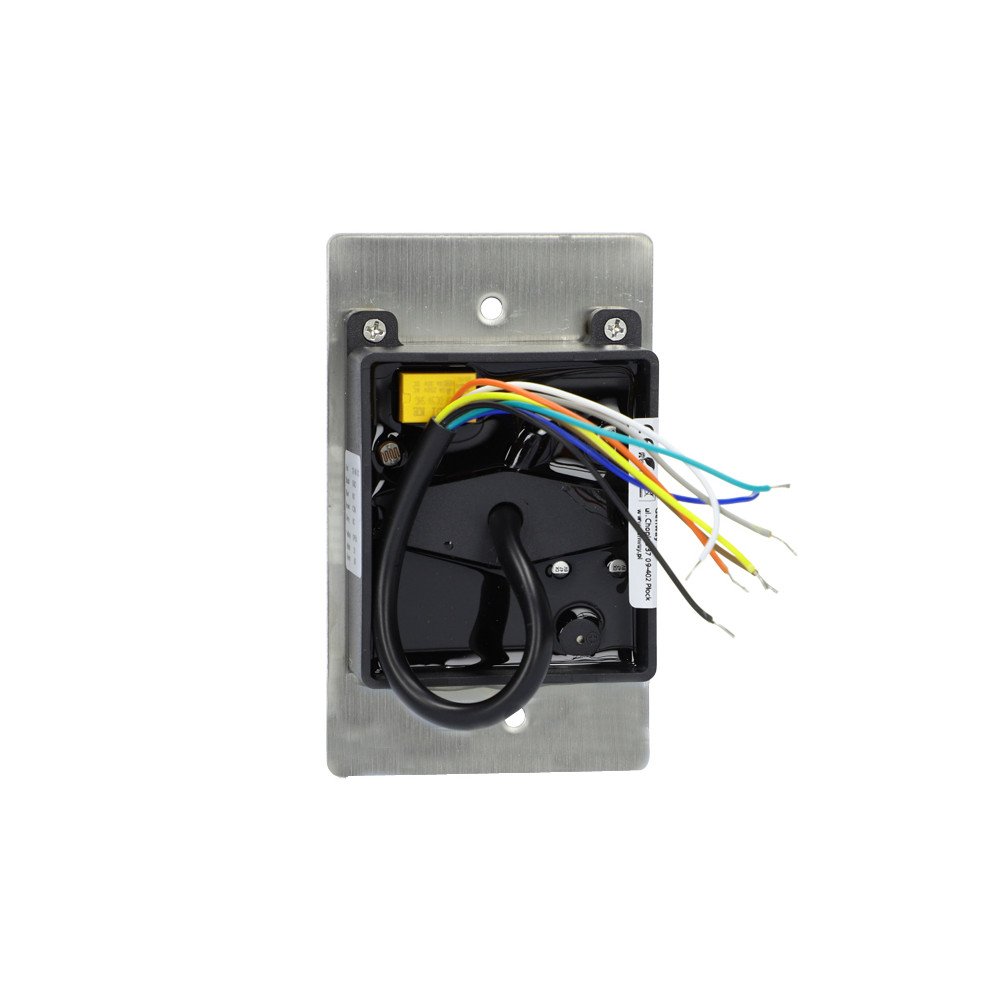

| Outputs/Inputs | Relay output (potential-free), exit button, Wiegand (input and output) |
| Relay Relay state time Relay load | One (NO, NC, COM) 0~99 seconds, default 5 seconds do 2A |
| Working conditions Temperature Humidity | Indoor/Outdoor -40°C~60°C up to 98% non-condensing |
| Construction Color Dimensions Libra | 2~6 cm |
| Comparison of the functionality of VidiLine access control devices | |||||||
| Model: | Connection: | Keyboard: | Card reader: | Fingerprint: | Case material: | Destiny: | Keyboard: |
| VIDI-AC-1C | Wired | (-) | Not | (-) | ABS material | Internal/External | (-) |
| VIDI-AC-2CS | Wired | Not | Not | (-) | ABS material | Internal/External | 2-row illuminated |
| VIDI-AC-3CSS | Wired | Not | Not | (-) | Metal | Internal/External | 2-row illuminated |
| VIDI-AC-3CSW | Wired | Not | Not | (-) | Metal | Internal/External | 3-row illuminated |
| VIDI-AC-4S-S | Wired | Not | (-) | (-) | Metal | Internal/External | 2-row illuminated |
| VIDI-AC-4S-W | Wired | Not | (-) | (-) | Metal | Internal/External | 3-row illuminated |
| VIDI-AC-2S-E | Wired | Not | (-) | (-) | ABS material | Internal | 2-row illuminated |
| VIDI-AC-2CS-P | Wired | Not | Not | (-) | Material Stainless steel | Internal/External | 3-row illuminated |
| VIDI-AC-2CS-E | Wired | Not | Not | (-) | ABS material | Internal | 2-row illuminated |
| VIDI-AC-F007 | Wired | (-) | Not | Not | Metal | Internal/External | (-) |
| VIDI-AC-F007-III | Wired | Not | (-) | Not | Metal | Internal/External | 3-row illuminated |
| VIDI-AC-3B-KIT | Wireless | Not | Not | (-) | ABS material | Internal | 2-row illuminated |
